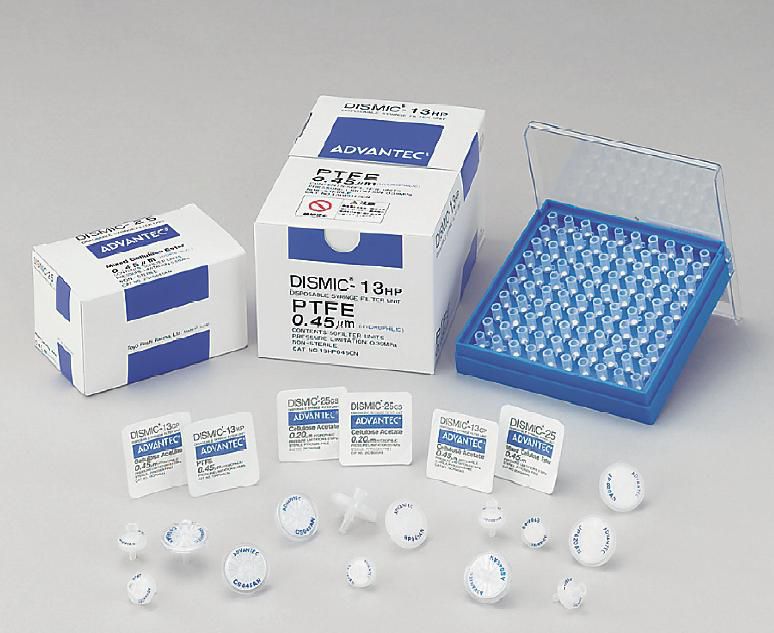

DISMIC® Disposable Membrane filter◈ Product Information
• Minimum sample hold-up : Unit housings are specifically designed to maximize sample recovery
• High purity : Non-pigmented housing and integral filter sealing assure that filtrates will not be adulterated due to pigment, dye, or adhesives leaching into the filtrate
• Convenient : Each unit is clearly marked with an identifying code to denote pore size, membrane material and housing polymer
• Sterile : Units can be purchased pre-sterilized and individually packaged, or non-sterile in bulk pack
• All polypropylene can be autoclaved Acrylic can not be autoclaved
► Mixed Cellulose Esters (MCE)
• Properties: A hydrophilic membrane
• Higher protein binding than cellulose acetate for most proteins
• High porosity provides a high flow rate
► Cellulose Acetate (Acetate)
• Standard: A commonly used hydrophilic membrane
• Low protein binding, suitable for aqueous protein solutions
• Nitrate-free, suitable for groundwater filtration
• Housing material: polypropylene (3, 13, 50 mm) or styreneacrylonitrile (25 mm)
► PTFE, hydrophilic
• Versatile: Good chemical resistance
• Compatible with many solvent mixtures used in HPLC, e.g. Acetonitrile/Water
► PTFE, hydrophobic
• Application: use as vent
◈ Specification
|
Diameter |
3 mm |
13 mm |
25 mm | |
|
Housing material |
PP |
PP |
PP |
Acrylic |
|
Filtration Area(cm2) |
0.06 |
0.9 |
4.0 |
4.0 |
|
Hold-up Volume(mL) |
≤0.01 |
≤0.03 |
≤0.1 |
≤0.1 |
|
Suggested capacity per filter unit(mL) |
<2 mL |
<10 mL |
<100 mL |
<100 mL |
|
Pressure limit(MPa/psi) |
0.51/74 |
0.51/74* |
0.51/74* |
0.51/74 |
|
Maximum Operating Temperature(℃/℉) |
60/140 |
60/140 |
60/140 |
45/113 |
|
Connections |
Inlet: female luer-lock | |||
◈ Ordering Information
|
Diam. |
Membrane |
Pore size |
Housing |
Quantity |
Non-Sterile |
Sterile | |
|
|
3 |
Cellulose |
0.20 |
Polypropylene |
100 |
03CP020AN |
03CP020AS |
|
0.45 |
Polypropylene |
100 |
03CP045AN |
03CP045AS | |||
|
PTFE, |
0.50 |
Polypropylene |
100 |
03JP050AN |
- | ||
|
|
13 |
Cellulose |
0.20 |
Polypropylene |
100 |
13CP020AN |
13CP020AS |
|
0.45 |
Polypropylene |
100 |
13CP045AN |
13CP045AS | |||
|
PTFE, |
0.20 |
Polypropylene |
100 |
13HP020AN |
- | ||
|
0.45 |
Polypropylene |
100 |
13HP045AN |
- | |||
|
PTFE, |
0.20 |
Polypropylene |
100 |
13JP020AN |
- | ||
|
0.50 |
Polypropylene |
100 |
13JP050AN |
- | |||
|
|
25 |
MCE |
0.20 |
Acrylic |
50 |
25AS020AN |
25AS020AS |
|
0.45 |
Acrylic |
50 |
25AS045AN |
25AS045AS | |||
|
Cellulose |
0.20 |
Acrylic |
50 |
25CS020AN |
25CS020AS | ||
|
0.45 |
Acrylic |
50 |
25CS045AN |
25CS045AS | |||
|
0.80 |
Acrylic |
50 |
25CS080AN |
25CS080AS | |||
|
|
PTFE, |
0.20 |
Polypropylene |
100 |
25HP020AN |
- | |
|
0.45 |
Polypropylene |
100 |
25HP045AN |
- | |||
|
PTFE, |
0.20 |
Polypropylene |
50 |
25JP020AN |
- | ||
|
0.50 |
Polypropylene |
50 |
25JP050AN |
- |
