ADVANTEC Membrane filter-Cellulose Acetate

◈ Product Information

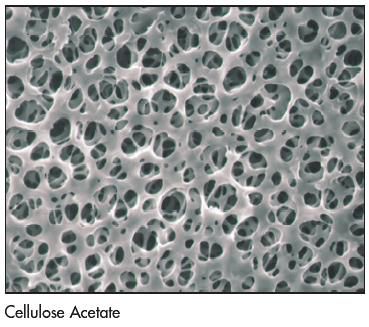

 • Composition : Mixture of cellulose triacetate and diacetate
 • Characteristics : Low static charge and high strength
 • Autoclavable : Withstands autoclaving temperatures up to 130°C without adversely affecting bubble point,
  flow rate or microbiological recovery
 • Clean : Lowest aqueous extractables (0.1 wt%) of all Advantec membranes
 • Relative to MCE (Mixed Cellulose Esters, Nitrocellulose):
   – improved solvent resistance to low molecular weight alcohols
   – better heat resistance
   – lower protein binding

► Applications
 • Enhanced recovery of fastidious gram positive organisms
 • Filtration of enzyme solutions
 • Diagnostic cytology
 • Receptor binding studies
  Note: Should not be prewet prior to loading into a holder and autoclaving.

► Specifications
Pore Size
(µm)
Bubble Point *1 Flow Rate *2 Porosity *3 (%) Thickness
(µm)
MPa psi Water
(mL/min/cm2)
Air
(L/min/cm2)
0.20 ≥0.25 ≥37.1 16 2 66 125
0.45 ≥0.17 ≥25.9 35 4 68 125
0.80 ≥0.068 ≥10.0 160 14 72 125
3.00 ≥0.034 ≥5.0 500 54 78 135
• Wetting time: <3 seconds to wet a 47 mm diameter disc with aqueous 1% methylene blue
• Refractive index = 1.47
• Maximum operating temperature = 180°C
• Ash content 1.5–3.5 µg/cm2

Definitions:
 *1. Bubble point is the minimum pressure required to force air
   through a membrane which has been prewet with water
 *2. Flow Rate indicates initial flow rate at 10 psi using a KGS 47 filter holder
   Water: using water prefiltered to 0.1 µm pore size
   Air: using 25°C air at 10 psi
 *3. Porosity refers to the percent open area

► Metal Content of White Plain Cellulose Acetate Membrane Filters (ppm)
Al <5.0 K 2.0 Ni <0.5
Ca 36.4 Li <0.5 Pb <0.5
Cd <0.1 Mg 1.9 Si 7.8
Cr 2.2 Mn <0.5 Sn <0.5
Cu 1.2 Mo <0.5 Ti <5.0
Fe 1.6 Na 5.9 Zn 0.6

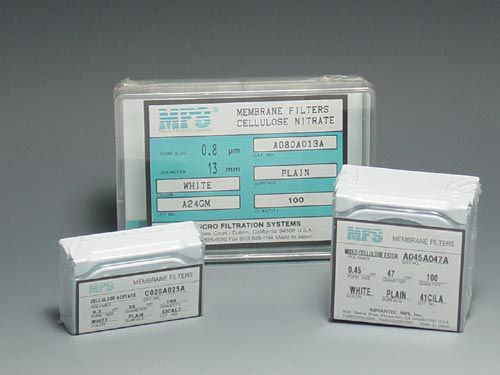

◈ Ordering Information
Pore Size
(µm)
Diameter
13 mm 25 mm 37 mm 47 mm 90 mm 142 mm 293 mm
package of 100 discs(NON-STERILE) package of 25 discs(NON-STERILE)
0.20 C020A013A C020A025A C020A037A C020A047A C020A090C C020A142C C020A293C
0.45 C045A013A C045A025A C045A037A C045A047A C045A090C C045A142C C045A293C
0.80 C080A013A C080A025A C080A037A C080A047A C080A090C C080A142C C080A293C
3.00 C300A013A C300A025A C300A037A C300A047A C300A090C C300A142C C300A293C
