ADVANTEC

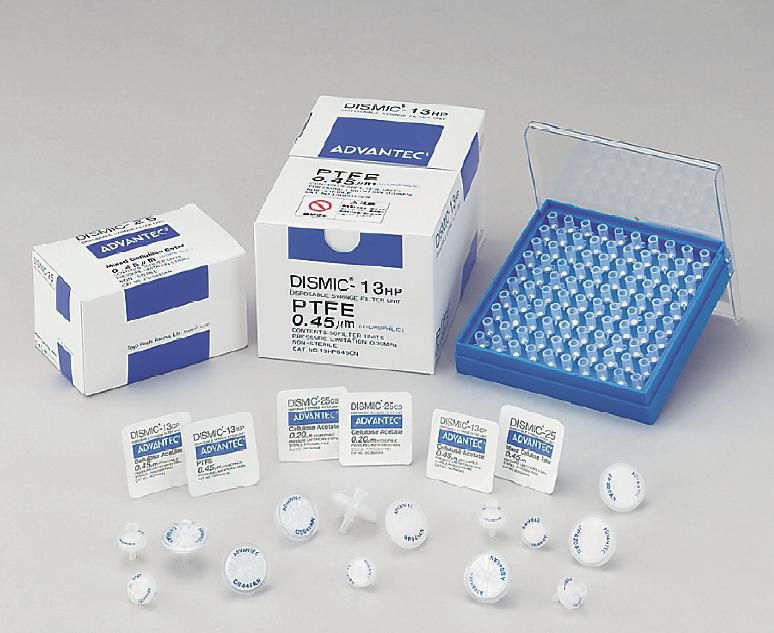

DISMIC® Disposable Membrane filter

◈ Product Information
 • Minimum sample hold-up : Unit housings are specifically designed to maximize sample recovery
 • High purity : Non-pigmented housing and integral filter sealing assure that filtrates will not be adulterated due to pigment, dye, or adhesives leaching into the filtrate
 • Convenient : Each unit is clearly marked with an identifying code to denote pore size, membrane material and housing polymer
 • Sterile : Units can be purchased pre-sterilized and individually packaged, or non-sterile in bulk pack
 • All polypropylene can be autoclaved Acrylic can not be autoclaved

► Mixed Cellulose Esters (MCE)
 • Properties: A hydrophilic membrane
 • Higher protein binding than cellulose acetate for most proteins
 • High porosity provides a high flow rate

► Cellulose Acetate (Acetate)
 • Standard: A commonly used hydrophilic membrane
 • Low protein binding, suitable for aqueous protein solutions
 • Nitrate-free, suitable for groundwater filtration
 • Housing material: polypropylene (3, 13, 50 mm) or styreneacrylonitrile (25 mm)

► PTFE, hydrophilic
 • Versatile: Good chemical resistance
 • Compatible with many solvent mixtures used in HPLC, e.g. Acetonitrile/Water

► PTFE, hydrophobic
 • Application: use as vent

◈ Specification

Diameter

3 mm

13 mm

25 mm

Housing material

PP

PP

PP

Acrylic

Filtration Area(cm2)

0.06

0.9

4.0

4.0

Hold-up Volume(mL)

≤0.01

≤0.03

≤0.1

≤0.1

Suggested capacity per filter unit(mL)

<2 mL

<10 mL

<100 mL

<100 mL

Pressure limit(MPa/psi)

0.51/74

0.51/74*

0.51/74*

0.51/74

Maximum Operating Temperature(℃/℉)

60/140

60/140

60/140

45/113

Connections

Inlet: female luer-lock
outlet: male luer slip

*13HP, 25HP; Pressure Limit = 0.39 MPa (57 psi)

◈ Ordering Information

Diam.

Membrane
material

Pore size
(µm)

Housing
material

Quantity
per
package

Non-Sterile

Sterile

3

Cellulose
Acetate

0.20

Polypropylene

100

03CP020AN

03CP020AS

0.45

Polypropylene

100

03CP045AN

03CP045AS

PTFE,
Hydrophobic

0.50

Polypropylene

100

03JP050AN

-

13

Cellulose
Acetate

0.20

Polypropylene

100

13CP020AN

13CP020AS

0.45

Polypropylene

100

13CP045AN

13CP045AS

PTFE,
Hydrophilic

0.20

Polypropylene

100

13HP020AN

-

0.45

Polypropylene

100

13HP045AN

-

PTFE,
Hydrophobic

0.20

Polypropylene

100

13JP020AN

-

0.50

Polypropylene

100

13JP050AN

-

25

MCE

0.20

Acrylic

50

25AS020AN

25AS020AS

0.45

Acrylic

50

25AS045AN

25AS045AS

Cellulose
Acetate

0.20

Acrylic

50

25CS020AN

25CS020AS

0.45

Acrylic

50

25CS045AN

25CS045AS

0.80

Acrylic

50

25CS080AN

25CS080AS

PTFE,
Hydrophilic

0.20

Polypropylene

100

25HP020AN

-

0.45

Polypropylene

100

25HP045AN

-

PTFE,
Hydrophobic

0.20

Polypropylene

50

25JP020AN

-

0.50

Polypropylene

50

25JP050AN

-
