Sample Loop

Agilent Sample Loop

◈ Product Information

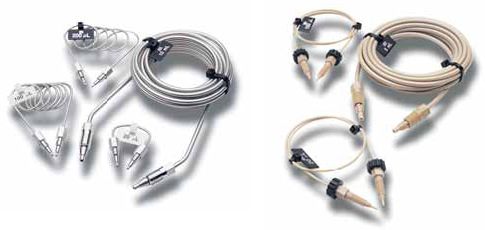

The right mix of injection valve sample loops are available for your application needs. Stainless steel and PEEK sample loops are factory-cut and finished to the highest quality. The stainless steel loop ends have a square cut and are burr-free for a flush connection to the valve and are supplied with unswaged fittings. The flexible PEEK loop ends are provided with a clean and straight cut for low dead volume connections

► Stainless Steel Sample Loops
　• Sample loops for Rheodyne 7725 Series and 7125 Series valves are not interchangeable due to the change in port angle
　• Actual volumes can differ due to tolerance of metal tubing bore
　• Accuracy of large metal loops is ±5%, intermediate loops ±10%, small loops ±30%

► PEEK Sample Loops
　• Inert to most organic solvents
　• Wall thickness, temperature, exposure time and concentration of organic solvents affect the durability of PEEK tubing
　• Concentrated nitric acid and sulfuric acid weaken PEEK tubing
　• THF, methylene chloride and DMSO cause PEEK to swell
　• Actual volumes can differ because of tolerance of tubing bore
　• Accuracy of large PEEK loops is ±14%, intermediate loops ±21%. small loops ±65%

◈ Ordering Information

	Description	ID(mm)	Part No.
	Stainless Steel Loops for 7125 and 7010 Injectors
	5㎕	0.18	1535-4860
	10㎕	0.30	0101-0376
	20㎕	0.51	0101-0377
	50㎕	0.51	0101-0378
	100㎕	0.51	0101-0379
	200㎕	0.76	0101-1252
	500㎕	0.76	0101-1251
	1ml	0.76	0101-1219
	2ml	1.00	0101-1250
	5ml	1.00	0101-1249
	Stainless Steel Loops for 7725 Injectors
	5㎕	0.18	0101-1248
	10㎕	0.30	0100-1923
	20㎕	0.30	0100-1922
	50㎕	0.51	0100-1924
	100㎕	0.51	0100-1921
	200㎕	0.76	0101-1247
	500㎕	0.76	0101-1246
	1ml	0.76	0101-1245
	2ml	1.00	0101-1244
	5ml	1.00	0101-1243
	PEEK Loops for 9725 Injectors
	5㎕	0.18	0101-1241
	10㎕	0.25	0101-1240
	20㎕	0.25	0101-1239
	50㎕	0.51	0101-1238
	100㎕	0.51	0101-1242
	200㎕	0.51	0101-1237
	500㎕	0.76	0101-1236
	1ml	0.76	0101-1235
	2ml	0.76	0101-1234
	5ml	0.76	0101-1230
	PEEK Loops for 3725 Injectors
	2ml	1.6	0101-1229
	5ml	1.6	0101-1228
	10ml	2.0	0101-1227
	20ml	2.0	0101-1226
