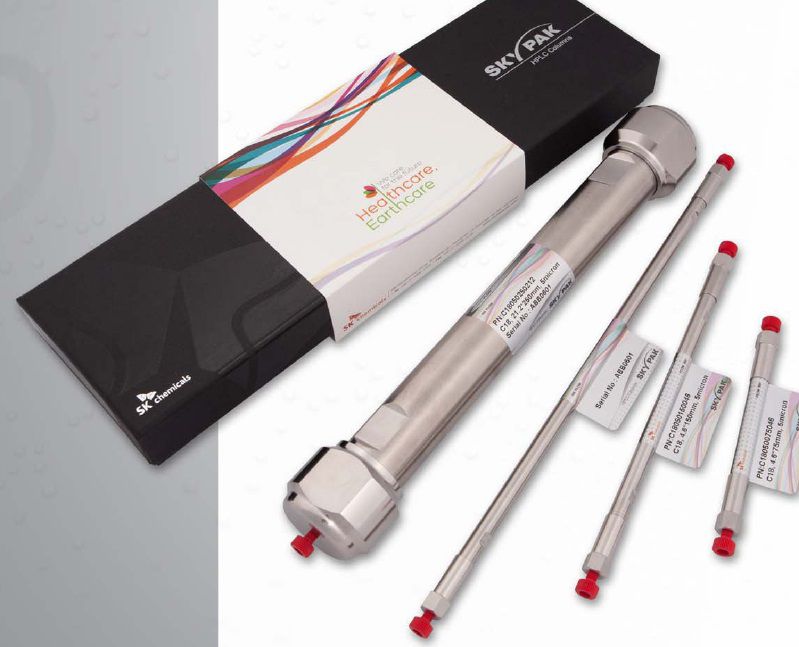

SKYPAK NH2

SK Chemicals

Introduction



SKYPAK is the excellent choice for high-performance liquid chromatography analysis. It offers a wide range of reversed phase and normal phase HPLC columns. SKYPAK can be delivered in packages varying in size from narrow bore columns to semi-preparative columns. All packing materials are based on a 3, 5, 10um porous spherical silica support. Every step of the manufacturing process is stringently controlled and HPLC column is pretested to guarantee the high quality performance and reproducible column-to-column performance.



Features



• Excellent reproducibility

• Narrow peaks for outstanding efficiency

• Narrow particle size distribution

• Lower column back pressure

• High pure and rigid silica

• Variety of chemistries



Custom-made HPLC Column



We provide a variety of column size. If the specific column size is not on the product list, custom-made service is available.



Delivery Service



SKYPAK can be delivered to customer within 5 days. In case of custom-made service, it takes a week to provide columns to customers. The delivery lead-time for customized columns depends on size of customer’s request.



Pre-tested Column



The high-quality performance of SKYPAK is guaranteed by the strict and well-systemized quality control procedure.



Specification



» Particle size : 3,5,10 um

» Particle shape : Spherical

» Specific surface area : 330 ㎡/g

» Pore size : 120 Å

» Pore volume : 1.00mL/g

» Purity : 99.99 %

» Bonded phase : NH2

» Endcapped : Yes

» Carbon load : 3.5 %

» Recommended pH range : 2 to 7.5



• High performance column for reversed phase, normal phase and weak anion exchange

• High efficiency

• Excellent peak shape

• High stability



Product List



Analytical Chromatography
Particle size(um)	Length(mm)	2.1 mm ID	3 mm ID	3.9 mm ID	4.6 mm ID
3	50	NH203050021	NH203050030	NH203050039	NH203050046
	70	NH203070021	NH203070030	NH203070039	NH203070046
	100	NH203100021	NH203100030	NH203100039	NH203100046
	150	NH203150021	NH203150030	NH203150039	NH203150046
	250	NH203250021	NH203250030	NH203250039	NH203250046
5	50	NH205050021	NH205050030	NH205050039	NH205050046
	70	NH205070021	NH205070030	NH205070039	NH205070046
	100	NH205100021	NH205100030	NH205100039	NH205100046
	150	NH205150021	NH205150030	NH205150039	NH205150046
	250	NH205250021	NH205250030	NH205250039	NH205250046
Semi-preparation
Particle size(um)		Length(mm)		10.0 mm ID	21.2 mm ID
5		50		NH205050100	NH205050212
		70		NH205070100	NH205070212
		100		NH205100100	NH205100212
		150		NH205150100	NH205150212
		250		NH205250100	NH205250212
10		100		NH210100100	NH210100212
		150		NH210150100	NH210150212
		250		NH210250100	NH210250212
