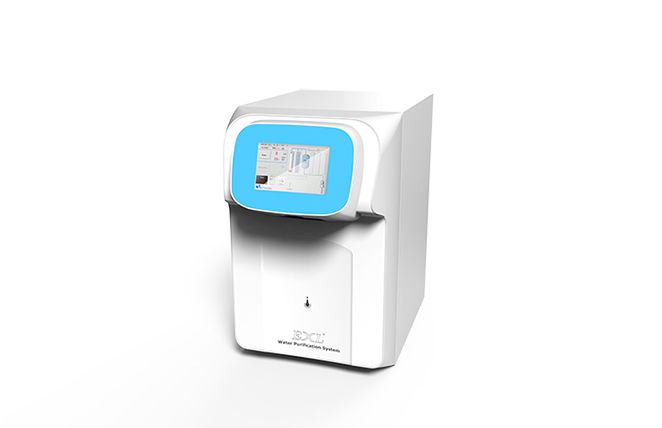

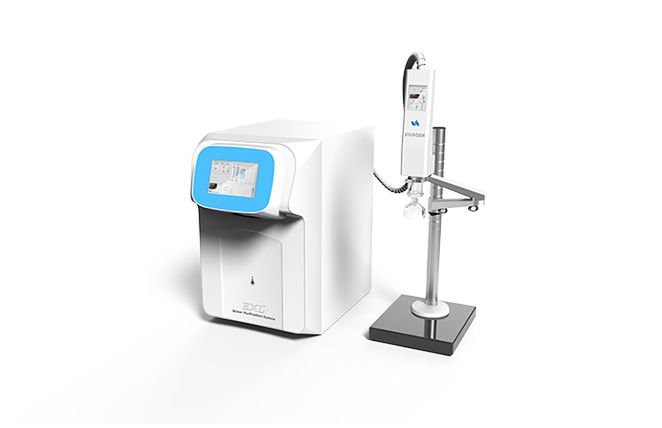

EXL7 Pure Plus

 Ultrapure

 Series

 EXL^®7 Pure Plus

 Resistivity (at 25℃)

 >5 MΩxcm

 Conductivity (at 25℃)

 <0.2 ㎲/cm

 Monovalent Ions (%)

-

 Polyvalent Ions (%)

-

 Particles

>99 %

 Microorganisms

>99 %

 Dissolved Organics (>300MW)

>99 %

 Product Flow Rate(±20% at 25℃)

 Up to 16(I/h)

 Maximum Recovery Rate*

 Approxi.50 %

 Temperature

 2-30℃

 Conductivity

 <500㎲/cm

 TDS

<250 ppm

 TOC

<2000 ppb

 Max.Premanent Hardness (max.CaCO₃)

360 ppm

 Free chlorine

3 ppm

 Iron(Total Fe Content)

 <0.1 ppm

 Fouling Index

<5 SDI

 Turbidity

<1 NTμ

 pH Value

4-10

 Input Pressure

0.5-6.9 bar, Recommended >2 bar
