Waters
17
ACQUITY UPLC CSH columns
WatersCSH (Charged Surface Hybrid) Technology The 1.7 µm Charged Surface Hybrid (CSH™) particle is Waters third generation hybrid particle technology. Based on Waters Ethylene Bridged Hybrid [BEH] particle technology, CSH particles incorporate a low level surface charge, designed to improve sample loadability and peak asymmetry in low-ionic-strength mobile phases, while maintaining the mechanical and chemical stability inherent in BEH particle technology. The advantages of CSH Technology include: · Superior peak shape for basic compounds
· Increased loading capacity
· Rapid column equilibration after changing mobile-phase pH
· Improved batch-to-batch reproducibility
· Exceptional stability at low and high pH CSH particle technology is also available in HPLC particle sizes [3.5 and 5 µm] in the XSelect™ family of HPLC columns enabling seamless transfer between HPLC and UPLC® Technology platforms. CSH Technology dramatically improves virtually all facets of LC column performance in acidic, low ionic strength mobile phases that are commonly used in the chromatographic laboratory. ACQUITY UPLC CSH C18 The ACQUITY UPLC® CSH™ C18 column overcomes the poor peak shape encountered with most modern C18 columns in low ionic strength mobile phases due to low loading capacity. With a controlled low level of a positive surface charge in acidic mobile phases, ACQUITY UPLC CSH C18 provides industry-leading peak shape for basic analytes in low pH mobile phases. The increased and improved loadability possible with CSH Technology permits the separation, identification and quantitation of closely eluting impurities or degradants. In this example, a high concentration (0.5 mg/mL) of imipramine was repeatedly injected while the concentration of amitriptyline was increased with each injection. Columns: ACQUITY UPLC CSH C18, 2.1 x 50 mm, 1.7 μm or Kinetex™ C18, 2.1 x 50 mm, 1.7 µm; Mobile phase A: H2O; Mobile phase B: MeCN; Mobile phase C: 2% HCOOH in H2O; 25 to 35% A in 2 minutes, 35 – 95% B from 2 – 3 minutes, %C was held at a constant 5%; Injection volume: 5 μL; Sample diluent: H2O; Sample concentration: Imipramine: 0.5 mg/mL; Amitriptyline: As indicated [% of Imipramine]; Column temperature 40 °C; Detection: UV @ 254 nm; System: ACQUITY UPLC H-Class with ACQUITY UPLC PDA. ACQUITY UPLC CSH Phenyl-Hexyl The ACQUITY UPLC® CSH™ Phenyl-Hexyl column provides complementary selectivity compared to a straight chain alkyl C18 column, particularly for aromatic species. With a controlled low level of a positive surface charge in acidic mobile phases, the ACQUITY UPLC CSH Phenyl-Hexyl column provides industry-leading peak shape for basic analytes in low pH mobile phases. Fast separation of basic drugs on an ACQUITY UPLC CSH Phenyl-Hexyl column, 2.1 x 50 mm, 1.7 μm; Mobile phase A: 10 mM NH4COOH, pH 3; Mobile phase B: MeCN; 5 to 55% B linear in 3 minutes; Injection volume: 4 μL; Column temperature 30 °C; Detection: UV @ 260 nm; Analytes: (1) aminopyrazine; (2) pindolol; (3) quinine; (4) quinine impurity; (5) labetalol; (6) diltiazem impurity; (7) diltiazem; (8) verapamil; (9) amitriptyline; System: ACQUITY UPLC with ACQUITY UPLC PDA. ACQUITY UPLC CSH Fluoro-Phenyl One of the challenges in designing stationary phases with large selectivity differences is maintaining an acceptable level of batch-to-batch reproducibility. Many commercially available columns with unique selectivities suffer from significant variability, particularly phases bonded with a propyl fluoro phenyl (PFP) ligand. The 1.7 µm ACQUITY UPLC® CSH™ Fluoro-Phenyl column overcomes this limitation due to the CSH Technology bonding process. This process not only yields exceptional batch-to-batch reproducibility, but sustained selectivity across particle sizes with its HPLC analog, XSelect™ CSH Fluoro-Phenyl [available in 3.5 and 5 µm particle sizes]. Reproducibility and scalability of ACQUITY UPLC CSH Fluoro-Phenyl [1.7 µm] and XSelect CSH Fluoro-Phenyl [3.5 and 5 µm]. Gradient separations on 2.1 x 50 mm columns containing nine different batches of CSH Technology, Fluoro-Phenyl representing three [1.7, 3.5 and 5 µm] particle sizes; Gradient: A: 15.4 mM ammonium formate, pH 3; B: acetonitrile; 5 to 90% B linear in 5 minutes; Temperature: 30 °C; Injection volume: 5 µL; Detection: 254 nm; Flow rate: 0.5 mL/min; Analytes: [1] thiourea; [2] resorcinol; [3] metoprolol; [4] 3-nitrophenol; [5] 2-chlorobenzoic acid; [6] amitriptyline; [7] diethylphthalate; [8] fenoprofen; [9] dipropylphthalate; [10] pyrenesulfonic acid; System: ACQUITY UPLC. 예일테크 2013.08.01
WatersCSH (Charged Surface Hybrid) Technology The 1.7 µm Charged Surface Hybrid (CSH™) particle is Waters third generation hybrid particle technology. Based on Waters Ethylene Bridged Hybrid [BEH] particle technology, CSH particles incorporate a low level surface charge, designed to improve sample loadability and peak asymmetry in low-ionic-strength mobile phases, while maintaining the mechanical and chemical stability inherent in BEH particle technology. The advantages of CSH Technology include: · Superior peak shape for basic compounds
· Increased loading capacity
· Rapid column equilibration after changing mobile-phase pH
· Improved batch-to-batch reproducibility
· Exceptional stability at low and high pH CSH particle technology is also available in HPLC particle sizes [3.5 and 5 µm] in the XSelect™ family of HPLC columns enabling seamless transfer between HPLC and UPLC® Technology platforms. CSH Technology dramatically improves virtually all facets of LC column performance in acidic, low ionic strength mobile phases that are commonly used in the chromatographic laboratory. ACQUITY UPLC CSH C18 The ACQUITY UPLC® CSH™ C18 column overcomes the poor peak shape encountered with most modern C18 columns in low ionic strength mobile phases due to low loading capacity. With a controlled low level of a positive surface charge in acidic mobile phases, ACQUITY UPLC CSH C18 provides industry-leading peak shape for basic analytes in low pH mobile phases. The increased and improved loadability possible with CSH Technology permits the separation, identification and quantitation of closely eluting impurities or degradants. In this example, a high concentration (0.5 mg/mL) of imipramine was repeatedly injected while the concentration of amitriptyline was increased with each injection. Columns: ACQUITY UPLC CSH C18, 2.1 x 50 mm, 1.7 μm or Kinetex™ C18, 2.1 x 50 mm, 1.7 µm; Mobile phase A: H2O; Mobile phase B: MeCN; Mobile phase C: 2% HCOOH in H2O; 25 to 35% A in 2 minutes, 35 – 95% B from 2 – 3 minutes, %C was held at a constant 5%; Injection volume: 5 μL; Sample diluent: H2O; Sample concentration: Imipramine: 0.5 mg/mL; Amitriptyline: As indicated [% of Imipramine]; Column temperature 40 °C; Detection: UV @ 254 nm; System: ACQUITY UPLC H-Class with ACQUITY UPLC PDA. ACQUITY UPLC CSH Phenyl-Hexyl The ACQUITY UPLC® CSH™ Phenyl-Hexyl column provides complementary selectivity compared to a straight chain alkyl C18 column, particularly for aromatic species. With a controlled low level of a positive surface charge in acidic mobile phases, the ACQUITY UPLC CSH Phenyl-Hexyl column provides industry-leading peak shape for basic analytes in low pH mobile phases. Fast separation of basic drugs on an ACQUITY UPLC CSH Phenyl-Hexyl column, 2.1 x 50 mm, 1.7 μm; Mobile phase A: 10 mM NH4COOH, pH 3; Mobile phase B: MeCN; 5 to 55% B linear in 3 minutes; Injection volume: 4 μL; Column temperature 30 °C; Detection: UV @ 260 nm; Analytes: (1) aminopyrazine; (2) pindolol; (3) quinine; (4) quinine impurity; (5) labetalol; (6) diltiazem impurity; (7) diltiazem; (8) verapamil; (9) amitriptyline; System: ACQUITY UPLC with ACQUITY UPLC PDA. ACQUITY UPLC CSH Fluoro-Phenyl One of the challenges in designing stationary phases with large selectivity differences is maintaining an acceptable level of batch-to-batch reproducibility. Many commercially available columns with unique selectivities suffer from significant variability, particularly phases bonded with a propyl fluoro phenyl (PFP) ligand. The 1.7 µm ACQUITY UPLC® CSH™ Fluoro-Phenyl column overcomes this limitation due to the CSH Technology bonding process. This process not only yields exceptional batch-to-batch reproducibility, but sustained selectivity across particle sizes with its HPLC analog, XSelect™ CSH Fluoro-Phenyl [available in 3.5 and 5 µm particle sizes]. Reproducibility and scalability of ACQUITY UPLC CSH Fluoro-Phenyl [1.7 µm] and XSelect CSH Fluoro-Phenyl [3.5 and 5 µm]. Gradient separations on 2.1 x 50 mm columns containing nine different batches of CSH Technology, Fluoro-Phenyl representing three [1.7, 3.5 and 5 µm] particle sizes; Gradient: A: 15.4 mM ammonium formate, pH 3; B: acetonitrile; 5 to 90% B linear in 5 minutes; Temperature: 30 °C; Injection volume: 5 µL; Detection: 254 nm; Flow rate: 0.5 mL/min; Analytes: [1] thiourea; [2] resorcinol; [3] metoprolol; [4] 3-nitrophenol; [5] 2-chlorobenzoic acid; [6] amitriptyline; [7] diethylphthalate; [8] fenoprofen; [9] dipropylphthalate; [10] pyrenesulfonic acid; System: ACQUITY UPLC. 예일테크 2013.08.01
16
ACQUITY UPLC BEH columns
WatersBEH (Ethylene Bridged Hybrid) Technology The 1.7 µm Ethylene Bridged Hybrid [BEH] particle is one of the key enablers behind UPLC® technology. It is available in three different pore sizes [130Å, 200Å and 300Å] and several bonded phases for reversed-phase and hydrophilic interaction chromatography and is applicable from small molecule to large biopharmaceutical analysis. Due to the intrinsic chemical stability of hybrid particle technology, a wider usable pH range [pH 1-12] can be employed, enabling a versatile and robust separation technology for method development. BEH particle technology is available in HPLC particle sizes [2.5, 3.5, 5 and 10 µm] in the XBridge™ family of HPLC columns, enabling seamless transfer between HPLC and UPLC technology platforms. ACQUITY UPLC BEH C18 and C8 Columns Providing unprecedented levels of peak asymmetry, efficiency and chemical stability, the 1.7 µm ACQUITY UPLC® BEH C18 and C8 columns are versatile, high-performance separation columns suitable for a diverse range of analytes. With the ability to operate between pH 1-12, these trifunctionally-bonded alkyl columns can employ the power of pH to impact the retention, selectivity and sensitivity of ionizable compounds while delivering exceptional low- and high-ph stability. EPA Method 8330 HPLC separations usually require temperature control of ± 1 °C since large shifts in selectivity can occur with small changes in temperature. The increased resolution of the UPLC technology allows for a robust and less temperature-sensitivity [up to ± 5 °C] separation. ACQUITY UPLC BEH HILIC Columns The ACQUITY UPLC® BEH HILIC column utilizes an unbonded BEH particle to improve the retention of very polar species as well as provide an orthogonal separation mode for mixtures of polar and ionizable compounds. The ACQUITY UPLC BEH HILIC column is optimized and tested to produce efficient, reproducible separations under UPLC® HILIC conditions and are designed to overcome a major weakness of HILIC stationary phases: chemical stability. The rugged BEH particle’s wide usable pH range overcomes this chemical instability and results in long column lifetimes. Separation of Very Polar Bases Using ACQUITY UPLC BEH HILIC Columns Opioid pain relievers such as morphine are used to manage chronic and acute pain. These types of drugs are extremely potent, resulting in low doses and concentrations in body fluids. The study of the efficacy and metabolism of morphine and its metabolites wihin the body requires selective and sensitive analytical methods such as Hydrophilic Interaction Chromatography (HILIC). In the HILIC separation shown above, the more polar metabolite morphine-3-ß-glucuronide elutes AFTER the more non-polar parent compound, morphine. ACQUITY UPLC BEH Phenyl Columns ACQUITY UPLC® BEH Phenyl columns incorporate a trifunctionally bonded phenyl-hexyl ligand to provide industry-leading pH stability, batch-to-batch reproducibility and exceptional peak shape compared to other commercially available phenyl columns. The ACQUITY UPLC BEH Phenyl column is designed to provide complementary selectivity to straight-chain alkyl columns, particularly for analytes containing aromatic rings. Caffeic Acid Derivatives in Echinacea Purpurea Separations The active components in various Echinacea preparations can be divided into three major groups: caffeic acid derivatives, polysaccharides, and lipophilic components. Studies have shown that there is a variation in the quality of popular Echinacea-containing products. Thus, scientific monitoring of Echinacea’s active ingredients is desired. Shown here are sub-four-minute separations of the primary caffeic acid derivatives—polyphenolic compounds that have been shown to possess antioxidant properties. ACQUITY UPLC BEH Shield RP18 Columns ACQUITY UPLC® BEH Shield RP18 columns incorporate a hydrophilic carbamate group within a C18 chain to produce exceptional peak shape for basic compounds as well as alternate selectivity compared to straight-chain alkyl columns. Fast Analgesics Separations Over-the-counter analgesics are designed purely for pain relief. Because of their low cost, effectiveness and safety, analgesics are recommended as a first line option by most physicians. Shown here are separations of seven popular analgesics in less than 1.5 minutes. Note the change in selectivity provided by the BEH Shield RP18 embedded polar ligand. ACQUITY UPLC BEH Amide Columns Hydrophilic Interaction Chromatography Since 2003, Wates has developed innovative stationary phases for Hydrophilic Interaction Chromatography [HILIC] to overcome the challenge of retaining extremely polar compounds. Based on Waters novel ethylene bridged hybrid [BEH] particle technology, ACQUITY UPLC® BEH Amide columns utilize a chemically stable, trifunctionally-bonded amide phase, enabling a new dimension in stability and versatility for HILIC separations. Designed to retain polar analytes and metabolites that are too polar to retain by reversed-phase [RP] chromatography, ACQUITY UPLC BEH Amide columns facilitate the use of a wide range of mobile phase pH [2-11] to facilitate the exceptional retention of polar analytes spanning a wide range in polarity, structural moiety and pKa. In addition to enhanced retention of polar compounds, these columns provide increased mass spectrometry response, direct compatibility with sample preparation eluates [PPT, LLE and SPE] as well as orthogonal selectivity compared to reversed-phase materials, making HILIC an attractive alternative separation technique. Separation of Water Soluble Vitamins Carbohydrate Analysis One of the most abundant and diverse classes of compounds analyzed by HILIC are carbohydrates [e.g., monosaccharides, disaccharides, oligosaccharides and polysaccharides]. The ACQUITY UPLC BEH Amide column is an exceptional tool for the analysis of carbohydrates, providing the following benefits: The 1.7 µm particle size enables high resolution, high speed analysis of carbohydrates in complex sample matrices while maintaining or improving chromatographic resolution. Increased chemical stability enables the use of high pH and high temperature to collapse reducing sugar anomers, shorten analysis times and improve MS detection. BEH particle technology, in combination with a trifunctionally-bonded amide phase, provides exceptional column lifetime, thus improving assay robustness. Unlike amine-based columns used for carbohydrate analysis, the ACQUITY UPLC BEH Amide column is not susceptible to Schiff base formation, thus improving quantitation accuracy. High pH mobile-phase compatibility facilitates MS detection without the need for derivatization, post column addition or complexing with a metal cation, thus dramatically simplifying sample pre-treatment before LC/MS analysis and improving assay sensitivity. UPLC/MS Analysis of Saccharides 예일테크 2013.08.01
WatersBEH (Ethylene Bridged Hybrid) Technology The 1.7 µm Ethylene Bridged Hybrid [BEH] particle is one of the key enablers behind UPLC® technology. It is available in three different pore sizes [130Å, 200Å and 300Å] and several bonded phases for reversed-phase and hydrophilic interaction chromatography and is applicable from small molecule to large biopharmaceutical analysis. Due to the intrinsic chemical stability of hybrid particle technology, a wider usable pH range [pH 1-12] can be employed, enabling a versatile and robust separation technology for method development. BEH particle technology is available in HPLC particle sizes [2.5, 3.5, 5 and 10 µm] in the XBridge™ family of HPLC columns, enabling seamless transfer between HPLC and UPLC technology platforms. ACQUITY UPLC BEH C18 and C8 Columns Providing unprecedented levels of peak asymmetry, efficiency and chemical stability, the 1.7 µm ACQUITY UPLC® BEH C18 and C8 columns are versatile, high-performance separation columns suitable for a diverse range of analytes. With the ability to operate between pH 1-12, these trifunctionally-bonded alkyl columns can employ the power of pH to impact the retention, selectivity and sensitivity of ionizable compounds while delivering exceptional low- and high-ph stability. EPA Method 8330 HPLC separations usually require temperature control of ± 1 °C since large shifts in selectivity can occur with small changes in temperature. The increased resolution of the UPLC technology allows for a robust and less temperature-sensitivity [up to ± 5 °C] separation. ACQUITY UPLC BEH HILIC Columns The ACQUITY UPLC® BEH HILIC column utilizes an unbonded BEH particle to improve the retention of very polar species as well as provide an orthogonal separation mode for mixtures of polar and ionizable compounds. The ACQUITY UPLC BEH HILIC column is optimized and tested to produce efficient, reproducible separations under UPLC® HILIC conditions and are designed to overcome a major weakness of HILIC stationary phases: chemical stability. The rugged BEH particle’s wide usable pH range overcomes this chemical instability and results in long column lifetimes. Separation of Very Polar Bases Using ACQUITY UPLC BEH HILIC Columns Opioid pain relievers such as morphine are used to manage chronic and acute pain. These types of drugs are extremely potent, resulting in low doses and concentrations in body fluids. The study of the efficacy and metabolism of morphine and its metabolites wihin the body requires selective and sensitive analytical methods such as Hydrophilic Interaction Chromatography (HILIC). In the HILIC separation shown above, the more polar metabolite morphine-3-ß-glucuronide elutes AFTER the more non-polar parent compound, morphine. ACQUITY UPLC BEH Phenyl Columns ACQUITY UPLC® BEH Phenyl columns incorporate a trifunctionally bonded phenyl-hexyl ligand to provide industry-leading pH stability, batch-to-batch reproducibility and exceptional peak shape compared to other commercially available phenyl columns. The ACQUITY UPLC BEH Phenyl column is designed to provide complementary selectivity to straight-chain alkyl columns, particularly for analytes containing aromatic rings. Caffeic Acid Derivatives in Echinacea Purpurea Separations The active components in various Echinacea preparations can be divided into three major groups: caffeic acid derivatives, polysaccharides, and lipophilic components. Studies have shown that there is a variation in the quality of popular Echinacea-containing products. Thus, scientific monitoring of Echinacea’s active ingredients is desired. Shown here are sub-four-minute separations of the primary caffeic acid derivatives—polyphenolic compounds that have been shown to possess antioxidant properties. ACQUITY UPLC BEH Shield RP18 Columns ACQUITY UPLC® BEH Shield RP18 columns incorporate a hydrophilic carbamate group within a C18 chain to produce exceptional peak shape for basic compounds as well as alternate selectivity compared to straight-chain alkyl columns. Fast Analgesics Separations Over-the-counter analgesics are designed purely for pain relief. Because of their low cost, effectiveness and safety, analgesics are recommended as a first line option by most physicians. Shown here are separations of seven popular analgesics in less than 1.5 minutes. Note the change in selectivity provided by the BEH Shield RP18 embedded polar ligand. ACQUITY UPLC BEH Amide Columns Hydrophilic Interaction Chromatography Since 2003, Wates has developed innovative stationary phases for Hydrophilic Interaction Chromatography [HILIC] to overcome the challenge of retaining extremely polar compounds. Based on Waters novel ethylene bridged hybrid [BEH] particle technology, ACQUITY UPLC® BEH Amide columns utilize a chemically stable, trifunctionally-bonded amide phase, enabling a new dimension in stability and versatility for HILIC separations. Designed to retain polar analytes and metabolites that are too polar to retain by reversed-phase [RP] chromatography, ACQUITY UPLC BEH Amide columns facilitate the use of a wide range of mobile phase pH [2-11] to facilitate the exceptional retention of polar analytes spanning a wide range in polarity, structural moiety and pKa. In addition to enhanced retention of polar compounds, these columns provide increased mass spectrometry response, direct compatibility with sample preparation eluates [PPT, LLE and SPE] as well as orthogonal selectivity compared to reversed-phase materials, making HILIC an attractive alternative separation technique. Separation of Water Soluble Vitamins Carbohydrate Analysis One of the most abundant and diverse classes of compounds analyzed by HILIC are carbohydrates [e.g., monosaccharides, disaccharides, oligosaccharides and polysaccharides]. The ACQUITY UPLC BEH Amide column is an exceptional tool for the analysis of carbohydrates, providing the following benefits: The 1.7 µm particle size enables high resolution, high speed analysis of carbohydrates in complex sample matrices while maintaining or improving chromatographic resolution. Increased chemical stability enables the use of high pH and high temperature to collapse reducing sugar anomers, shorten analysis times and improve MS detection. BEH particle technology, in combination with a trifunctionally-bonded amide phase, provides exceptional column lifetime, thus improving assay robustness. Unlike amine-based columns used for carbohydrate analysis, the ACQUITY UPLC BEH Amide column is not susceptible to Schiff base formation, thus improving quantitation accuracy. High pH mobile-phase compatibility facilitates MS detection without the need for derivatization, post column addition or complexing with a metal cation, thus dramatically simplifying sample pre-treatment before LC/MS analysis and improving assay sensitivity. UPLC/MS Analysis of Saccharides 예일테크 2013.08.01
15

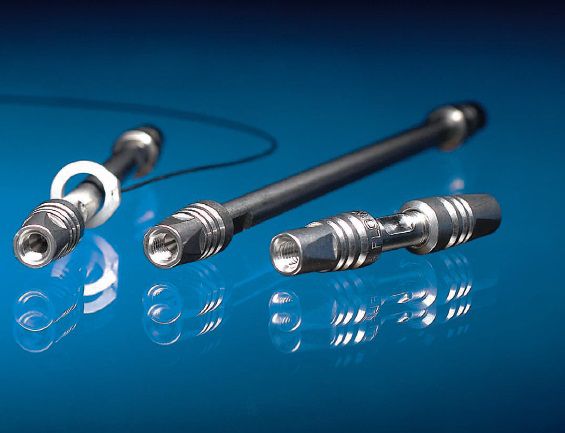

ACQUITY UPLC HSS columns
WatersHSS (High Strength Silica)Technology High pore volume HPLC particles do not possess the mechanical stability necessary to withstand the high pressures inherent of UPLC® separations. This mechanical limitation led Waters material scientists to develop a silica particle designed for high mechancial stability and appropriate morphology necessary to provide long column lifetimes and UPLC efficiencies at high pressures. The 1.8 µm High Strength Silica (HSS) particle is the first and only 100% silica particle designed, tested and intended for use in applications up tp 15,000 psi [1034 bar]. HSS particle technology is also available in HPLC particle sizes [3.5 and 5 µm] in the HSS family of HPLC columns, enabling seamless transfer between HPLC and UPLC technology platforms. Designing and Testing Pressure-tolerant UPLC Particles In this proprietary Waters particle strength test, chromatographic particles are packed into a column and mobile-phase flow is applied. As pressure increases, the particles are crushed, thereby restricting flow. The degree of deviation from the Ideal Profile line indicates particle fragility/strength. Waters BEH and HSS particles are two of the strongest chromatographic porous particles commercially available. ACQUITY UPLC HSS C18 Columns The ACQUITY UPLC® HSS C18 stationary phase features a tri-functionally bonded C18 ligand and proprietary endcapping process that not only yields superior peak shapes for bases at neutral pH, but also resists acid hydrolysis, thus providing extremely long lifetimes at low pH. Since the HSS particle is 100% silica, the ACQUITY UPLC HSS C18 chemistry is designed to work and excel under demanding highly acidic conditions. The ability to reliably operate at low pH [i.e., < pH 2] is important because pH manipulation is a key tool in controlling and manipulating selectivities of ionizable compounds during method development. The ACQUITY UPLC HSS C18 packing is the most stable bonded phase commercially available and does not suffer form peak shape issues that plague older stationary phases that rely upon steric protection [and lack of endcapping] to produce stability at low pH. ACQUITY UPLC HSS C18 Columns Resist Acid Hydrolysis at Low pH Low-pH Stability: 21 hr Exposure to 0.5% TFA at 60 °C In this test, the loss in retention of the neutral marker methyl paraben indicates bonded stationary phase loss due to acid hyrolysis. ACQUITY UPLC HSS C18 columns resist bonded phase loss due to novel bonding and endcapping processes. ACQUITY UPLC HSS C18 SB Columns ACQUITY UPLC® HSS C18 SB columns are designed specifically for chromatographers who routinely screen and categorize UPLC® column chemistries as part of their method development protocols. Intended for low pH separations which contain complex mixtures of basic and non-basic compunds, ACQUITY UPLC HSS C18 SB columns can produce separations that will be quite different in terms of selectivity as compared to those of most modern, high-coverage fully end-capped C18 stationary phases. How was this accomplished? Waters materials scientists bonded a trifunctional C18 ligand at an intermediate ligand density [i.e., 1.6 µmol/m2] without endcapping. In general, the higher silanophilic activity will promote greater retention for basic compounds whereas the intermediate C18-ligand density will produce slightly shorter [or equivalent] retention for non-basic compounds as compared to most modern high coverage, fully end-capped C18 stationary phases. Chromatographically, this unique combination will provide a practical method development tool for complex UPLC separations. Fast Separations of Tricyclic Antidepressants Tricyclic antidepressants [TCAs] are secondary and tertiary amines and were commonly prescribed to patients suffering from depression or other conditions. TCAs are being replaced by selective serotonin reuptake inhibitors (SSRIs). ACQUITY UPLC HSS C18 SB columns retain basic compounds such as tricyclic antidepressants longer than fully endcapped stationary phases due to the enhanced silanol activity on the non-endcapped HSS particle. ACQUITY UPLC HSS T3 Columns ACQUITY UPLC® HSS T3 columns utilize Waters innovative and proprietary T3 bonding. This is the same advanced bonding process that is behind the industry-leading polar-compound retention, aqueous mobile-phase compatibility and ultra-low MS bleed of Atlantis® T3 HPLC columns. T3 bonding utilizes a trifunctional C18 alkyl phase bonded at a ligand density that promotes polar compound retention and aqueous mobile-phase compatibility. The T3 endcapping is much more effective than traditional trimethyl silane [TMS] end-capping. This unique combination of bonding and endcapping provides superior polar compound retention and aqueous compatibility while also enhancing column performance, lifetime, peak shape and stability. Although the rugged and efficient ACQUITY UPLC BEH particle provides a wide pH range and superior peak shapes, its hydrophilic nature does not promote polar compound retention. ACQUITY UPLC HSS T3 columns are designed to retain and separate polar organic compounds in reversed-phase UPLC® separations. When compared to ACQUITY UPLC BEH C18 columns, most compounds are more strongly retained on ACQUITY UPLC HSS T3 columns. Superior Retention of Polar Compounds ACQUITY UPLC HSS T3 columns retain polar compounds longer than ACQUITY UPLC BEH C18 columns and contain one of the most retentive sub-2 µm column chemistries commercially available. 예일테크 2013.08.02
WatersHSS (High Strength Silica)Technology High pore volume HPLC particles do not possess the mechanical stability necessary to withstand the high pressures inherent of UPLC® separations. This mechanical limitation led Waters material scientists to develop a silica particle designed for high mechancial stability and appropriate morphology necessary to provide long column lifetimes and UPLC efficiencies at high pressures. The 1.8 µm High Strength Silica (HSS) particle is the first and only 100% silica particle designed, tested and intended for use in applications up tp 15,000 psi [1034 bar]. HSS particle technology is also available in HPLC particle sizes [3.5 and 5 µm] in the HSS family of HPLC columns, enabling seamless transfer between HPLC and UPLC technology platforms. Designing and Testing Pressure-tolerant UPLC Particles In this proprietary Waters particle strength test, chromatographic particles are packed into a column and mobile-phase flow is applied. As pressure increases, the particles are crushed, thereby restricting flow. The degree of deviation from the Ideal Profile line indicates particle fragility/strength. Waters BEH and HSS particles are two of the strongest chromatographic porous particles commercially available. ACQUITY UPLC HSS C18 Columns The ACQUITY UPLC® HSS C18 stationary phase features a tri-functionally bonded C18 ligand and proprietary endcapping process that not only yields superior peak shapes for bases at neutral pH, but also resists acid hydrolysis, thus providing extremely long lifetimes at low pH. Since the HSS particle is 100% silica, the ACQUITY UPLC HSS C18 chemistry is designed to work and excel under demanding highly acidic conditions. The ability to reliably operate at low pH [i.e., < pH 2] is important because pH manipulation is a key tool in controlling and manipulating selectivities of ionizable compounds during method development. The ACQUITY UPLC HSS C18 packing is the most stable bonded phase commercially available and does not suffer form peak shape issues that plague older stationary phases that rely upon steric protection [and lack of endcapping] to produce stability at low pH. ACQUITY UPLC HSS C18 Columns Resist Acid Hydrolysis at Low pH Low-pH Stability: 21 hr Exposure to 0.5% TFA at 60 °C In this test, the loss in retention of the neutral marker methyl paraben indicates bonded stationary phase loss due to acid hyrolysis. ACQUITY UPLC HSS C18 columns resist bonded phase loss due to novel bonding and endcapping processes. ACQUITY UPLC HSS C18 SB Columns ACQUITY UPLC® HSS C18 SB columns are designed specifically for chromatographers who routinely screen and categorize UPLC® column chemistries as part of their method development protocols. Intended for low pH separations which contain complex mixtures of basic and non-basic compunds, ACQUITY UPLC HSS C18 SB columns can produce separations that will be quite different in terms of selectivity as compared to those of most modern, high-coverage fully end-capped C18 stationary phases. How was this accomplished? Waters materials scientists bonded a trifunctional C18 ligand at an intermediate ligand density [i.e., 1.6 µmol/m2] without endcapping. In general, the higher silanophilic activity will promote greater retention for basic compounds whereas the intermediate C18-ligand density will produce slightly shorter [or equivalent] retention for non-basic compounds as compared to most modern high coverage, fully end-capped C18 stationary phases. Chromatographically, this unique combination will provide a practical method development tool for complex UPLC separations. Fast Separations of Tricyclic Antidepressants Tricyclic antidepressants [TCAs] are secondary and tertiary amines and were commonly prescribed to patients suffering from depression or other conditions. TCAs are being replaced by selective serotonin reuptake inhibitors (SSRIs). ACQUITY UPLC HSS C18 SB columns retain basic compounds such as tricyclic antidepressants longer than fully endcapped stationary phases due to the enhanced silanol activity on the non-endcapped HSS particle. ACQUITY UPLC HSS T3 Columns ACQUITY UPLC® HSS T3 columns utilize Waters innovative and proprietary T3 bonding. This is the same advanced bonding process that is behind the industry-leading polar-compound retention, aqueous mobile-phase compatibility and ultra-low MS bleed of Atlantis® T3 HPLC columns. T3 bonding utilizes a trifunctional C18 alkyl phase bonded at a ligand density that promotes polar compound retention and aqueous mobile-phase compatibility. The T3 endcapping is much more effective than traditional trimethyl silane [TMS] end-capping. This unique combination of bonding and endcapping provides superior polar compound retention and aqueous compatibility while also enhancing column performance, lifetime, peak shape and stability. Although the rugged and efficient ACQUITY UPLC BEH particle provides a wide pH range and superior peak shapes, its hydrophilic nature does not promote polar compound retention. ACQUITY UPLC HSS T3 columns are designed to retain and separate polar organic compounds in reversed-phase UPLC® separations. When compared to ACQUITY UPLC BEH C18 columns, most compounds are more strongly retained on ACQUITY UPLC HSS T3 columns. Superior Retention of Polar Compounds ACQUITY UPLC HSS T3 columns retain polar compounds longer than ACQUITY UPLC BEH C18 columns and contain one of the most retentive sub-2 µm column chemistries commercially available. 예일테크 2013.08.02
14
eXtended Performance [XP]
Waters eXtended Performance [XP] 2.5 µm Columns are high efficiency, low backpressure HPLC columns that can be easily utilized across all HPLC, UHPLC and UPLC Technology platforms. Low Backpressure. High Throughput. Improved Productivity. 40% lower backpressure than sub-2-µm UPLC columns Increase flow rate to increase throughput Equivalent backpressure and superior performance to core-shell columns Improve HPLC productivity 2 - 4x compared to 3.5 - 5 µm particle HPLC columns Unmatched Selectivity Choice. 14 chemistries that include C18, Phenyl-Hexyl, C8, embedded polar, HILIC, Amide, Cyano and PFP columns 3 distinct particles including silica, hybrid and charged surface hybrid Directly scalable to 1.7/1.8 µm UPLC columns and larger 3.5/5 µm HPLC columns 200+ configurations resulting in more than 400 part numbers Rapid Method Optimization within Current Pharmacopeia Guidelines. Transfer methods TODAY within current pharmacopeia guidelines Utilize on an ACQUITY UPLC System to future-proof your method 예일테크 2013.08.02
Waters eXtended Performance [XP] 2.5 µm Columns are high efficiency, low backpressure HPLC columns that can be easily utilized across all HPLC, UHPLC and UPLC Technology platforms. Low Backpressure. High Throughput. Improved Productivity. 40% lower backpressure than sub-2-µm UPLC columns Increase flow rate to increase throughput Equivalent backpressure and superior performance to core-shell columns Improve HPLC productivity 2 - 4x compared to 3.5 - 5 µm particle HPLC columns Unmatched Selectivity Choice. 14 chemistries that include C18, Phenyl-Hexyl, C8, embedded polar, HILIC, Amide, Cyano and PFP columns 3 distinct particles including silica, hybrid and charged surface hybrid Directly scalable to 1.7/1.8 µm UPLC columns and larger 3.5/5 µm HPLC columns 200+ configurations resulting in more than 400 part numbers Rapid Method Optimization within Current Pharmacopeia Guidelines. Transfer methods TODAY within current pharmacopeia guidelines Utilize on an ACQUITY UPLC System to future-proof your method 예일테크 2013.08.02
13
XSelect Columns
WatersXSelect Columns XSelect™ HPLC columns are designed for scientists who routinely develop chromatographic methods. They provide you with a diverse selection of sorbents to help you separate the most difficult analyte co-elutions. XSelect columns are: Designed for selectivity – improve your ability to separate co-eluting peaks Ideal for rapid method development – reduce the time and cost spent developing methods Intended for isolation and purification – highest analyte mass loading available The XSelect™ family of columns contains both advanced hybrid CSH technology, as well as, silica-based HSS technology with a broad selection of optimized bonded ligands. It is the combination of base particle and bonded ligands that influences analyte selectivity. Each, when used alone, does not create dramatic selectivity changes; however, in combination, the substrate and ligand create the ultimate tools for enhancing analyte selectivity. CSH Technology The third generation of hybrid particle technology has evolved to create a Charged Surface Hybrid (CSH™) particle. Based on Waters patented Ethylene-Bridged Hybrid [BEH] particle technology, the CSH particles incorporate a low-level surface charge, designed to improve sample loadability and peak asymmetry in low-ionic-strength mobile phases, while maintaining the mechanical and chemical stability inherent in BEH particle technology. Advantages of CSH Technology include: Superior peak shape for basic compounds Increased loading capacity Rapid column equilibration after changing mobile-phase pH Improved batch-to-batch reproducibility Excellent stability at low pH The CSH particle is formed from a synthetic pathway starting with an unbonded BEH particle. Each step of the process is carefully monitored and process controlled to ensure that the result yields a highly stable and reproducible product for subsequent ligand bonding. The process starts by chemically bonding a surface charge to the BEH particle creating a Charged Surface Hybrid. This process is highly controlled to exacting standards to ensure optimized surface coverage. Too much surface charge, or too little surface charge, hinders chromatographic performance and will result in a sorbent that offers poor analyte loadability and peak shape. The final step of the particle synthesis is the bonding and end-capping using the desired ligands. The controlled surface ratio of bonded ligand to end-cap is critical to final column performance. CSH Technology dramatically improves virtually all facets of LC column performance in acidic, low-ionic-strength mobile phases that are commonly used in the chromatographic laboratory. HSS Technology High pore volume silica-based HPLC particles do not possess the mechanical stability necessary to withstand the high pressures inherent of UPLC® separations. This becomes important when your laboratory needs to transfer methods from your existing HPLC instrumentation to an ACQUITY UPLC® system. This mechanical limitation led Waters material scientists to develop a silica particle designed for high mechancial stability and provide long column lifetimes and UPLC efficiencies at high pressures. The High Strength Silica (HSS) particle is the first and only 100% silica-based particle designed, tested and intended for both HPLC and UPLC separations [1034 bar]. Column Chemistries Waters full line of state-of-the-art XSelect™ HPLC columns are chosen by scientists who understand that performance and innovation are linked and their success depends on them. XSelect CSH C18 - general purpose columns that provide alternative selectivity compared to other C18 sorbents. Charged Surface Hybrid (CSH™) technology helps overcome column related problems such as peak shape asymmetry and poor loading for basic compounds, column bleed, and slow mobile-phase re-equilibration. XSelect CSH Fluoro-Phenyl - designed to maximize selectivity differences, and provides maximum method development freedom, especially when using low-pH mobile phases. The non-encapped sorbent provides enhanced retention of acidic compounds. XSelect CSH Phenyl-Hexyl - provides alternative analyte selectivity compared to traditional reversed-phase columns and are a valuable tool for method development. The trifunctionally bonded C6 phenyl-ligand is a robust, low bleed sorbent that selectively retains polyaromatic compounds through pi-pi interactions XSelect HSS C18 - the most stable commercially available bonded phase for low-pH mobile phases, and does not suffer from peak shape issues that plague older stationary phases, which rely upon steric protection (and lack of endcapping) to produce stability at low pH. XSelect HSS C18 SB - intended for low pH separations that contain complex mixtures of basic and non-basic compounds. XSelect HSS C18 SB columns provide alternative analyte selectivity compared to most modern, high coverage, fully endcapped C18 stationary phases. XSelect HSS T3 - trifunctional alkyl-C18-bonded phase that is compatible with 100% aqueous mobile phases and provides ultra-low MS bleed, while promoting superior polar compound retention. XSelect HSS PFP - a non-endcapped silica-based HPLC column designed for low-pH separations that require alternative selectivity compared to a fully endcapped, high coverage C18 phase. XSelect HSS CN - an ultra-performance general purpose propyl cyano bonded phase that provides superior peak shape for bases, increased retention, and extremely long column lifetimes at low pH. Selectivity Method development scientists use selectivity and retentivity to influence chromatographic behavior. The selection of phases in the XSelect™ family offers the chromatographer the ability to retain highly polar analytes using XSelect HSS T3, which is complimentary to the retention behavior offered by XSelect CSH™ fluoro-phenyl and phenyl phases. Selectivity is manipulated through the use of pH, mobile-phase buffer strength, organic modifier, and column choice. Mobile-phase conditions and organic modifier are easy to control and understand. It is much more difficult for a chromatographer to determine how different one stationary phase is from another. By plotting retention factors to compare columns, you can easily determine how different a particular column is to another. 예일테크 2013.08.02
WatersXSelect Columns XSelect™ HPLC columns are designed for scientists who routinely develop chromatographic methods. They provide you with a diverse selection of sorbents to help you separate the most difficult analyte co-elutions. XSelect columns are: Designed for selectivity – improve your ability to separate co-eluting peaks Ideal for rapid method development – reduce the time and cost spent developing methods Intended for isolation and purification – highest analyte mass loading available The XSelect™ family of columns contains both advanced hybrid CSH technology, as well as, silica-based HSS technology with a broad selection of optimized bonded ligands. It is the combination of base particle and bonded ligands that influences analyte selectivity. Each, when used alone, does not create dramatic selectivity changes; however, in combination, the substrate and ligand create the ultimate tools for enhancing analyte selectivity. CSH Technology The third generation of hybrid particle technology has evolved to create a Charged Surface Hybrid (CSH™) particle. Based on Waters patented Ethylene-Bridged Hybrid [BEH] particle technology, the CSH particles incorporate a low-level surface charge, designed to improve sample loadability and peak asymmetry in low-ionic-strength mobile phases, while maintaining the mechanical and chemical stability inherent in BEH particle technology. Advantages of CSH Technology include: Superior peak shape for basic compounds Increased loading capacity Rapid column equilibration after changing mobile-phase pH Improved batch-to-batch reproducibility Excellent stability at low pH The CSH particle is formed from a synthetic pathway starting with an unbonded BEH particle. Each step of the process is carefully monitored and process controlled to ensure that the result yields a highly stable and reproducible product for subsequent ligand bonding. The process starts by chemically bonding a surface charge to the BEH particle creating a Charged Surface Hybrid. This process is highly controlled to exacting standards to ensure optimized surface coverage. Too much surface charge, or too little surface charge, hinders chromatographic performance and will result in a sorbent that offers poor analyte loadability and peak shape. The final step of the particle synthesis is the bonding and end-capping using the desired ligands. The controlled surface ratio of bonded ligand to end-cap is critical to final column performance. CSH Technology dramatically improves virtually all facets of LC column performance in acidic, low-ionic-strength mobile phases that are commonly used in the chromatographic laboratory. HSS Technology High pore volume silica-based HPLC particles do not possess the mechanical stability necessary to withstand the high pressures inherent of UPLC® separations. This becomes important when your laboratory needs to transfer methods from your existing HPLC instrumentation to an ACQUITY UPLC® system. This mechanical limitation led Waters material scientists to develop a silica particle designed for high mechancial stability and provide long column lifetimes and UPLC efficiencies at high pressures. The High Strength Silica (HSS) particle is the first and only 100% silica-based particle designed, tested and intended for both HPLC and UPLC separations [1034 bar]. Column Chemistries Waters full line of state-of-the-art XSelect™ HPLC columns are chosen by scientists who understand that performance and innovation are linked and their success depends on them. XSelect CSH C18 - general purpose columns that provide alternative selectivity compared to other C18 sorbents. Charged Surface Hybrid (CSH™) technology helps overcome column related problems such as peak shape asymmetry and poor loading for basic compounds, column bleed, and slow mobile-phase re-equilibration. XSelect CSH Fluoro-Phenyl - designed to maximize selectivity differences, and provides maximum method development freedom, especially when using low-pH mobile phases. The non-encapped sorbent provides enhanced retention of acidic compounds. XSelect CSH Phenyl-Hexyl - provides alternative analyte selectivity compared to traditional reversed-phase columns and are a valuable tool for method development. The trifunctionally bonded C6 phenyl-ligand is a robust, low bleed sorbent that selectively retains polyaromatic compounds through pi-pi interactions XSelect HSS C18 - the most stable commercially available bonded phase for low-pH mobile phases, and does not suffer from peak shape issues that plague older stationary phases, which rely upon steric protection (and lack of endcapping) to produce stability at low pH. XSelect HSS C18 SB - intended for low pH separations that contain complex mixtures of basic and non-basic compounds. XSelect HSS C18 SB columns provide alternative analyte selectivity compared to most modern, high coverage, fully endcapped C18 stationary phases. XSelect HSS T3 - trifunctional alkyl-C18-bonded phase that is compatible with 100% aqueous mobile phases and provides ultra-low MS bleed, while promoting superior polar compound retention. XSelect HSS PFP - a non-endcapped silica-based HPLC column designed for low-pH separations that require alternative selectivity compared to a fully endcapped, high coverage C18 phase. XSelect HSS CN - an ultra-performance general purpose propyl cyano bonded phase that provides superior peak shape for bases, increased retention, and extremely long column lifetimes at low pH. Selectivity Method development scientists use selectivity and retentivity to influence chromatographic behavior. The selection of phases in the XSelect™ family offers the chromatographer the ability to retain highly polar analytes using XSelect HSS T3, which is complimentary to the retention behavior offered by XSelect CSH™ fluoro-phenyl and phenyl phases. Selectivity is manipulated through the use of pH, mobile-phase buffer strength, organic modifier, and column choice. Mobile-phase conditions and organic modifier are easy to control and understand. It is much more difficult for a chromatographer to determine how different one stationary phase is from another. By plotting retention factors to compare columns, you can easily determine how different a particular column is to another. 예일테크 2013.08.02
12
XBridge™
WatersXBridge™
◈ Product Information
XBridge™ 컬럼 계열은 최대의 분석법 개발 유연성을 위해 설계되었습니다. 다양한 이동상 및 온도를 사용하여 전체 pH 스펙트럼에 걸쳐 견고한 방식을 개발할 수 있습니다. Isolation 및 purification를 위해 XBridge Prep OBD™ 컬럼의 높은 pH 안정성으로 순도 강화 및 염기성물질의 mass loading 증가가 가능합니다.
XBridge 컬럼은 가장 필수적인 조건들에 따라 일관된 성능 및 긴 수명을 가져옵니다. 혁신적인 기술, 최고 수준의 제조 및 품질 보증과 함께 개발된 이 컬럼은 가장 어려운 크로마토그래피 분리들을 위한 믿을만한 솔루션입니다.
► Point
- HPLC에서 UPLC® 분석법으로의 전환
- 넓은 pH에서의 수명 및 안정성
- 분취용 성능
► HPLC에서 UPLC로의 분석법 전환
동일한 제조 공정을 거쳐 생산되는 XBridge™ 및 ACQUITY UPLC® 컬럼의 BEH Technology™ 물질들은 입자 크기만이 다르므로, 분석법 전환에 끊어짐이 없어 최적화된 LC 분석법을 위한 신속한 경로가 됩니다.
더 이상 HPLC 및 UPLC® 테크놀러지 사이에서 고민할 필요가 없습니다. XBridge 및 ACQUITY UPLC 컬럼에서 사용되는 BEH 입자의 특징은 다음과 같습니다.
- 효율성 최대화
- 높은 pH 안정성이 더욱 개선됨
- HPLC 및 UPLC 시스템을 위한 컬럼 신뢰성 개선
HPLC 크로마토그래피 조건
동일한 제조공정을 바탕으로 한 XBridge 및 ACQUITY® BEH 기술 물질들은 입자 크기만 다르므로 끊어짐 없는 분석법 전환 및 최적화된 LC 방식으로의 빠른 경로가 됩니다.
► 넓은 pH에서의 수명 및 안정성
XBridge™ 컬럼은 현재 판매되고 있는 pH에 가장 안정한 고성능 크로마토그래피 상입니다. 특수한 표면 때문에 높은 pH 저항력을 주장하는 접근 방식들과는 달리 XBridge 컬럼은 입자 합성 과정의 일부로서 안정성이 보장됩니다.
가혹한 pH 10 안정성테스트 조건 하에서 직접 비교(확장된 높은 pH 안정성을 주장하는 가장 인기 있는 크로마토그래피 상들을 사용)에 따르면 XBridge C18 컬럼 수명이 1000% 이상으로 최고 실리카 컬럼의 수명을 뛰어넘고 크로마토그래피 성능의 저하가 거의 없다는 것을 볼 수 있습니다.
경쟁 대상 컬럼의 가혹한 높은 pH 안정성 테스트
높은 pH 수명 연구를 위해 일정 간격으로 분석된 크로마토그램입니다. XBridge 컬럼 효율 (efficiency)의 86%가 pH 10, 높은 온도에서300시간 이후에도 유지되고 있으며, 피크 형태 또는 머무름 시간에도 거의 변화가 없습니다.
► 분석법 개발 유연성
XBridge™ 컬럼은 높은 수준의 크로마토그래피 성능 및 확신을 특징으로 합니다. 전체 pH 범위가 1-12로 밸리데이션 및 분석법 전환 과정을 단순화하며, 견고하고 (robust) 엄격한(rugged) 분석법을 얻을 수 있습니다.
XBridge 컬럼, 두 이동상 pH 및 두 유기 용매를 사용하여 가장 어려운 샘플 혼합물들도 쉽게 해결될 수 있습니다.
효율적인 분석법 개발
► 분취 성능
엄격한 XBridge™ 패킹 및 OBD™ 디자인의 조합은 직접 스케일업, 최대 효율성 및 긴 컬럼 수명을 보장합니다.
Prep 패킹 재료들은 일반적으로 분석용 입자보다 입자 크기 분포 (particle size distribution)가 훨씬 더 큽니다. 따라서 입자 제조 비용을 절감할 수는 있지만, 크로마토그래피 성능은 분명 손실될 것입니다.
XBridge Prep 패킹 재료들은 가장 낮은 back-pressure에서도 최적 효율 (efficiency) 및 최고 주입량 (loadability)을 제공하도록 충분히 최적화되었습니다. 이러한 속성들은 입자 크기 및 컬럼 규격의 최상의 조합을 선택할 수 있는 유연성을 제공하여 가장 복잡한 샘플조차도 쉽게 분리할 수 있습니다.
최대 효율성/30% 낮은 Back-pressure
◈ Ordering Information Product Number Description Package XBridge C18 Column 186003118 XBridge C18 2.5um 1.0 mm ID x 50 mm 1/pkg 186003084 XBridge C18 2.5um 2.1 mm ID x 30 mm 1/pkg 186003085 XBridge C18 2.5um 2.1 mm ID x 50 mm 1/pkg 186003121 XBridge C18 2.5um 3.0 mm ID x 30 mm 1/pkg 186003122 XBridge C18 2.5um 3.0 mm ID x 50 mm 1/pkg 186003089 XBridge C18 2.5um 4.6 mm ID x 30 mm 1/pkg 186003090 XBridge C18 2.5um 4.6 mm ID x 50 mm 1/pkg 186003124 XBridge C18 2.5um 4.6 mm ID x 75 mm 1/pkg 186003126 XBridge C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186003127 XBridge C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186003128 XBridge C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186003020 XBridge C18 3.5um 2.1 mm ID x 30 mm 1/pkg 186003021 XBridge C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186003022 XBridge C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003023 XBridge C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186003025 XBridge C18 3.5um 3.0 mm ID x 30 mm 1/pkg 186003026 XBridge C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186003027 XBridge C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003028 XBridge C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003030 XBridge C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186003031 XBridge C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186003032 XBridge C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186003033 XBridge C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003034 XBridge C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003943 XBridge C18 3.5um 4.6 mm ID x 250 mm 1/pkg 186003129 XBridge C18 5um 2.1 mm ID x 30 mm 1/pkg 186003108 XBridge C18 5um 2.1 mm ID x 50 mm 1/pkg 186003109 XBridge C18 5um 2.1 mm ID x 100 mm 1/pkg 186003110 XBridge C18 5um 2.1 mm ID x 150 mm 1/pkg 186003111 XBridge C18 5um 3.0 mm ID x 30 mm 1/pkg 186003131 XBridge C18 5um 3.0 mm ID x 50 mm 1/pkg 186003132 XBridge C18 5um 3.0 mm ID x 100 mm 1/pkg 186003112 XBridge C18 5um 3.0 mm ID x 150 mm 1/pkg 186003133 XBridge C18 5um 3.0 mm ID x 250 mm 1/pkg 186003135 XBridge C18 5um 4.6 mm ID x 30 mm 1/pkg 186003113 XBridge C18 5um 4.6 mm ID x 50 mm 1/pkg 186003114 XBridge C18 5um 4.6 mm ID x 75 mm 1/pkg 186003115 XBridge C18 5um 4.6 mm ID x 100 mm 1/pkg 186003116 XBridge C18 5um 4.6 mm ID x 150 mm 1/pkg 186003117 XBridge C18 5um 4.6 mm ID x 250 mm 1/pkg XBridge C8 Column 186003164 XBridge C8 2.5um 1.0 mm ID x 50 mm 1/pkg 186003099 XBridge C8 2.5um 2.1 mm ID x 30 mm 1/pkg 186003101 XBridge C8 2.5um 2.1 mm ID x 50 mm 1/pkg 186003169 XBridge C8 2.5um 3.0 mm ID x 30 mm 1/pkg 186003170 XBridge C8 2.5um 3.0 mm ID x 50 mm 1/pkg 186003173 XBridge C8 2.5um 4.6 mm ID x 30 mm 1/pkg 186003174 XBridge C8 2.5um 4.6 mm ID x 50 mm 1/pkg 186003175 XBridge C8 2.5um 4.6 mm ID x 75 mm 1/pkg 186003177 XBridge C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186003178 XBridge C8 3.5um 1.0 mm ID x 100 mm 1/pkg 186003179 XBridge C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186003046 XBridge C8 3.5um 2.1 mm ID x 30 mm 1/pkg 186003047 XBridge C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186003048 XBridge C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186003049 XBridge C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186003182 XBridge C8 3.5um 3.0 mm ID x 30 mm 1/pkg 186003050 XBridge C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186003051 XBridge C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186003052 XBridge C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186003184 XBridge C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186003053 XBridge C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186003185 XBridge C8 3.5um 4.6 mm ID x 75 mm 1/pkg 186003054 XBridge C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186003055 XBridge C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186003963 XBridge C8 3.5um 4.6 mm ID x 250 mm 1/pkg 186003187 XBridge C8 5um 2.1 mm ID x 30 mm 1/pkg 186003011 XBridge C8 5um 2.1 mm ID x 50 mm 1/pkg 186003012 XBridge C8 5um 2.1 mm ID x 100 mm 1/pkg 186003013 XBridge C8 5um 2.1 mm ID x 150 mm 1/pkg 186003189 XBridge C8 5um 3.0 mm ID x 30 mm 1/pkg 186003190 XBridge C8 5um 3.0 mm ID x 50 mm 1/pkg 186003191 XBridge C8 5um 3.0 mm ID x 100 mm 1/pkg 186003014 XBridge C8 5um 3.0 mm ID x 150 mm 1/pkg 186003192 XBridge C8 5um 3.0 mm ID x 250 mm 1/pkg 186003194 XBridge C8 5um 4.6 mm ID x 30 mm 1/pkg 186003015 XBridge C8 5um 4.6 mm ID x 50 mm 1/pkg 186003195 XBridge C8 5um 4.6 mm ID x 75 mm 1/pkg 186003016 XBridge C8 5um 4.6 mm ID x 100 mm 1/pkg 186003017 XBridge C8 5um 4.6 mm ID x 150 mm 1/pkg 186003018 XBridge C8 5um 4.6 mm ID x 250 mm 1/pkg XBridge Shield RP18 Column 186003136 XBridge Shield RP18 2.5um 1.0 mm ID x 50 mm 1/pkg 186003091 XBridge Shield RP18 2.5um 2.1 mm ID x 30 mm 1/pkg 186003092 XBridge Shield RP18 2.5um 2.1 mm ID x 50 mm 1/pkg 186003141 XBridge Shield RP18 2.5um 3.0 mm ID x 30 mm 1/pkg 186003142 XBridge Shield RP18 2.5um 3.0 mm ID x 50 mm 1/pkg 186003145 XBridge Shield RP18 2.5um 4.6 mm ID x 30 mm 1/pkg 186003096 XBridge Shield RP18 2.5um 4.6 mm ID x 50 mm 1/pkg 186003146 XBridge Shield RP18 2.5um 4.6 mm ID x 75 mm 1/pkg 186003148 XBridge Shield RP18 3.5um 1.0 mm ID x 50 mm 1/pkg 186003149 XBridge Shield RP18 3.5um 1.0 mm ID x 100 mm 1/pkg 186003150 XBridge Shield RP18 3.5um 1.0 mm ID x 150 mm 1/pkg 186003035 XBridge Shield RP18 3.5um 2.1 mm ID x 30 mm 1/pkg 186003036 XBridge Shield RP18 3.5um 2.1 mm ID x 50 mm 1/pkg 186003037 XBridge Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003038 XBridge Shield RP18 3.5um 2.1 mm ID x 150 mm 1/pkg 186003153 XBridge Shield RP18 3.5um 3.0 mm ID x 30 mm 1/pkg 186003039 XBridge Shield RP18 3.5um 3.0 mm ID x 50 mm 1/pkg 186003040 XBridge Shield RP18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003041 XBridge Shield RP18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003155 XBridge Shield RP18 3.5um 4.6 mm ID x 30 mm 1/pkg 186003042 XBridge Shield RP18 3.5um 4.6 mm ID x 50 mm 1/pkg 186003143 XBridge Shield RP18 3.5um 4.6 mm ID x 75 mm 1/pkg 186003044 XBridge Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003045 XBridge Shield RP18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003964 XBridge Shield RP18 3.5um 4.6 mm ID x 250 mm 1/pkg 186003157 XBridge Shield RP18 5um 2.1 mm ID x 30 mm 1/pkg 186002999 XBridge Shield RP18 5um 2.1 mm ID x 50 mm 1/pkg 186003002 XBridge Shield RP18 5um 2.1 mm ID x 100 mm 1/pkg 186003003 XBridge Shield RP18 5um 2.1 mm ID x 150 mm 1/pkg 186003159 XBridge Shield RP18 5um 3.0 mm ID x 30 mm 1/pkg 186003160 XBridge Shield RP18 5um 3.0 mm ID x 50 mm 1/pkg 186003004 XBridge Shield RP18 5um 3.0 mm ID x 100 mm 1/pkg 186003005 XBridge Shield RP18 5um 3.0 mm ID x 150 mm 1/pkg 186003161 XBridge Shield RP18 5um 3.0 mm ID x 250 mm 1/pkg 186003163 XBridge Shield RP18 5um 4.6 mm ID x 30 mm 1/pkg 186003006 XBridge Shield RP18 5um 4.6 mm ID x 50 mm 1/pkg 186003007 XBridge Shield RP18 5um 4.6 mm ID x 75 mm 1/pkg 186003008 XBridge Shield RP18 5um 4.6 mm ID x 100 mm 1/pkg 186003009 XBridge Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186003010 XBridge Shield RP18 5um 4.6 mm ID x 250 mm 1/pkg XBridge Phenyl Column 186003306 XBridge Phenyl 2.5um 1.0 mm ID x 50 mm 1/pkg 186003308 XBridge Phenyl 2.5um 2.1 mm ID x 30 mm 1/pkg 186003309 XBridge Phenyl 2.5um 2.1 mm ID x 50 mm 1/pkg 186003311 XBridge Phenyl 2.5um 3.0 mm ID x 30 mm 1/pkg 186003312 XBridge Phenyl 2.5um 3.0 mm ID x 50 mm 1/pkg 186003314 XBridge Phenyl 2.5um 4.6 mm ID x 30 mm 1/pkg 186003315 XBridge Phenyl 2.5um 4.6 mm ID x 50 mm 1/pkg 186003316 XBridge Phenyl 2.5um 4.6 mm ID x 75 mm 1/pkg 186003317 XBridge Phenyl 3.5um 1.0 mm ID x 50 mm 1/pkg 186003318 XBridge Phenyl 3.5um 1.0 mm ID x 100 mm 1/pkg 186003319 XBridge Phenyl 3.5um 1.0 mm ID x 150 mm 1/pkg 186003321 XBridge Phenyl 3.5um 2.1 mm ID x 30 mm 1/pkg 186003322 XBridge Phenyl 3.5um 2.1 mm ID x 50 mm 1/pkg 186003323 XBridge Phenyl 3.5um 2.1 mm ID x 100 mm 1/pkg 186003324 XBridge Phenyl 3.5um 2.1 mm ID x 150 mm 1/pkg 186003326 XBridge Phenyl 3.5um 3.0 mm ID x 30 mm 1/pkg 186003327 XBridge Phenyl 3.5um 3.0 mm ID x 50 mm 1/pkg 186003328 XBridge Phenyl 3.5um 3.0 mm ID x 100 mm 1/pkg 186003329 XBridge Phenyl 3.5um 3.0 mm ID x 150 mm 1/pkg 186003331 XBridge Phenyl 3.5um 4.6 mm ID x 30 mm 1/pkg 186003332 XBridge Phenyl 3.5um 4.6 mm ID x 50 mm 1/pkg 186003333 XBridge Phenyl 3.5um 4.6 mm ID x 75 mm 1/pkg 186003334 XBridge Phenyl 3.5um 4.6 mm ID x 100 mm 1/pkg 186003335 XBridge Phenyl 3.5um 4.6 mm ID x 150 mm 1/pkg 186003965 XBridge Phenyl 3.5um 4.6 mm ID x 250 mm 1/pkg 186003337 XBridge Phenyl 5um 2.1 mm ID x 30 mm 1/pkg 186003338 XBridge Phenyl 5um 2.1 mm ID x 50 mm 1/pkg 186003339 XBridge Phenyl 5um 2.1 mm ID x 100 mm 1/pkg 186003340 XBridge Phenyl 5um 2.1 mm ID x 150 mm 1/pkg 186003342 XBridge Phenyl 5um 3.0 mm ID x 30 mm 1/pkg 186003343 XBridge Phenyl 5um 3.0 mm ID x 50 mm 1/pkg 186003344 XBridge Phenyl 5um 3.0 mm ID x 100 mm 1/pkg 186003345 XBridge Phenyl 5um 3.0 mm ID x 150 mm 1/pkg 186003346 XBridge Phenyl 5um 3.0 mm ID x 250 mm 1/pkg 186003348 XBridge Phenyl 5um 4.6 mm ID x 30 mm 1/pkg 186003349 XBridge Phenyl 5um 4.6 mm ID x 50 mm 1/pkg 186003350 XBridge Phenyl 5um 4.6 mm ID x 75 mm 1/pkg 186003351 XBridge Phenyl 5um 4.6 mm ID x 100 mm 1/pkg 186003352 XBridge Phenyl 5um 4.6 mm ID x 150 mm 1/pkg 186003353 XBridge Phenyl 5um 4.6 mm ID x 250 mm 1/pkg XBridge Method Validation Kits 186003766 XBridge C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003767 XBridge C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003768 XBridge C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003769 XBridge C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003770 XBridge C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003771 XBridge C18 5um 2.1 mm ID x 150 mm 1/pkg 186003772 XBridge C18 5um 3.0 mm ID x 100 mm 1/pkg 186003773 XBridge C18 5um 3.0 mm ID x 150 mm 1/pkg 186003774 XBridge C18 5um 4.6 mm ID x 100 mm 1/pkg 186003775 XBridge C18 5um 4.6 mm ID x 150 mm 1/pkg 186003776 XBridge C18 5um 4.6 mm ID x 250 mm 1/pkg 186002677 XBridge C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186003778 XBridge C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186003779 XBridge C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186003780 XBridge C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186003781 XBridge C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186003782 XBridge C8 5um 2.1 mm ID x 150 mm 1/pkg 186003783 XBridge C8 5um 3.0 mm ID x 100 mm 1/pkg 186003784 XBridge C8 5um 3.0 mm ID x 150 mm 1/pkg 186003785 XBridge C8 5um 4.6 mm ID x 100 mm 1/pkg 186003786 XBridge C8 5um 4.6 mm ID x 150 mm 1/pkg 186002687 XBridge C8 5um 4.6 mm ID x 250 mm 1/pkg 186003788 XBridge Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003789 XBridge Shield RP18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003790 XBridge Shield RP18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003791 XBridge Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003792 XBridge Shield RP18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003793 XBridge Shield RP18 5um 2.1 mm ID x 150 mm 1/pkg 186003794 XBridge Shield RP18 5um 3.0 mm ID x 100 mm 1/pkg 186003795 XBridge Shield RP18 5um 3.0 mm ID x 150 mm 1/pkg 186003796 XBridge Shield RP18 5um 4.6 mm ID x 100 mm 1/pkg 186003797 XBridge Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186003798 XBridge Shield RP18 5um 4.6 mm ID x 250 mm 1/pkg 186003799 XBridge Phenyl 3.5um 2.1 mm ID x 100 mm 1/pkg 186003800 XBridge Phenyl 3.5um 3.0 mm ID x 100 mm 1/pkg 186003801 XBridge Phenyl 3.5um 3.0 mm ID x 150 mm 1/pkg 186003802 XBridge Phenyl 3.5um 4.6 mm ID x 100 mm 1/pkg 186003803 XBridge Phenyl 3.5um 4.6 mm ID x 150 mm 1/pkg 186003804 XBridge Phenyl 5um 2.1 mm ID x 150 mm 1/pkg 186003805 XBridge Phenyl 5um 3.0 mm ID x 100 mm 1/pkg 186003806 XBridge Phenyl 5um 3.0 mm ID x 150 mm 1/pkg 186003807 XBridge Phenyl 5um 4.6 mm ID x 100 mm 1/pkg 186003808 XBridge Phenyl 5um 4.6 mm ID x 150 mm 1/pkg 186003809 XBridge Phenyl 5um 4.6 mm ID x 250 mm 1/pkg XBridge IS Column 186003201 XBridge C18 IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003087 XBridge C18 IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003088 XBridge C18 IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003059 XBridge C18 IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003024 XBridge C18 IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003029 XBridge C18 IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003107 XBridge C18 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003130 XBridge C18 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003134 XBridge C18 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003167 XBridge C8 IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003168 XBridge C8 IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003172 XBridge C8 IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003077 XBridge C8 IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003181 XBridge C8 IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003183 XBridge C8 IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003186 XBridge C8 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003188 XBridge C8 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003193 XBridge C8 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003139 XBridge Shield RP18 IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003140 XBridge Shield RP18 IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003144 XBridge Shield RP18 IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003068 XBridge Shield RP18 IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003152 XBridge Shield RP18 IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003154 XBridge Shield RP18 IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003156 XBridge Shield RP18 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003158 XBridge Shield RP18 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003162 XBridge Shield RP18 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003307 XBridge Phenyl IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003310 XBridge Phenyl IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003313 XBridge Phenyl IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003362 XBridge Phenyl IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003325 XBridge Phenyl IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003330 XBridge Phenyl IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003336 XBridge Phenyl IS 5um 2.1 mm ID x 20 mm 1/pkg 186003341 XBridge Phenyl IS 5um 3.0 mm ID x 20 mm 1/pkg 186003347 XBridge Phenyl IS 5um 4.6 mm ID x 20 mm 1/pkg XBridge Guard Column 186003056 XBridge C18 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003057 XBridge C18 Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003058 XBridge C18 Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003019 XBridge C18 Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003060 XBridge C18 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003061 XBridge C18 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003062 XBridge C18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003063 XBridge C18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003064 XBridge C18 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003074 XBridge C8 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003075 XBridge C8 Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003076 XBridge C8 Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003180 XBridge C8 Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003078 XBridge C8 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003079 XBridge C8 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003080 XBridge C8 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003081 XBridge C8 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003082 XBridge C8 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003065 XBridge Shield RP18 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003066 XBridge Shield RP18 Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003067 XBridge Shield RP18 Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003151 XBridge Shield RP18 Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003069 XBridge Shield RP18 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003070 XBridge Shield RP18 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003071 XBridge Shield RP18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003072 XBridge Shield RP18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003073 XBridge Shield RP18 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003359 XBridge Phenyl Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003360 XBridge Phenyl Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003361 XBridge Phenyl Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003320 XBridge Phenyl Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003363 XBridge Phenyl Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003364 XBridge Phenyl Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003366 XBridge Phenyl Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003367 XBridge Phenyl Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003368 XBridge Phenyl Guard 5um 4.6 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.07
WatersXBridge™
◈ Product Information
XBridge™ 컬럼 계열은 최대의 분석법 개발 유연성을 위해 설계되었습니다. 다양한 이동상 및 온도를 사용하여 전체 pH 스펙트럼에 걸쳐 견고한 방식을 개발할 수 있습니다. Isolation 및 purification를 위해 XBridge Prep OBD™ 컬럼의 높은 pH 안정성으로 순도 강화 및 염기성물질의 mass loading 증가가 가능합니다.
XBridge 컬럼은 가장 필수적인 조건들에 따라 일관된 성능 및 긴 수명을 가져옵니다. 혁신적인 기술, 최고 수준의 제조 및 품질 보증과 함께 개발된 이 컬럼은 가장 어려운 크로마토그래피 분리들을 위한 믿을만한 솔루션입니다.
► Point
- HPLC에서 UPLC® 분석법으로의 전환
- 넓은 pH에서의 수명 및 안정성
- 분취용 성능
► HPLC에서 UPLC로의 분석법 전환
동일한 제조 공정을 거쳐 생산되는 XBridge™ 및 ACQUITY UPLC® 컬럼의 BEH Technology™ 물질들은 입자 크기만이 다르므로, 분석법 전환에 끊어짐이 없어 최적화된 LC 분석법을 위한 신속한 경로가 됩니다.
더 이상 HPLC 및 UPLC® 테크놀러지 사이에서 고민할 필요가 없습니다. XBridge 및 ACQUITY UPLC 컬럼에서 사용되는 BEH 입자의 특징은 다음과 같습니다.
- 효율성 최대화
- 높은 pH 안정성이 더욱 개선됨
- HPLC 및 UPLC 시스템을 위한 컬럼 신뢰성 개선
HPLC 크로마토그래피 조건
동일한 제조공정을 바탕으로 한 XBridge 및 ACQUITY® BEH 기술 물질들은 입자 크기만 다르므로 끊어짐 없는 분석법 전환 및 최적화된 LC 방식으로의 빠른 경로가 됩니다.
► 넓은 pH에서의 수명 및 안정성
XBridge™ 컬럼은 현재 판매되고 있는 pH에 가장 안정한 고성능 크로마토그래피 상입니다. 특수한 표면 때문에 높은 pH 저항력을 주장하는 접근 방식들과는 달리 XBridge 컬럼은 입자 합성 과정의 일부로서 안정성이 보장됩니다.
가혹한 pH 10 안정성테스트 조건 하에서 직접 비교(확장된 높은 pH 안정성을 주장하는 가장 인기 있는 크로마토그래피 상들을 사용)에 따르면 XBridge C18 컬럼 수명이 1000% 이상으로 최고 실리카 컬럼의 수명을 뛰어넘고 크로마토그래피 성능의 저하가 거의 없다는 것을 볼 수 있습니다.
경쟁 대상 컬럼의 가혹한 높은 pH 안정성 테스트
높은 pH 수명 연구를 위해 일정 간격으로 분석된 크로마토그램입니다. XBridge 컬럼 효율 (efficiency)의 86%가 pH 10, 높은 온도에서300시간 이후에도 유지되고 있으며, 피크 형태 또는 머무름 시간에도 거의 변화가 없습니다.
► 분석법 개발 유연성
XBridge™ 컬럼은 높은 수준의 크로마토그래피 성능 및 확신을 특징으로 합니다. 전체 pH 범위가 1-12로 밸리데이션 및 분석법 전환 과정을 단순화하며, 견고하고 (robust) 엄격한(rugged) 분석법을 얻을 수 있습니다.
XBridge 컬럼, 두 이동상 pH 및 두 유기 용매를 사용하여 가장 어려운 샘플 혼합물들도 쉽게 해결될 수 있습니다.
효율적인 분석법 개발
► 분취 성능
엄격한 XBridge™ 패킹 및 OBD™ 디자인의 조합은 직접 스케일업, 최대 효율성 및 긴 컬럼 수명을 보장합니다.
Prep 패킹 재료들은 일반적으로 분석용 입자보다 입자 크기 분포 (particle size distribution)가 훨씬 더 큽니다. 따라서 입자 제조 비용을 절감할 수는 있지만, 크로마토그래피 성능은 분명 손실될 것입니다.
XBridge Prep 패킹 재료들은 가장 낮은 back-pressure에서도 최적 효율 (efficiency) 및 최고 주입량 (loadability)을 제공하도록 충분히 최적화되었습니다. 이러한 속성들은 입자 크기 및 컬럼 규격의 최상의 조합을 선택할 수 있는 유연성을 제공하여 가장 복잡한 샘플조차도 쉽게 분리할 수 있습니다.
최대 효율성/30% 낮은 Back-pressure
◈ Ordering Information Product Number Description Package XBridge C18 Column 186003118 XBridge C18 2.5um 1.0 mm ID x 50 mm 1/pkg 186003084 XBridge C18 2.5um 2.1 mm ID x 30 mm 1/pkg 186003085 XBridge C18 2.5um 2.1 mm ID x 50 mm 1/pkg 186003121 XBridge C18 2.5um 3.0 mm ID x 30 mm 1/pkg 186003122 XBridge C18 2.5um 3.0 mm ID x 50 mm 1/pkg 186003089 XBridge C18 2.5um 4.6 mm ID x 30 mm 1/pkg 186003090 XBridge C18 2.5um 4.6 mm ID x 50 mm 1/pkg 186003124 XBridge C18 2.5um 4.6 mm ID x 75 mm 1/pkg 186003126 XBridge C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186003127 XBridge C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186003128 XBridge C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186003020 XBridge C18 3.5um 2.1 mm ID x 30 mm 1/pkg 186003021 XBridge C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186003022 XBridge C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003023 XBridge C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186003025 XBridge C18 3.5um 3.0 mm ID x 30 mm 1/pkg 186003026 XBridge C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186003027 XBridge C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003028 XBridge C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003030 XBridge C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186003031 XBridge C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186003032 XBridge C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186003033 XBridge C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003034 XBridge C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003943 XBridge C18 3.5um 4.6 mm ID x 250 mm 1/pkg 186003129 XBridge C18 5um 2.1 mm ID x 30 mm 1/pkg 186003108 XBridge C18 5um 2.1 mm ID x 50 mm 1/pkg 186003109 XBridge C18 5um 2.1 mm ID x 100 mm 1/pkg 186003110 XBridge C18 5um 2.1 mm ID x 150 mm 1/pkg 186003111 XBridge C18 5um 3.0 mm ID x 30 mm 1/pkg 186003131 XBridge C18 5um 3.0 mm ID x 50 mm 1/pkg 186003132 XBridge C18 5um 3.0 mm ID x 100 mm 1/pkg 186003112 XBridge C18 5um 3.0 mm ID x 150 mm 1/pkg 186003133 XBridge C18 5um 3.0 mm ID x 250 mm 1/pkg 186003135 XBridge C18 5um 4.6 mm ID x 30 mm 1/pkg 186003113 XBridge C18 5um 4.6 mm ID x 50 mm 1/pkg 186003114 XBridge C18 5um 4.6 mm ID x 75 mm 1/pkg 186003115 XBridge C18 5um 4.6 mm ID x 100 mm 1/pkg 186003116 XBridge C18 5um 4.6 mm ID x 150 mm 1/pkg 186003117 XBridge C18 5um 4.6 mm ID x 250 mm 1/pkg XBridge C8 Column 186003164 XBridge C8 2.5um 1.0 mm ID x 50 mm 1/pkg 186003099 XBridge C8 2.5um 2.1 mm ID x 30 mm 1/pkg 186003101 XBridge C8 2.5um 2.1 mm ID x 50 mm 1/pkg 186003169 XBridge C8 2.5um 3.0 mm ID x 30 mm 1/pkg 186003170 XBridge C8 2.5um 3.0 mm ID x 50 mm 1/pkg 186003173 XBridge C8 2.5um 4.6 mm ID x 30 mm 1/pkg 186003174 XBridge C8 2.5um 4.6 mm ID x 50 mm 1/pkg 186003175 XBridge C8 2.5um 4.6 mm ID x 75 mm 1/pkg 186003177 XBridge C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186003178 XBridge C8 3.5um 1.0 mm ID x 100 mm 1/pkg 186003179 XBridge C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186003046 XBridge C8 3.5um 2.1 mm ID x 30 mm 1/pkg 186003047 XBridge C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186003048 XBridge C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186003049 XBridge C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186003182 XBridge C8 3.5um 3.0 mm ID x 30 mm 1/pkg 186003050 XBridge C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186003051 XBridge C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186003052 XBridge C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186003184 XBridge C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186003053 XBridge C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186003185 XBridge C8 3.5um 4.6 mm ID x 75 mm 1/pkg 186003054 XBridge C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186003055 XBridge C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186003963 XBridge C8 3.5um 4.6 mm ID x 250 mm 1/pkg 186003187 XBridge C8 5um 2.1 mm ID x 30 mm 1/pkg 186003011 XBridge C8 5um 2.1 mm ID x 50 mm 1/pkg 186003012 XBridge C8 5um 2.1 mm ID x 100 mm 1/pkg 186003013 XBridge C8 5um 2.1 mm ID x 150 mm 1/pkg 186003189 XBridge C8 5um 3.0 mm ID x 30 mm 1/pkg 186003190 XBridge C8 5um 3.0 mm ID x 50 mm 1/pkg 186003191 XBridge C8 5um 3.0 mm ID x 100 mm 1/pkg 186003014 XBridge C8 5um 3.0 mm ID x 150 mm 1/pkg 186003192 XBridge C8 5um 3.0 mm ID x 250 mm 1/pkg 186003194 XBridge C8 5um 4.6 mm ID x 30 mm 1/pkg 186003015 XBridge C8 5um 4.6 mm ID x 50 mm 1/pkg 186003195 XBridge C8 5um 4.6 mm ID x 75 mm 1/pkg 186003016 XBridge C8 5um 4.6 mm ID x 100 mm 1/pkg 186003017 XBridge C8 5um 4.6 mm ID x 150 mm 1/pkg 186003018 XBridge C8 5um 4.6 mm ID x 250 mm 1/pkg XBridge Shield RP18 Column 186003136 XBridge Shield RP18 2.5um 1.0 mm ID x 50 mm 1/pkg 186003091 XBridge Shield RP18 2.5um 2.1 mm ID x 30 mm 1/pkg 186003092 XBridge Shield RP18 2.5um 2.1 mm ID x 50 mm 1/pkg 186003141 XBridge Shield RP18 2.5um 3.0 mm ID x 30 mm 1/pkg 186003142 XBridge Shield RP18 2.5um 3.0 mm ID x 50 mm 1/pkg 186003145 XBridge Shield RP18 2.5um 4.6 mm ID x 30 mm 1/pkg 186003096 XBridge Shield RP18 2.5um 4.6 mm ID x 50 mm 1/pkg 186003146 XBridge Shield RP18 2.5um 4.6 mm ID x 75 mm 1/pkg 186003148 XBridge Shield RP18 3.5um 1.0 mm ID x 50 mm 1/pkg 186003149 XBridge Shield RP18 3.5um 1.0 mm ID x 100 mm 1/pkg 186003150 XBridge Shield RP18 3.5um 1.0 mm ID x 150 mm 1/pkg 186003035 XBridge Shield RP18 3.5um 2.1 mm ID x 30 mm 1/pkg 186003036 XBridge Shield RP18 3.5um 2.1 mm ID x 50 mm 1/pkg 186003037 XBridge Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003038 XBridge Shield RP18 3.5um 2.1 mm ID x 150 mm 1/pkg 186003153 XBridge Shield RP18 3.5um 3.0 mm ID x 30 mm 1/pkg 186003039 XBridge Shield RP18 3.5um 3.0 mm ID x 50 mm 1/pkg 186003040 XBridge Shield RP18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003041 XBridge Shield RP18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003155 XBridge Shield RP18 3.5um 4.6 mm ID x 30 mm 1/pkg 186003042 XBridge Shield RP18 3.5um 4.6 mm ID x 50 mm 1/pkg 186003143 XBridge Shield RP18 3.5um 4.6 mm ID x 75 mm 1/pkg 186003044 XBridge Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003045 XBridge Shield RP18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003964 XBridge Shield RP18 3.5um 4.6 mm ID x 250 mm 1/pkg 186003157 XBridge Shield RP18 5um 2.1 mm ID x 30 mm 1/pkg 186002999 XBridge Shield RP18 5um 2.1 mm ID x 50 mm 1/pkg 186003002 XBridge Shield RP18 5um 2.1 mm ID x 100 mm 1/pkg 186003003 XBridge Shield RP18 5um 2.1 mm ID x 150 mm 1/pkg 186003159 XBridge Shield RP18 5um 3.0 mm ID x 30 mm 1/pkg 186003160 XBridge Shield RP18 5um 3.0 mm ID x 50 mm 1/pkg 186003004 XBridge Shield RP18 5um 3.0 mm ID x 100 mm 1/pkg 186003005 XBridge Shield RP18 5um 3.0 mm ID x 150 mm 1/pkg 186003161 XBridge Shield RP18 5um 3.0 mm ID x 250 mm 1/pkg 186003163 XBridge Shield RP18 5um 4.6 mm ID x 30 mm 1/pkg 186003006 XBridge Shield RP18 5um 4.6 mm ID x 50 mm 1/pkg 186003007 XBridge Shield RP18 5um 4.6 mm ID x 75 mm 1/pkg 186003008 XBridge Shield RP18 5um 4.6 mm ID x 100 mm 1/pkg 186003009 XBridge Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186003010 XBridge Shield RP18 5um 4.6 mm ID x 250 mm 1/pkg XBridge Phenyl Column 186003306 XBridge Phenyl 2.5um 1.0 mm ID x 50 mm 1/pkg 186003308 XBridge Phenyl 2.5um 2.1 mm ID x 30 mm 1/pkg 186003309 XBridge Phenyl 2.5um 2.1 mm ID x 50 mm 1/pkg 186003311 XBridge Phenyl 2.5um 3.0 mm ID x 30 mm 1/pkg 186003312 XBridge Phenyl 2.5um 3.0 mm ID x 50 mm 1/pkg 186003314 XBridge Phenyl 2.5um 4.6 mm ID x 30 mm 1/pkg 186003315 XBridge Phenyl 2.5um 4.6 mm ID x 50 mm 1/pkg 186003316 XBridge Phenyl 2.5um 4.6 mm ID x 75 mm 1/pkg 186003317 XBridge Phenyl 3.5um 1.0 mm ID x 50 mm 1/pkg 186003318 XBridge Phenyl 3.5um 1.0 mm ID x 100 mm 1/pkg 186003319 XBridge Phenyl 3.5um 1.0 mm ID x 150 mm 1/pkg 186003321 XBridge Phenyl 3.5um 2.1 mm ID x 30 mm 1/pkg 186003322 XBridge Phenyl 3.5um 2.1 mm ID x 50 mm 1/pkg 186003323 XBridge Phenyl 3.5um 2.1 mm ID x 100 mm 1/pkg 186003324 XBridge Phenyl 3.5um 2.1 mm ID x 150 mm 1/pkg 186003326 XBridge Phenyl 3.5um 3.0 mm ID x 30 mm 1/pkg 186003327 XBridge Phenyl 3.5um 3.0 mm ID x 50 mm 1/pkg 186003328 XBridge Phenyl 3.5um 3.0 mm ID x 100 mm 1/pkg 186003329 XBridge Phenyl 3.5um 3.0 mm ID x 150 mm 1/pkg 186003331 XBridge Phenyl 3.5um 4.6 mm ID x 30 mm 1/pkg 186003332 XBridge Phenyl 3.5um 4.6 mm ID x 50 mm 1/pkg 186003333 XBridge Phenyl 3.5um 4.6 mm ID x 75 mm 1/pkg 186003334 XBridge Phenyl 3.5um 4.6 mm ID x 100 mm 1/pkg 186003335 XBridge Phenyl 3.5um 4.6 mm ID x 150 mm 1/pkg 186003965 XBridge Phenyl 3.5um 4.6 mm ID x 250 mm 1/pkg 186003337 XBridge Phenyl 5um 2.1 mm ID x 30 mm 1/pkg 186003338 XBridge Phenyl 5um 2.1 mm ID x 50 mm 1/pkg 186003339 XBridge Phenyl 5um 2.1 mm ID x 100 mm 1/pkg 186003340 XBridge Phenyl 5um 2.1 mm ID x 150 mm 1/pkg 186003342 XBridge Phenyl 5um 3.0 mm ID x 30 mm 1/pkg 186003343 XBridge Phenyl 5um 3.0 mm ID x 50 mm 1/pkg 186003344 XBridge Phenyl 5um 3.0 mm ID x 100 mm 1/pkg 186003345 XBridge Phenyl 5um 3.0 mm ID x 150 mm 1/pkg 186003346 XBridge Phenyl 5um 3.0 mm ID x 250 mm 1/pkg 186003348 XBridge Phenyl 5um 4.6 mm ID x 30 mm 1/pkg 186003349 XBridge Phenyl 5um 4.6 mm ID x 50 mm 1/pkg 186003350 XBridge Phenyl 5um 4.6 mm ID x 75 mm 1/pkg 186003351 XBridge Phenyl 5um 4.6 mm ID x 100 mm 1/pkg 186003352 XBridge Phenyl 5um 4.6 mm ID x 150 mm 1/pkg 186003353 XBridge Phenyl 5um 4.6 mm ID x 250 mm 1/pkg XBridge Method Validation Kits 186003766 XBridge C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003767 XBridge C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003768 XBridge C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003769 XBridge C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003770 XBridge C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003771 XBridge C18 5um 2.1 mm ID x 150 mm 1/pkg 186003772 XBridge C18 5um 3.0 mm ID x 100 mm 1/pkg 186003773 XBridge C18 5um 3.0 mm ID x 150 mm 1/pkg 186003774 XBridge C18 5um 4.6 mm ID x 100 mm 1/pkg 186003775 XBridge C18 5um 4.6 mm ID x 150 mm 1/pkg 186003776 XBridge C18 5um 4.6 mm ID x 250 mm 1/pkg 186002677 XBridge C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186003778 XBridge C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186003779 XBridge C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186003780 XBridge C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186003781 XBridge C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186003782 XBridge C8 5um 2.1 mm ID x 150 mm 1/pkg 186003783 XBridge C8 5um 3.0 mm ID x 100 mm 1/pkg 186003784 XBridge C8 5um 3.0 mm ID x 150 mm 1/pkg 186003785 XBridge C8 5um 4.6 mm ID x 100 mm 1/pkg 186003786 XBridge C8 5um 4.6 mm ID x 150 mm 1/pkg 186002687 XBridge C8 5um 4.6 mm ID x 250 mm 1/pkg 186003788 XBridge Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186003789 XBridge Shield RP18 3.5um 3.0 mm ID x 100 mm 1/pkg 186003790 XBridge Shield RP18 3.5um 3.0 mm ID x 150 mm 1/pkg 186003791 XBridge Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186003792 XBridge Shield RP18 3.5um 4.6 mm ID x 150 mm 1/pkg 186003793 XBridge Shield RP18 5um 2.1 mm ID x 150 mm 1/pkg 186003794 XBridge Shield RP18 5um 3.0 mm ID x 100 mm 1/pkg 186003795 XBridge Shield RP18 5um 3.0 mm ID x 150 mm 1/pkg 186003796 XBridge Shield RP18 5um 4.6 mm ID x 100 mm 1/pkg 186003797 XBridge Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186003798 XBridge Shield RP18 5um 4.6 mm ID x 250 mm 1/pkg 186003799 XBridge Phenyl 3.5um 2.1 mm ID x 100 mm 1/pkg 186003800 XBridge Phenyl 3.5um 3.0 mm ID x 100 mm 1/pkg 186003801 XBridge Phenyl 3.5um 3.0 mm ID x 150 mm 1/pkg 186003802 XBridge Phenyl 3.5um 4.6 mm ID x 100 mm 1/pkg 186003803 XBridge Phenyl 3.5um 4.6 mm ID x 150 mm 1/pkg 186003804 XBridge Phenyl 5um 2.1 mm ID x 150 mm 1/pkg 186003805 XBridge Phenyl 5um 3.0 mm ID x 100 mm 1/pkg 186003806 XBridge Phenyl 5um 3.0 mm ID x 150 mm 1/pkg 186003807 XBridge Phenyl 5um 4.6 mm ID x 100 mm 1/pkg 186003808 XBridge Phenyl 5um 4.6 mm ID x 150 mm 1/pkg 186003809 XBridge Phenyl 5um 4.6 mm ID x 250 mm 1/pkg XBridge IS Column 186003201 XBridge C18 IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003087 XBridge C18 IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003088 XBridge C18 IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003059 XBridge C18 IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003024 XBridge C18 IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003029 XBridge C18 IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003107 XBridge C18 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003130 XBridge C18 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003134 XBridge C18 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003167 XBridge C8 IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003168 XBridge C8 IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003172 XBridge C8 IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003077 XBridge C8 IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003181 XBridge C8 IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003183 XBridge C8 IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003186 XBridge C8 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003188 XBridge C8 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003193 XBridge C8 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003139 XBridge Shield RP18 IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003140 XBridge Shield RP18 IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003144 XBridge Shield RP18 IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003068 XBridge Shield RP18 IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003152 XBridge Shield RP18 IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003154 XBridge Shield RP18 IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003156 XBridge Shield RP18 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003158 XBridge Shield RP18 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003162 XBridge Shield RP18 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003307 XBridge Phenyl IS 2.5um 2.1 mm ID x 20 mm 1/pkg 186003310 XBridge Phenyl IS 2.5um 3.0 mm ID x 20 mm 1/pkg 186003313 XBridge Phenyl IS 2.5um 4.6 mm ID x 20 mm 1/pkg 186003362 XBridge Phenyl IS 3.5um 2.1 mm ID x 20 mm 1/pkg 186003325 XBridge Phenyl IS 3.5um 3.0 mm ID x 20 mm 1/pkg 186003330 XBridge Phenyl IS 3.5um 4.6 mm ID x 20 mm 1/pkg 186003336 XBridge Phenyl IS 5um 2.1 mm ID x 20 mm 1/pkg 186003341 XBridge Phenyl IS 5um 3.0 mm ID x 20 mm 1/pkg 186003347 XBridge Phenyl IS 5um 4.6 mm ID x 20 mm 1/pkg XBridge Guard Column 186003056 XBridge C18 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003057 XBridge C18 Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003058 XBridge C18 Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003019 XBridge C18 Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003060 XBridge C18 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003061 XBridge C18 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003062 XBridge C18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003063 XBridge C18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003064 XBridge C18 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003074 XBridge C8 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003075 XBridge C8 Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003076 XBridge C8 Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003180 XBridge C8 Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003078 XBridge C8 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003079 XBridge C8 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003080 XBridge C8 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003081 XBridge C8 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003082 XBridge C8 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003065 XBridge Shield RP18 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003066 XBridge Shield RP18 Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003067 XBridge Shield RP18 Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003151 XBridge Shield RP18 Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003069 XBridge Shield RP18 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003070 XBridge Shield RP18 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003071 XBridge Shield RP18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003072 XBridge Shield RP18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003073 XBridge Shield RP18 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003359 XBridge Phenyl Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003360 XBridge Phenyl Guard 2.5um 3.0 mm ID x 20 mm 1/pkg 186003361 XBridge Phenyl Guard 2.5um 4.6 mm ID x 20 mm 1/pkg 186003320 XBridge Phenyl Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186003363 XBridge Phenyl Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186003364 XBridge Phenyl Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186003366 XBridge Phenyl Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003367 XBridge Phenyl Guard 5um 3.0 mm ID x 20 mm 1/pkg 186003368 XBridge Phenyl Guard 5um 4.6 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.07
11
SunFire™
WatersSunFire™
◈ Product Information
SunFire™ 컬럼은 높은mass loading 능력, 낮은 pH에서의 뛰어난 안정성, 우수한 피크 모양, 고효율의 최신 실리카 컬럼으로서, 분석용 및 분취용 컬럼이 공급됩니다.
► Point
- 높은 mass loading 능력
- 낮은 pH에서의 뛰어난 안정성
- 우수한 피크 모양
- 고효율
다양한 입자 크기(2.5µm-10µm) 및 chemistries(C18 and C8) 를 제공하는 SunFire는 실리카 기반의 HPLC 컬럼 선택 시 높은 유연성을 제공합니다. 분취 응용으로, 5µm 및 10µm 입자의 SunFire 실리카를 사용할 수 있습니다.
► SunFireC18 및 C8 분석용 컬럼
우수한 피크 모양
SunFire™ 컬럼은 대칭적인 피크를 통하여 분리능을 향상시켰습니다. 새로워진 리간드 결합 기술 및 엔드캐핑(endcapping) 기술을 통하여 낮은 pH 및 중간 pH 영역에서 산성, 중성 및 염기성 화합물에 대한 우수한 분리 효율을 제공합니다.
각각 5μm 입자들로 채워진 컬럼의 이 비교 실험에서 SunFire C18 컬럼이 가장 어려운 pH 7 이동상 조건에서 염기성 물질의 표본인 아미트립틸린(amitriptyline)에 대한 최저의 USP 꼬리끌림 인자(tailing factor)를 보여줍니다.
높은 분리효율
SunFire 컬럼은 새로운 고유 기술에 의해 C18 및 C8 리간드 결합 및 엔드캡핑된 최첨단의 실리카로 충진되어 있어 높은 효율을 보이므로 훨씬 증대된 감도를 얻을 수 있습니다.
MS에서 사용 가능
SunFire 컬럼은 샤프한 피크와 높은 감도, 높은 피크용량(peak capacity) 및 매우 낮은 리간드 용출(column bleeding)을 통하여 질량분석기 응용에서 우수한 결과를 보여줍니다.
낮은 pH 영역에서의 뛰어난 안정성
많은 다른 브랜드의 실리카 근간 HPLC 컬럼과 비교하여, 낮은 pH영역에서의 우수한 안정성으로 수명을 현저히 증대시켰습니다.
배치(batch)간 재현성
SunFire 컬럼은 최고 수준의 크로마토그래피 결과의 일관성을 보일 수 있도록 각 컬럼 및 배치간 재현성이 우수하게 제조되었습니다.
► SunFire 2.5um columns
컬럼 충진 입자의 크기가 작을수록 높은 감도와 효율성을 보입니다. 2.5µm 크기의 입자를 충진한 SunFire™ 컬럼을 이용하여 분리능은 유지하면서 분석 시간을 줄일 수 있습니다.
감도 개선 및 효율 증가
► SunFire Preparative C18 and C8 Columns
OBD(Optimum Bed Density) 설계
OBD™(Optimum Bed Density) 기술을 적용하여 가장 신뢰할 수 있고 일관성 있는 분취용 컬럼의 성능을 제공합니다.
증대된 컬럼 수명
일관성 있는 컬럼 수명은 많은 처리량이 필요한 응용에서 주요한 고려 사항이며, 실험실의 필요 예산 산정 시 가장 주요한 사항입니다. SunFire™ Prep OBD 컬럼은 증대된 용량으로 (DMSO 조건에서1000회 이상의 시료 주입) 최적의 컬럼 효율과 수명을 보여줍니다
높은 로딩 용량
SunFire Prep 컬럼의 실리카 입자는 산성 및 중성의 pH 이동상 조건에서 최대의 로딩용량을 제공하기 위한 목적으로 합성되었습니다.
SunFire 컬럼의 높은 로딩 용량은 분취용 컬럼의 크기를 줄일 수 있습니다.
효율성 및 확장성
SunFire Prep OBD 컬럼은 분석 규모에서부터 분취 규모에 이르기까지 동일한 크로마토그래피의 결과를 보여주므로 반복된 분석법 재개발 빈도를 현저히 줄여줍니다. SunFire Prep 컬럼과 충진입자는 엄격한 합성 및 충진 절차하에서 이루어지는 cGMP 환경에서 제조되므로 정확한 확장성을 보장합니다.
SunFire C18 컬럼을 이용한 두가지 항균제 분리시의 스케일 업
► SunFire Prep Normal-Phase Silica Columns
SunFire™ 순상 실리카 컬럼은 친수성이 큰 분석물질이나 물에서 안정적인 않은 분석물질과 같이, 역상의 LC에서 분리하기 쉽지 않은 물질을 정제할 수 있고 다음과 같은 특성을 가지고 있습니다.
- 높은 이론 단수 (분석용 컬럼과 유사)
- 우수한 스케일업 능력
- 낮은 압력 유발
- 빠른 건조 시간
5µm 및 10µm 입자 크기로 제공되는 SunFire Prep 컬럼은 우수한 피크 모양 및 높은 로딩 용량 뿐만 아니라 OBD™(Optimum Bed Density) 기술에 의한 우수한 컬럼 수명 및 안정성을 보여줍니다.
표준 DCC/DMAP 프로토콜을 이용한 다이에스테르(Diester)의 정제
► 높은 로딩 용량
cGMP 프로토콜에 따라 설계된 SunFire™ 실리카 충진 입자들은 산성 및 중성의 pH 이동상 조건에서 최대의 로딩 용량을 보여줍니다. SunFire 컬럼 충진물의 높은 질량로딩량은 더 작은 크기의 컬럼을 사용할 수 있도록 해줍니다.
낮은 농도의 분석 물질 및 불순물의 검출
높은 로딩량을 제공하기 위하여 특수 설계된 실리카 입자로 채워진 SunFire 컬럼은 더 높은 농도의 시료를 주입할 수 있습니다. 샘플 로딩량을 늘림으로써 SunFire컬럼은 낮은 농도의 분석 물질, 불순물 및 분해된 물질(degradant)의 검출과 정량시 높은 감도를 보입니다.
더 연장된 컬럼 수명
우수한 OBD™(Superior Optimum Bed Density) 설계의 SunFire 분취용 컬럼은 예측 가능한 긴 수명을 특징으로 합니다. 특허의 Waters Prep OBD 컬럼*은 컬럼 bed 안정성을 획기적으로 높임으로써 실험실 규모의 분취크로마토그래피에 혁신을 가져왔습니다. Waters Prep OBD Column Design는 빨리 컬럼이 망가지는 것을 방지해드립니다.
* UK 특허 GB2408469
낮은 농도의 분석 물질 또는 불순물의 검출
높은 질량로딩량을 가질 수 있도록 특수 설계된 실리카 입자를 충진한 SunFire 컬럼은 주입 당 컬럼에 더 많은 분석 물질을 함유하게 할 수 있습니다. 샘플의 로딩량을 늘림으로써 SunFire는 낮은 농도의 분석 물질, 불순물 및 분해된 물질(degradant)을 검출하고 정량할 때 높은 감도를 제공합니다.
► 물리적 특성 Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capping C18 2.5, 3.5, 5, 10um 구형 100A 16% YES C8 2.5, 3.5, 5, 10um 구형 100A 11.5% YES Silica 5, 10um 구형 100A 해당없음 해당없음
◈ Ordering Information Product Number Description Package SunFire C18 Column 186003392 SunFire C18 2.5um 1.0 mm ID x 50 mm 1/pkg 186003399 SunFire C18 2.5um 2.1 mm ID x 30 mm 1/pkg 186003401 SunFire C18 2.5um 2.1 mm ID x 50 mm 1/pkg 186003407 SunFire C18 2.5um 3.0 mm ID x 30 mm 1/pkg 186003409 SunFire C18 2.5um 3.0 mm ID x 50 mm 1/pkg 186003415 SunFire C18 2.5um 4.6 mm ID x 30 mm 1/pkg 186003417 SunFire C18 2.5um 4.6 mm ID x 50 mm 1/pkg 186003419 SunFire C18 2.5um 4.6 mm ID x 75 mm 1/pkg 186002526 SunFire C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186002528 SunFire C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186002532 SunFire C18 3.5um 2.1 mm ID x 30 mm 1/pkg 186002533 SunFire C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186002534 SunFire C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186002535 SunFire C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186003254 SunFire C18 3.5um 3.0 mm ID x 30 mm 1/pkg 186002542 SunFire C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186002543 SunFire C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186002544 SunFire C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186002550 SunFire C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186002551 SunFire C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186002552 SunFire C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186002553 SunFire C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186002554 SunFire C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186002529 SunFire C18 5um 1.0 mm ID x 150 mm 1/pkg 186002538 SunFire C18 5um 2.1 mm ID x 30 mm 1/pkg 186002539 SunFire C18 5um 2.1 mm ID x 50 mm 1/pkg 186002540 SunFire C18 5um 2.1 mm ID x 100 mm 1/pkg 186002541 SunFire C18 5um 2.1 mm ID x 150 mm 1/pkg 186002545 SunFire C18 5um 3.0 mm ID x 50 mm 1/pkg 186002546 SunFire C18 5um 3.0 mm ID x 100 mm 1/pkg 186002547 SunFire C18 5um 3.0 mm ID x 150 mm 1/pkg 186002548 SunFire C18 5um 3.0 mm ID x 250 mm 1/pkg 186002556 SunFire C18 5um 4.6 mm ID x 30 mm 1/pkg 186002557 SunFire C18 5um 4.6 mm ID x 50 mm 1/pkg 186002558 SunFire C18 5um 4.6 mm ID x 100 mm 1/pkg 186002559 SunFire C18 5um 4.6 mm ID x 150 mm 1/pkg 186002560 SunFire C18 5um 4.6 mm ID x 250 mm 1/pkg SunFire C8 Column 186003394 SunFire C8 2.5um 1.0 mm ID x 50 mm 1/pkg 186003400 SunFire C8 2.5um 2.1 mm ID x 30 mm 1/pkg 186003402 SunFire C8 2.5um 2.1 mm ID x 50 mm 1/pkg 186003408 SunFire C8 2.5um 3.0 mm ID x 30 mm 1/pkg 186003410 SunFire C8 2.5um 3.0 mm ID x 50 mm 1/pkg 186003416 SunFire C8 2.5um 4.6 mm ID x 30 mm 1/pkg 186003418 SunFire C8 2.5um 4.6 mm ID x 50 mm 1/pkg 186003420 SunFire C8 2.5um 4.6 mm ID x 75 mm 1/pkg 186002705 SunFire C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186002706 SunFire C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186002709 SunFire C8 3.5um 2.1 mm ID x 30 mm 1/pkg 186002710 SunFire C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186002711 SunFire C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186002712 SunFire C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186002719 SunFire C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186002720 SunFire C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186002721 SunFire C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186002728 SunFire C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186002729 SunFire C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186002730 SunFire C8 3.5um 4.6 mm ID x 75 mm 1/pkg 186002731 SunFire C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186002732 SunFire C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186002707 SunFire C8 5um 1.0 mm ID x 150 mm 1/pkg 186002714 SunFire C8 5um 2.1 mm ID x 30 mm 1/pkg 186002715 SunFire C8 5um 2.1 mm ID x 50 mm 1/pkg 186002716 SunFire C8 5um 2.1 mm ID x 100 mm 1/pkg 186002717 SunFire C8 5um 2.1 mm ID x 150 mm 1/pkg 186002723 SunFire C8 5um 3.0 mm ID x 50 mm 1/pkg 186002724 SunFire C8 5um 3.0 mm ID x 100 mm 1/pkg 186002725 SunFire C8 5um 3.0 mm ID x 150 mm 1/pkg 186002726 SunFire C8 5um 3.0 mm ID x 250 mm 1/pkg 186002734 SunFire C8 5um 4.6 mm ID x 30 mm 1/pkg 186002735 SunFire C8 5um 4.6 mm ID x 50 mm 1/pkg 186002736 SunFire C8 5um 4.6 mm ID x 100 mm 1/pkg 186002737 SunFire C8 5um 4.6 mm ID x 150 mm 1/pkg 186002738 SunFire C8 5um 4.6 mm ID x 250 mm 1/pkg SunFire Method Validation Kits 186002674 SunFire C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186002675 SunFire C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186002676 SunFire C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186002678 SunFire C18 5um 2.1 mm ID x 150 mm 1/pkg 186002677 SunFire C18 5um 4.6 mm ID x 100 mm 1/pkg 186002679 SunFire C18 5um 4.6 mm ID x 150 mm 1/pkg 186002680 SunFire C18 5um 4.6 mm ID x 250 mm 1/pkg 186002739 SunFire C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186002740 SunFire C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186002741 SunFire C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186002743 SunFire C8 5um 2.1 mm ID x 150 mm 1/pkg 186002742 SunFire C8 5um 4.6 mm ID x 100 mm 1/pkg 186002744 SunFire C8 5um 4.6 mm ID x 150 mm 1/pkg 186002745 SunFire C8 5um 4.6 mm ID x 250 mm 1/pkg SunFire IS Column 186003397 SunFire IS C18 2.5um 2.1 mm ID x 20 mm 1/pkg 186003403 SunFire IS C18 2.5um 3.0 mm ID x 20 mm 1/pkg 186003411 SunFire IS C18 2.5um 4.6 mm ID x 20 mm 1/pkg 186002531 SunFire IS C18 3.5um 2.1 mm ID x 20 mm 1/pkg 186002686 SunFire IS C18 3.5um 3.0 mm ID x 20 mm 1/pkg 186002549 SunFire IS C18 3.5um 4.6 mm ID x 20 mm 1/pkg 186002537 SunFire IS C18 5um 2.1 mm ID x 20 mm 1/pkg 186002685 SunFire IS C18 5um 3.0 mm ID x 20 mm 1/pkg 186002555 SunFire IS C18 5um 4.6 mm ID x 20 mm 1/pkg 186003398 SunFire IS C8 2.5um 2.1 mm ID x 20 mm 1/pkg 186003404 SunFire IS C8 2.5um 3.0 mm ID x 20 mm 1/pkg 186003412 SunFire IS C8 2.5um 4.6 mm ID x 20 mm 1/pkg 186002697 SunFire IS C8 3.5um 2.1 mm ID x 20 mm 1/pkg 186002701 SunFire IS C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186002699 SunFire IS C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186002698 SunFire IS C8 5um 2.1 mm ID x 20 mm 1/pkg 186002702 SunFire IS C8 5um 3.0 mm ID x 20 mm 1/pkg 186002700 SunFire IS C8 5um 4.6 mm ID x 20 mm 1/pkg SunFire Guard Column 186003395 SunFire C18 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003405 SunFire C18 Guard 2.5um 3.0 mm ID x 10 mm 1/pkg 186003413 SunFire C18 Guard 2.5um 4.6 mm ID x 10 mm 1/pkg 186002530 SunFire C18 Guard 3.5um 2.1 mm ID x 10 mm 1/pkg 186002681 SunFire C18 Guard 3.5um 3.0 mm ID x 10 mm 1/pkg 186002682 SunFire C18 Guard 3.5um 4.6 mm ID x 10 mm 1/pkg 186002536 SunFire C18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186002684 SunFire C18 Guard 5um 3.0 mm ID x 10 mm 1/pkg 186002683 SunFire C18 Guard 5um 4.6 mm ID x 10 mm 1/pkg 186003396 SunFire C8 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003406 SunFire C8 Guard 2.5um 3.0 mm ID x 10 mm 1/pkg 186003414 SunFire C8 Guard 2.5um 4.6 mm ID x 10 mm 1/pkg 186002708 SunFire C8 Guard 3.5um 2.1 mm ID x 10 mm 1/pkg 186002718 SunFire C8 Guard 3.5um 3.0 mm ID x 10 mm 1/pkg 186002727 SunFire C8 Guard 3.5um 4.6 mm ID x 10 mm 1/pkg 186002713 SunFire C8 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186002733 SunFire C8 Guard 5um 3.0 mm ID x 10 mm 1/pkg 186002722 SunFire C8 Guard 5um 4.6 mm ID x 10 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.07
WatersSunFire™
◈ Product Information
SunFire™ 컬럼은 높은mass loading 능력, 낮은 pH에서의 뛰어난 안정성, 우수한 피크 모양, 고효율의 최신 실리카 컬럼으로서, 분석용 및 분취용 컬럼이 공급됩니다.
► Point
- 높은 mass loading 능력
- 낮은 pH에서의 뛰어난 안정성
- 우수한 피크 모양
- 고효율
다양한 입자 크기(2.5µm-10µm) 및 chemistries(C18 and C8) 를 제공하는 SunFire는 실리카 기반의 HPLC 컬럼 선택 시 높은 유연성을 제공합니다. 분취 응용으로, 5µm 및 10µm 입자의 SunFire 실리카를 사용할 수 있습니다.
► SunFireC18 및 C8 분석용 컬럼
우수한 피크 모양
SunFire™ 컬럼은 대칭적인 피크를 통하여 분리능을 향상시켰습니다. 새로워진 리간드 결합 기술 및 엔드캐핑(endcapping) 기술을 통하여 낮은 pH 및 중간 pH 영역에서 산성, 중성 및 염기성 화합물에 대한 우수한 분리 효율을 제공합니다.
각각 5μm 입자들로 채워진 컬럼의 이 비교 실험에서 SunFire C18 컬럼이 가장 어려운 pH 7 이동상 조건에서 염기성 물질의 표본인 아미트립틸린(amitriptyline)에 대한 최저의 USP 꼬리끌림 인자(tailing factor)를 보여줍니다.
높은 분리효율
SunFire 컬럼은 새로운 고유 기술에 의해 C18 및 C8 리간드 결합 및 엔드캡핑된 최첨단의 실리카로 충진되어 있어 높은 효율을 보이므로 훨씬 증대된 감도를 얻을 수 있습니다.
MS에서 사용 가능
SunFire 컬럼은 샤프한 피크와 높은 감도, 높은 피크용량(peak capacity) 및 매우 낮은 리간드 용출(column bleeding)을 통하여 질량분석기 응용에서 우수한 결과를 보여줍니다.
낮은 pH 영역에서의 뛰어난 안정성
많은 다른 브랜드의 실리카 근간 HPLC 컬럼과 비교하여, 낮은 pH영역에서의 우수한 안정성으로 수명을 현저히 증대시켰습니다.
배치(batch)간 재현성
SunFire 컬럼은 최고 수준의 크로마토그래피 결과의 일관성을 보일 수 있도록 각 컬럼 및 배치간 재현성이 우수하게 제조되었습니다.
► SunFire 2.5um columns
컬럼 충진 입자의 크기가 작을수록 높은 감도와 효율성을 보입니다. 2.5µm 크기의 입자를 충진한 SunFire™ 컬럼을 이용하여 분리능은 유지하면서 분석 시간을 줄일 수 있습니다.
감도 개선 및 효율 증가
► SunFire Preparative C18 and C8 Columns
OBD(Optimum Bed Density) 설계
OBD™(Optimum Bed Density) 기술을 적용하여 가장 신뢰할 수 있고 일관성 있는 분취용 컬럼의 성능을 제공합니다.
증대된 컬럼 수명
일관성 있는 컬럼 수명은 많은 처리량이 필요한 응용에서 주요한 고려 사항이며, 실험실의 필요 예산 산정 시 가장 주요한 사항입니다. SunFire™ Prep OBD 컬럼은 증대된 용량으로 (DMSO 조건에서1000회 이상의 시료 주입) 최적의 컬럼 효율과 수명을 보여줍니다
높은 로딩 용량
SunFire Prep 컬럼의 실리카 입자는 산성 및 중성의 pH 이동상 조건에서 최대의 로딩용량을 제공하기 위한 목적으로 합성되었습니다.
SunFire 컬럼의 높은 로딩 용량은 분취용 컬럼의 크기를 줄일 수 있습니다.
효율성 및 확장성
SunFire Prep OBD 컬럼은 분석 규모에서부터 분취 규모에 이르기까지 동일한 크로마토그래피의 결과를 보여주므로 반복된 분석법 재개발 빈도를 현저히 줄여줍니다. SunFire Prep 컬럼과 충진입자는 엄격한 합성 및 충진 절차하에서 이루어지는 cGMP 환경에서 제조되므로 정확한 확장성을 보장합니다.
SunFire C18 컬럼을 이용한 두가지 항균제 분리시의 스케일 업
► SunFire Prep Normal-Phase Silica Columns
SunFire™ 순상 실리카 컬럼은 친수성이 큰 분석물질이나 물에서 안정적인 않은 분석물질과 같이, 역상의 LC에서 분리하기 쉽지 않은 물질을 정제할 수 있고 다음과 같은 특성을 가지고 있습니다.
- 높은 이론 단수 (분석용 컬럼과 유사)
- 우수한 스케일업 능력
- 낮은 압력 유발
- 빠른 건조 시간
5µm 및 10µm 입자 크기로 제공되는 SunFire Prep 컬럼은 우수한 피크 모양 및 높은 로딩 용량 뿐만 아니라 OBD™(Optimum Bed Density) 기술에 의한 우수한 컬럼 수명 및 안정성을 보여줍니다.
표준 DCC/DMAP 프로토콜을 이용한 다이에스테르(Diester)의 정제
► 높은 로딩 용량
cGMP 프로토콜에 따라 설계된 SunFire™ 실리카 충진 입자들은 산성 및 중성의 pH 이동상 조건에서 최대의 로딩 용량을 보여줍니다. SunFire 컬럼 충진물의 높은 질량로딩량은 더 작은 크기의 컬럼을 사용할 수 있도록 해줍니다.
낮은 농도의 분석 물질 및 불순물의 검출
높은 로딩량을 제공하기 위하여 특수 설계된 실리카 입자로 채워진 SunFire 컬럼은 더 높은 농도의 시료를 주입할 수 있습니다. 샘플 로딩량을 늘림으로써 SunFire컬럼은 낮은 농도의 분석 물질, 불순물 및 분해된 물질(degradant)의 검출과 정량시 높은 감도를 보입니다.
더 연장된 컬럼 수명
우수한 OBD™(Superior Optimum Bed Density) 설계의 SunFire 분취용 컬럼은 예측 가능한 긴 수명을 특징으로 합니다. 특허의 Waters Prep OBD 컬럼*은 컬럼 bed 안정성을 획기적으로 높임으로써 실험실 규모의 분취크로마토그래피에 혁신을 가져왔습니다. Waters Prep OBD Column Design는 빨리 컬럼이 망가지는 것을 방지해드립니다.
* UK 특허 GB2408469
낮은 농도의 분석 물질 또는 불순물의 검출
높은 질량로딩량을 가질 수 있도록 특수 설계된 실리카 입자를 충진한 SunFire 컬럼은 주입 당 컬럼에 더 많은 분석 물질을 함유하게 할 수 있습니다. 샘플의 로딩량을 늘림으로써 SunFire는 낮은 농도의 분석 물질, 불순물 및 분해된 물질(degradant)을 검출하고 정량할 때 높은 감도를 제공합니다.
► 물리적 특성 Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capping C18 2.5, 3.5, 5, 10um 구형 100A 16% YES C8 2.5, 3.5, 5, 10um 구형 100A 11.5% YES Silica 5, 10um 구형 100A 해당없음 해당없음
◈ Ordering Information Product Number Description Package SunFire C18 Column 186003392 SunFire C18 2.5um 1.0 mm ID x 50 mm 1/pkg 186003399 SunFire C18 2.5um 2.1 mm ID x 30 mm 1/pkg 186003401 SunFire C18 2.5um 2.1 mm ID x 50 mm 1/pkg 186003407 SunFire C18 2.5um 3.0 mm ID x 30 mm 1/pkg 186003409 SunFire C18 2.5um 3.0 mm ID x 50 mm 1/pkg 186003415 SunFire C18 2.5um 4.6 mm ID x 30 mm 1/pkg 186003417 SunFire C18 2.5um 4.6 mm ID x 50 mm 1/pkg 186003419 SunFire C18 2.5um 4.6 mm ID x 75 mm 1/pkg 186002526 SunFire C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186002528 SunFire C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186002532 SunFire C18 3.5um 2.1 mm ID x 30 mm 1/pkg 186002533 SunFire C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186002534 SunFire C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186002535 SunFire C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186003254 SunFire C18 3.5um 3.0 mm ID x 30 mm 1/pkg 186002542 SunFire C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186002543 SunFire C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186002544 SunFire C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186002550 SunFire C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186002551 SunFire C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186002552 SunFire C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186002553 SunFire C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186002554 SunFire C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186002529 SunFire C18 5um 1.0 mm ID x 150 mm 1/pkg 186002538 SunFire C18 5um 2.1 mm ID x 30 mm 1/pkg 186002539 SunFire C18 5um 2.1 mm ID x 50 mm 1/pkg 186002540 SunFire C18 5um 2.1 mm ID x 100 mm 1/pkg 186002541 SunFire C18 5um 2.1 mm ID x 150 mm 1/pkg 186002545 SunFire C18 5um 3.0 mm ID x 50 mm 1/pkg 186002546 SunFire C18 5um 3.0 mm ID x 100 mm 1/pkg 186002547 SunFire C18 5um 3.0 mm ID x 150 mm 1/pkg 186002548 SunFire C18 5um 3.0 mm ID x 250 mm 1/pkg 186002556 SunFire C18 5um 4.6 mm ID x 30 mm 1/pkg 186002557 SunFire C18 5um 4.6 mm ID x 50 mm 1/pkg 186002558 SunFire C18 5um 4.6 mm ID x 100 mm 1/pkg 186002559 SunFire C18 5um 4.6 mm ID x 150 mm 1/pkg 186002560 SunFire C18 5um 4.6 mm ID x 250 mm 1/pkg SunFire C8 Column 186003394 SunFire C8 2.5um 1.0 mm ID x 50 mm 1/pkg 186003400 SunFire C8 2.5um 2.1 mm ID x 30 mm 1/pkg 186003402 SunFire C8 2.5um 2.1 mm ID x 50 mm 1/pkg 186003408 SunFire C8 2.5um 3.0 mm ID x 30 mm 1/pkg 186003410 SunFire C8 2.5um 3.0 mm ID x 50 mm 1/pkg 186003416 SunFire C8 2.5um 4.6 mm ID x 30 mm 1/pkg 186003418 SunFire C8 2.5um 4.6 mm ID x 50 mm 1/pkg 186003420 SunFire C8 2.5um 4.6 mm ID x 75 mm 1/pkg 186002705 SunFire C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186002706 SunFire C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186002709 SunFire C8 3.5um 2.1 mm ID x 30 mm 1/pkg 186002710 SunFire C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186002711 SunFire C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186002712 SunFire C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186002719 SunFire C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186002720 SunFire C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186002721 SunFire C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186002728 SunFire C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186002729 SunFire C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186002730 SunFire C8 3.5um 4.6 mm ID x 75 mm 1/pkg 186002731 SunFire C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186002732 SunFire C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186002707 SunFire C8 5um 1.0 mm ID x 150 mm 1/pkg 186002714 SunFire C8 5um 2.1 mm ID x 30 mm 1/pkg 186002715 SunFire C8 5um 2.1 mm ID x 50 mm 1/pkg 186002716 SunFire C8 5um 2.1 mm ID x 100 mm 1/pkg 186002717 SunFire C8 5um 2.1 mm ID x 150 mm 1/pkg 186002723 SunFire C8 5um 3.0 mm ID x 50 mm 1/pkg 186002724 SunFire C8 5um 3.0 mm ID x 100 mm 1/pkg 186002725 SunFire C8 5um 3.0 mm ID x 150 mm 1/pkg 186002726 SunFire C8 5um 3.0 mm ID x 250 mm 1/pkg 186002734 SunFire C8 5um 4.6 mm ID x 30 mm 1/pkg 186002735 SunFire C8 5um 4.6 mm ID x 50 mm 1/pkg 186002736 SunFire C8 5um 4.6 mm ID x 100 mm 1/pkg 186002737 SunFire C8 5um 4.6 mm ID x 150 mm 1/pkg 186002738 SunFire C8 5um 4.6 mm ID x 250 mm 1/pkg SunFire Method Validation Kits 186002674 SunFire C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186002675 SunFire C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186002676 SunFire C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186002678 SunFire C18 5um 2.1 mm ID x 150 mm 1/pkg 186002677 SunFire C18 5um 4.6 mm ID x 100 mm 1/pkg 186002679 SunFire C18 5um 4.6 mm ID x 150 mm 1/pkg 186002680 SunFire C18 5um 4.6 mm ID x 250 mm 1/pkg 186002739 SunFire C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186002740 SunFire C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186002741 SunFire C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186002743 SunFire C8 5um 2.1 mm ID x 150 mm 1/pkg 186002742 SunFire C8 5um 4.6 mm ID x 100 mm 1/pkg 186002744 SunFire C8 5um 4.6 mm ID x 150 mm 1/pkg 186002745 SunFire C8 5um 4.6 mm ID x 250 mm 1/pkg SunFire IS Column 186003397 SunFire IS C18 2.5um 2.1 mm ID x 20 mm 1/pkg 186003403 SunFire IS C18 2.5um 3.0 mm ID x 20 mm 1/pkg 186003411 SunFire IS C18 2.5um 4.6 mm ID x 20 mm 1/pkg 186002531 SunFire IS C18 3.5um 2.1 mm ID x 20 mm 1/pkg 186002686 SunFire IS C18 3.5um 3.0 mm ID x 20 mm 1/pkg 186002549 SunFire IS C18 3.5um 4.6 mm ID x 20 mm 1/pkg 186002537 SunFire IS C18 5um 2.1 mm ID x 20 mm 1/pkg 186002685 SunFire IS C18 5um 3.0 mm ID x 20 mm 1/pkg 186002555 SunFire IS C18 5um 4.6 mm ID x 20 mm 1/pkg 186003398 SunFire IS C8 2.5um 2.1 mm ID x 20 mm 1/pkg 186003404 SunFire IS C8 2.5um 3.0 mm ID x 20 mm 1/pkg 186003412 SunFire IS C8 2.5um 4.6 mm ID x 20 mm 1/pkg 186002697 SunFire IS C8 3.5um 2.1 mm ID x 20 mm 1/pkg 186002701 SunFire IS C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186002699 SunFire IS C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186002698 SunFire IS C8 5um 2.1 mm ID x 20 mm 1/pkg 186002702 SunFire IS C8 5um 3.0 mm ID x 20 mm 1/pkg 186002700 SunFire IS C8 5um 4.6 mm ID x 20 mm 1/pkg SunFire Guard Column 186003395 SunFire C18 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003405 SunFire C18 Guard 2.5um 3.0 mm ID x 10 mm 1/pkg 186003413 SunFire C18 Guard 2.5um 4.6 mm ID x 10 mm 1/pkg 186002530 SunFire C18 Guard 3.5um 2.1 mm ID x 10 mm 1/pkg 186002681 SunFire C18 Guard 3.5um 3.0 mm ID x 10 mm 1/pkg 186002682 SunFire C18 Guard 3.5um 4.6 mm ID x 10 mm 1/pkg 186002536 SunFire C18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186002684 SunFire C18 Guard 5um 3.0 mm ID x 10 mm 1/pkg 186002683 SunFire C18 Guard 5um 4.6 mm ID x 10 mm 1/pkg 186003396 SunFire C8 Guard 2.5um 2.1 mm ID x 10 mm 1/pkg 186003406 SunFire C8 Guard 2.5um 3.0 mm ID x 10 mm 1/pkg 186003414 SunFire C8 Guard 2.5um 4.6 mm ID x 10 mm 1/pkg 186002708 SunFire C8 Guard 3.5um 2.1 mm ID x 10 mm 1/pkg 186002718 SunFire C8 Guard 3.5um 3.0 mm ID x 10 mm 1/pkg 186002727 SunFire C8 Guard 3.5um 4.6 mm ID x 10 mm 1/pkg 186002713 SunFire C8 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186002733 SunFire C8 Guard 5um 3.0 mm ID x 10 mm 1/pkg 186002722 SunFire C8 Guard 5um 4.6 mm ID x 10 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.07
10
Atlantis®
WatersAtlantis®
◈ Product Information
분석 및 분취 형식으로 제공되는 HPLC 컬럼의 Atlantis® 계열은 극성 화합물의 머무름 및 분리를 위한 업계 선두의 솔루션입니다. 기존의 C18 컬럼과 비교할 때, Atlantis T3 컬 럼은 또다른 선택성을 드리며 머무름이 증가합니다. Atlantis HILIC 실리카 컬럼은 역상 HPLC에서 머무름을 줄 수 없었던 강한 극성 염기를 머무르게 합니다.
► Point
- 매우 낮은 MS 용출(bleed)
- 수용성 사용 가능
- 또다른 선택성
- 산성에서의 안정성
극성 화합물의 머무름
► T3 결합 테크놀로지
Atlantis® T3 컬럼은 넓은 pH 범위에 걸쳐 우수한 성능을 제공하면서 매우 극성인 화 합물에 머무름을 주고 분리하는 실리카 기반의 역상 C18 컬럼입니다.
Atlantis T3 컬럼은 T3 결합 테크놀러지를 이용한 것으로, 그 기술은 극성 화합물의 머 무름을 향상시켜 낮은 pH에서 긴 컬럼 수명 및 pH 7에서 염기성 물질의 피크 형태를 개선하 여 줍니다. T3 결합 테크놀러지의 이점들은 ACQUITY UPLC® HSS T3 컬럼에서 UPLC® 테크놀 러지로 확장됩니다.
역상 응용의 경우 Atlantis T3 컬럼이 극성(및 비극성) 화합물의 분석법을 개발할 때 첫 번째 선택이 되어야 합니다.
100% 수용액 조건에서 우수한 머무름 및 피크 형태
10mM Ammonium Formate, pH 3.0, 30°C
Atlantis T3 컬럼은 100% 수용액을 사용할 수 있으며, 우수한 극성 화합물 머무름 및 산성, 중성 및 염기성 물질에 우수한 피크 형태를 제공합니다.
낮은 pH에서의 뛰어난 안정성
T3 결합이 되어 있는 Atlantis T3 컬럼은 극한 낮은 pH 조건에서 컬럼 수명이 오래갑니 다.
pH 7에서 염기성 물질의 피크 형태 개선
극성 화합물에 머무름을 주는 다른 역상 컬럼과 비교하여, Atlantis T3 컬럼은 pH 7에 서 우수한 피크 형태를 제공합니다.
► 친수성 상호작용 크로마토그래피
Atlantis® HILIC 실리카 컬럼은 친수성 상호작용 크로마토그래피 (hydrophilic interaction chromatography, HILIC) 응용으로 활성 및 대사 물질과 같이 강한 극성, 염기 성, 수용성 화합물들을 머무르게 하고 분리합니다. 이러한 화합물들은 역상 HPLC를 통해 머 무름을 주기에는 극성이 너무 강하기 때문에 HILIC 같은 대체 기술이 필요합니다. HILIC은 기타 다른 크로마토그래피 기술이 작용하지 않을 때 머무름을 발휘합니다.
HILIC 이점은 또한 다음과 같습니다.
- LC/MS 반응 개선
- 고체상 추출(SPE) 용매와의 직접적인 호환성
- 역상 HPLC와 비교할 때 또다른 선택성
Hydrophilic interaction chromatography 에서의 머무름 메커니즘
분배 및 약한 양이온 교환이 햡쳐져 Atlantis HILIC 실리카 컬럼에 극성 염기성분이 머무릅니다.
역상 HPLC로 분석이 불가능한 경우 HILIC의 머무름 제공
알란토인(allantoin)은 역상 크로마토그래피에서 머무름이 없습니다(100 % 수용성 이동상을 포함). 하지만 Atlantis HILIC 실리카 컬럼을 사용하면 알라토닌의 머무름을 얻을 수 있습니다.
► 분취용 크로마토그래피
Atlantis® T3 및 HILIC Silica Prep OBD™(Optimum Bed Density) 컬럼은 분취 형태로 분석 컬럼 성능을 제공합니다.
- 층 (bed) 안정성 개선
- 효율성 증대
- 컬럼 수명 증가
- 주입량 (loadability) 증가
Atlantis T3 Prep OBD 컬럼은 더 많은 소수성 분석 물질의 과도한 머무름 없이도 극성 분석 물질들을 머무르게 합니다. Atlantis HILIC Silica Prep OBD 컬럼은 hydrophilic interaction chromatography 를 사용하여 강한 극성 염기의 분리 및 분취를 용이하게 합니다.
Atlantis T3와 기존의 C18 극성 화합물 prep 분리의 비교
◈ Ordering Information Product Number Description Package Atlantis dC18 Column 186001279 Atlantis dC18 3um 1.0 mm ID x 50 mm 1/pkg 186001283 Atlantis dC18 3um 1.0 mm ID x 150 mm 1/pkg 186001287 Atlantis dC18 3um 2.1 mm ID x 30 mm 1/pkg 186001291 Atlantis dC18 3um 2.1 mm ID x 50 mm 1/pkg 186001295 Atlantis dC18 3um 2.1 mm ID x 100 mm 1/pkg 186001299 Atlantis dC18 3um 2.1 mm ID x 150 mm 1/pkg 186001389 Atlantis dC18 3um 3.0 mm ID x 50 mm 1/pkg 186001303 Atlantis dC18 3um 3.0 mm ID x 100 mm 1/pkg 186001307 Atlantis dC18 3um 3.0 mm ID x 150 mm 1/pkg 186001393 Atlantis dC18 3um 3.9 mm ID x 100 mm 1/pkg 186001317 Atlantis dC18 3um 3.9 mm ID x 150 mm 1/pkg 186001325 Atlantis dC18 3um 4.6 mm ID x 30 mm 1/pkg 186001329 Atlantis dC18 3um 4.6 mm ID x 50 mm 1/pkg 186001333 Atlantis dC18 3um 4.6 mm ID x 75 mm 1/pkg 186001337 Atlantis dC18 3um 4.6 mm ID x 100 mm 1/pkg 186001342 Atlantis dC18 3um 4.6 mm ID x 150 mm 1/pkg 186001281 Atlantis dC18 5um 1.0 mm ID x 50 mm 1/pkg 186001285 Atlantis dC18 5um 1.0 mm ID x 150 mm 1/pkg 186001289 Atlantis dC18 5um 2.1 mm ID x 30 mm 1/pkg 186001293 Atlantis dC18 5um 2.1 mm ID x 50 mm 1/pkg 186001297 Atlantis dC18 5um 2.1 mm ID x 100 mm 1/pkg 186001301 Atlantis dC18 5um 2.1 mm ID x 150 mm 1/pkg 186001391 Atlantis dC18 5um 3.0 mm ID x 50 mm 1/pkg 186001305 Atlantis dC18 5um 3.0 mm ID x 100 mm 1/pkg 186001309 Atlantis dC18 5um 3.0 mm ID x 150 mm 1/pkg 186001311 Atlantis dC18 5um 3.0 mm ID x 250 mm 1/pkg 186001395 Atlantis dC18 5um 3.9 mm ID x 100 mm 1/pkg 186001319 Atlantis dC18 5um 3.9 mm ID x 150 mm 1/pkg 186001327 Atlantis dC18 5um 4.6 mm ID x 30 mm 1/pkg 186001331 Atlantis dC18 5um 4.6 mm ID x 50 mm 1/pkg 186001335 Atlantis dC18 5um 4.6 mm ID x 75 mm 1/pkg 186001340 Atlantis dC18 5um 4.6 mm ID x 100 mm 1/pkg 186001344 Atlantis dC18 5um 4.6 mm ID x 150 mm 1/pkg 186001346 Atlantis dC18 5um 4.6 mm ID x 250 mm 1/pkg Atlantis T3 Column 186003713 Atlantis T3 3um 1.0 mm ID x 50 mm 1/pkg 186003714 Atlantis T3 3um 1.0 mm ID x 150 mm 1/pkg 186003716 Atlantis T3 3um 2.1 mm ID x 30 mm 1/pkg 186003717 Atlantis T3 3um 2.1 mm ID x 50 mm 1/pkg 186003718 Atlantis T3 3um 2.1 mm ID x 100 mm 1/pkg 186003719 Atlantis T3 3um 2.1 mm ID x 150 mm 1/pkg 186003721 Atlantis T3 3um 3.0 mm ID x 50 mm 1/pkg 186003722 Atlantis T3 3um 3.0 mm ID x 100 mm 1/pkg 186003723 Atlantis T3 3um 3.0 mm ID x 150 mm 1/pkg 186003725 Atlantis T3 3um 4.6 mm ID x 30 mm 1/pkg 186003726 Atlantis T3 3um 4.6 mm ID x 50 mm 1/pkg 186003727 Atlantis T3 3um 4.6 mm ID x 75 mm 1/pkg 186003728 Atlantis T3 3um 4.6 mm ID x 100 mm 1/pkg 186003729 Atlantis T3 3um 4.6 mm ID x 150 mm 1/pkg 186003730 Atlantis T3 5um 1.0 mm ID x 50 mm 1/pkg 186003731 Atlantis T3 5um 1.0 mm ID x 150 mm 1/pkg 186003733 Atlantis T3 5um 2.1 mm ID x 30 mm 1/pkg 186003734 Atlantis T3 5um 2.1 mm ID x 50 mm 1/pkg 186003735 Atlantis T3 5um 2.1 mm ID x 100 mm 1/pkg 186003736 Atlantis T3 5um 2.1 mm ID x 150 mm 1/pkg 186003738 Atlantis T3 5um 3.0 mm ID x 50 mm 1/pkg 186003739 Atlantis T3 5um 3.0 mm ID x 100 mm 1/pkg 186003740 Atlantis T3 5um 3.0 mm ID x 150 mm 1/pkg 186003741 Atlantis T3 5um 3.0 mm ID x 250 mm 1/pkg 186003743 Atlantis T3 5um 4.6 mm ID x 30 mm 1/pkg 186003744 Atlantis T3 5um 4.6 mm ID x 50 mm 1/pkg 186003745 Atlantis T3 5um 4.6 mm ID x 75 mm 1/pkg 186003746 Atlantis T3 5um 4.6 mm ID x 100 mm 1/pkg 186003747 Atlantis T3 5um 4.6 mm ID x 150 mm 1/pkg 186003748 Atlantis T3 5um 4.6 mm ID x 250 mm 1/pkg Atlantis HILIC Silica Column 186002003 Atlantis HILIC Silica 3um 1.0 mm ID x 50 mm 1/pkg 186002009 Atlantis HILIC Silica 3um 2.1 mm ID x 30 mm 1/pkg 186002011 Atlantis HILIC Silica 3um 2.1 mm ID x 50 mm 1/pkg 186002013 Atlantis HILIC Silica 3um 2.1 mm ID x 100 mm 1/pkg 186002015 Atlantis HILIC Silica 3um 2.1 mm ID x 150 mm 1/pkg 186002017 Atlantis HILIC Silica 3um 3.0 mm ID x 50 mm 1/pkg 186002019 Atlantis HILIC Silica 3um 3.0 mm ID x 100 mm 1/pkg 186002025 Atlantis HILIC Silica 3um 4.6 mm ID x 30 mm 1/pkg 186002027 Atlantis HILIC Silica 3um 4.6 mm ID x 50 mm 1/pkg 186002029 Atlantis HILIC Silica 3um 4.6 mm ID x 100 mm 1/pkg 186002031 Atlantis HILIC Silica 3um 4.6 mm ID x 150 mm 1/pkg 186002004 Atlantis HILIC Silica 5um 1.0 mm ID x 50 mm 1/pkg 186002010 Atlantis HILIC Silica 5um 2.1 mm ID x 30 mm 1/pkg 186002012 Atlantis HILIC Silica 5um 2.1 mm ID x 50 mm 1/pkg 186002014 Atlantis HILIC Silica 5um 2.1 mm ID x 100 mm 1/pkg 186002016 Atlantis HILIC Silica 5um 2.1 mm ID x 150 mm 1/pkg 186002018 Atlantis HILIC Silica 5um 3.0 mm ID x 50 mm 1/pkg 186002020 Atlantis HILIC Silica 5um 3.0 mm ID x 100 mm 1/pkg 186002026 Atlantis HILIC Silica 5um 4.6 mm ID x 30 mm 1/pkg 186002028 Atlantis HILIC Silica 5um 4.6 mm ID x 50 mm 1/pkg 186002030 Atlantis HILIC Silica 5um 4.6 mm ID x 100 mm 1/pkg 186002032 Atlantis HILIC Silica 5um 4.6 mm ID x 150 mm 1/pkg 186002033 Atlantis HILIC Silica 5um 4.6 mm ID x 250 mm 1/pkg Atlantis DC / IS / Cartridge Column 186002064 Atlantis dC18 DC 3um 2.1 mm ID x 15 mm 1/pkg 186002065 Atlantis dC18 DC 5um 2.1 mm ID x 15 mm 1/pkg 186002007 Atlantis HILIC Silica DC 3um 2.1 mm ID x 15 mm 1/pkg 186002008 Atlantis HILIC Silica DC 5um 2.1 mm ID x 15 mm 1/pkg 186002058 Atlantis dC18 IS 3um 2.1 mm ID x 20 mm 1/pkg 186002060 Atlantis dC18 IS 3um 3.0 mm ID x 20 mm 1/pkg 186002062 Atlantis dC18 IS 3um 4.6 mm ID x 20 mm 1/pkg 186002059 Atlantis dC18 IS 5um 2.1 mm ID x 20 mm 1/pkg 186002061 Atlantis dC18 IS 5um 3.0 mm ID x 20 mm 1/pkg 186002063 Atlantis dC18 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003720 Atlantis T3 IS 3um 3.0 mm ID x 20 mm 1/pkg 186003724 Atlantis T3 IS 3um 4.6 mm ID x 20 mm 1/pkg 186003732 Atlantis T3 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003737 Atlantis T3 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003742 Atlantis T3 IS 5um 4.6 mm ID x 20 mm 1/pkg 186001385 Atlantis dC18 Cartridge 3um 3.9 mm ID x 50 mm 1/pkg 186001387 Atlantis dC18 Cartridge 5um 3.9 mm ID x 50 mm 1/pkg Atlantis dC18 Guard Column 186001377 Atlantis dC18 Guard 3um 2.1 mm ID x 10 mm 1/pkg 186001381 Atlantis dC18 Guard 3um 2.1 mm ID x 20 mm 1/pkg 186001313 Atlantis dC18 Guard 3um 3.9 mm ID x 20 mm 1/pkg 186001321 Atlantis dC18 Guard 3um 4.6 mm ID x 20 mm 1/pkg 186001379 Atlantis dC18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186001383 Atlantis dC18 Guard 5um 2.1 mm ID x 20 mm 1/pkg 186001315 Atlantis dC18 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186001323 Atlantis dC18 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003756 Atlantis T3 Guard 3um 2.1 mm ID x 10 mm 1/pkg 186003757 Atlantis T3 Guard 3um 3.9 mm ID x 20 mm 1/pkg 186003758 Atlantis T3 Guard 3um 4.6 mm ID x 20 mm 1/pkg 186003759 Atlantis T3 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003760 Atlantis T3 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186003761 Atlantis T3 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186002005 Atlantis HILIC Silica Guard 3um 2.1 mm ID x 10 mm 1/pkg 186002021 Atlantis HILIC Silica Guard 3um 3.9 mm ID x 20 mm 1/pkg 186002023 Atlantis HILIC Silica Guard 3um 4.6 mm ID x 20 mm 1/pkg 186002006 Atlantis HILIC Silica Guard 5um 2.1 mm ID x 10 mm 1/pkg 186002022 Atlantis HILIC Silica Guard 5um 3.9 mm ID x 20 mm 1/pkg 186002024 Atlantis HILIC Silica Guard 5um 4.6 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.07
WatersAtlantis®
◈ Product Information
분석 및 분취 형식으로 제공되는 HPLC 컬럼의 Atlantis® 계열은 극성 화합물의 머무름 및 분리를 위한 업계 선두의 솔루션입니다. 기존의 C18 컬럼과 비교할 때, Atlantis T3 컬 럼은 또다른 선택성을 드리며 머무름이 증가합니다. Atlantis HILIC 실리카 컬럼은 역상 HPLC에서 머무름을 줄 수 없었던 강한 극성 염기를 머무르게 합니다.
► Point
- 매우 낮은 MS 용출(bleed)
- 수용성 사용 가능
- 또다른 선택성
- 산성에서의 안정성
극성 화합물의 머무름
► T3 결합 테크놀로지
Atlantis® T3 컬럼은 넓은 pH 범위에 걸쳐 우수한 성능을 제공하면서 매우 극성인 화 합물에 머무름을 주고 분리하는 실리카 기반의 역상 C18 컬럼입니다.
Atlantis T3 컬럼은 T3 결합 테크놀러지를 이용한 것으로, 그 기술은 극성 화합물의 머 무름을 향상시켜 낮은 pH에서 긴 컬럼 수명 및 pH 7에서 염기성 물질의 피크 형태를 개선하 여 줍니다. T3 결합 테크놀러지의 이점들은 ACQUITY UPLC® HSS T3 컬럼에서 UPLC® 테크놀 러지로 확장됩니다.
역상 응용의 경우 Atlantis T3 컬럼이 극성(및 비극성) 화합물의 분석법을 개발할 때 첫 번째 선택이 되어야 합니다.
100% 수용액 조건에서 우수한 머무름 및 피크 형태
10mM Ammonium Formate, pH 3.0, 30°C
Atlantis T3 컬럼은 100% 수용액을 사용할 수 있으며, 우수한 극성 화합물 머무름 및 산성, 중성 및 염기성 물질에 우수한 피크 형태를 제공합니다.
낮은 pH에서의 뛰어난 안정성
T3 결합이 되어 있는 Atlantis T3 컬럼은 극한 낮은 pH 조건에서 컬럼 수명이 오래갑니 다.
pH 7에서 염기성 물질의 피크 형태 개선
극성 화합물에 머무름을 주는 다른 역상 컬럼과 비교하여, Atlantis T3 컬럼은 pH 7에 서 우수한 피크 형태를 제공합니다.
► 친수성 상호작용 크로마토그래피
Atlantis® HILIC 실리카 컬럼은 친수성 상호작용 크로마토그래피 (hydrophilic interaction chromatography, HILIC) 응용으로 활성 및 대사 물질과 같이 강한 극성, 염기 성, 수용성 화합물들을 머무르게 하고 분리합니다. 이러한 화합물들은 역상 HPLC를 통해 머 무름을 주기에는 극성이 너무 강하기 때문에 HILIC 같은 대체 기술이 필요합니다. HILIC은 기타 다른 크로마토그래피 기술이 작용하지 않을 때 머무름을 발휘합니다.
HILIC 이점은 또한 다음과 같습니다.
- LC/MS 반응 개선
- 고체상 추출(SPE) 용매와의 직접적인 호환성
- 역상 HPLC와 비교할 때 또다른 선택성
Hydrophilic interaction chromatography 에서의 머무름 메커니즘
분배 및 약한 양이온 교환이 햡쳐져 Atlantis HILIC 실리카 컬럼에 극성 염기성분이 머무릅니다.
역상 HPLC로 분석이 불가능한 경우 HILIC의 머무름 제공
알란토인(allantoin)은 역상 크로마토그래피에서 머무름이 없습니다(100 % 수용성 이동상을 포함). 하지만 Atlantis HILIC 실리카 컬럼을 사용하면 알라토닌의 머무름을 얻을 수 있습니다.
► 분취용 크로마토그래피
Atlantis® T3 및 HILIC Silica Prep OBD™(Optimum Bed Density) 컬럼은 분취 형태로 분석 컬럼 성능을 제공합니다.
- 층 (bed) 안정성 개선
- 효율성 증대
- 컬럼 수명 증가
- 주입량 (loadability) 증가
Atlantis T3 Prep OBD 컬럼은 더 많은 소수성 분석 물질의 과도한 머무름 없이도 극성 분석 물질들을 머무르게 합니다. Atlantis HILIC Silica Prep OBD 컬럼은 hydrophilic interaction chromatography 를 사용하여 강한 극성 염기의 분리 및 분취를 용이하게 합니다.
Atlantis T3와 기존의 C18 극성 화합물 prep 분리의 비교
◈ Ordering Information Product Number Description Package Atlantis dC18 Column 186001279 Atlantis dC18 3um 1.0 mm ID x 50 mm 1/pkg 186001283 Atlantis dC18 3um 1.0 mm ID x 150 mm 1/pkg 186001287 Atlantis dC18 3um 2.1 mm ID x 30 mm 1/pkg 186001291 Atlantis dC18 3um 2.1 mm ID x 50 mm 1/pkg 186001295 Atlantis dC18 3um 2.1 mm ID x 100 mm 1/pkg 186001299 Atlantis dC18 3um 2.1 mm ID x 150 mm 1/pkg 186001389 Atlantis dC18 3um 3.0 mm ID x 50 mm 1/pkg 186001303 Atlantis dC18 3um 3.0 mm ID x 100 mm 1/pkg 186001307 Atlantis dC18 3um 3.0 mm ID x 150 mm 1/pkg 186001393 Atlantis dC18 3um 3.9 mm ID x 100 mm 1/pkg 186001317 Atlantis dC18 3um 3.9 mm ID x 150 mm 1/pkg 186001325 Atlantis dC18 3um 4.6 mm ID x 30 mm 1/pkg 186001329 Atlantis dC18 3um 4.6 mm ID x 50 mm 1/pkg 186001333 Atlantis dC18 3um 4.6 mm ID x 75 mm 1/pkg 186001337 Atlantis dC18 3um 4.6 mm ID x 100 mm 1/pkg 186001342 Atlantis dC18 3um 4.6 mm ID x 150 mm 1/pkg 186001281 Atlantis dC18 5um 1.0 mm ID x 50 mm 1/pkg 186001285 Atlantis dC18 5um 1.0 mm ID x 150 mm 1/pkg 186001289 Atlantis dC18 5um 2.1 mm ID x 30 mm 1/pkg 186001293 Atlantis dC18 5um 2.1 mm ID x 50 mm 1/pkg 186001297 Atlantis dC18 5um 2.1 mm ID x 100 mm 1/pkg 186001301 Atlantis dC18 5um 2.1 mm ID x 150 mm 1/pkg 186001391 Atlantis dC18 5um 3.0 mm ID x 50 mm 1/pkg 186001305 Atlantis dC18 5um 3.0 mm ID x 100 mm 1/pkg 186001309 Atlantis dC18 5um 3.0 mm ID x 150 mm 1/pkg 186001311 Atlantis dC18 5um 3.0 mm ID x 250 mm 1/pkg 186001395 Atlantis dC18 5um 3.9 mm ID x 100 mm 1/pkg 186001319 Atlantis dC18 5um 3.9 mm ID x 150 mm 1/pkg 186001327 Atlantis dC18 5um 4.6 mm ID x 30 mm 1/pkg 186001331 Atlantis dC18 5um 4.6 mm ID x 50 mm 1/pkg 186001335 Atlantis dC18 5um 4.6 mm ID x 75 mm 1/pkg 186001340 Atlantis dC18 5um 4.6 mm ID x 100 mm 1/pkg 186001344 Atlantis dC18 5um 4.6 mm ID x 150 mm 1/pkg 186001346 Atlantis dC18 5um 4.6 mm ID x 250 mm 1/pkg Atlantis T3 Column 186003713 Atlantis T3 3um 1.0 mm ID x 50 mm 1/pkg 186003714 Atlantis T3 3um 1.0 mm ID x 150 mm 1/pkg 186003716 Atlantis T3 3um 2.1 mm ID x 30 mm 1/pkg 186003717 Atlantis T3 3um 2.1 mm ID x 50 mm 1/pkg 186003718 Atlantis T3 3um 2.1 mm ID x 100 mm 1/pkg 186003719 Atlantis T3 3um 2.1 mm ID x 150 mm 1/pkg 186003721 Atlantis T3 3um 3.0 mm ID x 50 mm 1/pkg 186003722 Atlantis T3 3um 3.0 mm ID x 100 mm 1/pkg 186003723 Atlantis T3 3um 3.0 mm ID x 150 mm 1/pkg 186003725 Atlantis T3 3um 4.6 mm ID x 30 mm 1/pkg 186003726 Atlantis T3 3um 4.6 mm ID x 50 mm 1/pkg 186003727 Atlantis T3 3um 4.6 mm ID x 75 mm 1/pkg 186003728 Atlantis T3 3um 4.6 mm ID x 100 mm 1/pkg 186003729 Atlantis T3 3um 4.6 mm ID x 150 mm 1/pkg 186003730 Atlantis T3 5um 1.0 mm ID x 50 mm 1/pkg 186003731 Atlantis T3 5um 1.0 mm ID x 150 mm 1/pkg 186003733 Atlantis T3 5um 2.1 mm ID x 30 mm 1/pkg 186003734 Atlantis T3 5um 2.1 mm ID x 50 mm 1/pkg 186003735 Atlantis T3 5um 2.1 mm ID x 100 mm 1/pkg 186003736 Atlantis T3 5um 2.1 mm ID x 150 mm 1/pkg 186003738 Atlantis T3 5um 3.0 mm ID x 50 mm 1/pkg 186003739 Atlantis T3 5um 3.0 mm ID x 100 mm 1/pkg 186003740 Atlantis T3 5um 3.0 mm ID x 150 mm 1/pkg 186003741 Atlantis T3 5um 3.0 mm ID x 250 mm 1/pkg 186003743 Atlantis T3 5um 4.6 mm ID x 30 mm 1/pkg 186003744 Atlantis T3 5um 4.6 mm ID x 50 mm 1/pkg 186003745 Atlantis T3 5um 4.6 mm ID x 75 mm 1/pkg 186003746 Atlantis T3 5um 4.6 mm ID x 100 mm 1/pkg 186003747 Atlantis T3 5um 4.6 mm ID x 150 mm 1/pkg 186003748 Atlantis T3 5um 4.6 mm ID x 250 mm 1/pkg Atlantis HILIC Silica Column 186002003 Atlantis HILIC Silica 3um 1.0 mm ID x 50 mm 1/pkg 186002009 Atlantis HILIC Silica 3um 2.1 mm ID x 30 mm 1/pkg 186002011 Atlantis HILIC Silica 3um 2.1 mm ID x 50 mm 1/pkg 186002013 Atlantis HILIC Silica 3um 2.1 mm ID x 100 mm 1/pkg 186002015 Atlantis HILIC Silica 3um 2.1 mm ID x 150 mm 1/pkg 186002017 Atlantis HILIC Silica 3um 3.0 mm ID x 50 mm 1/pkg 186002019 Atlantis HILIC Silica 3um 3.0 mm ID x 100 mm 1/pkg 186002025 Atlantis HILIC Silica 3um 4.6 mm ID x 30 mm 1/pkg 186002027 Atlantis HILIC Silica 3um 4.6 mm ID x 50 mm 1/pkg 186002029 Atlantis HILIC Silica 3um 4.6 mm ID x 100 mm 1/pkg 186002031 Atlantis HILIC Silica 3um 4.6 mm ID x 150 mm 1/pkg 186002004 Atlantis HILIC Silica 5um 1.0 mm ID x 50 mm 1/pkg 186002010 Atlantis HILIC Silica 5um 2.1 mm ID x 30 mm 1/pkg 186002012 Atlantis HILIC Silica 5um 2.1 mm ID x 50 mm 1/pkg 186002014 Atlantis HILIC Silica 5um 2.1 mm ID x 100 mm 1/pkg 186002016 Atlantis HILIC Silica 5um 2.1 mm ID x 150 mm 1/pkg 186002018 Atlantis HILIC Silica 5um 3.0 mm ID x 50 mm 1/pkg 186002020 Atlantis HILIC Silica 5um 3.0 mm ID x 100 mm 1/pkg 186002026 Atlantis HILIC Silica 5um 4.6 mm ID x 30 mm 1/pkg 186002028 Atlantis HILIC Silica 5um 4.6 mm ID x 50 mm 1/pkg 186002030 Atlantis HILIC Silica 5um 4.6 mm ID x 100 mm 1/pkg 186002032 Atlantis HILIC Silica 5um 4.6 mm ID x 150 mm 1/pkg 186002033 Atlantis HILIC Silica 5um 4.6 mm ID x 250 mm 1/pkg Atlantis DC / IS / Cartridge Column 186002064 Atlantis dC18 DC 3um 2.1 mm ID x 15 mm 1/pkg 186002065 Atlantis dC18 DC 5um 2.1 mm ID x 15 mm 1/pkg 186002007 Atlantis HILIC Silica DC 3um 2.1 mm ID x 15 mm 1/pkg 186002008 Atlantis HILIC Silica DC 5um 2.1 mm ID x 15 mm 1/pkg 186002058 Atlantis dC18 IS 3um 2.1 mm ID x 20 mm 1/pkg 186002060 Atlantis dC18 IS 3um 3.0 mm ID x 20 mm 1/pkg 186002062 Atlantis dC18 IS 3um 4.6 mm ID x 20 mm 1/pkg 186002059 Atlantis dC18 IS 5um 2.1 mm ID x 20 mm 1/pkg 186002061 Atlantis dC18 IS 5um 3.0 mm ID x 20 mm 1/pkg 186002063 Atlantis dC18 IS 5um 4.6 mm ID x 20 mm 1/pkg 186003720 Atlantis T3 IS 3um 3.0 mm ID x 20 mm 1/pkg 186003724 Atlantis T3 IS 3um 4.6 mm ID x 20 mm 1/pkg 186003732 Atlantis T3 IS 5um 2.1 mm ID x 20 mm 1/pkg 186003737 Atlantis T3 IS 5um 3.0 mm ID x 20 mm 1/pkg 186003742 Atlantis T3 IS 5um 4.6 mm ID x 20 mm 1/pkg 186001385 Atlantis dC18 Cartridge 3um 3.9 mm ID x 50 mm 1/pkg 186001387 Atlantis dC18 Cartridge 5um 3.9 mm ID x 50 mm 1/pkg Atlantis dC18 Guard Column 186001377 Atlantis dC18 Guard 3um 2.1 mm ID x 10 mm 1/pkg 186001381 Atlantis dC18 Guard 3um 2.1 mm ID x 20 mm 1/pkg 186001313 Atlantis dC18 Guard 3um 3.9 mm ID x 20 mm 1/pkg 186001321 Atlantis dC18 Guard 3um 4.6 mm ID x 20 mm 1/pkg 186001379 Atlantis dC18 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186001383 Atlantis dC18 Guard 5um 2.1 mm ID x 20 mm 1/pkg 186001315 Atlantis dC18 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186001323 Atlantis dC18 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186003756 Atlantis T3 Guard 3um 2.1 mm ID x 10 mm 1/pkg 186003757 Atlantis T3 Guard 3um 3.9 mm ID x 20 mm 1/pkg 186003758 Atlantis T3 Guard 3um 4.6 mm ID x 20 mm 1/pkg 186003759 Atlantis T3 Guard 5um 2.1 mm ID x 10 mm 1/pkg 186003760 Atlantis T3 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186003761 Atlantis T3 Guard 5um 4.6 mm ID x 20 mm 1/pkg 186002005 Atlantis HILIC Silica Guard 3um 2.1 mm ID x 10 mm 1/pkg 186002021 Atlantis HILIC Silica Guard 3um 3.9 mm ID x 20 mm 1/pkg 186002023 Atlantis HILIC Silica Guard 3um 4.6 mm ID x 20 mm 1/pkg 186002006 Atlantis HILIC Silica Guard 5um 2.1 mm ID x 10 mm 1/pkg 186002022 Atlantis HILIC Silica Guard 5um 3.9 mm ID x 20 mm 1/pkg 186002024 Atlantis HILIC Silica Guard 5um 4.6 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.07
9
XTerra®
WatersXTerra®
◈ Product Information
제1세대 hybrid 입자들을 바탕으로 하는 XTerra® HPLC 컬럼을 사용하면, 크로마토그래피 연구자들은 약물 발견, 분석법 개발 및 정제 분리에 높은 pH를 사용할 수 있습니다.
► Point
- 엄격한 XTerra 입자의 DMSO 주입 저항은 높은 처리량이 필요한 약물 발견 (drug discovery) 응용에서 긴 컬럼 수명을 제공
- 넓은 pH 범위에서 사용할 수 있으므로, 분석법 개발 연구자들이 최적의 선택성 (selectivity)을 위해 필요한 pH에서 작업 가능
- 높은 loading 용량이 가능하므로 isolation 및 purification 연구자들은 주입 당 최대 60배 이상 물질을 load 가능
XTerra 컬럼 특성 Particle Packing Particle Shape Pore Size(s) (um) Carbon Size (A) End-Load (%) Capped XTerra MS C18 Spherical 2.5, 3.5, 5, 10 um 125 15.5 YES XTerra MS C8 Spherical 2.5, 3.5, 5, 10 um 125 12 YES XTerra RP18 Spherical 3.5, 5, 10 um 125 15 YES XTerra RP8 Spherical 3.5, 5, 10 um 125 13.5 YES XTerra Phenyl Spherical 3.5, 5 um 125 12 YES
► Hybrid 입자 테크놀러지
XTerra® 컬럼은 실리카와 고분자의 우수한 특징과 특허기술의* 혁신적인 hybrid 입자 테크놀러지 (매 세 번째 실라놀을 메틸기로 치환한 합성기술) 를 결합시킨 컬럼입니다. 이 친수성은 입자 골격의 전체 구조에 걸쳐 분포되어 있어 견고한(rugged) hybrid(무기/유기) 입자가 되며, 다음과 같은 조건에서 분석할 수 있습니다.
- 고속
- 고온
- 높은 pH
잔류 실라놀(endcap 및 결합 후)이 33%가 적으므로, XTerra 컬럼은 염기성 화합물에 대해 매우 효율성 (efficiency)이 높은 피크를 제공한다는 것을 또한 의미합니다.
*미국 특허 번호 6,686,035 B2
XTerra 컬럼 케미스트리가 선택성에 미치는 영향
XTerra 컬럼의 고정상 케미스트리는 전반적인 분석법 개발 계획에서 매우 중요한 요소가 됩니다.
► 약물 발견
XTerra® 컬럼을 사용하면 높은 유속, 짧은 컬럼, 빠른 그래디언트 (gradient)와 작은 입자를 결합할 수 있으므로, 그 결과 분리능을 보장하면서 속도를 빠르게 할 수 있는 획기적인 결과를 얻을 수 있습니다.
유속 증가 및 피크 용량 상승
입자 크기가 작아지면 피크 용량 및 분리능은 높은 유속에서 향상됩니다. 이러한 매개변수들은 성공적으로 최적화되어 최대 분리능을 유지하면서 분리 속도를 빠르게 할 수 있습니다.
작은 입자 및 짧은 컬럼을 사용한 빠른 분석
빠른 유속 및 짧은 컬럼을 사용하면 피크 용량에 영향을 받지 않고도 그레디언트 분석시간을 단축시킬 수 있습니다. 질량 분석기의 경우, 이러한 장점들은 직경이 더 작은 컬럼에서도 실현됩니다.
► 분석법 개발
XTerra 컬럼을 사용하여 시간과 비용을 절약하고 견고한 분리를 더욱 빠르고 쉽게 개발할 수 있으며, 최적의 선택성에 필요한 pH의 작동이 가능합니다.
더 넓은 pH 범위로 선택성 최적화
XTerra 컬럼은 사용 가능한 pH 범위가 넓으므로, 이온화가 가능한 입자들의 선택성을 변경하는데 강력한 툴이 됩니다.
높은 pH에서 염기성 화합물의 머무름 증가
XTerra 컬럼을 사용하면 분석법 개발에 pH 전체를 활용할 수 있습니다.
► Isolation 및 Purification
XTerra® Prep OBD™ 컬럼은 최대 컬럼 안정성과 함께 분취용 규격으로 분석 성능을 제공합니다. 그것은 곧 특허 받은 OBD(Optimum Bed Density) 설계의 결과입니다. OBD 설계를 hybrid 입자 테크놀러지의 독특한 크로마토그래피 속성들과 결합시킴으로써 넓은 범위의 고성능 분취용 컬럼을 제공합니다. 넓은 범위의 분석 물질(염기성, 산성 및 극성) 및 성공적이고 예측 가능한 분취로의 스케일업에 필요한 넓은 작동 범위의 이동상들을 통해 전례 없는 유연성을 제공합니다.
낮은 vs. 높은 pH loading
XTerra 컬럼은 향상된 분리능 및 loadability 로 염기성 화합물을 분리하면서 높은 pH에서 우수한 안정성을 제공합니다.
◈ Ordering Information Product Number Description Package XTerra MS C18 Capillaries 186002198 XTerra MS C18 3.5um 75 um ID x 50 mm 1/pkg 186002189 XTerra MS C18 3.5um 75 um ID x 100 mm 1/pkg 186002200 XTerra MS C18 3.5um 75 um ID x 150 mm 1/pkg 186002210 XTerra MS C18 3.5um 100 um ID x 50 mm 1/pkg 186002211 XTerra MS C18 3.5um 100 um ID x 100 mm 1/pkg 186002212 XTerra MS C18 3.5um 100 um ID x 150 mm 1/pkg 186002469 XTerra MS C18 3.5um 150 um ID x 50 mm 1/pkg 186002479 XTerra MS C18 3.5um 150 um ID x 100 mm 1/pkg 186002471 XTerra MS C18 3.5um 150 um ID x 150 mm 1/pkg 186002599 XTerra MS C18 3.5um 300 um ID x 50 mm 1/pkg 186002600 XTerra MS C18 3.5um 300 um ID x 100 mm 1/pkg 186002601 XTerra MS C18 3.5um 300 um ID x 150 mm 1/pkg 186002602 XTerra MS C18 5um 300 um ID x 50 mm 1/pkg 186002603 XTerra MS C18 5um 300 um ID x 100 mm 1/pkg 186002604 XTerra MS C18 5um 300 um ID x 150 mm 1/pkg XTerra MS C18 Column 186000979 XTerra MS C18 2.5um 1.0 mm ID x 50 mm 1/pkg 186000386 XTerra MS C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186000390 XTerra MS C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000394 XTerra MS C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186000592 XTerra MS C18 2.5um 2.1 mm ID x 30 mm 1/pkg 186000398 XTerra MS C18 3.5um 2.1 mm ID x 30 mm 1/pkg 186000594 XTerra MS C18 2.5um 2.1 mm ID x 50 mm 1/pkg 186000400 XTerra MS C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000446 XTerra MS C18 5um 2.1 mm ID x 50 mm 1/pkg 186000404 XTerra MS C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000450 XTerra MS C18 5um 2.1 mm ID x 100 mm 1/pkg 186000408 XTerra MS C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000454 XTerra MS C18 5um 2.1 mm ID x 150 mm 1/pkg 186000458 XTerra MS C18 5um 2.1 mm ID x 250 mm 1/pkg 186000596 XTerra MS C18 2.5um 3.0 mm ID x 30 mm 1/pkg 186000412 XTerra MS C18 3.5um 3.0 mm ID x 30 mm 1/pkg 186000598 XTerra MS C18 2.5um 3.0 mm ID x 50 mm 1/pkg 186000414 XTerra MS C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000462 XTerra MS C18 5um 3.0 mm ID x 50 mm 1/pkg 186000418 XTerra MS C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000466 XTerra MS C18 5um 3.0 mm ID x 100 mm 1/pkg 186000422 XTerra MS C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000470 XTerra MS C18 5um 3.0 mm ID x 150 mm 1/pkg 186000474 XTerra MS C18 5um 3.0 mm ID x 250 mm 1/pkg 186000426 XTerra MS C18 3.5um 3.9 mm ID x 100 mm 1/pkg 186000478 XTerra MS C18 5um 3.9 mm ID x 150 mm 1/pkg 186000600 XTerra MS C18 2.5um 4.6 mm ID x 30 mm 1/pkg 186000430 XTerra MS C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186000878 XTerra MS C18 5um 4.6 mm ID x 30 mm 1/pkg 186000602 XTerra MS C18 2.5um 4.6 mm ID x 50 mm 1/pkg 186000432 XTerra MS C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000882 XTerra MS C18 5um 4.6 mm ID x 50 mm 1/pkg 186000436 XTerra MS C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000486 XTerra MS C18 5um 4.6 mm ID x 100 mm 1/pkg 186000440 XTerra MS C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000490 XTerra MS C18 5um 4.6 mm ID x 150 mm 1/pkg 186001470 XTerra MS C18 3.5um 4.6 mm ID x 250 mm 1/pkg 186000494 XTerra MS C18 5um 4.6 mm ID x 250 mm 1/pkg XTerra MS C18 Cartridge Column 186000498 XTerra MS C18 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000538 XTerra MS C18 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000502 XTerra MS C18 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000542 XTerra MS C18 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000546 XTerra MS C18 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000550 XTerra MS C18 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186001588 XTerra MS C18 Cartridge 2.5um 3.0 mm ID x 20 mm 1/pkg 186000510 XTerra MS C18 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000554 XTerra MS C18 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000514 XTerra MS C18 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000558 XTerra MS C18 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000518 XTerra MS C18 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000562 XTerra MS C18 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000566 XTerra MS C18 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000817 XTerra MS C18 Cartridge 3.5um 3.9 mm ID x 50 mm 1/pkg 186000815 XTerra MS C18 Cartridge 5um 3.9 mm ID x 50 mm 1/pkg 186000522 XTerra MS C18 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000570 XTerra MS C18 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000590 XTerra MS C18 Cartridge 2.5um 4.6 mm ID x 20 mm 1/pkg 186000526 XTerra MS C18 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000574 XTerra MS C18 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000530 XTerra MS C18 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000534 XTerra MS C18 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000578 XTerra MS C18 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000582 XTerra MS C18 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra MS C18 IS Column 186001921 XTerra MS IS C18 2.5um 2.0 mm ID x 20 mm 1/pkg 186001923 XTerra MS IS C18 3.5um 2.0 mm ID x 20 mm 1/pkg 186001979 XTerra MS IS C18 5um 2.0 mm ID x 20 mm 1/pkg 186001972 XTerra MS IS C18 2.5um 3.0 mm ID x 20 mm 1/pkg 186001974 XTerra MS IS C18 3.5um 3.0 mm ID x 20 mm 1/pkg 186001984 XTerra MS IS C18 5um 3.0 mm ID x 20 mm 1/pkg 186001899 XTerra MS IS C18 2.5um 3.9 mm ID x 20 mm 1/pkg 186001900 XTerra MS IS C18 3.5um 3.9 mm ID x 20 mm 1/pkg 186001988 XTerra MS IS C18 5um 3.9 mm ID x 20 mm 1/pkg 186001889 XTerra MS IS C18 2.5um 4.6 mm ID x 20 mm 1/pkg 186001891 XTerra MS IS C18 3.5um 4.6 mm ID x 20 mm 1/pkg 186001992 XTerra MS IS C18 5um 4.6 mm ID x 20 mm 1/pkg XTerra MS C18 Guard Column 186000632 XTerra MS C18 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000648 XTerra MS C18 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000636 XTerra MS C18 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000652 XTerra MS C18 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000640 XTerra MS C18 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186000656 XTerra MS C18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000644 XTerra MS C18 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000660 XTerra MS C18 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186001927 XTerra MS C18 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186001920 XTerra MS C18 Guard 5um 4.6 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra MS C18 Direct Connect Column 186000900 XTerra MS C18 Direct Connect 2.5um 2.0 mm ID x 15 mm 1/pkg 186001908 XTerra MS C18 Direct Connect 3.5um 2.0 mm ID x 15 mm 1/pkg 186001907 XTerra MS C18 Direct Connect 5um 2.0 mm ID x 15 mm 1/pkg 186001906 XTerra MS C18 Direct Connect 10um 2.0 mm ID x 15 mm 1/pkg XTerra MS C8 Column 186000387 XTerra MS C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186000391 XTerra MS C8 3.5um 1.0 mm ID x 100 mm 1/pkg 186000395 XTerra MS C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186000593 XTerra MS C8 2.5um 2.1 mm ID x 30 mm 1/pkg 186000399 XTerra MS C8 3.5um 2.1 mm ID x 30 mm 1/pkg 186000595 XTerra MS C8 2.5um 2.1 mm ID x 50 mm 1/pkg 186000401 XTerra MS C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000447 XTerra MS C8 5um 2.1 mm ID x 50 mm 1/pkg 186000405 XTerra MS C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000451 XTerra MS C8 5um 2.1 mm ID x 100 mm 1/pkg 186000409 XTerra MS C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186000455 XTerra MS C8 5um 2.1 mm ID x 150 mm 1/pkg 186000459 XTerra MS C8 5um 2.1 mm ID x 250 mm 1/pkg 186000597 XTerra MS C8 2.5um 3.0 mm ID x 30 mm 1/pkg 186000413 XTerra MS C8 3.5um 3.0 mm ID x 30 mm 1/pkg 186000599 XTerra MS C8 2.5um 3.0 mm ID x 50 mm 1/pkg 186000415 XTerra MS C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000463 XTerra MS C8 5um 3.0 mm ID x 50 mm 1/pkg 186000419 XTerra MS C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000467 XTerra MS C8 5um 3.0 mm ID x 100 mm 1/pkg 186000423 XTerra MS C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186000471 XTerra MS C8 5um 3.0 mm ID x 150 mm 1/pkg 186000475 XTerra MS C8 5um 3.0 mm ID x 250 mm 1/pkg 186000427 XTerra MS C8 3.5um 3.9 mm ID x 100 mm 1/pkg 186000479 XTerra MS C8 5um 3.9 mm ID x 150 mm 1/pkg 186000601 XTerra MS C8 2.5um 4.6 mm ID x 30 mm 1/pkg 186000431 XTerra MS C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186000879 XTerra MS C8 5um 4.6 mm ID x 30 mm 1/pkg 186000603 XTerra MS C8 2.5um 4.6 mm ID x 50 mm 1/pkg 186000433 XTerra MS C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186000883 XTerra MS C8 5um 4.6 mm ID x 50 mm 1/pkg 186000437 XTerra MS C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186000487 XTerra MS C8 5um 4.6 mm ID x 100 mm 1/pkg 186000441 XTerra MS C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000491 XTerra MS C8 5um 4.6 mm ID x 150 mm 1/pkg 186001471 XTerra MS C8 3.5um 4.6 mm ID x 250 mm 1/pkg 186000495 XTerra MS C8 5um 4.6 mm ID x 250 mm 1/pkg XTerra MS C8 Cartridge Column 186000499 XTerra MS C8 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000539 XTerra MS C8 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000503 XTerra MS C8 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000543 XTerra MS C8 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000547 XTerra MS C8 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000551 XTerra MS C8 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186001589 XTerra MS C8 Cartridge 2.5um 3.0 mm ID x 20 mm 1/pkg 186000511 XTerra MS C8 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000555 XTerra MS C8 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000515 XTerra MS C8 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000559 XTerra MS C8 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000519 XTerra MS C8 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000563 XTerra MS C8 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000567 XTerra MS C8 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000818 XTerra MS C8 Cartridge 3.5um 3.9 mm ID x 50 mm 1/pkg 186000816 XTerra MS C8 Cartridge 5um 3.9 mm ID x 50 mm 1/pkg 186000523 XTerra MS C8 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000571 XTerra MS C8 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000591 XTerra MS C8 Cartridge 2.5um 4.6 mm ID x 20 mm 1/pkg 186000527 XTerra MS C8 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000575 XTerra MS C8 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000531 XTerra MS C8 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000535 XTerra MS C8 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000579 XTerra MS C8 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000583 XTerra MS C8 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra MS C8 IS Column 186001922 XTerra MS IS C8 2.5um 2.0 mm ID x 20 mm 1/pkg 186001924 XTerra MS IS C8 3.5um 2.0 mm ID x 20 mm 1/pkg 186001980 XTerra MS IS C8 5um 2.0 mm ID x 20 mm 1/pkg 186001973 XTerra MS IS C8 2.5um 3.0 mm ID x 20 mm 1/pkg 186001975 XTerra MS IS C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186001985 XTerra MS IS C8 5um 3.0 mm ID x 20 mm 1/pkg 186001897 XTerra MS IS C8 2.5um 3.9 mm ID x 20 mm 1/pkg 186001898 XTerra MS IS C8 3.5um 3.9 mm ID x 20 mm 1/pkg 186001989 XTerra MS IS C8 5um 3.9 mm ID x 20 mm 1/pkg 186001890 XTerra MS IS C8 2.5um 4.6 mm ID x 20 mm 1/pkg 186001892 XTerra MS IS C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186001993 XTerra MS IS C8 5um 4.6 mm ID x 20 mm 1/pkg XTerra MS C8 Guard Column 186000633 XTerra MS C8 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000649 XTerra MS C8 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000637 XTerra MS C8 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000653 XTerra MS C8 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000641 XTerra MS C8 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186000657 XTerra MS C8 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000645 XTerra MS C8 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000661 XTerra MS C8 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186001434 XTerra MS C8 Guard 5um 4.6 mm ID x 10 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra RP C18 Column 186000388 XTerra RP C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186000392 XTerra RP C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000396 XTerra RP C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186000402 XTerra RP C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000448 XTerra RP C18 5um 2.1 mm ID x 50 mm 1/pkg 186000406 XTerra RP C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000452 XTerra RP C18 5um 2.1 mm ID x 100 mm 1/pkg 186000410 XTerra RP C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000456 XTerra RP C18 5um 2.1 mm ID x 150 mm 1/pkg 186000460 XTerra RP C18 5um 2.1 mm ID x 250 mm 1/pkg 186000416 XTerra RP C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000464 XTerra RP C18 5um 3.0 mm ID x 50 mm 1/pkg 186000420 XTerra RP C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000468 XTerra RP C18 5um 3.0 mm ID x 100 mm 1/pkg 186000424 XTerra RP C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000472 XTerra RP C18 5um 3.0 mm ID x 150 mm 1/pkg 186000476 XTerra RP C18 5um 3.0 mm ID x 250 mm 1/pkg 186000428 XTerra RP C18 3.5um 3.9 mm ID x 100 mm 1/pkg 186000480 XTerra RP C18 5um 3.9 mm ID x 150 mm 1/pkg 186001910 XTerra RP C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186001909 XTerra RP C18 5um 4.6 mm ID x 30 mm 1/pkg 186000434 XTerra RP C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000484 XTerra RP C18 5um 4.6 mm ID x 50 mm 1/pkg 186000438 XTerra RP C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000488 XTerra RP C18 5um 4.6 mm ID x 100 mm 1/pkg 186000442 XTerra RP C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000492 XTerra RP C18 5um 4.6 mm ID x 150 mm 1/pkg 186001472 XTerra RP C18 3.5um 4.6 mm ID x 250 mm 1/pkg 186000496 XTerra RP C18 5um 4.6 mm ID x 250 mm 1/pkg XTerra RP C18 Cartridge Column 186000499 XTerra RP C18 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000539 XTerra RP C18 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000503 XTerra RP C18 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000543 XTerra RP C18 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000547 XTerra RP C18 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000551 XTerra RP C18 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186000511 XTerra RP C18 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000555 XTerra RP C18 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000515 XTerra RP C18 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000559 XTerra RP C18 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000519 XTerra RP C18 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000563 XTerra RP C18 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000567 XTerra RP C18 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000523 XTerra RP C18 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000571 XTerra RP C18 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000527 XTerra RP C18 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000575 XTerra RP C18 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000531 XTerra RP C18 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000535 XTerra RP C18 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000579 XTerra RP C18 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000583 XTerra RP C18 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra RP C18 IS Column 186001925 XTerra MS IS C8 3.5um 2.0 mm ID x 20 mm 1/pkg 186001982 XTerra MS IS C8 5um 2.0 mm ID x 20 mm 1/pkg 186001976 XTerra MS IS C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186001986 XTerra MS IS C8 5um 3.0 mm ID x 20 mm 1/pkg 186001902 XTerra MS IS C8 3.5um 3.9 mm ID x 20 mm 1/pkg 186001990 XTerra MS IS C8 5um 3.9 mm ID x 20 mm 1/pkg 186001893 XTerra MS IS C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186001994 XTerra MS IS C8 5um 4.6 mm ID x 20 mm 1/pkg XTerra RP C18 Guard Column 186000633 XTerra RP C18 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000649 XTerra RP C18 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000637 XTerra RP C18 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000653 XTerra RP C18 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000657 XTerra RP C18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000645 XTerra RP C18 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000661 XTerra RP C18 Guard 5um 3.9 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra RP C8 Column 186000389 XTerra RP C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186000393 XTerra RP C8 3.5um 1.0 mm ID x 100 mm 1/pkg 186000397 XTerra RP C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186000403 XTerra RP C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000449 XTerra RP C8 5um 2.1 mm ID x 50 mm 1/pkg 186000407 XTerra RP C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000453 XTerra RP C8 5um 2.1 mm ID x 100 mm 1/pkg 186000411 XTerra RP C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186000457 XTerra RP C8 5um 2.1 mm ID x 150 mm 1/pkg 186000461 XTerra RP C8 5um 2.1 mm ID x 250 mm 1/pkg 186000417 XTerra RP C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000465 XTerra RP C8 5um 3.0 mm ID x 50 mm 1/pkg 186000421 XTerra RP C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000469 XTerra RP C8 5um 3.0 mm ID x 100 mm 1/pkg 186000425 XTerra RP C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186000473 XTerra RP C8 5um 3.0 mm ID x 150 mm 1/pkg 186000477 XTerra RP C8 5um 3.0 mm ID x 250 mm 1/pkg 186000429 XTerra RP C8 3.5um 3.9 mm ID x 100 mm 1/pkg 186000481 XTerra RP C8 5um 3.9 mm ID x 150 mm 1/pkg 186001912 XTerra RP C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186001911 XTerra RP C8 5um 4.6 mm ID x 30 mm 1/pkg 186000435 XTerra RP C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186000485 XTerra RP C8 5um 4.6 mm ID x 50 mm 1/pkg 186000439 XTerra RP C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186000489 XTerra RP C8 5um 4.6 mm ID x 100 mm 1/pkg 186000443 XTerra RP C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000493 XTerra RP C8 5um 4.6 mm ID x 150 mm 1/pkg 186001473 XTerra RP C8 3.5um 4.6 mm ID x 250 mm 1/pkg 186000497 XTerra RP C8 5um 4.6 mm ID x 250 mm 1/pkg XTerra RP C8 Cartridge Column 186000500 XTerra RP C8 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000540 XTerra RP C8 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000504 XTerra RP C8 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000544 XTerra RP C8 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000548 XTerra RP C8 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000552 XTerra RP C8 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186000512 XTerra RP C8 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000556 XTerra RP C8 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000516 XTerra RP C8 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000560 XTerra RP C8 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000520 XTerra RP C8 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000564 XTerra RP C8 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000568 XTerra RP C8 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000524 XTerra RP C8 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000572 XTerra RP C8 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000528 XTerra RP C8 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000576 XTerra RP C8 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000532 XTerra RP C8 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000536 XTerra RP C8 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000580 XTerra RP C8 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000584 XTerra RP C8 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra RP C8 IS Column 186001926 XTerra IS RP C8 3.5um 2.0 mm ID x 20 mm 1/pkg 186001983 XTerra IS RP C8 5um 2.0 mm ID x 20 mm 1/pkg 186001977 XTerra IS RP C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186001987 XTerra IS RP C8 5um 3.0 mm ID x 20 mm 1/pkg 186001901 XTerra IS RP C8 3.5um 3.9 mm ID x 20 mm 1/pkg 186001991 XTerra IS RP C8 5um 3.9 mm ID x 20 mm 1/pkg 186001894 XTerra IS RP C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186001995 XTerra IS RP C8 5um 4.6 mm ID x 20 mm 1/pkg XTerra RP C8 Guard Column 186000634 XTerra RP C8 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000650 XTerra RP C8 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000638 XTerra RP C8 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000654 XTerra RP C8 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000658 XTerra RP C8 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000646 XTerra RP C8 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000662 XTerra RP C8 Guard 5um 3.9 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra Phenyl Column 186001179 XTerra Phenyl 3.5um 2.1 mm ID x 50 mm 1/pkg 186001185 XTerra Phenyl 5um 2.1 mm ID x 50 mm 1/pkg 186001180 XTerra Phenyl 3.5um 2.1 mm ID x 100 mm 1/pkg 186001186 XTerra Phenyl 5um 2.1 mm ID x 100 mm 1/pkg 186001181 XTerra Phenyl 3.5um 2.1 mm ID x 150 mm 1/pkg 186001187 XTerra Phenyl 5um 2.1 mm ID x 250 mm 1/pkg 186001141 XTerra Phenyl 3.5um 3.0 mm ID x 50 mm 1/pkg 186001148 XTerra Phenyl 5um 3.0 mm ID x 50 mm 1/pkg 186001142 XTerra Phenyl 3.5um 3.0 mm ID x 100 mm 1/pkg 186001149 XTerra Phenyl 5um 3.0 mm ID x 100 mm 1/pkg 186001143 XTerra Phenyl 3.5um 3.0 mm ID x 150 mm 1/pkg 186001150 XTerra Phenyl 5um 3.0 mm ID x 150 mm 1/pkg 186001151 XTerra Phenyl 5um 3.0 mm ID x 250 mm 1/pkg 186001177 XTerra Phenyl 3.5um 3.9 mm ID x 100 mm 1/pkg 186001183 XTerra Phenyl 5um 3.9 mm ID x 100 mm 1/pkg 186001178 XTerra Phenyl 3.5um 3.9 mm ID x 150 mm 1/pkg 186001184 XTerra Phenyl 5um 3.9 mm ID x 150 mm 1/pkg 186001144 XTerra Phenyl 5um 4.6 mm ID x 50 mm 1/pkg 186001139 XTerra Phenyl 3.5um 4.6 mm ID x 100 mm 1/pkg 186001145 XTerra Phenyl 5um 4.6 mm ID x 100 mm 1/pkg 186001140 XTerra Phenyl 3.5um 4.6 mm ID x 150 mm 1/pkg 186001146 XTerra Phenyl 5um 4.6 mm ID x 150 mm 1/pkg 186001474 XTerra Phenyl 3.5um 4.6 mm ID x 250 mm 1/pkg 186001147 XTerra Phenyl 5um 4.6 mm ID x 250 mm 1/pkg XTerra Phenyl Cartridge Column 186001204 XTerra Phenyl Cartridge 3.5um 3.9 mm ID x 50 mm 1/pkg 186001203 XTerra Phenyl Cartridge 5um 3.9 mm ID x 50 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra Phenyl IS Column 186001894 XTerra IS Phenyl 3.5um 4.6 mm ID x 20 mm 1/pkg 186001995 XTerra IS Phenyl 5um 4.6 mm ID x 20 mm 1/pkg XTerra Phenyl Guard Column 186001188 XTerra Phenyl Guard 3.5um 2.1 mm ID x 10 mm 1/pkg 186001192 XTerra Phenyl Guard 5um 2.1 mm ID x 10 mm 1/pkg 186001189 XTerra Phenyl Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186001193 XTerra Phenyl Guard 5um 2.1 mm ID x 20 mm 1/pkg 186001190 XTerra Phenyl Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186001194 XTerra Phenyl Guard 5um 3.0 mm ID x 20 mm 1/pkg 186001191 XTerra Phenyl Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186001195 XTerra Phenyl Guard 5um 3.9 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.08
WatersXTerra®
◈ Product Information
제1세대 hybrid 입자들을 바탕으로 하는 XTerra® HPLC 컬럼을 사용하면, 크로마토그래피 연구자들은 약물 발견, 분석법 개발 및 정제 분리에 높은 pH를 사용할 수 있습니다.
► Point
- 엄격한 XTerra 입자의 DMSO 주입 저항은 높은 처리량이 필요한 약물 발견 (drug discovery) 응용에서 긴 컬럼 수명을 제공
- 넓은 pH 범위에서 사용할 수 있으므로, 분석법 개발 연구자들이 최적의 선택성 (selectivity)을 위해 필요한 pH에서 작업 가능
- 높은 loading 용량이 가능하므로 isolation 및 purification 연구자들은 주입 당 최대 60배 이상 물질을 load 가능
XTerra 컬럼 특성 Particle Packing Particle Shape Pore Size(s) (um) Carbon Size (A) End-Load (%) Capped XTerra MS C18 Spherical 2.5, 3.5, 5, 10 um 125 15.5 YES XTerra MS C8 Spherical 2.5, 3.5, 5, 10 um 125 12 YES XTerra RP18 Spherical 3.5, 5, 10 um 125 15 YES XTerra RP8 Spherical 3.5, 5, 10 um 125 13.5 YES XTerra Phenyl Spherical 3.5, 5 um 125 12 YES
► Hybrid 입자 테크놀러지
XTerra® 컬럼은 실리카와 고분자의 우수한 특징과 특허기술의* 혁신적인 hybrid 입자 테크놀러지 (매 세 번째 실라놀을 메틸기로 치환한 합성기술) 를 결합시킨 컬럼입니다. 이 친수성은 입자 골격의 전체 구조에 걸쳐 분포되어 있어 견고한(rugged) hybrid(무기/유기) 입자가 되며, 다음과 같은 조건에서 분석할 수 있습니다.
- 고속
- 고온
- 높은 pH
잔류 실라놀(endcap 및 결합 후)이 33%가 적으므로, XTerra 컬럼은 염기성 화합물에 대해 매우 효율성 (efficiency)이 높은 피크를 제공한다는 것을 또한 의미합니다.
*미국 특허 번호 6,686,035 B2
XTerra 컬럼 케미스트리가 선택성에 미치는 영향
XTerra 컬럼의 고정상 케미스트리는 전반적인 분석법 개발 계획에서 매우 중요한 요소가 됩니다.
► 약물 발견
XTerra® 컬럼을 사용하면 높은 유속, 짧은 컬럼, 빠른 그래디언트 (gradient)와 작은 입자를 결합할 수 있으므로, 그 결과 분리능을 보장하면서 속도를 빠르게 할 수 있는 획기적인 결과를 얻을 수 있습니다.
유속 증가 및 피크 용량 상승
입자 크기가 작아지면 피크 용량 및 분리능은 높은 유속에서 향상됩니다. 이러한 매개변수들은 성공적으로 최적화되어 최대 분리능을 유지하면서 분리 속도를 빠르게 할 수 있습니다.
작은 입자 및 짧은 컬럼을 사용한 빠른 분석
빠른 유속 및 짧은 컬럼을 사용하면 피크 용량에 영향을 받지 않고도 그레디언트 분석시간을 단축시킬 수 있습니다. 질량 분석기의 경우, 이러한 장점들은 직경이 더 작은 컬럼에서도 실현됩니다.
► 분석법 개발
XTerra 컬럼을 사용하여 시간과 비용을 절약하고 견고한 분리를 더욱 빠르고 쉽게 개발할 수 있으며, 최적의 선택성에 필요한 pH의 작동이 가능합니다.
더 넓은 pH 범위로 선택성 최적화
XTerra 컬럼은 사용 가능한 pH 범위가 넓으므로, 이온화가 가능한 입자들의 선택성을 변경하는데 강력한 툴이 됩니다.
높은 pH에서 염기성 화합물의 머무름 증가
XTerra 컬럼을 사용하면 분석법 개발에 pH 전체를 활용할 수 있습니다.
► Isolation 및 Purification
XTerra® Prep OBD™ 컬럼은 최대 컬럼 안정성과 함께 분취용 규격으로 분석 성능을 제공합니다. 그것은 곧 특허 받은 OBD(Optimum Bed Density) 설계의 결과입니다. OBD 설계를 hybrid 입자 테크놀러지의 독특한 크로마토그래피 속성들과 결합시킴으로써 넓은 범위의 고성능 분취용 컬럼을 제공합니다. 넓은 범위의 분석 물질(염기성, 산성 및 극성) 및 성공적이고 예측 가능한 분취로의 스케일업에 필요한 넓은 작동 범위의 이동상들을 통해 전례 없는 유연성을 제공합니다.
낮은 vs. 높은 pH loading
XTerra 컬럼은 향상된 분리능 및 loadability 로 염기성 화합물을 분리하면서 높은 pH에서 우수한 안정성을 제공합니다.
◈ Ordering Information Product Number Description Package XTerra MS C18 Capillaries 186002198 XTerra MS C18 3.5um 75 um ID x 50 mm 1/pkg 186002189 XTerra MS C18 3.5um 75 um ID x 100 mm 1/pkg 186002200 XTerra MS C18 3.5um 75 um ID x 150 mm 1/pkg 186002210 XTerra MS C18 3.5um 100 um ID x 50 mm 1/pkg 186002211 XTerra MS C18 3.5um 100 um ID x 100 mm 1/pkg 186002212 XTerra MS C18 3.5um 100 um ID x 150 mm 1/pkg 186002469 XTerra MS C18 3.5um 150 um ID x 50 mm 1/pkg 186002479 XTerra MS C18 3.5um 150 um ID x 100 mm 1/pkg 186002471 XTerra MS C18 3.5um 150 um ID x 150 mm 1/pkg 186002599 XTerra MS C18 3.5um 300 um ID x 50 mm 1/pkg 186002600 XTerra MS C18 3.5um 300 um ID x 100 mm 1/pkg 186002601 XTerra MS C18 3.5um 300 um ID x 150 mm 1/pkg 186002602 XTerra MS C18 5um 300 um ID x 50 mm 1/pkg 186002603 XTerra MS C18 5um 300 um ID x 100 mm 1/pkg 186002604 XTerra MS C18 5um 300 um ID x 150 mm 1/pkg XTerra MS C18 Column 186000979 XTerra MS C18 2.5um 1.0 mm ID x 50 mm 1/pkg 186000386 XTerra MS C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186000390 XTerra MS C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000394 XTerra MS C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186000592 XTerra MS C18 2.5um 2.1 mm ID x 30 mm 1/pkg 186000398 XTerra MS C18 3.5um 2.1 mm ID x 30 mm 1/pkg 186000594 XTerra MS C18 2.5um 2.1 mm ID x 50 mm 1/pkg 186000400 XTerra MS C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000446 XTerra MS C18 5um 2.1 mm ID x 50 mm 1/pkg 186000404 XTerra MS C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000450 XTerra MS C18 5um 2.1 mm ID x 100 mm 1/pkg 186000408 XTerra MS C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000454 XTerra MS C18 5um 2.1 mm ID x 150 mm 1/pkg 186000458 XTerra MS C18 5um 2.1 mm ID x 250 mm 1/pkg 186000596 XTerra MS C18 2.5um 3.0 mm ID x 30 mm 1/pkg 186000412 XTerra MS C18 3.5um 3.0 mm ID x 30 mm 1/pkg 186000598 XTerra MS C18 2.5um 3.0 mm ID x 50 mm 1/pkg 186000414 XTerra MS C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000462 XTerra MS C18 5um 3.0 mm ID x 50 mm 1/pkg 186000418 XTerra MS C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000466 XTerra MS C18 5um 3.0 mm ID x 100 mm 1/pkg 186000422 XTerra MS C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000470 XTerra MS C18 5um 3.0 mm ID x 150 mm 1/pkg 186000474 XTerra MS C18 5um 3.0 mm ID x 250 mm 1/pkg 186000426 XTerra MS C18 3.5um 3.9 mm ID x 100 mm 1/pkg 186000478 XTerra MS C18 5um 3.9 mm ID x 150 mm 1/pkg 186000600 XTerra MS C18 2.5um 4.6 mm ID x 30 mm 1/pkg 186000430 XTerra MS C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186000878 XTerra MS C18 5um 4.6 mm ID x 30 mm 1/pkg 186000602 XTerra MS C18 2.5um 4.6 mm ID x 50 mm 1/pkg 186000432 XTerra MS C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000882 XTerra MS C18 5um 4.6 mm ID x 50 mm 1/pkg 186000436 XTerra MS C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000486 XTerra MS C18 5um 4.6 mm ID x 100 mm 1/pkg 186000440 XTerra MS C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000490 XTerra MS C18 5um 4.6 mm ID x 150 mm 1/pkg 186001470 XTerra MS C18 3.5um 4.6 mm ID x 250 mm 1/pkg 186000494 XTerra MS C18 5um 4.6 mm ID x 250 mm 1/pkg XTerra MS C18 Cartridge Column 186000498 XTerra MS C18 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000538 XTerra MS C18 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000502 XTerra MS C18 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000542 XTerra MS C18 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000546 XTerra MS C18 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000550 XTerra MS C18 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186001588 XTerra MS C18 Cartridge 2.5um 3.0 mm ID x 20 mm 1/pkg 186000510 XTerra MS C18 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000554 XTerra MS C18 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000514 XTerra MS C18 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000558 XTerra MS C18 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000518 XTerra MS C18 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000562 XTerra MS C18 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000566 XTerra MS C18 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000817 XTerra MS C18 Cartridge 3.5um 3.9 mm ID x 50 mm 1/pkg 186000815 XTerra MS C18 Cartridge 5um 3.9 mm ID x 50 mm 1/pkg 186000522 XTerra MS C18 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000570 XTerra MS C18 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000590 XTerra MS C18 Cartridge 2.5um 4.6 mm ID x 20 mm 1/pkg 186000526 XTerra MS C18 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000574 XTerra MS C18 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000530 XTerra MS C18 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000534 XTerra MS C18 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000578 XTerra MS C18 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000582 XTerra MS C18 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra MS C18 IS Column 186001921 XTerra MS IS C18 2.5um 2.0 mm ID x 20 mm 1/pkg 186001923 XTerra MS IS C18 3.5um 2.0 mm ID x 20 mm 1/pkg 186001979 XTerra MS IS C18 5um 2.0 mm ID x 20 mm 1/pkg 186001972 XTerra MS IS C18 2.5um 3.0 mm ID x 20 mm 1/pkg 186001974 XTerra MS IS C18 3.5um 3.0 mm ID x 20 mm 1/pkg 186001984 XTerra MS IS C18 5um 3.0 mm ID x 20 mm 1/pkg 186001899 XTerra MS IS C18 2.5um 3.9 mm ID x 20 mm 1/pkg 186001900 XTerra MS IS C18 3.5um 3.9 mm ID x 20 mm 1/pkg 186001988 XTerra MS IS C18 5um 3.9 mm ID x 20 mm 1/pkg 186001889 XTerra MS IS C18 2.5um 4.6 mm ID x 20 mm 1/pkg 186001891 XTerra MS IS C18 3.5um 4.6 mm ID x 20 mm 1/pkg 186001992 XTerra MS IS C18 5um 4.6 mm ID x 20 mm 1/pkg XTerra MS C18 Guard Column 186000632 XTerra MS C18 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000648 XTerra MS C18 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000636 XTerra MS C18 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000652 XTerra MS C18 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000640 XTerra MS C18 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186000656 XTerra MS C18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000644 XTerra MS C18 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000660 XTerra MS C18 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186001927 XTerra MS C18 Guard 3.5um 4.6 mm ID x 20 mm 1/pkg 186001920 XTerra MS C18 Guard 5um 4.6 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra MS C18 Direct Connect Column 186000900 XTerra MS C18 Direct Connect 2.5um 2.0 mm ID x 15 mm 1/pkg 186001908 XTerra MS C18 Direct Connect 3.5um 2.0 mm ID x 15 mm 1/pkg 186001907 XTerra MS C18 Direct Connect 5um 2.0 mm ID x 15 mm 1/pkg 186001906 XTerra MS C18 Direct Connect 10um 2.0 mm ID x 15 mm 1/pkg XTerra MS C8 Column 186000387 XTerra MS C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186000391 XTerra MS C8 3.5um 1.0 mm ID x 100 mm 1/pkg 186000395 XTerra MS C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186000593 XTerra MS C8 2.5um 2.1 mm ID x 30 mm 1/pkg 186000399 XTerra MS C8 3.5um 2.1 mm ID x 30 mm 1/pkg 186000595 XTerra MS C8 2.5um 2.1 mm ID x 50 mm 1/pkg 186000401 XTerra MS C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000447 XTerra MS C8 5um 2.1 mm ID x 50 mm 1/pkg 186000405 XTerra MS C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000451 XTerra MS C8 5um 2.1 mm ID x 100 mm 1/pkg 186000409 XTerra MS C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186000455 XTerra MS C8 5um 2.1 mm ID x 150 mm 1/pkg 186000459 XTerra MS C8 5um 2.1 mm ID x 250 mm 1/pkg 186000597 XTerra MS C8 2.5um 3.0 mm ID x 30 mm 1/pkg 186000413 XTerra MS C8 3.5um 3.0 mm ID x 30 mm 1/pkg 186000599 XTerra MS C8 2.5um 3.0 mm ID x 50 mm 1/pkg 186000415 XTerra MS C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000463 XTerra MS C8 5um 3.0 mm ID x 50 mm 1/pkg 186000419 XTerra MS C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000467 XTerra MS C8 5um 3.0 mm ID x 100 mm 1/pkg 186000423 XTerra MS C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186000471 XTerra MS C8 5um 3.0 mm ID x 150 mm 1/pkg 186000475 XTerra MS C8 5um 3.0 mm ID x 250 mm 1/pkg 186000427 XTerra MS C8 3.5um 3.9 mm ID x 100 mm 1/pkg 186000479 XTerra MS C8 5um 3.9 mm ID x 150 mm 1/pkg 186000601 XTerra MS C8 2.5um 4.6 mm ID x 30 mm 1/pkg 186000431 XTerra MS C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186000879 XTerra MS C8 5um 4.6 mm ID x 30 mm 1/pkg 186000603 XTerra MS C8 2.5um 4.6 mm ID x 50 mm 1/pkg 186000433 XTerra MS C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186000883 XTerra MS C8 5um 4.6 mm ID x 50 mm 1/pkg 186000437 XTerra MS C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186000487 XTerra MS C8 5um 4.6 mm ID x 100 mm 1/pkg 186000441 XTerra MS C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000491 XTerra MS C8 5um 4.6 mm ID x 150 mm 1/pkg 186001471 XTerra MS C8 3.5um 4.6 mm ID x 250 mm 1/pkg 186000495 XTerra MS C8 5um 4.6 mm ID x 250 mm 1/pkg XTerra MS C8 Cartridge Column 186000499 XTerra MS C8 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000539 XTerra MS C8 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000503 XTerra MS C8 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000543 XTerra MS C8 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000547 XTerra MS C8 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000551 XTerra MS C8 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186001589 XTerra MS C8 Cartridge 2.5um 3.0 mm ID x 20 mm 1/pkg 186000511 XTerra MS C8 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000555 XTerra MS C8 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000515 XTerra MS C8 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000559 XTerra MS C8 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000519 XTerra MS C8 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000563 XTerra MS C8 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000567 XTerra MS C8 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000818 XTerra MS C8 Cartridge 3.5um 3.9 mm ID x 50 mm 1/pkg 186000816 XTerra MS C8 Cartridge 5um 3.9 mm ID x 50 mm 1/pkg 186000523 XTerra MS C8 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000571 XTerra MS C8 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000591 XTerra MS C8 Cartridge 2.5um 4.6 mm ID x 20 mm 1/pkg 186000527 XTerra MS C8 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000575 XTerra MS C8 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000531 XTerra MS C8 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000535 XTerra MS C8 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000579 XTerra MS C8 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000583 XTerra MS C8 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra MS C8 IS Column 186001922 XTerra MS IS C8 2.5um 2.0 mm ID x 20 mm 1/pkg 186001924 XTerra MS IS C8 3.5um 2.0 mm ID x 20 mm 1/pkg 186001980 XTerra MS IS C8 5um 2.0 mm ID x 20 mm 1/pkg 186001973 XTerra MS IS C8 2.5um 3.0 mm ID x 20 mm 1/pkg 186001975 XTerra MS IS C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186001985 XTerra MS IS C8 5um 3.0 mm ID x 20 mm 1/pkg 186001897 XTerra MS IS C8 2.5um 3.9 mm ID x 20 mm 1/pkg 186001898 XTerra MS IS C8 3.5um 3.9 mm ID x 20 mm 1/pkg 186001989 XTerra MS IS C8 5um 3.9 mm ID x 20 mm 1/pkg 186001890 XTerra MS IS C8 2.5um 4.6 mm ID x 20 mm 1/pkg 186001892 XTerra MS IS C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186001993 XTerra MS IS C8 5um 4.6 mm ID x 20 mm 1/pkg XTerra MS C8 Guard Column 186000633 XTerra MS C8 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000649 XTerra MS C8 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000637 XTerra MS C8 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000653 XTerra MS C8 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000641 XTerra MS C8 Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186000657 XTerra MS C8 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000645 XTerra MS C8 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000661 XTerra MS C8 Guard 5um 3.9 mm ID x 20 mm 1/pkg 186001434 XTerra MS C8 Guard 5um 4.6 mm ID x 10 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra RP C18 Column 186000388 XTerra RP C18 3.5um 1.0 mm ID x 50 mm 1/pkg 186000392 XTerra RP C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000396 XTerra RP C18 3.5um 1.0 mm ID x 150 mm 1/pkg 186000402 XTerra RP C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000448 XTerra RP C18 5um 2.1 mm ID x 50 mm 1/pkg 186000406 XTerra RP C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000452 XTerra RP C18 5um 2.1 mm ID x 100 mm 1/pkg 186000410 XTerra RP C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000456 XTerra RP C18 5um 2.1 mm ID x 150 mm 1/pkg 186000460 XTerra RP C18 5um 2.1 mm ID x 250 mm 1/pkg 186000416 XTerra RP C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000464 XTerra RP C18 5um 3.0 mm ID x 50 mm 1/pkg 186000420 XTerra RP C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000468 XTerra RP C18 5um 3.0 mm ID x 100 mm 1/pkg 186000424 XTerra RP C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000472 XTerra RP C18 5um 3.0 mm ID x 150 mm 1/pkg 186000476 XTerra RP C18 5um 3.0 mm ID x 250 mm 1/pkg 186000428 XTerra RP C18 3.5um 3.9 mm ID x 100 mm 1/pkg 186000480 XTerra RP C18 5um 3.9 mm ID x 150 mm 1/pkg 186001910 XTerra RP C18 3.5um 4.6 mm ID x 30 mm 1/pkg 186001909 XTerra RP C18 5um 4.6 mm ID x 30 mm 1/pkg 186000434 XTerra RP C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000484 XTerra RP C18 5um 4.6 mm ID x 50 mm 1/pkg 186000438 XTerra RP C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000488 XTerra RP C18 5um 4.6 mm ID x 100 mm 1/pkg 186000442 XTerra RP C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000492 XTerra RP C18 5um 4.6 mm ID x 150 mm 1/pkg 186001472 XTerra RP C18 3.5um 4.6 mm ID x 250 mm 1/pkg 186000496 XTerra RP C18 5um 4.6 mm ID x 250 mm 1/pkg XTerra RP C18 Cartridge Column 186000499 XTerra RP C18 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000539 XTerra RP C18 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000503 XTerra RP C18 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000543 XTerra RP C18 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000547 XTerra RP C18 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000551 XTerra RP C18 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186000511 XTerra RP C18 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000555 XTerra RP C18 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000515 XTerra RP C18 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000559 XTerra RP C18 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000519 XTerra RP C18 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000563 XTerra RP C18 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000567 XTerra RP C18 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000523 XTerra RP C18 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000571 XTerra RP C18 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000527 XTerra RP C18 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000575 XTerra RP C18 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000531 XTerra RP C18 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000535 XTerra RP C18 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000579 XTerra RP C18 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000583 XTerra RP C18 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra RP C18 IS Column 186001925 XTerra MS IS C8 3.5um 2.0 mm ID x 20 mm 1/pkg 186001982 XTerra MS IS C8 5um 2.0 mm ID x 20 mm 1/pkg 186001976 XTerra MS IS C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186001986 XTerra MS IS C8 5um 3.0 mm ID x 20 mm 1/pkg 186001902 XTerra MS IS C8 3.5um 3.9 mm ID x 20 mm 1/pkg 186001990 XTerra MS IS C8 5um 3.9 mm ID x 20 mm 1/pkg 186001893 XTerra MS IS C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186001994 XTerra MS IS C8 5um 4.6 mm ID x 20 mm 1/pkg XTerra RP C18 Guard Column 186000633 XTerra RP C18 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000649 XTerra RP C18 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000637 XTerra RP C18 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000653 XTerra RP C18 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000657 XTerra RP C18 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000645 XTerra RP C18 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000661 XTerra RP C18 Guard 5um 3.9 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra RP C8 Column 186000389 XTerra RP C8 3.5um 1.0 mm ID x 50 mm 1/pkg 186000393 XTerra RP C8 3.5um 1.0 mm ID x 100 mm 1/pkg 186000397 XTerra RP C8 3.5um 1.0 mm ID x 150 mm 1/pkg 186000403 XTerra RP C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000449 XTerra RP C8 5um 2.1 mm ID x 50 mm 1/pkg 186000407 XTerra RP C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000453 XTerra RP C8 5um 2.1 mm ID x 100 mm 1/pkg 186000411 XTerra RP C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186000457 XTerra RP C8 5um 2.1 mm ID x 150 mm 1/pkg 186000461 XTerra RP C8 5um 2.1 mm ID x 250 mm 1/pkg 186000417 XTerra RP C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000465 XTerra RP C8 5um 3.0 mm ID x 50 mm 1/pkg 186000421 XTerra RP C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000469 XTerra RP C8 5um 3.0 mm ID x 100 mm 1/pkg 186000425 XTerra RP C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186000473 XTerra RP C8 5um 3.0 mm ID x 150 mm 1/pkg 186000477 XTerra RP C8 5um 3.0 mm ID x 250 mm 1/pkg 186000429 XTerra RP C8 3.5um 3.9 mm ID x 100 mm 1/pkg 186000481 XTerra RP C8 5um 3.9 mm ID x 150 mm 1/pkg 186001912 XTerra RP C8 3.5um 4.6 mm ID x 30 mm 1/pkg 186001911 XTerra RP C8 5um 4.6 mm ID x 30 mm 1/pkg 186000435 XTerra RP C8 3.5um 4.6 mm ID x 50 mm 1/pkg 186000485 XTerra RP C8 5um 4.6 mm ID x 50 mm 1/pkg 186000439 XTerra RP C8 3.5um 4.6 mm ID x 100 mm 1/pkg 186000489 XTerra RP C8 5um 4.6 mm ID x 100 mm 1/pkg 186000443 XTerra RP C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000493 XTerra RP C8 5um 4.6 mm ID x 150 mm 1/pkg 186001473 XTerra RP C8 3.5um 4.6 mm ID x 250 mm 1/pkg 186000497 XTerra RP C8 5um 4.6 mm ID x 250 mm 1/pkg XTerra RP C8 Cartridge Column 186000500 XTerra RP C8 Cartridge 3.5um 2.1 mm ID x 50 mm 1/pkg 186000540 XTerra RP C8 Cartridge 5um 2.1 mm ID x 50 mm 1/pkg 186000504 XTerra RP C8 Cartridge 3.5um 2.1 mm ID x 100 mm 1/pkg 186000544 XTerra RP C8 Cartridge 5um 2.1 mm ID x 100 mm 1/pkg 186000548 XTerra RP C8 Cartridge 5um 2.1 mm ID x 150 mm 1/pkg 186000552 XTerra RP C8 Cartridge 5um 2.1 mm ID x 250 mm 1/pkg 186000512 XTerra RP C8 Cartridge 3.5um 3.0 mm ID x 50 mm 1/pkg 186000556 XTerra RP C8 Cartridge 5um 3.0 mm ID x 50 mm 1/pkg 186000516 XTerra RP C8 Cartridge 3.5um 3.0 mm ID x 100 mm 1/pkg 186000560 XTerra RP C8 Cartridge 5um 3.0 mm ID x 100 mm 1/pkg 186000520 XTerra RP C8 Cartridge 3.5um 3.0 mm ID x 150 mm 1/pkg 186000564 XTerra RP C8 Cartridge 5um 3.0 mm ID x 150 mm 1/pkg 186000568 XTerra RP C8 Cartridge 5um 3.0 mm ID x 250 mm 1/pkg 186000524 XTerra RP C8 Cartridge 3.5um 3.9 mm ID x 100 mm 1/pkg 186000572 XTerra RP C8 Cartridge 5um 3.9 mm ID x 150 mm 1/pkg 186000528 XTerra RP C8 Cartridge 3.5um 4.6 mm ID x 50 mm 1/pkg 186000576 XTerra RP C8 Cartridge 5um 4.6 mm ID x 50 mm 1/pkg 186000532 XTerra RP C8 Cartridge 3.5um 4.6 mm ID x 100 mm 1/pkg 186000536 XTerra RP C8 Cartridge 3.5um 4.6 mm ID x 150 mm 1/pkg 186000580 XTerra RP C8 Cartridge 5um 4.6 mm ID x 150 mm 1/pkg 186000584 XTerra RP C8 Cartridge 5um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra RP C8 IS Column 186001926 XTerra IS RP C8 3.5um 2.0 mm ID x 20 mm 1/pkg 186001983 XTerra IS RP C8 5um 2.0 mm ID x 20 mm 1/pkg 186001977 XTerra IS RP C8 3.5um 3.0 mm ID x 20 mm 1/pkg 186001987 XTerra IS RP C8 5um 3.0 mm ID x 20 mm 1/pkg 186001901 XTerra IS RP C8 3.5um 3.9 mm ID x 20 mm 1/pkg 186001991 XTerra IS RP C8 5um 3.9 mm ID x 20 mm 1/pkg 186001894 XTerra IS RP C8 3.5um 4.6 mm ID x 20 mm 1/pkg 186001995 XTerra IS RP C8 5um 4.6 mm ID x 20 mm 1/pkg XTerra RP C8 Guard Column 186000634 XTerra RP C8 Guard 3.5um 2.0 mm ID x 10 mm 1/pkg 186000650 XTerra RP C8 Guard 5um 2.0 mm ID x 10 mm 1/pkg 186000638 XTerra RP C8 Guard 3.5um 2.0 mm ID x 20 mm 1/pkg 186000654 XTerra RP C8 Guard 5um 2.0 mm ID x 20 mm 1/pkg 186000658 XTerra RP C8 Guard 5um 3.0 mm ID x 20 mm 1/pkg 186000646 XTerra RP C8 Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186000662 XTerra RP C8 Guard 5um 3.9 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg XTerra Phenyl Column 186001179 XTerra Phenyl 3.5um 2.1 mm ID x 50 mm 1/pkg 186001185 XTerra Phenyl 5um 2.1 mm ID x 50 mm 1/pkg 186001180 XTerra Phenyl 3.5um 2.1 mm ID x 100 mm 1/pkg 186001186 XTerra Phenyl 5um 2.1 mm ID x 100 mm 1/pkg 186001181 XTerra Phenyl 3.5um 2.1 mm ID x 150 mm 1/pkg 186001187 XTerra Phenyl 5um 2.1 mm ID x 250 mm 1/pkg 186001141 XTerra Phenyl 3.5um 3.0 mm ID x 50 mm 1/pkg 186001148 XTerra Phenyl 5um 3.0 mm ID x 50 mm 1/pkg 186001142 XTerra Phenyl 3.5um 3.0 mm ID x 100 mm 1/pkg 186001149 XTerra Phenyl 5um 3.0 mm ID x 100 mm 1/pkg 186001143 XTerra Phenyl 3.5um 3.0 mm ID x 150 mm 1/pkg 186001150 XTerra Phenyl 5um 3.0 mm ID x 150 mm 1/pkg 186001151 XTerra Phenyl 5um 3.0 mm ID x 250 mm 1/pkg 186001177 XTerra Phenyl 3.5um 3.9 mm ID x 100 mm 1/pkg 186001183 XTerra Phenyl 5um 3.9 mm ID x 100 mm 1/pkg 186001178 XTerra Phenyl 3.5um 3.9 mm ID x 150 mm 1/pkg 186001184 XTerra Phenyl 5um 3.9 mm ID x 150 mm 1/pkg 186001144 XTerra Phenyl 5um 4.6 mm ID x 50 mm 1/pkg 186001139 XTerra Phenyl 3.5um 4.6 mm ID x 100 mm 1/pkg 186001145 XTerra Phenyl 5um 4.6 mm ID x 100 mm 1/pkg 186001140 XTerra Phenyl 3.5um 4.6 mm ID x 150 mm 1/pkg 186001146 XTerra Phenyl 5um 4.6 mm ID x 150 mm 1/pkg 186001474 XTerra Phenyl 3.5um 4.6 mm ID x 250 mm 1/pkg 186001147 XTerra Phenyl 5um 4.6 mm ID x 250 mm 1/pkg XTerra Phenyl Cartridge Column 186001204 XTerra Phenyl Cartridge 3.5um 3.9 mm ID x 50 mm 1/pkg 186001203 XTerra Phenyl Cartridge 5um 3.9 mm ID x 50 mm 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg XTerra Phenyl IS Column 186001894 XTerra IS Phenyl 3.5um 4.6 mm ID x 20 mm 1/pkg 186001995 XTerra IS Phenyl 5um 4.6 mm ID x 20 mm 1/pkg XTerra Phenyl Guard Column 186001188 XTerra Phenyl Guard 3.5um 2.1 mm ID x 10 mm 1/pkg 186001192 XTerra Phenyl Guard 5um 2.1 mm ID x 10 mm 1/pkg 186001189 XTerra Phenyl Guard 3.5um 2.1 mm ID x 20 mm 1/pkg 186001193 XTerra Phenyl Guard 5um 2.1 mm ID x 20 mm 1/pkg 186001190 XTerra Phenyl Guard 3.5um 3.0 mm ID x 20 mm 1/pkg 186001194 XTerra Phenyl Guard 5um 3.0 mm ID x 20 mm 1/pkg 186001191 XTerra Phenyl Guard 3.5um 3.9 mm ID x 20 mm 1/pkg 186001195 XTerra Phenyl Guard 5um 3.9 mm ID x 20 mm 1/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg 예일테크 2008.05.08
8
Symmetry®
WatersSymmetry®
◈ Product Information
재현성은 Symmetry® 컬럼에서 제1의 우선 순위입니다. 이 컬럼은 고 순도 원료로 제작되고 엄격한 제어를 받는 제조 과정 및 컬럼 패킹 절차로 최고의 재현성을 자랑하는 HPLC 컬럼입니다. Symmetry 카트리지 및 가드 컬럼 하드웨어도 공급됩니다.
컬럼 선택 목적 Symmetry C18 및 C8 컬럼 재현성 SymmetryShield RP18 및 RP8 컬럼 우수한 피크 모양 Symmetry300 C18 및 C4 컬럼 펩타이드 및 단백질의 높은 회수율
► Symmetry 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Symmetry® C18 3.5, 5 um Spherical 100A 19% Yes C8 3.5, 5 um Spherical 100A 12% Yes SymmetryPrep™ C18 7 um Spherical 100A 19% Yes C8 7 um Spherical 100A 12% Yes SymmetryShield™ RP18 3.5, 5, 7 um Spherical 100A 17% Yes RP8 3.5, 5, 7 um Spherical 100A 15% Yes Symmetry300™ C18 3.5, 5 um Spherical 300A 8.50% Yes C4 3.5, 5 um Spherical 300A 2.80% Yes
► 일반 HPLC 컬럼 문제들에 대한 솔루션
Problem Impact Solution and Benefit Column-to-column and batch-to-batch reproducibility is not consistent • Increased labor costs due to individual column QC testing
• Revalidate/redevelop method with each new batch of columns • Symmetry® brand of HPLC columns have the tightest specifications in the market to provide the most consistent results
• Symmetry columns achieve outstanding year-to-year reproducibility to give long life to established analytical methods Severe or excessive peak tailing • Increased number of experiments to optimize analytical method • SymmetryShield™ columns with embedded polar technology provide less peak tailing for faster and easier method development Column selectivity not resolving critical peaks • Increased number of experiments to optimize analytical method • SymmetryShield columns are the perfect complement to Symmetry columns, providing different selectivity and enabling column selection to maximize resolution Difficulty resolving individual compounds in complex peptide or protein samples • Increased cost and time to isolate • Symmetry300™ columns demonstrate the highest peak capacity of all leading brands
• Excellent reproducibility for separating large numbers of peptides or proteins Scaling-up analytical method to preparative scale requires too many adjustments to achieve good isolation and purification • Higher costs due to method development time and labor
• Higher cost of equipment, samples and prep columns • SymmetryPrep™ columns save development time with direct scale-up while maintaining resolution
► Symmetry C18 및 C8-재현성
Symmetry® 컬럼은 재현성 있는 크로마토그래피 결과들을 제공합니다.
좁은 컬럼 사양으로도 재현 가능한 결과를 얻을 수 있습니다. Symmetry 컬럼의 표면 coverage 요건들은 업계에서 가장 엄격한 사양들로 그 결과, 분리능에서 피크 전이가 최소화되고 batch-to-batch 및 컬럼별로 재현성이 증가합니다.
우수한 연도별 재현성
► Symmetry Shield RP18 및 RP8-우수한 피크 형태
SymmetryShield™ 컬럼은 글자 그대로 강염기성 분석 물질로부터 실리카의 잔류 실라놀(silanol)을 '보호(shield)'하는 Waters의 특허 받은 embedded polar 그룹 기술을 바탕으로 한 역상 컬럼입니다.
Shield 기술
피크 형태 개선 및 고유한 선택성
► Symmetry300 C18 및 C4-높은 펩타이드 및 단백질 회수율
Symmetry300™ 컬럼은 pore가 넓은 역상 컬럼으로 Symmetry® 컬럼 플랫폼을 기반으로 하고 그 표준은 민감하고 엄격하며 견고한 HPLC 분석을 위해 제약산업을 바탕으로 삼고 있습니다. 이러한 컬럼의 성격은 다음과 같습니다.
• 중성 및 강염기성 펩타이드만이 아니라 소수성 및 친수성 펩타이드를 동시에 분리할 때 우수한 성능을 보입니다.
• 높고 낮은 mass load 조건에서 성능이 개선됩니다.
• 밸리데이션, 컴플라이언스에 최상의 솔루션입니다.
Symmetry300 C4 컬럼은 20여종 이상의 HPLC 컬럼들과 비교할 때 최고 평균 피크 용량을 보입니다. 예시에서 보는 바와 같이, 복잡한 단백질 분리를 Symmetry300 C4 컬럼은 경쟁 제품인 300Å 컬럼과 비교하여 더 나은 피크 형태와 함께 더 나은 분리를 제공합니다.
단백질: Symmetry300 C4 과 경쟁 제품 비교
► Symmetry 카트리지 및 가드 컬럼 하드웨어
Waters 카트리지 컬럼
Waters 카트리지 시스템은 재사용할 수 있는 endfitting이 필요한데 처음 Waters HPLC 카트리지를 구입할 때 주문합니다. Waters 표준 커넥터를 사용하여 이러한 카트리지 컬럼을 HPLC에 연결합니다.
카트리지 endfitting
2.1 x 50mm, 2.1 x 100mm, 2.1 x 150mm, 2.1 x 250mm, 제품번호 700000117
3.0 x 50mm, 3.0 x 100mm, 3.0 x 150mm, 3.0 x 250mm, 제품번호 WAT037525
3.9 x 50mm, 3.9 x 100mm, 3.9 x 150mm, 3.9 x 250mm, 제품번호 WAT037525
4.6 x 50mm, 4.6 x 100mm, 4.6 x 150mm, 4.6 x 250mm, 제품번호 WAT037525
Waters 센트리 가드(Sentry Guard) 컬럼 및 일반 가드 홀더
Waters는 모든 Waters 분석 컬럼과 동일한 고성능 패킹 물질들을 포함하는 Sentry™ Guard 라인 컬럼을 제공합니다.
Biological fluid cleanup 및 온도 제어를 위해 증가된 capacity가 필요한 고객들을 위해 개발된 Sentry Guard 컬럼은 다음 두 가지 홀더 디자인으로 제공됩니다.
• 재사용이 가능한 endfitting을 포함하며 Waters 스틸 카트리지의 통합된 일부로 사용 시
• HPLC 컬럼과 사용 시
둘 다 도구 없이 설치됩니다.
통합형 Sentry Guard 홀더는 카트리지 endfitting과 함께 제공(위 참조)
3.0 x 20mm, 3.9 x 20mm, 제품번호 WAT046905
일반 가드 홀더(모든 컬럼에서 사용)
2.1 x 10mm, 제품번호 WAT097958
2.1 x 20mm, 제품번호 186000262
3.0 x 20mm, 제품번호 WAT046910
3.9 x 20mm, 제품번호 WAT046910
4.6 x 20mm, 제품번호 WAT046910
◈ Ordering Information Product Number Description Package Waters Symmetry Column WAT106056 Symmetry C18 3.5um 1.0 mm ID x 50 mm 1/pkg WAT248059 Symmetry C18 3.5um 1.0 mm ID x 100 mm 1/pkg WAT058973 Symmetry C18 3.5um 2.1 mm ID x 30 mm 1/pkg WAT200650 Symmetry C18 3.5um 2.1 mm ID x 50 mm 1/pkg WAT058965 Symmetry C18 3.5um 2.1 mm ID x 100 mm 1/pkg WAT106005 Symmetry C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186002612 Symmetry C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000696 Symmetry C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000695 Symmetry C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000271 Symmetry C18 3.5um 4.6 mm ID x 30 mm 1/pkg WAT200625 Symmetry C18 3.5um 4.6 mm ID x 50 mm 1/pkg WAT066224 Symmetry C18 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066220 Symmetry C18 3.5um 4.6 mm ID x 100 mm 1/pkg WAT200632 Symmetry C18 3.5um 4.6 mm ID x 150 mm 1/pkg WAT106052 Symmetry C8 3.5um 1.0 mm ID x 50 mm 1/pkg WAT248072 Symmetry C8 3.5um 1.0 mm ID x 100 mm 1/pkg WAT058977 Symmetry C8 3.5um 2.1 mm ID x 30 mm 1/pkg WAT200624 Symmetry C8 3.5um 2.1 mm ID x 50 mm 1/pkg WAT058961 Symmetry C8 3.5um 2.1 mm ID x 100 mm 1/pkg WAT106011 Symmetry C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186002613 Symmetry C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000698 Symmetry C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000697 Symmetry C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186000270 Symmetry C8 3.5um 4.6 mm ID x 30 mm 1/pkg WAT200620 Symmetry C8 3.5um 4.6 mm ID x 50 mm 1/pkg WAT066200 Symmetry C8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066204 Symmetry C8 3.5um 4.6 mm ID x 100 mm 1/pkg WAT200630 Symmetry C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000206 Symmetry C18 5um 2.1 mm ID x 50 mm 1/pkg 186002608 Symmetry C18 5um 2.1 mm ID x 100 mm 1/pkg WAT056975 Symmetry C18 5um 2.1 mm ID x 150 mm 1/pkg WAT054200 Symmetry C18 5um 3.0 mm ID x 150 mm 1/pkg 186000690 Symmetry C18 5um 3.0 mm ID x 250 mm 1/pkg WAT046980 Symmetry C18 5um 3.9 mm ID x 150 mm 1/pkg 186000207 Symmetry C18 5um 4.6 mm ID x 50 mm 1/pkg 186002616 Symmetry C18 5um 4.6 mm ID x 100 mm 1/pkg WAT045905 Symmetry C18 5um 4.6 mm ID x 150 mm 1/pkg WAT054275 Symmetry C18 5um 4.6 mm ID x 250 mm 1/pkg 186000212 Symmetry C8 5um 2.1 mm ID x 50 mm 1/pkg 186002609 Symmetry C8 5um 2.1 mm ID x 100 mm 1/pkg WAT056955 Symmetry C8 5um 2.1 mm ID x 150 mm 1/pkg WAT054230 Symmetry C8 5um 3.0 mm ID x 150 mm 1/pkg 186000691 Symmetry C8 5um 3.0 mm ID x 250 mm 1/pkg WAT046970 Symmetry C8 5um 3.9 mm ID x 150 mm 1/pkg 186000213 Symmetry C8 5um 4.6 mm ID x 50 mm 1/pkg 186002617 Symmetry C8 5um 4.6 mm ID x 100 mm 1/pkg WAT045995 Symmetry C8 5um 4.6 mm ID x 150 mm 1/pkg WAT054270 Symmetry C8 5um 4.6 mm ID x 250 mm 1/pkg Waters Symmetry Cartridge Column 186000269 Symmetry C18 3.5um 2.1 mm ID x 20 mm 1/pkg 186000152 Symmetry C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000151 Symmetry C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000150 Symmetry C18 3.5um 2.1 mm ID x 150 mm 1/pkg WAT066260 Symmetry C18 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066265 Symmetry C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000268 Symmetry C8 3.5um 2.1 mm ID x 20 mm 1/pkg 186000149 Symmetry C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000153 Symmetry C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000148 Symmetry C8 3.5um 2.1 mm ID x 150 mm 1/pkg WAT066210 Symmetry C8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066215 Symmetry C8 3.5um 4.6 mm ID x 100 mm 1/pkg WAT054220 Symmetry C18 5um 3.9 mm ID x 50 mm 1/pkg WAT054205 Symmetry C18 5um 3.9 mm ID x 150 mm 1/pkg WAT054210 Symmetry C18 5um 4.6 mm ID x 150 mm 1/pkg WAT054215 Symmetry C18 5um 4.6mm ID x 250 mm 1/pkg WAT054240 Symmetry C8 5um 3.9 mm ID x 50 mm 1/pkg WAT054235 Symmetry C8 5um 3.9 mm ID x 150 mm 1/pkg WAT054255 Symmetry C8 5um 4.6 mm ID x 150 mm 1/pkg WAT054245 Symmetry C8 5um 4.6mm ID x 250 mm 1/pkg 700000117 Endfittings 2.1mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry IS Column 186002066 Symmetry C18 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002067 Symmetry C8 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002070 Symmetry C18 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002071 Symmetry C8 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002074 Symmetry C18 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002075 Symmetry C8 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002078 Symmetry C18 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002079 Symmetry C8 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002082 Symmetry C18 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002083 Symmetry C8 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002086 Symmetry C18 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002087 Symmetry C8 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002090 Symmetry C18 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002091 Symmetry C8 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002094 Symmetry C18 IS Column 5um 4.6 mm ID x 20 mm 1/pkg 186002095 Symmetry C8 IS Column 5um 4.6 mm ID x 20 mm 1/pkg Waters Symmetry Sentry Guard Column WAT106127 Symmetry C18 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg WAT054225 Symmetry C18 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg WAT106128 Symmetry C8 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg WAT054250 Symmetry C8 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Symmetry Method Valdiation Kits WAT094240 Symmetry C18 3.5um 4.6 mm ID x 150 mm 3/pkg WAT094234 Symmetry C18 5um 2.1 mm ID x 150 mm 3/pkg WAT054446 Symmetry C18 5um 3.0 mm ID x 150 mm 3/pkg WAT047210 Symmetry C18 5um 3.9 mm ID x 150 mm 3/pkg WAT054448 Symmetry C18 5um 4.6 mm ID x 150 mm 3/pkg WAT054450 Symmetry C18 5um 4.6 mm ID x 250 mm 3/pkg WAT054452 Symmetry C18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT054454 Symmetry C18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT054456 Symmetry C18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT094237 Symmetry C8 3.5um 4.6 mm ID x 150 mm 3/pkg WAT094231 Symmetry C8 5um 2.1 mm ID x 150 mm 3/pkg WAT054434 Symmetry C8 5um 3.0 mm ID x 150 mm 3/pkg WAT046955 Symmetry C8 5um 3.9 mm ID x 150 mm 3/pkg WAT054435 Symmetry C8 5um 4.6 mm ID x 150 mm 3/pkg WAT054438 Symmetry C8 5um 4.6 mm ID x 250 mm 3/pkg WAT054440 Symmetry C8 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT054442 Symmetry C8 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT054444 Symmetry C8 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry Shield Column 186000175 Symmetry Shield RP18 3.5um 1.0 mm ID x 50 mm 1/pkg 186000176 Symmetry Shield RP18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000171 Symmetry Shield RP18 3.5um 2.1 mm ID x 30 mm 1/pkg 186000172 Symmetry Shield RP18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000173 Symmetry Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000174 Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm 1/pkg 186002614 Symmetry Shield RP18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000700 Symmetry Shield RP18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000699 Symmetry Shield RP18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000177 Symmetry Shield RP18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000178 Symmetry Shield RP18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000179 Symmetry Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000180 Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000175 Symmetry Shield RP8 3.5um 1.0 mm ID x 50 mm 1/pkg WAT106060 Symmetry Shield RP8 3.5um 1.0 mm ID x 100 mm 1/pkg WAT106048 Symmetry Shield RP8 3.5um 2.1 mm ID x 30 mm 1/pkg WAT094257 Symmetry Shield RP8 3.5um 2.1 mm ID x 50 mm 1/pkg WAT058969 Symmetry Shield RP8 3.5um 2.1 mm ID x 100 mm 1/pkg WAT106008 Symmetry Shield RP8 3.5um 2.1 mm ID x 150 mm 1/pkg 186002615 Symmetry Shield RP8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000703 Symmetry Shield RP8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000702 Symmetry Shield RP8 3.5um 3.0 mm ID x 150 mm 1/pkg WAT094260 Symmetry Shield RP8 3.5um 4.6 mm ID x 50 mm 1/pkg WAT094263 Symmetry Shield RP8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT094266 Symmetry Shield RP8 3.5um 4.6 mm ID x 100 mm 1/pkg WAT094269 Symmetry Shield RP8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000217 Symmetry Shield RP18 5um 2.1 mm ID x 50 mm 1/pkg 186000998 Symmetry Shield RP18 5um 2.1 mm ID x 100 mm 1/pkg 186000111 Symmetry Shield RP18 5um 2.1 mm ID x 150 mm 1/pkg 186000692 Symmetry Shield RP18 5um 3.0 mm ID x 150 mm 1/pkg 186000693 Symmetry Shield RP18 5um 3.0 mm ID x 250 mm 1/pkg 186000108 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 1/pkg 186000218 Symmetry Shield RP18 5um 4.6 mm ID x 50 mm 1/pkg 186002618 Symmetry Shield RP18 5um 4.6 mm ID x 100 mm 1/pkg 186000109 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186000112 Symmetry Shield RP18 5um 4.6 mm ID x 250 mm 1/pkg 186000223 Symmetry Shield RP8 5um 2.1 mm ID x 50 mm 1/pkg 186002611 Symmetry Shield RP8 5um 2.1 mm ID x 100 mm 1/pkg WAT094245 Symmetry Shield RP8 5um 2.1 mm ID x 150 mm 1/pkg WAT094243 Symmetry Shield RP8 5um 3.0 mm ID x 150 mm 1/pkg 186000694 Symmetry Shield RP8 5um 3.0 mm ID x 250 mm 1/pkg WAT200655 Symmetry Shield RP8 5um 3.9 mm ID x 150 mm 1/pkg 186000224 Symmetry Shield RP8 5um 4.6 mm ID x 50 mm 1/pkg 186002619 Symmetry Shield RP8 5um 4.6 mm ID x 100 mm 1/pkg WAT200662 Symmetry Shield RP8 5um 4.6 mm ID x 150 mm 1/pkg WAT200670 Symmetry Shield RP8 5um 4.6 mm ID x 250 mm 1/pkg Waters Symmetry Shield Cartridge Column 186000168 Symmetry Shield RP18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000167 Symmetry Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000166 Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000183 Symmetry Shield RP18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000170 Symmetry Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000147 Symmetry Shield RP8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000146 Symmetry Shield RP8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000145 Symmetry Shield RP8 3.5um 2.1 mm ID x 150 mm 1/pkg WAT094272 Symmetry Shield RP8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT094275 Symmetry Shield RP8 3.5um 4.6 mm ID x 100 mm 1/pkg 186000106 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 1/pkg 186000110 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186000113 Symmetry Shield RP18 5um 4.6mm ID x 250 mm 1/pkg WAT094248 Symmetry Shield RP8 5um 3.9 mm ID x 50 mm 1/pkg WAT200658 Symmetry Shield RP8 5um 3.9 mm ID x 150 mm 1/pkg WAT200665 Symmetry Shield RP8 5um 4.6 mm ID x 150 mm 1/pkg WAT200661 Symmetry Shield RP8 5um 4.6mm ID x 250 mm 1/pkg 700000117 Endfittings 2.1mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry Shield IS Column 186002068 Symmetry Shield RP18 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002072 Symmetry Shield RP8 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002076 Symmetry Shield RP18 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002080 Symmetry Shield RP8 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002084 Symmetry Shield RP18 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002088 Symmetry Shield RP8 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002092 Symmetry Shield RP18 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002096 Symmetry Shield RP8 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002069 Symmetry Shield RP18 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002073 Symmetry Shield RP8 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002077 Symmetry Shield RP18 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002081 Symmetry Shield RP8 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002085 Symmetry Shield RP18 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002089 Symmetry Shield RP8 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002093 Symmetry Shield RP18 IS Column 5um 4.6 mm ID x 20 mm 1/pkg 186002097 Symmetry Shield RP8 IS Column 5um 4.6 mm ID x 20 mm 1/pkg Waters Symmetry Shield Sentry Guard Column 186000169 Symmetry Shield RP18 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg 186000701 Symmetry Shield RP18 Sentry Guard 3.5um 3.9 mm ID x 20 mm 2/pkg 186000107 Symmetry Shield RP18 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg WAT106129 Symmetry Shield RP8 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg 186000704 Symmetry Shield RP8 Sentry Guard 3.5um 3.9 mm ID x 20 mm 2/pkg WAT200675 Symmetry Shield RP8 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Symmetry Shield Method Valdiation Kits 186000182 Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm 3/pkg 186000181 Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm 3/pkg 186000100 Symmetry Shield RP18 5um 2.1 mm ID x 150 mm 3/pkg 186000104 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 3/pkg 186000103 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 3/pkg 186000102 Symmetry Shield RP18 5um 4.6 mm ID x 250 mm 3/pkg 186000105 Symmetry Shield RP18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg 186000101 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg 186000114 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT094278 Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm 3/pkg WAT094254 Symmetry Shield RP18 5um 2.1 mm ID x 150 mm 3/pkg WAT094251 Symmetry Shield RP18 5um 3.0 mm ID x 150 mm 3/pkg WAT210594 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 3/pkg WAT210588 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 3/pkg WAT210591 Symmetry Shield RP18 5um 4.6 mm ID x 250 mm 3/pkg WAT210582 Symmetry Shield RP18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT210585 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT210579 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry300 Column 186000185 Symmetry300 C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000187 Symmetry300 C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000188 Symmetry300 C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000200 Symmetry300 C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000201 Symmetry300 C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000189 Symmetry300 C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000190 Symmetry300 C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000197 Symmetry300 C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000276 Symmetry300 C4 3.5um 1.0 mm ID x 100 mm 1/pkg 186000277 Symmetry300 C4 3.5um 2.1 mm ID x 50 mm 1/pkg 186000278 Symmetry300 C4 3.5um 2.1 mm ID x 100 mm 1/pkg 186000279 Symmetry300 C4 3.5um 2.1 mm ID x 150 mm 1/pkg 186000280 Symmetry300 C4 3.5um 4.6 mm ID x 50 mm 1/pkg 186000281 Symmetry300 C4 3.5um 4.6 mm ID x 75 mm 1/pkg 186000282 Symmetry300 C4 3.5um 4.6 mm ID x 100 mm 1/pkg 186000283 Symmetry300 C4 3.5um 4.6 mm ID x 150 mm 1/pkg WAT106172 Symmetry300 C18 5um 2.1 mm ID x 150 mm 1/pkg WAT106154 Symmetry300 C18 5um 3.9 mm ID x 150 mm 1/pkg WAT106209 Symmetry300 C18 5um 4.6 mm ID x 50 mm 1/pkg WAT106157 Symmetry300 C18 5um 4.6 mm ID x 150 mm 1/pkg WAT106151 Symmetry300 C18 5um 4.6 mm ID x 250 mm 1/pkg 186000285 Symmetry300 C4 5um 2.1 mm ID x 150 mm 1/pkg 186000286 Symmetry300 C4 5um 3.9 mm ID x 150 mm 1/pkg 186000287 Symmetry300 C4 5um 4.6 mm ID x 50 mm 1/pkg 186000288 Symmetry300 C4 5um 4.6 mm ID x 150 mm 1/pkg 186000289 Symmetry300 C4 5um 4.6 mm ID x 250 mm 1/pkg Waters Symmetry300 Cartridge Column 186000199 Symmetry300 C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000191 Symmetry300 C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000196 Symmetry300 C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000192 Symmetry300 C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000193 Symmetry300 C18 3.5um 4.6 mm ID x 100 mm 1/pkg WAT106169 Symmetry300 C18 5um 3.9 mm ID x 150 mm 1/pkg WAT106163 Symmetry300 C18 5um 4.6 mm ID x 150 mm 1/pkg WAT106160 Symmetry300 C18 5um 4.6 mm ID x 250 mm 1/pkg 700000117 Endfittings 2.1mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry300 Sentry Guard Column 186000198 Symmetry300 C18 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg WAT106166 Symmetry300 C18 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg 186000275 Symmetry300 C4 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg 186000284 Symmetry300 C4 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Symmetry300 Method Valdiation Kits 186000194 Symmetry300 C18 3.5um 2.1 mm ID x 150 mm 3/pkg 186000195 Symmetry300 C18 3.5um 4.6 mm ID x 150 mm 3/pkg WAT106163 Symmetry300 C18 5um 2.1 mm ID x 150 mm 3/pkg WAT106187 Symmetry300 C18 5um 3.9 mm ID x 150 mm 3/pkg WAT106190 Symmetry300 C18 5um 4.6 mm ID x 150 mm 3/pkg WAT106184 Symmetry300 C18 5um 4.6 mm ID x 250 mm 3/pkg WAT106181 Symmetry300 C18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT106175 Symmetry300 C18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT106178 Symmetry300 C18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg 186000290 Symmetry300 C4 3.5um 2.1 mm ID x 150 mm 3/pkg 186000291 Symmetry300 C4 3.5um 4.6 mm ID x 150 mm 3/pkg 186000292 Symmetry300 C4 5um 2.1 mm ID x 150 mm 3/pkg 186000293 Symmetry300 C4 5um 3.9 mm ID x 150 mm 3/pkg 186000294 Symmetry300 C4 5um 4.6 mm ID x 150 mm 3/pkg 186000295 Symmetry300 C4 5um 4.6 mm ID x 250 mm 3/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Symmetry Capillaries 186002188 Symmetry C18 3.5um 75 um ID x 50 mm 1/pkg 186002189 Symmetry C18 3.5um 75 um ID x 100 mm 1/pkg 186002190 Symmetry C18 3.5um 75 um ID x 150 mm 1/pkg 186002191 Symmetry300 C18 3.5um 75 um ID x 50 mm 1/pkg 186002192 Symmetry300 C18 3.5um 75 um ID x 100 mm 1/pkg 186002193 Symmetry300 C18 3.5um 75 um ID x 150 mm 1/pkg 186002201 Symmetry C18 3.5um 100 um ID x 50 mm 1/pkg 186002202 Symmetry C18 3.5um 100 um ID x 100 mm 1/pkg 186002203 Symmetry C18 3.5um 100 um ID x 150 mm 1/pkg 186002204 Symmetry300 C18 3.5um 100 um ID x 50 mm 1/pkg 186002205 Symmetry300 C18 3.5um 100 um ID x 100 mm 1/pkg 186002206 Symmetry300 C18 3.5um 100 um ID x 150 mm 1/pkg 186002459 Symmetry C18 3.5um 150 um ID x 50 mm 1/pkg 186002460 Symmetry C18 3.5um 150 um ID x 100 mm 1/pkg 186002461 Symmetry C18 3.5um 150 um ID x 150 mm 1/pkg 186002462 Symmetry300 C18 3.5um 150 um ID x 50 mm 1/pkg 186002463 Symmetry300 C18 3.5um 150 um ID x 100 mm 1/pkg 186002464 Symmetry300 C18 3.5um 150 um ID x 150 mm 1/pkg 186002581 Symmetry C18 3.5um 300 um ID x 50 mm 1/pkg 186002582 Symmetry C18 3.5um 300 um ID x 100 mm 1/pkg 186002583 Symmetry C18 3.5um 300 um ID x 150 mm 1/pkg 186002584 Symmetry C18 5um 300 um ID x 50 mm 1/pkg 186002585 Symmetry C18 5um 300 um ID x 100 mm 1/pkg 186002586 Symmetry C18 5um 300 um ID x 150 mm 1/pkg 186002587 Symmetry300 C18 3.5um 300 um ID x 50 mm 1/pkg 186002588 Symmetry300 C18 3.5um 300 um ID x 100 mm 1/pkg 186002589 Symmetry300 C18 3.5um 300 um ID x 150 mm 1/pkg 186002590 Symmetry300 C18 5um 300 um ID x 50 mm 1/pkg 186002591 Symmetry300 C18 5um 300 uµm ID x 100 mm 1/pkg 186002592 Symmetry300 C18 5um 300 um ID x 150 mm 1/pkg 예일테크 2008.05.08
WatersSymmetry®
◈ Product Information
재현성은 Symmetry® 컬럼에서 제1의 우선 순위입니다. 이 컬럼은 고 순도 원료로 제작되고 엄격한 제어를 받는 제조 과정 및 컬럼 패킹 절차로 최고의 재현성을 자랑하는 HPLC 컬럼입니다. Symmetry 카트리지 및 가드 컬럼 하드웨어도 공급됩니다.
컬럼 선택 목적 Symmetry C18 및 C8 컬럼 재현성 SymmetryShield RP18 및 RP8 컬럼 우수한 피크 모양 Symmetry300 C18 및 C4 컬럼 펩타이드 및 단백질의 높은 회수율
► Symmetry 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Symmetry® C18 3.5, 5 um Spherical 100A 19% Yes C8 3.5, 5 um Spherical 100A 12% Yes SymmetryPrep™ C18 7 um Spherical 100A 19% Yes C8 7 um Spherical 100A 12% Yes SymmetryShield™ RP18 3.5, 5, 7 um Spherical 100A 17% Yes RP8 3.5, 5, 7 um Spherical 100A 15% Yes Symmetry300™ C18 3.5, 5 um Spherical 300A 8.50% Yes C4 3.5, 5 um Spherical 300A 2.80% Yes
► 일반 HPLC 컬럼 문제들에 대한 솔루션
Problem Impact Solution and Benefit Column-to-column and batch-to-batch reproducibility is not consistent • Increased labor costs due to individual column QC testing
• Revalidate/redevelop method with each new batch of columns • Symmetry® brand of HPLC columns have the tightest specifications in the market to provide the most consistent results
• Symmetry columns achieve outstanding year-to-year reproducibility to give long life to established analytical methods Severe or excessive peak tailing • Increased number of experiments to optimize analytical method • SymmetryShield™ columns with embedded polar technology provide less peak tailing for faster and easier method development Column selectivity not resolving critical peaks • Increased number of experiments to optimize analytical method • SymmetryShield columns are the perfect complement to Symmetry columns, providing different selectivity and enabling column selection to maximize resolution Difficulty resolving individual compounds in complex peptide or protein samples • Increased cost and time to isolate • Symmetry300™ columns demonstrate the highest peak capacity of all leading brands
• Excellent reproducibility for separating large numbers of peptides or proteins Scaling-up analytical method to preparative scale requires too many adjustments to achieve good isolation and purification • Higher costs due to method development time and labor
• Higher cost of equipment, samples and prep columns • SymmetryPrep™ columns save development time with direct scale-up while maintaining resolution
► Symmetry C18 및 C8-재현성
Symmetry® 컬럼은 재현성 있는 크로마토그래피 결과들을 제공합니다.
좁은 컬럼 사양으로도 재현 가능한 결과를 얻을 수 있습니다. Symmetry 컬럼의 표면 coverage 요건들은 업계에서 가장 엄격한 사양들로 그 결과, 분리능에서 피크 전이가 최소화되고 batch-to-batch 및 컬럼별로 재현성이 증가합니다.
우수한 연도별 재현성
► Symmetry Shield RP18 및 RP8-우수한 피크 형태
SymmetryShield™ 컬럼은 글자 그대로 강염기성 분석 물질로부터 실리카의 잔류 실라놀(silanol)을 '보호(shield)'하는 Waters의 특허 받은 embedded polar 그룹 기술을 바탕으로 한 역상 컬럼입니다.
Shield 기술
피크 형태 개선 및 고유한 선택성
► Symmetry300 C18 및 C4-높은 펩타이드 및 단백질 회수율
Symmetry300™ 컬럼은 pore가 넓은 역상 컬럼으로 Symmetry® 컬럼 플랫폼을 기반으로 하고 그 표준은 민감하고 엄격하며 견고한 HPLC 분석을 위해 제약산업을 바탕으로 삼고 있습니다. 이러한 컬럼의 성격은 다음과 같습니다.
• 중성 및 강염기성 펩타이드만이 아니라 소수성 및 친수성 펩타이드를 동시에 분리할 때 우수한 성능을 보입니다.
• 높고 낮은 mass load 조건에서 성능이 개선됩니다.
• 밸리데이션, 컴플라이언스에 최상의 솔루션입니다.
Symmetry300 C4 컬럼은 20여종 이상의 HPLC 컬럼들과 비교할 때 최고 평균 피크 용량을 보입니다. 예시에서 보는 바와 같이, 복잡한 단백질 분리를 Symmetry300 C4 컬럼은 경쟁 제품인 300Å 컬럼과 비교하여 더 나은 피크 형태와 함께 더 나은 분리를 제공합니다.
단백질: Symmetry300 C4 과 경쟁 제품 비교
► Symmetry 카트리지 및 가드 컬럼 하드웨어
Waters 카트리지 컬럼
Waters 카트리지 시스템은 재사용할 수 있는 endfitting이 필요한데 처음 Waters HPLC 카트리지를 구입할 때 주문합니다. Waters 표준 커넥터를 사용하여 이러한 카트리지 컬럼을 HPLC에 연결합니다.
카트리지 endfitting
2.1 x 50mm, 2.1 x 100mm, 2.1 x 150mm, 2.1 x 250mm, 제품번호 700000117
3.0 x 50mm, 3.0 x 100mm, 3.0 x 150mm, 3.0 x 250mm, 제품번호 WAT037525
3.9 x 50mm, 3.9 x 100mm, 3.9 x 150mm, 3.9 x 250mm, 제품번호 WAT037525
4.6 x 50mm, 4.6 x 100mm, 4.6 x 150mm, 4.6 x 250mm, 제품번호 WAT037525
Waters 센트리 가드(Sentry Guard) 컬럼 및 일반 가드 홀더
Waters는 모든 Waters 분석 컬럼과 동일한 고성능 패킹 물질들을 포함하는 Sentry™ Guard 라인 컬럼을 제공합니다.
Biological fluid cleanup 및 온도 제어를 위해 증가된 capacity가 필요한 고객들을 위해 개발된 Sentry Guard 컬럼은 다음 두 가지 홀더 디자인으로 제공됩니다.
• 재사용이 가능한 endfitting을 포함하며 Waters 스틸 카트리지의 통합된 일부로 사용 시
• HPLC 컬럼과 사용 시
둘 다 도구 없이 설치됩니다.
통합형 Sentry Guard 홀더는 카트리지 endfitting과 함께 제공(위 참조)
3.0 x 20mm, 3.9 x 20mm, 제품번호 WAT046905
일반 가드 홀더(모든 컬럼에서 사용)
2.1 x 10mm, 제품번호 WAT097958
2.1 x 20mm, 제품번호 186000262
3.0 x 20mm, 제품번호 WAT046910
3.9 x 20mm, 제품번호 WAT046910
4.6 x 20mm, 제품번호 WAT046910
◈ Ordering Information Product Number Description Package Waters Symmetry Column WAT106056 Symmetry C18 3.5um 1.0 mm ID x 50 mm 1/pkg WAT248059 Symmetry C18 3.5um 1.0 mm ID x 100 mm 1/pkg WAT058973 Symmetry C18 3.5um 2.1 mm ID x 30 mm 1/pkg WAT200650 Symmetry C18 3.5um 2.1 mm ID x 50 mm 1/pkg WAT058965 Symmetry C18 3.5um 2.1 mm ID x 100 mm 1/pkg WAT106005 Symmetry C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186002612 Symmetry C18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000696 Symmetry C18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000695 Symmetry C18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000271 Symmetry C18 3.5um 4.6 mm ID x 30 mm 1/pkg WAT200625 Symmetry C18 3.5um 4.6 mm ID x 50 mm 1/pkg WAT066224 Symmetry C18 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066220 Symmetry C18 3.5um 4.6 mm ID x 100 mm 1/pkg WAT200632 Symmetry C18 3.5um 4.6 mm ID x 150 mm 1/pkg WAT106052 Symmetry C8 3.5um 1.0 mm ID x 50 mm 1/pkg WAT248072 Symmetry C8 3.5um 1.0 mm ID x 100 mm 1/pkg WAT058977 Symmetry C8 3.5um 2.1 mm ID x 30 mm 1/pkg WAT200624 Symmetry C8 3.5um 2.1 mm ID x 50 mm 1/pkg WAT058961 Symmetry C8 3.5um 2.1 mm ID x 100 mm 1/pkg WAT106011 Symmetry C8 3.5um 2.1 mm ID x 150 mm 1/pkg 186002613 Symmetry C8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000698 Symmetry C8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000697 Symmetry C8 3.5um 3.0 mm ID x 150 mm 1/pkg 186000270 Symmetry C8 3.5um 4.6 mm ID x 30 mm 1/pkg WAT200620 Symmetry C8 3.5um 4.6 mm ID x 50 mm 1/pkg WAT066200 Symmetry C8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066204 Symmetry C8 3.5um 4.6 mm ID x 100 mm 1/pkg WAT200630 Symmetry C8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000206 Symmetry C18 5um 2.1 mm ID x 50 mm 1/pkg 186002608 Symmetry C18 5um 2.1 mm ID x 100 mm 1/pkg WAT056975 Symmetry C18 5um 2.1 mm ID x 150 mm 1/pkg WAT054200 Symmetry C18 5um 3.0 mm ID x 150 mm 1/pkg 186000690 Symmetry C18 5um 3.0 mm ID x 250 mm 1/pkg WAT046980 Symmetry C18 5um 3.9 mm ID x 150 mm 1/pkg 186000207 Symmetry C18 5um 4.6 mm ID x 50 mm 1/pkg 186002616 Symmetry C18 5um 4.6 mm ID x 100 mm 1/pkg WAT045905 Symmetry C18 5um 4.6 mm ID x 150 mm 1/pkg WAT054275 Symmetry C18 5um 4.6 mm ID x 250 mm 1/pkg 186000212 Symmetry C8 5um 2.1 mm ID x 50 mm 1/pkg 186002609 Symmetry C8 5um 2.1 mm ID x 100 mm 1/pkg WAT056955 Symmetry C8 5um 2.1 mm ID x 150 mm 1/pkg WAT054230 Symmetry C8 5um 3.0 mm ID x 150 mm 1/pkg 186000691 Symmetry C8 5um 3.0 mm ID x 250 mm 1/pkg WAT046970 Symmetry C8 5um 3.9 mm ID x 150 mm 1/pkg 186000213 Symmetry C8 5um 4.6 mm ID x 50 mm 1/pkg 186002617 Symmetry C8 5um 4.6 mm ID x 100 mm 1/pkg WAT045995 Symmetry C8 5um 4.6 mm ID x 150 mm 1/pkg WAT054270 Symmetry C8 5um 4.6 mm ID x 250 mm 1/pkg Waters Symmetry Cartridge Column 186000269 Symmetry C18 3.5um 2.1 mm ID x 20 mm 1/pkg 186000152 Symmetry C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000151 Symmetry C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000150 Symmetry C18 3.5um 2.1 mm ID x 150 mm 1/pkg WAT066260 Symmetry C18 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066265 Symmetry C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000268 Symmetry C8 3.5um 2.1 mm ID x 20 mm 1/pkg 186000149 Symmetry C8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000153 Symmetry C8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000148 Symmetry C8 3.5um 2.1 mm ID x 150 mm 1/pkg WAT066210 Symmetry C8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT066215 Symmetry C8 3.5um 4.6 mm ID x 100 mm 1/pkg WAT054220 Symmetry C18 5um 3.9 mm ID x 50 mm 1/pkg WAT054205 Symmetry C18 5um 3.9 mm ID x 150 mm 1/pkg WAT054210 Symmetry C18 5um 4.6 mm ID x 150 mm 1/pkg WAT054215 Symmetry C18 5um 4.6mm ID x 250 mm 1/pkg WAT054240 Symmetry C8 5um 3.9 mm ID x 50 mm 1/pkg WAT054235 Symmetry C8 5um 3.9 mm ID x 150 mm 1/pkg WAT054255 Symmetry C8 5um 4.6 mm ID x 150 mm 1/pkg WAT054245 Symmetry C8 5um 4.6mm ID x 250 mm 1/pkg 700000117 Endfittings 2.1mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry IS Column 186002066 Symmetry C18 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002067 Symmetry C8 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002070 Symmetry C18 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002071 Symmetry C8 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002074 Symmetry C18 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002075 Symmetry C8 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002078 Symmetry C18 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002079 Symmetry C8 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002082 Symmetry C18 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002083 Symmetry C8 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002086 Symmetry C18 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002087 Symmetry C8 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002090 Symmetry C18 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002091 Symmetry C8 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002094 Symmetry C18 IS Column 5um 4.6 mm ID x 20 mm 1/pkg 186002095 Symmetry C8 IS Column 5um 4.6 mm ID x 20 mm 1/pkg Waters Symmetry Sentry Guard Column WAT106127 Symmetry C18 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg WAT054225 Symmetry C18 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg WAT106128 Symmetry C8 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg WAT054250 Symmetry C8 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Symmetry Method Valdiation Kits WAT094240 Symmetry C18 3.5um 4.6 mm ID x 150 mm 3/pkg WAT094234 Symmetry C18 5um 2.1 mm ID x 150 mm 3/pkg WAT054446 Symmetry C18 5um 3.0 mm ID x 150 mm 3/pkg WAT047210 Symmetry C18 5um 3.9 mm ID x 150 mm 3/pkg WAT054448 Symmetry C18 5um 4.6 mm ID x 150 mm 3/pkg WAT054450 Symmetry C18 5um 4.6 mm ID x 250 mm 3/pkg WAT054452 Symmetry C18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT054454 Symmetry C18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT054456 Symmetry C18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT094237 Symmetry C8 3.5um 4.6 mm ID x 150 mm 3/pkg WAT094231 Symmetry C8 5um 2.1 mm ID x 150 mm 3/pkg WAT054434 Symmetry C8 5um 3.0 mm ID x 150 mm 3/pkg WAT046955 Symmetry C8 5um 3.9 mm ID x 150 mm 3/pkg WAT054435 Symmetry C8 5um 4.6 mm ID x 150 mm 3/pkg WAT054438 Symmetry C8 5um 4.6 mm ID x 250 mm 3/pkg WAT054440 Symmetry C8 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT054442 Symmetry C8 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT054444 Symmetry C8 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry Shield Column 186000175 Symmetry Shield RP18 3.5um 1.0 mm ID x 50 mm 1/pkg 186000176 Symmetry Shield RP18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000171 Symmetry Shield RP18 3.5um 2.1 mm ID x 30 mm 1/pkg 186000172 Symmetry Shield RP18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000173 Symmetry Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000174 Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm 1/pkg 186002614 Symmetry Shield RP18 3.5um 3.0 mm ID x 50 mm 1/pkg 186000700 Symmetry Shield RP18 3.5um 3.0 mm ID x 100 mm 1/pkg 186000699 Symmetry Shield RP18 3.5um 3.0 mm ID x 150 mm 1/pkg 186000177 Symmetry Shield RP18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000178 Symmetry Shield RP18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000179 Symmetry Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000180 Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000175 Symmetry Shield RP8 3.5um 1.0 mm ID x 50 mm 1/pkg WAT106060 Symmetry Shield RP8 3.5um 1.0 mm ID x 100 mm 1/pkg WAT106048 Symmetry Shield RP8 3.5um 2.1 mm ID x 30 mm 1/pkg WAT094257 Symmetry Shield RP8 3.5um 2.1 mm ID x 50 mm 1/pkg WAT058969 Symmetry Shield RP8 3.5um 2.1 mm ID x 100 mm 1/pkg WAT106008 Symmetry Shield RP8 3.5um 2.1 mm ID x 150 mm 1/pkg 186002615 Symmetry Shield RP8 3.5um 3.0 mm ID x 50 mm 1/pkg 186000703 Symmetry Shield RP8 3.5um 3.0 mm ID x 100 mm 1/pkg 186000702 Symmetry Shield RP8 3.5um 3.0 mm ID x 150 mm 1/pkg WAT094260 Symmetry Shield RP8 3.5um 4.6 mm ID x 50 mm 1/pkg WAT094263 Symmetry Shield RP8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT094266 Symmetry Shield RP8 3.5um 4.6 mm ID x 100 mm 1/pkg WAT094269 Symmetry Shield RP8 3.5um 4.6 mm ID x 150 mm 1/pkg 186000217 Symmetry Shield RP18 5um 2.1 mm ID x 50 mm 1/pkg 186000998 Symmetry Shield RP18 5um 2.1 mm ID x 100 mm 1/pkg 186000111 Symmetry Shield RP18 5um 2.1 mm ID x 150 mm 1/pkg 186000692 Symmetry Shield RP18 5um 3.0 mm ID x 150 mm 1/pkg 186000693 Symmetry Shield RP18 5um 3.0 mm ID x 250 mm 1/pkg 186000108 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 1/pkg 186000218 Symmetry Shield RP18 5um 4.6 mm ID x 50 mm 1/pkg 186002618 Symmetry Shield RP18 5um 4.6 mm ID x 100 mm 1/pkg 186000109 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186000112 Symmetry Shield RP18 5um 4.6 mm ID x 250 mm 1/pkg 186000223 Symmetry Shield RP8 5um 2.1 mm ID x 50 mm 1/pkg 186002611 Symmetry Shield RP8 5um 2.1 mm ID x 100 mm 1/pkg WAT094245 Symmetry Shield RP8 5um 2.1 mm ID x 150 mm 1/pkg WAT094243 Symmetry Shield RP8 5um 3.0 mm ID x 150 mm 1/pkg 186000694 Symmetry Shield RP8 5um 3.0 mm ID x 250 mm 1/pkg WAT200655 Symmetry Shield RP8 5um 3.9 mm ID x 150 mm 1/pkg 186000224 Symmetry Shield RP8 5um 4.6 mm ID x 50 mm 1/pkg 186002619 Symmetry Shield RP8 5um 4.6 mm ID x 100 mm 1/pkg WAT200662 Symmetry Shield RP8 5um 4.6 mm ID x 150 mm 1/pkg WAT200670 Symmetry Shield RP8 5um 4.6 mm ID x 250 mm 1/pkg Waters Symmetry Shield Cartridge Column 186000168 Symmetry Shield RP18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000167 Symmetry Shield RP18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000166 Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000183 Symmetry Shield RP18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000170 Symmetry Shield RP18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000147 Symmetry Shield RP8 3.5um 2.1 mm ID x 50 mm 1/pkg 186000146 Symmetry Shield RP8 3.5um 2.1 mm ID x 100 mm 1/pkg 186000145 Symmetry Shield RP8 3.5um 2.1 mm ID x 150 mm 1/pkg WAT094272 Symmetry Shield RP8 3.5um 4.6 mm ID x 75 mm 1/pkg WAT094275 Symmetry Shield RP8 3.5um 4.6 mm ID x 100 mm 1/pkg 186000106 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 1/pkg 186000110 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 1/pkg 186000113 Symmetry Shield RP18 5um 4.6mm ID x 250 mm 1/pkg WAT094248 Symmetry Shield RP8 5um 3.9 mm ID x 50 mm 1/pkg WAT200658 Symmetry Shield RP8 5um 3.9 mm ID x 150 mm 1/pkg WAT200665 Symmetry Shield RP8 5um 4.6 mm ID x 150 mm 1/pkg WAT200661 Symmetry Shield RP8 5um 4.6mm ID x 250 mm 1/pkg 700000117 Endfittings 2.1mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry Shield IS Column 186002068 Symmetry Shield RP18 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002072 Symmetry Shield RP8 IS Column 3.5um 2.1 mm ID x 20 mm 1/pkg 186002076 Symmetry Shield RP18 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002080 Symmetry Shield RP8 IS Column 5um 2.1 mm ID x 20 mm 1/pkg 186002084 Symmetry Shield RP18 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002088 Symmetry Shield RP8 IS Column 3.5um 3.0 mm ID x 20 mm 1/pkg 186002092 Symmetry Shield RP18 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002096 Symmetry Shield RP8 IS Column 5um 3.0 mm ID x 20 mm 1/pkg 186002069 Symmetry Shield RP18 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002073 Symmetry Shield RP8 IS Column 3.5um 3.9 mm ID x 20 mm 1/pkg 186002077 Symmetry Shield RP18 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002081 Symmetry Shield RP8 IS Column 5um 3.9 mm ID x 20 mm 1/pkg 186002085 Symmetry Shield RP18 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002089 Symmetry Shield RP8 IS Column 3.5um 4.6 mm ID x 20 mm 1/pkg 186002093 Symmetry Shield RP18 IS Column 5um 4.6 mm ID x 20 mm 1/pkg 186002097 Symmetry Shield RP8 IS Column 5um 4.6 mm ID x 20 mm 1/pkg Waters Symmetry Shield Sentry Guard Column 186000169 Symmetry Shield RP18 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg 186000701 Symmetry Shield RP18 Sentry Guard 3.5um 3.9 mm ID x 20 mm 2/pkg 186000107 Symmetry Shield RP18 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg WAT106129 Symmetry Shield RP8 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg 186000704 Symmetry Shield RP8 Sentry Guard 3.5um 3.9 mm ID x 20 mm 2/pkg WAT200675 Symmetry Shield RP8 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Symmetry Shield Method Valdiation Kits 186000182 Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm 3/pkg 186000181 Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm 3/pkg 186000100 Symmetry Shield RP18 5um 2.1 mm ID x 150 mm 3/pkg 186000104 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 3/pkg 186000103 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 3/pkg 186000102 Symmetry Shield RP18 5um 4.6 mm ID x 250 mm 3/pkg 186000105 Symmetry Shield RP18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg 186000101 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg 186000114 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT094278 Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm 3/pkg WAT094254 Symmetry Shield RP18 5um 2.1 mm ID x 150 mm 3/pkg WAT094251 Symmetry Shield RP18 5um 3.0 mm ID x 150 mm 3/pkg WAT210594 Symmetry Shield RP18 5um 3.9 mm ID x 150 mm 3/pkg WAT210588 Symmetry Shield RP18 5um 4.6 mm ID x 150 mm 3/pkg WAT210591 Symmetry Shield RP18 5um 4.6 mm ID x 250 mm 3/pkg WAT210582 Symmetry Shield RP18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT210585 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT210579 Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry300 Column 186000185 Symmetry300 C18 3.5um 1.0 mm ID x 100 mm 1/pkg 186000187 Symmetry300 C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000188 Symmetry300 C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000200 Symmetry300 C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000201 Symmetry300 C18 3.5um 4.6 mm ID x 50 mm 1/pkg 186000189 Symmetry300 C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000190 Symmetry300 C18 3.5um 4.6 mm ID x 100 mm 1/pkg 186000197 Symmetry300 C18 3.5um 4.6 mm ID x 150 mm 1/pkg 186000276 Symmetry300 C4 3.5um 1.0 mm ID x 100 mm 1/pkg 186000277 Symmetry300 C4 3.5um 2.1 mm ID x 50 mm 1/pkg 186000278 Symmetry300 C4 3.5um 2.1 mm ID x 100 mm 1/pkg 186000279 Symmetry300 C4 3.5um 2.1 mm ID x 150 mm 1/pkg 186000280 Symmetry300 C4 3.5um 4.6 mm ID x 50 mm 1/pkg 186000281 Symmetry300 C4 3.5um 4.6 mm ID x 75 mm 1/pkg 186000282 Symmetry300 C4 3.5um 4.6 mm ID x 100 mm 1/pkg 186000283 Symmetry300 C4 3.5um 4.6 mm ID x 150 mm 1/pkg WAT106172 Symmetry300 C18 5um 2.1 mm ID x 150 mm 1/pkg WAT106154 Symmetry300 C18 5um 3.9 mm ID x 150 mm 1/pkg WAT106209 Symmetry300 C18 5um 4.6 mm ID x 50 mm 1/pkg WAT106157 Symmetry300 C18 5um 4.6 mm ID x 150 mm 1/pkg WAT106151 Symmetry300 C18 5um 4.6 mm ID x 250 mm 1/pkg 186000285 Symmetry300 C4 5um 2.1 mm ID x 150 mm 1/pkg 186000286 Symmetry300 C4 5um 3.9 mm ID x 150 mm 1/pkg 186000287 Symmetry300 C4 5um 4.6 mm ID x 50 mm 1/pkg 186000288 Symmetry300 C4 5um 4.6 mm ID x 150 mm 1/pkg 186000289 Symmetry300 C4 5um 4.6 mm ID x 250 mm 1/pkg Waters Symmetry300 Cartridge Column 186000199 Symmetry300 C18 3.5um 2.1 mm ID x 50 mm 1/pkg 186000191 Symmetry300 C18 3.5um 2.1 mm ID x 100 mm 1/pkg 186000196 Symmetry300 C18 3.5um 2.1 mm ID x 150 mm 1/pkg 186000192 Symmetry300 C18 3.5um 4.6 mm ID x 75 mm 1/pkg 186000193 Symmetry300 C18 3.5um 4.6 mm ID x 100 mm 1/pkg WAT106169 Symmetry300 C18 5um 3.9 mm ID x 150 mm 1/pkg WAT106163 Symmetry300 C18 5um 4.6 mm ID x 150 mm 1/pkg WAT106160 Symmetry300 C18 5um 4.6 mm ID x 250 mm 1/pkg 700000117 Endfittings 2.1mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Symmetry300 Sentry Guard Column 186000198 Symmetry300 C18 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg WAT106166 Symmetry300 C18 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg 186000275 Symmetry300 C4 Sentry Guard 3.5um 2.1 mm ID x 10 mm 2/pkg 186000284 Symmetry300 C4 Sentry Guard 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Symmetry300 Method Valdiation Kits 186000194 Symmetry300 C18 3.5um 2.1 mm ID x 150 mm 3/pkg 186000195 Symmetry300 C18 3.5um 4.6 mm ID x 150 mm 3/pkg WAT106163 Symmetry300 C18 5um 2.1 mm ID x 150 mm 3/pkg WAT106187 Symmetry300 C18 5um 3.9 mm ID x 150 mm 3/pkg WAT106190 Symmetry300 C18 5um 4.6 mm ID x 150 mm 3/pkg WAT106184 Symmetry300 C18 5um 4.6 mm ID x 250 mm 3/pkg WAT106181 Symmetry300 C18 Cartridge 5um 3.9 mm ID x 150 mm 3/pkg WAT106175 Symmetry300 C18 Cartridge 5um 4.6 mm ID x 150 mm 3/pkg WAT106178 Symmetry300 C18 Cartridge 5um 4.6 mm ID x 250 mm 3/pkg 186000290 Symmetry300 C4 3.5um 2.1 mm ID x 150 mm 3/pkg 186000291 Symmetry300 C4 3.5um 4.6 mm ID x 150 mm 3/pkg 186000292 Symmetry300 C4 5um 2.1 mm ID x 150 mm 3/pkg 186000293 Symmetry300 C4 5um 3.9 mm ID x 150 mm 3/pkg 186000294 Symmetry300 C4 5um 4.6 mm ID x 150 mm 3/pkg 186000295 Symmetry300 C4 5um 4.6 mm ID x 250 mm 3/pkg WAT037525 Endfittings 3.0, 3.9, 4.6 mm ID
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Symmetry Capillaries 186002188 Symmetry C18 3.5um 75 um ID x 50 mm 1/pkg 186002189 Symmetry C18 3.5um 75 um ID x 100 mm 1/pkg 186002190 Symmetry C18 3.5um 75 um ID x 150 mm 1/pkg 186002191 Symmetry300 C18 3.5um 75 um ID x 50 mm 1/pkg 186002192 Symmetry300 C18 3.5um 75 um ID x 100 mm 1/pkg 186002193 Symmetry300 C18 3.5um 75 um ID x 150 mm 1/pkg 186002201 Symmetry C18 3.5um 100 um ID x 50 mm 1/pkg 186002202 Symmetry C18 3.5um 100 um ID x 100 mm 1/pkg 186002203 Symmetry C18 3.5um 100 um ID x 150 mm 1/pkg 186002204 Symmetry300 C18 3.5um 100 um ID x 50 mm 1/pkg 186002205 Symmetry300 C18 3.5um 100 um ID x 100 mm 1/pkg 186002206 Symmetry300 C18 3.5um 100 um ID x 150 mm 1/pkg 186002459 Symmetry C18 3.5um 150 um ID x 50 mm 1/pkg 186002460 Symmetry C18 3.5um 150 um ID x 100 mm 1/pkg 186002461 Symmetry C18 3.5um 150 um ID x 150 mm 1/pkg 186002462 Symmetry300 C18 3.5um 150 um ID x 50 mm 1/pkg 186002463 Symmetry300 C18 3.5um 150 um ID x 100 mm 1/pkg 186002464 Symmetry300 C18 3.5um 150 um ID x 150 mm 1/pkg 186002581 Symmetry C18 3.5um 300 um ID x 50 mm 1/pkg 186002582 Symmetry C18 3.5um 300 um ID x 100 mm 1/pkg 186002583 Symmetry C18 3.5um 300 um ID x 150 mm 1/pkg 186002584 Symmetry C18 5um 300 um ID x 50 mm 1/pkg 186002585 Symmetry C18 5um 300 um ID x 100 mm 1/pkg 186002586 Symmetry C18 5um 300 um ID x 150 mm 1/pkg 186002587 Symmetry300 C18 3.5um 300 um ID x 50 mm 1/pkg 186002588 Symmetry300 C18 3.5um 300 um ID x 100 mm 1/pkg 186002589 Symmetry300 C18 3.5um 300 um ID x 150 mm 1/pkg 186002590 Symmetry300 C18 5um 300 um ID x 50 mm 1/pkg 186002591 Symmetry300 C18 5um 300 uµm ID x 100 mm 1/pkg 186002592 Symmetry300 C18 5um 300 um ID x 150 mm 1/pkg 예일테크 2008.05.08
7
Spherisorb®
WatersSpherisorb®
◈ Product Information
Waters Spherisorb® columns are one of the most widely referenced HPLC columns in the scientific literature. There are over 2000 analytical abstracts published on Waters Spherisorb columns, providing a tremendous range of validated methods and applications to assist you in your method development process. These columns (or cartridge endfittings) are supplied with Parker-style tube/column endfittings.
One of the great advantages of choosing Waters Spherisorb columns is the range of choices available to you. They are produced in a wide range of sizes and bonded phases to meet your chromatographic needs. Silica is produced in 3, 5, and 10 micron particle sizes. In addition, the high quality bonded phases give many different and unique separation selectivities.
► Spherisorb® 컬럼특성
Product Description Particle
Shape Surface
Area(m2/g) Pore
Size(A) Pore
Volume(ml/g) Particle Size(um) Carbon
Load(%) Ligand Coverage
uMol/m2 End-
capped Waters Spherisorb® Phases Waters Spherisorb® ODS2(C18) Spherical 200 80 0.50 3, 5, 10 11.5 2.98 YES Waters Spherisorb® ODS1(C18) Spherical 200 80 0.50 3, 5, 10 6.2 1.49 NO Waters Spherisorb® ODSB(C18) Spherical 200 80 0.50 5 11.5 2.98 YES Waters Spherisorb® C8 Spherical 200 80 0.50 3, 5, 10 5.75 3.12 YES Waters Spherisorb® C6 Spherical 200 80 0.50 3, 5, 10 4.7 3.36 YES Waters Spherisorb® C1 Spherical 200 80 0.50 3, 5, 10 2.15 2.97 NO Waters Spherisorb® NH2(Amino) Spherical 200 80 0.50 3, 5, 10 1.9 2.64 NO Waters Spherisorb® Phenyl Spherical 200 80 0.50 3, 5, 10 2.5 1.72 NO Waters Spherisorb® CN(Nitrile) Spherical 200 80 0.50 3, 5, 10 3.1 3.29 NO Waters Spherisorb® OD/CN Spherical 200 80 0.50 5 5 1.15 YES Waters Spherisorb® W(Silica) Spherical 200 80 0.50 3, 5, 10 - - - Waters Spherisorb® Ion-Exchangers Waters Spherisorb® SCX Spherical 200 80 0.50 5, 10 4 - NO Waters Spherisorb® SAX Spherical 200 80 0.50 5, 10 4 - NO
◈ Ordering Information Product Number Description Package Spherisorb 10um Column PSS832513 Spherisorb (S10 ODS2 ) 10um 4.6 mm ID x 150 mm 1/pkg PSS832513 Spherisorb (S10 ODS2 ) 10um 4.6 mm ID x 200 mm 1/pkg PSS832515 Spherisorb (S10 ODS2 ) 10um 4.6 mm ID x 250 mm 1/pkg PSS830712 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 100 mm 1/pkg PSS830713 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 150 mm 1/pkg PSS830714 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 200 mm 1/pkg PSS830715 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 250 mm 1/pkg PSS832813 Spherisorb (S10 C8) 10um 4.6 mm ID x 150 mm 1/pkg PSS832815 Spherisorb (S10 C8) 10um 4.6 mm ID x 250 mm 1/pkg PSS833213 Spherisorb (S10 C6) 10um 4.6 mm ID x 150 mm 1/pkg PSS833215 Spherisorb (S10 C6) 10um 4.6 mm ID x 250 mm 1/pkg PSS833013 Spherisorb (S10 C1) 10um 4.6 mm ID x 150 mm 1/pkg PSS833015 Spherisorb (S10 C1) 10um 4.6 mm ID x 250 mm 1/pkg PSS833612 Spherisorb (S10 NH2) 10um 4.6 mm ID x 100 mm 1/pkg PSS833613 Spherisorb (S10 NH2) 10um 4.6 mm ID x 150 mm 1/pkg PSS833615 Spherisorb (S10 NH2) 10um 4.6 mm ID x 250 mm 1/pkg PSS833512 Spherisorb (S10 CN) 10um 4.6 mm ID x 100 mm 1/pkg PSS833513 Spherisorb (S10 CN) 10um 4.6 mm ID x 150 mm 1/pkg PSS833514 Spherisorb (S10 CN) 10um 4.6 mm ID x 200 mm 1/pkg PSS833515 Spherisorb (S10 CN) 10um 4.6 mm ID x 250 mm 1/pkg PSS830212 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 100 mm 1/pkg PSS830213 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 150 mm 1/pkg PSS830214 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 200 mm 1/pkg PSS830215 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 250 mm 1/pkg PSS833912 Spherisorb (S10 SAX) 10um 4.6 mm ID x 100 mm 1/pkg PSS833913 Spherisorb (S10 SAX) 10um 4.6 mm ID x 150 mm 1/pkg PSS833915 Spherisorb (S10 SAX) 10um 4.6 mm ID x 250 mm 1/pkg PSS837613 Spherisorb (S10 SCX) 10um 4.6 mm ID x 150 mm 1/pkg PSS837615 Spherisorb (S10 SCX) 10um 4.6 mm ID x 250 mm 1/pkg Spherisorb 5um Column PSS845543 Spherisorb (S5 ODS2 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845277 Spherisorb (S5 ODS2 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831911 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831912 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831913 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831915 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845541 Spherisorb (S5 ODS1 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845542 Spherisorb (S5 ODS1 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830611 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS830612 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830613 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830615 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845280 Spherisorb (S5 C8 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845281 Spherisorb (S5 C8 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831811 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831812 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831813 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831815 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845284 Spherisorb (S5 C6 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845285 Spherisorb (S5 C6 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831011 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831012 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831013 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831015 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845288 Spherisorb (S5 C1 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845289 Spherisorb (S5 C1 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS832611 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS832612 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS832613 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS832615 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845300 Spherisorb (S5 NH2 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845301 Spherisorb (S5 NH2 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831111 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831112 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831113 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831115 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845292 Spherisorb (S5 Phenyl ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845293 Spherisorb (S5 Phenyl ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830812 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830813 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830815 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845296 Spherisorb (S5 CN NP ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845297 Spherisorb (S5 CN NP ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830911 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 50 mm 1/pkg PSS830912 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830913 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830915 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 250 mm 1/pkg PSS830908 Spherisorb (S5 CN RP ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830909 Spherisorb (S5 CN RP ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845539 Spherisorb (S5 W Silica ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845540 Spherisorb (S5 W Silica ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830111 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 50 mm 1/pkg PSS830112 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830113 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830115 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845304 Spherisorb (S5 W SAX) 5um 4.0 mm ID x 125 mm 1/pkg PSS845305 Spherisorb (S5 W SAX ) 5um 4.0 mm ID x 250 mm 1/pkg PSS832711 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS832712 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS832713 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS832715 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845308 Spherisorb (S5 W SCX ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845309 Spherisorb (S5 W SCX ) 5um 4.0 mm ID x 250 mm 1/pkg PSS832511 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS832512 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS832513 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS832515 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS837812 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 100 mm 1/pkg PSS837813 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 150 mm 1/pkg PSS837815 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 250 mm 1/pkg Spherisorb 3um Column PSS832111 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 50 mm 1/pkg PSS839853 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 60 mm 1/pkg PSS832112 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 100 mm 1/pkg PSS832113 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 150 mm 1/pkg PSS833411 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 50 mm 1/pkg PSS833412 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 100 mm 1/pkg PSS833413 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 150 mm 1/pkg PSS832211 Spherisorb (S3 C8) 3um 4.6 mm ID x 50 mm 1/pkg PSS839852 Spherisorb (S3 C8) 3um 4.6 mm ID x 60 mm 1/pkg PSS832212 Spherisorb (S3 C8) 3um 4.6 mm ID x 100 mm 1/pkg PSS832213 Spherisorb (S3 C8) 3um 4.6 mm ID x 150 mm 1/pkg PSS833111 Spherisorb (S3 C6) 3um 4.6 mm ID x 50 mm 1/pkg PSS833112 Spherisorb (S3 C6) 3um 4.6 mm ID x 100 mm 1/pkg PSS833113 Spherisorb (S3 C6) 3um 4.6 mm ID x 150 mm 1/pkg PSS832911 Spherisorb (S3 C1) 3um 4.6 mm ID x 50 mm 1/pkg PSS832912 Spherisorb (S3 C1) 3um 4.6 mm ID x 100 mm 1/pkg PSS832913 Spherisorb (S3 C1) 3um 4.6 mm ID x 150 mm 1/pkg PSS832311 Spherisorb (S3 NH2) 3um 4.6 mm ID x 50 mm 1/pkg PSS832312 Spherisorb (S3 NH2) 3um 4.6 mm ID x 100 mm 1/pkg PSS832313 Spherisorb (S3 NH2) 3um 4.6 mm ID x 150 mm 1/pkg PSS833711 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 50 mm 1/pkg PSS833712 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 100 mm 1/pkg PSS833713 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 150 mm 1/pkg PSS832411 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 50 mm 1/pkg PSS832412 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 100 mm 1/pkg PSS832413 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 150 mm 1/pkg PSS832011 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 50 mm 1/pkg PSS832012 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 100 mm 1/pkg PSS832013 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 150 mm 1/pkg Spherisorb Cartridge 5um Column PSS839536 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839537 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839538 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839540 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839506 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839507 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839508 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839510 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839613 Spherisorb (S5 ODS B ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839615 Spherisorb (S5 ODS B ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839531 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839532 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839533 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839535 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839521 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839522 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839523 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839525 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839566 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839567 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839568 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839570 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839526 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839527 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839528 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839530 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839511 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839512 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839513 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839515 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839516 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839517 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839518 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839520 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839502 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839503 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839505 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839571 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839572 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839573 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839575 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839651 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839652 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839653 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839655 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839643 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839645 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 250 mm 1/pkg Spherisorb Cartridge 3um Column PSS830065 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 30 mm 1/pkg PSS839546 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 50 mm 1/pkg PSS839547 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 100 mm 1/pkg PSS839548 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 150 mm 1/pkg PSS839587 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 100 mm 1/pkg PSS839588 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 150 mm 1/pkg PSS839551 Spherisorb (S3 C8) 3um 4.6 mm ID x 50 mm 1/pkg PSS839552 Spherisorb (S3 C8) 3um 4.6 mm ID x 100 mm 1/pkg PSS839553 Spherisorb (S3 C8) 3um 4.6 mm ID x 150 mm 1/pkg PSS839581 Spherisorb (S3 C6) 3um 4.6 mm ID x 50 mm 1/pkg PSS839582 Spherisorb (S3 C6) 3um 4.6 mm ID x 100 mm 1/pkg PSS839583 Spherisorb (S3 C6) 3um 4.6 mm ID x 150 mm 1/pkg PSS839576 Spherisorb (S3 C1) 3um 4.6 mm ID x 50 mm 1/pkg PSS839577 Spherisorb (S3 C1) 3um 4.6 mm ID x 100 mm 1/pkg PSS839578 Spherisorb (S3 C1) 3um 4.6 mm ID x 150 mm 1/pkg PSS839556 Spherisorb (S3 NH2) 3um 4.6 mm ID x 50 mm 1/pkg PSS839557 Spherisorb (S3 NH2) 3um 4.6 mm ID x 100 mm 1/pkg PSS839558 Spherisorb (S3 NH2) 3um 4.6 mm ID x 150 mm 1/pkg PSS839591 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 50 mm 1/pkg PSS839592 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 100 mm 1/pkg PSS839593 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 150 mm 1/pkg PSS839561 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 50 mm 1/pkg PSS839562 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 100 mm 1/pkg PSS839563 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 150 mm 1/pkg PSS830068 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 30 mm 1/pkg PSS839541 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 50 mm 1/pkg PSS839542 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 100 mm 1/pkg PSS839543 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 150 mm 1/pkg Spherisorb Guard Cartridges PSS830053 Spherisorb (S5 ODS2) 5um 4.6 mm ID x 10 mm 3/pkg PSS830073 Spherisorb (S5 ODS1) 5um 4.6 mm ID x 10 mm 3/pkg PSS830074 Spherisorb (S5 C8) 5um 4.6 mm ID x 10 mm 3/pkg PSS830075 Spherisorb (S5 C6) 5um 4.6 mm ID x 10 mm 3/pkg PSS830076 Spherisorb (S5 C1) 5um 4.6 mm ID x 10 mm 3/pkg PSS830077 Spherisorb (S5 CN) 5um 4.6 mm ID x 10 mm 3/pkg PSS830078 Spherisorb (S5 Phenyl) 5um 4.6 mm ID x 10 mm 3/pkg PSS830079 Spherisorb (S5 NH2) 5um 4.6 mm ID x 10 mm 3/pkg PSS830051 Spherisorb (S5 W Silica) 5um 4.6 mm ID x 10 mm 3/pkg PSS830055 Spherisorb (S5 SAX) 5um 4.6 mm ID x 10 mm 3/pkg PSS830057 Spherisorb (S5 SCX) 5um 4.6 mm ID x 10 mm 3/pkg PSS830059 Spherisorb (S5 ODS B) 5um 4.6 mm ID x 10 mm 3/pkg PSS839458 Spherisorb (S5 ODS2) 5um 4.6 mm ID x 30 mm 3/pkg PSS839472 Spherisorb (S5 ODS1) 5um 4.6 mm ID x 30 mm 3/pkg PSS839473 Spherisorb (S5 C8) 5um 4.6 mm ID x 30 mm 3/pkg PSS839474 Spherisorb (S5 C6) 5um 4.6 mm ID x 30 mm 3/pkg PSS839475 Spherisorb (S5 C1) 5um 4.6 mm ID x 30 mm 3/pkg PSS839476 Spherisorb (S5 CN) 5um 4.6 mm ID x 30 mm 3/pkg PSS839477 Spherisorb (S5 Phenyl) 5um 4.6 mm ID x 30 mm 3/pkg PSS839478 Spherisorb (S5 NH2) 5um 4.6 mm ID x 30 mm 3/pkg PSS839451 Spherisorb (S5 W Silica) 5um 4.6 mm ID x 30 mm 3/pkg PSS839465 Spherisorb (S5 SAX) 5um 4.6 mm ID x 30 mm 3/pkg PSS839471 Spherisorb (S5 SCX) 5um 4.6 mm ID x 30 mm 3/pkg PSS839470 Spherisorb (S5 ODS B) 5um 4.6 mm ID x 30 mm 3/pkg Spherisorb Cartridge fitting and Accessories PSS614100 Spherisorb Removable Column Endfitting 2/pkg PSS614103 Spherisorb Frit Assembly 2um 5/pkg PSS614104 Spherisorb Frit Assembly 0.5um 5/pkg PSS614102 Spherisorb Column Coupler 2/pkg PSS614101 Spherisorb Long Tail Endfitting 2/pkg PSS614108 Spherisorb Extended Enfitting for use with 10mm Integral Guard 1/pkg WAT015674 Spherisorb Nylon Column Plugs for Storage of complete Column 1/pkg PSS614113 Spherisorb Nylon Column Plugs for Storage of complete Column 10/pkg PSS830008 Spherisorb Inline 10mm Guard Cartridge Holder Kit for use with above Items 1/pkg Spherisorb Microbore Column PSS845543 Spherisorb (S5 ODS2 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 ODS2 ) 5um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S5 ODS2 ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S5 ODS1 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 ODS1 ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S5 C8 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 C6 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 NH2 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 NH2 ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S5 CN ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 W Silica ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S3 ODS2 ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 ODS2 ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 ODS1 ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 C8 ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 C8 ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 NH2 ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 CN ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 CN ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 W Silica ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 W Silica ) 3um 1.0 mm ID x 150 mm 1/pkg Spherisorb Narrowbore Column PSS831922 Spherisorb (S5 ODS2 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS831923 Spherisorb (S5 ODS2 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS831925 Spherisorb (S5 ODS2 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS830622 Spherisorb (S5 ODS1 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS830623 Spherisorb (S5 ODS1 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS830625 Spherisorb (S5 ODS1 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS831822 Spherisorb (S5 C8 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS831823 Spherisorb (S5 C8 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS831825 Spherisorb (S5 C8 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS831122 Spherisorb (S5 NH2 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS831123 Spherisorb (S5 NH2 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS831125 Spherisorb (S5 NH2 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS830922 Spherisorb (S5 CN ) 5um 2.0 mm ID x 100 mm 1/pkg PSS830923 Spherisorb (S5 CN ) 5um 2.0 mm ID x 150 mm 1/pkg PSS830925 Spherisorb (S5 CN ) 5um 2.0 mm ID x 250 mm 1/pkg PSS830122 Spherisorb (S5 W Silica ) 5um 2.0 mm ID x 100 mm 1/pkg PSS830123 Spherisorb (S5 W Silica ) 5um 2.0 mm ID x 150 mm 1/pkg PSS830125 Spherisorb (S5 W Silica ) 5um 2.0 mm ID x 250 mm 1/pkg PSS832122 Spherisorb (S3 ODS2 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832123 Spherisorb (S3 ODS2 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS833422 Spherisorb (S3 ODS1 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS833423 Spherisorb (S3 ODS1 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832222 Spherisorb (S3 C8 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832223 Spherisorb (S3 C8 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832322 Spherisorb (S3 NH2 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832323 Spherisorb (S3 NH2 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832422 Spherisorb (S3 CN ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832423 Spherisorb (S3 CN ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832022 Spherisorb (S3 W Silica ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832023 Spherisorb (S3 W Silica ) 3um 2.0 mm ID x 150 mm 1/pkg 예일테크 2008.05.08
WatersSpherisorb®
◈ Product Information
Waters Spherisorb® columns are one of the most widely referenced HPLC columns in the scientific literature. There are over 2000 analytical abstracts published on Waters Spherisorb columns, providing a tremendous range of validated methods and applications to assist you in your method development process. These columns (or cartridge endfittings) are supplied with Parker-style tube/column endfittings.
One of the great advantages of choosing Waters Spherisorb columns is the range of choices available to you. They are produced in a wide range of sizes and bonded phases to meet your chromatographic needs. Silica is produced in 3, 5, and 10 micron particle sizes. In addition, the high quality bonded phases give many different and unique separation selectivities.
► Spherisorb® 컬럼특성
Product Description Particle
Shape Surface
Area(m2/g) Pore
Size(A) Pore
Volume(ml/g) Particle Size(um) Carbon
Load(%) Ligand Coverage
uMol/m2 End-
capped Waters Spherisorb® Phases Waters Spherisorb® ODS2(C18) Spherical 200 80 0.50 3, 5, 10 11.5 2.98 YES Waters Spherisorb® ODS1(C18) Spherical 200 80 0.50 3, 5, 10 6.2 1.49 NO Waters Spherisorb® ODSB(C18) Spherical 200 80 0.50 5 11.5 2.98 YES Waters Spherisorb® C8 Spherical 200 80 0.50 3, 5, 10 5.75 3.12 YES Waters Spherisorb® C6 Spherical 200 80 0.50 3, 5, 10 4.7 3.36 YES Waters Spherisorb® C1 Spherical 200 80 0.50 3, 5, 10 2.15 2.97 NO Waters Spherisorb® NH2(Amino) Spherical 200 80 0.50 3, 5, 10 1.9 2.64 NO Waters Spherisorb® Phenyl Spherical 200 80 0.50 3, 5, 10 2.5 1.72 NO Waters Spherisorb® CN(Nitrile) Spherical 200 80 0.50 3, 5, 10 3.1 3.29 NO Waters Spherisorb® OD/CN Spherical 200 80 0.50 5 5 1.15 YES Waters Spherisorb® W(Silica) Spherical 200 80 0.50 3, 5, 10 - - - Waters Spherisorb® Ion-Exchangers Waters Spherisorb® SCX Spherical 200 80 0.50 5, 10 4 - NO Waters Spherisorb® SAX Spherical 200 80 0.50 5, 10 4 - NO
◈ Ordering Information Product Number Description Package Spherisorb 10um Column PSS832513 Spherisorb (S10 ODS2 ) 10um 4.6 mm ID x 150 mm 1/pkg PSS832513 Spherisorb (S10 ODS2 ) 10um 4.6 mm ID x 200 mm 1/pkg PSS832515 Spherisorb (S10 ODS2 ) 10um 4.6 mm ID x 250 mm 1/pkg PSS830712 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 100 mm 1/pkg PSS830713 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 150 mm 1/pkg PSS830714 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 200 mm 1/pkg PSS830715 Spherisorb (S10 ODS1 ) 10um 4.6 mm ID x 250 mm 1/pkg PSS832813 Spherisorb (S10 C8) 10um 4.6 mm ID x 150 mm 1/pkg PSS832815 Spherisorb (S10 C8) 10um 4.6 mm ID x 250 mm 1/pkg PSS833213 Spherisorb (S10 C6) 10um 4.6 mm ID x 150 mm 1/pkg PSS833215 Spherisorb (S10 C6) 10um 4.6 mm ID x 250 mm 1/pkg PSS833013 Spherisorb (S10 C1) 10um 4.6 mm ID x 150 mm 1/pkg PSS833015 Spherisorb (S10 C1) 10um 4.6 mm ID x 250 mm 1/pkg PSS833612 Spherisorb (S10 NH2) 10um 4.6 mm ID x 100 mm 1/pkg PSS833613 Spherisorb (S10 NH2) 10um 4.6 mm ID x 150 mm 1/pkg PSS833615 Spherisorb (S10 NH2) 10um 4.6 mm ID x 250 mm 1/pkg PSS833512 Spherisorb (S10 CN) 10um 4.6 mm ID x 100 mm 1/pkg PSS833513 Spherisorb (S10 CN) 10um 4.6 mm ID x 150 mm 1/pkg PSS833514 Spherisorb (S10 CN) 10um 4.6 mm ID x 200 mm 1/pkg PSS833515 Spherisorb (S10 CN) 10um 4.6 mm ID x 250 mm 1/pkg PSS830212 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 100 mm 1/pkg PSS830213 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 150 mm 1/pkg PSS830214 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 200 mm 1/pkg PSS830215 Spherisorb (S10 W Silica) 10um 4.6 mm ID x 250 mm 1/pkg PSS833912 Spherisorb (S10 SAX) 10um 4.6 mm ID x 100 mm 1/pkg PSS833913 Spherisorb (S10 SAX) 10um 4.6 mm ID x 150 mm 1/pkg PSS833915 Spherisorb (S10 SAX) 10um 4.6 mm ID x 250 mm 1/pkg PSS837613 Spherisorb (S10 SCX) 10um 4.6 mm ID x 150 mm 1/pkg PSS837615 Spherisorb (S10 SCX) 10um 4.6 mm ID x 250 mm 1/pkg Spherisorb 5um Column PSS845543 Spherisorb (S5 ODS2 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845277 Spherisorb (S5 ODS2 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831911 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831912 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831913 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831915 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845541 Spherisorb (S5 ODS1 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845542 Spherisorb (S5 ODS1 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830611 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS830612 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830613 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830615 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845280 Spherisorb (S5 C8 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845281 Spherisorb (S5 C8 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831811 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831812 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831813 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831815 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845284 Spherisorb (S5 C6 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845285 Spherisorb (S5 C6 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831011 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831012 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831013 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831015 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845288 Spherisorb (S5 C1 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845289 Spherisorb (S5 C1 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS832611 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS832612 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS832613 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS832615 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845300 Spherisorb (S5 NH2 ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845301 Spherisorb (S5 NH2 ) 5um 4.0 mm ID x 250 mm 1/pkg PSS831111 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS831112 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS831113 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS831115 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845292 Spherisorb (S5 Phenyl ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845293 Spherisorb (S5 Phenyl ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830812 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830813 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830815 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845296 Spherisorb (S5 CN NP ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845297 Spherisorb (S5 CN NP ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830911 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 50 mm 1/pkg PSS830912 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830913 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830915 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 250 mm 1/pkg PSS830908 Spherisorb (S5 CN RP ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830909 Spherisorb (S5 CN RP ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845539 Spherisorb (S5 W Silica ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845540 Spherisorb (S5 W Silica ) 5um 4.0 mm ID x 250 mm 1/pkg PSS830111 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 50 mm 1/pkg PSS830112 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 100 mm 1/pkg PSS830113 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 150 mm 1/pkg PSS830115 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845304 Spherisorb (S5 W SAX) 5um 4.0 mm ID x 125 mm 1/pkg PSS845305 Spherisorb (S5 W SAX ) 5um 4.0 mm ID x 250 mm 1/pkg PSS832711 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS832712 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS832713 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS832715 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS845308 Spherisorb (S5 W SCX ) 5um 4.0 mm ID x 125 mm 1/pkg PSS845309 Spherisorb (S5 W SCX ) 5um 4.0 mm ID x 250 mm 1/pkg PSS832511 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS832512 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS832513 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS832515 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS837812 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 100 mm 1/pkg PSS837813 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 150 mm 1/pkg PSS837815 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 250 mm 1/pkg Spherisorb 3um Column PSS832111 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 50 mm 1/pkg PSS839853 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 60 mm 1/pkg PSS832112 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 100 mm 1/pkg PSS832113 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 150 mm 1/pkg PSS833411 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 50 mm 1/pkg PSS833412 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 100 mm 1/pkg PSS833413 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 150 mm 1/pkg PSS832211 Spherisorb (S3 C8) 3um 4.6 mm ID x 50 mm 1/pkg PSS839852 Spherisorb (S3 C8) 3um 4.6 mm ID x 60 mm 1/pkg PSS832212 Spherisorb (S3 C8) 3um 4.6 mm ID x 100 mm 1/pkg PSS832213 Spherisorb (S3 C8) 3um 4.6 mm ID x 150 mm 1/pkg PSS833111 Spherisorb (S3 C6) 3um 4.6 mm ID x 50 mm 1/pkg PSS833112 Spherisorb (S3 C6) 3um 4.6 mm ID x 100 mm 1/pkg PSS833113 Spherisorb (S3 C6) 3um 4.6 mm ID x 150 mm 1/pkg PSS832911 Spherisorb (S3 C1) 3um 4.6 mm ID x 50 mm 1/pkg PSS832912 Spherisorb (S3 C1) 3um 4.6 mm ID x 100 mm 1/pkg PSS832913 Spherisorb (S3 C1) 3um 4.6 mm ID x 150 mm 1/pkg PSS832311 Spherisorb (S3 NH2) 3um 4.6 mm ID x 50 mm 1/pkg PSS832312 Spherisorb (S3 NH2) 3um 4.6 mm ID x 100 mm 1/pkg PSS832313 Spherisorb (S3 NH2) 3um 4.6 mm ID x 150 mm 1/pkg PSS833711 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 50 mm 1/pkg PSS833712 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 100 mm 1/pkg PSS833713 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 150 mm 1/pkg PSS832411 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 50 mm 1/pkg PSS832412 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 100 mm 1/pkg PSS832413 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 150 mm 1/pkg PSS832011 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 50 mm 1/pkg PSS832012 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 100 mm 1/pkg PSS832013 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 150 mm 1/pkg Spherisorb Cartridge 5um Column PSS839536 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839537 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839538 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839540 Spherisorb (S5 ODS2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839506 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839507 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839508 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839510 Spherisorb (S5 ODS1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839613 Spherisorb (S5 ODS B ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839615 Spherisorb (S5 ODS B ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839531 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839532 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839533 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839535 Spherisorb (S5 C8 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839521 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839522 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839523 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839525 Spherisorb (S5 C6 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839566 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839567 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839568 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839570 Spherisorb (S5 C1 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839526 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839527 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839528 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839530 Spherisorb (S5 NH2 ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839511 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839512 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839513 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839515 Spherisorb (S5 Phenyl ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839516 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839517 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839518 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839520 Spherisorb (S5 CN NP ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839502 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839503 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839505 Spherisorb (S5 W Silica ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839571 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839572 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839573 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839575 Spherisorb (S5 W SAX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839651 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 50 mm 1/pkg PSS839652 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 100 mm 1/pkg PSS839653 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839655 Spherisorb (S5 W SCX ) 5um 4.6 mm ID x 250 mm 1/pkg PSS839643 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 150 mm 1/pkg PSS839645 Spherisorb (S5 W OD/CN ) 5um 4.6 mm ID x 250 mm 1/pkg Spherisorb Cartridge 3um Column PSS830065 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 30 mm 1/pkg PSS839546 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 50 mm 1/pkg PSS839547 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 100 mm 1/pkg PSS839548 Spherisorb (S3 ODS2) 3um 4.6 mm ID x 150 mm 1/pkg PSS839587 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 100 mm 1/pkg PSS839588 Spherisorb (S3 ODS1) 3um 4.6 mm ID x 150 mm 1/pkg PSS839551 Spherisorb (S3 C8) 3um 4.6 mm ID x 50 mm 1/pkg PSS839552 Spherisorb (S3 C8) 3um 4.6 mm ID x 100 mm 1/pkg PSS839553 Spherisorb (S3 C8) 3um 4.6 mm ID x 150 mm 1/pkg PSS839581 Spherisorb (S3 C6) 3um 4.6 mm ID x 50 mm 1/pkg PSS839582 Spherisorb (S3 C6) 3um 4.6 mm ID x 100 mm 1/pkg PSS839583 Spherisorb (S3 C6) 3um 4.6 mm ID x 150 mm 1/pkg PSS839576 Spherisorb (S3 C1) 3um 4.6 mm ID x 50 mm 1/pkg PSS839577 Spherisorb (S3 C1) 3um 4.6 mm ID x 100 mm 1/pkg PSS839578 Spherisorb (S3 C1) 3um 4.6 mm ID x 150 mm 1/pkg PSS839556 Spherisorb (S3 NH2) 3um 4.6 mm ID x 50 mm 1/pkg PSS839557 Spherisorb (S3 NH2) 3um 4.6 mm ID x 100 mm 1/pkg PSS839558 Spherisorb (S3 NH2) 3um 4.6 mm ID x 150 mm 1/pkg PSS839591 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 50 mm 1/pkg PSS839592 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 100 mm 1/pkg PSS839593 Spherisorb (S3 Phenyl) 3um 4.6 mm ID x 150 mm 1/pkg PSS839561 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 50 mm 1/pkg PSS839562 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 100 mm 1/pkg PSS839563 Spherisorb (S3 CN NP) 3um 4.6 mm ID x 150 mm 1/pkg PSS830068 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 30 mm 1/pkg PSS839541 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 50 mm 1/pkg PSS839542 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 100 mm 1/pkg PSS839543 Spherisorb (S3 W Silica) 3um 4.6 mm ID x 150 mm 1/pkg Spherisorb Guard Cartridges PSS830053 Spherisorb (S5 ODS2) 5um 4.6 mm ID x 10 mm 3/pkg PSS830073 Spherisorb (S5 ODS1) 5um 4.6 mm ID x 10 mm 3/pkg PSS830074 Spherisorb (S5 C8) 5um 4.6 mm ID x 10 mm 3/pkg PSS830075 Spherisorb (S5 C6) 5um 4.6 mm ID x 10 mm 3/pkg PSS830076 Spherisorb (S5 C1) 5um 4.6 mm ID x 10 mm 3/pkg PSS830077 Spherisorb (S5 CN) 5um 4.6 mm ID x 10 mm 3/pkg PSS830078 Spherisorb (S5 Phenyl) 5um 4.6 mm ID x 10 mm 3/pkg PSS830079 Spherisorb (S5 NH2) 5um 4.6 mm ID x 10 mm 3/pkg PSS830051 Spherisorb (S5 W Silica) 5um 4.6 mm ID x 10 mm 3/pkg PSS830055 Spherisorb (S5 SAX) 5um 4.6 mm ID x 10 mm 3/pkg PSS830057 Spherisorb (S5 SCX) 5um 4.6 mm ID x 10 mm 3/pkg PSS830059 Spherisorb (S5 ODS B) 5um 4.6 mm ID x 10 mm 3/pkg PSS839458 Spherisorb (S5 ODS2) 5um 4.6 mm ID x 30 mm 3/pkg PSS839472 Spherisorb (S5 ODS1) 5um 4.6 mm ID x 30 mm 3/pkg PSS839473 Spherisorb (S5 C8) 5um 4.6 mm ID x 30 mm 3/pkg PSS839474 Spherisorb (S5 C6) 5um 4.6 mm ID x 30 mm 3/pkg PSS839475 Spherisorb (S5 C1) 5um 4.6 mm ID x 30 mm 3/pkg PSS839476 Spherisorb (S5 CN) 5um 4.6 mm ID x 30 mm 3/pkg PSS839477 Spherisorb (S5 Phenyl) 5um 4.6 mm ID x 30 mm 3/pkg PSS839478 Spherisorb (S5 NH2) 5um 4.6 mm ID x 30 mm 3/pkg PSS839451 Spherisorb (S5 W Silica) 5um 4.6 mm ID x 30 mm 3/pkg PSS839465 Spherisorb (S5 SAX) 5um 4.6 mm ID x 30 mm 3/pkg PSS839471 Spherisorb (S5 SCX) 5um 4.6 mm ID x 30 mm 3/pkg PSS839470 Spherisorb (S5 ODS B) 5um 4.6 mm ID x 30 mm 3/pkg Spherisorb Cartridge fitting and Accessories PSS614100 Spherisorb Removable Column Endfitting 2/pkg PSS614103 Spherisorb Frit Assembly 2um 5/pkg PSS614104 Spherisorb Frit Assembly 0.5um 5/pkg PSS614102 Spherisorb Column Coupler 2/pkg PSS614101 Spherisorb Long Tail Endfitting 2/pkg PSS614108 Spherisorb Extended Enfitting for use with 10mm Integral Guard 1/pkg WAT015674 Spherisorb Nylon Column Plugs for Storage of complete Column 1/pkg PSS614113 Spherisorb Nylon Column Plugs for Storage of complete Column 10/pkg PSS830008 Spherisorb Inline 10mm Guard Cartridge Holder Kit for use with above Items 1/pkg Spherisorb Microbore Column PSS845543 Spherisorb (S5 ODS2 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 ODS2 ) 5um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S5 ODS2 ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S5 ODS1 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 ODS1 ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S5 C8 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 C6 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 NH2 ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 NH2 ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S5 CN ) 5um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S5 W Silica ) 5um 1.0 mm ID x 250 mm 1/pkg PSS845543 Spherisorb (S3 ODS2 ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 ODS2 ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 ODS1 ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 C8 ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 C8 ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 NH2 ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 CN ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 CN ) 3um 1.0 mm ID x 150 mm 1/pkg PSS845543 Spherisorb (S3 W Silica ) 3um 1.0 mm ID x 100 mm 1/pkg PSS845543 Spherisorb (S3 W Silica ) 3um 1.0 mm ID x 150 mm 1/pkg Spherisorb Narrowbore Column PSS831922 Spherisorb (S5 ODS2 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS831923 Spherisorb (S5 ODS2 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS831925 Spherisorb (S5 ODS2 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS830622 Spherisorb (S5 ODS1 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS830623 Spherisorb (S5 ODS1 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS830625 Spherisorb (S5 ODS1 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS831822 Spherisorb (S5 C8 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS831823 Spherisorb (S5 C8 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS831825 Spherisorb (S5 C8 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS831122 Spherisorb (S5 NH2 ) 5um 2.0 mm ID x 100 mm 1/pkg PSS831123 Spherisorb (S5 NH2 ) 5um 2.0 mm ID x 150 mm 1/pkg PSS831125 Spherisorb (S5 NH2 ) 5um 2.0 mm ID x 250 mm 1/pkg PSS830922 Spherisorb (S5 CN ) 5um 2.0 mm ID x 100 mm 1/pkg PSS830923 Spherisorb (S5 CN ) 5um 2.0 mm ID x 150 mm 1/pkg PSS830925 Spherisorb (S5 CN ) 5um 2.0 mm ID x 250 mm 1/pkg PSS830122 Spherisorb (S5 W Silica ) 5um 2.0 mm ID x 100 mm 1/pkg PSS830123 Spherisorb (S5 W Silica ) 5um 2.0 mm ID x 150 mm 1/pkg PSS830125 Spherisorb (S5 W Silica ) 5um 2.0 mm ID x 250 mm 1/pkg PSS832122 Spherisorb (S3 ODS2 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832123 Spherisorb (S3 ODS2 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS833422 Spherisorb (S3 ODS1 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS833423 Spherisorb (S3 ODS1 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832222 Spherisorb (S3 C8 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832223 Spherisorb (S3 C8 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832322 Spherisorb (S3 NH2 ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832323 Spherisorb (S3 NH2 ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832422 Spherisorb (S3 CN ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832423 Spherisorb (S3 CN ) 3um 2.0 mm ID x 150 mm 1/pkg PSS832022 Spherisorb (S3 W Silica ) 3um 2.0 mm ID x 100 mm 1/pkg PSS832023 Spherisorb (S3 W Silica ) 3um 2.0 mm ID x 150 mm 1/pkg 예일테크 2008.05.08
6
Nova-Pak®
WatersNova-Pak®
◈ Product Information
Nova-Pak® 컬럼들은 여러 응용의 요구를 충족하기 위해 다양한 크기로 제공됩니다. Waters가 독점 제조하는 Nova-Pak 결합상은 4µm의 작은 입자 크기로 더 짧은 컬럼을 사용하여 용매 소비를 줄이면서 고분리능, 높은 효율성 및 더 빠른 크로마토그래피를 얻거나, 가장 복잡한 혼합물도 잘 분리될 수 있도록 더 긴 컬럼을 사용할 수도 있습니다. 6µm 입자 크기의 세미분취용 (Semi-preparative) 컬럼은 상당히 다양한 범위의 분석 물질들에 적용됩니다. Waters cGMP 제조 시설의 엄격한 QC 절차는 배치별 재현성을 보장합니다.
► Nova-Pak® 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Nova-Pak® C18 4 um Spherical 60A 7% Yes Nova-Pak® C8 4 um Spherical 60A 4% Yes Nova-Pak® Phenyl 4 um Spherical 60A 5% Yes Nova-Pak® CN HP 4 um Spherical 60A 2% Yes Nova-Pak® Silica 4 um Spherical 60A N/A N/A Prep Nova-Pak® HR C18 6 um Spherical 60A 7% YES Prep Nova-Pak® HR Silica 6 um Spherical 60A N/A N/A
◈ Ordering Information Product Number Description Package Waters Nova-Pak® Column WAT023655 Nova-Pak C18 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT011670 Nova-Pak C18 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT086344 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT011695 Nova-Pak C18 60A 4um 3.9 mm ID x 300 mm 1/pkg WAT044375 Nova-Pak C18 60A 4um 4.6mm ID x 150 mm 1/pkg WAT052735 Nova-Pak C8 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT035877 Nova-Pak C8 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT035876 Nova-Pak C8 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT052740 Nova-Pak Phenyl 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT011675 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT011656 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT010270 Nova-Pak CN HP 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT044245 Nova-Pak CN HP 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT056920 Nova-Pak CN HP 60A 4um 3.9 mm ID x 300 mm 1/pkg WAT052745 Nova-Pak Silica 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT011680 Nova-Pak Silica 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT010025 Nova-Pak Silica 60A 4um 3.9 mm ID x 150 mm 1/pkg Waters Nova-Pak Method Validation Kit WAT052770 Method Validation Kit
(Include 3 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm) 1/pkg Waters Nova-Pak Method Validation Kit WAT044360 Waters Reversed-Phase Scouting Kit
(includes 1 each Nova-Pak C18,C8 and Phenyl Cartridge Column) 1/pkg WAT044255 Waters Method Development Scouting Kit
(includes 1 each Nova-Pak C8 ,Phenyl and CN HP Cartridge Column) 1/pkg WAT052770 Waters Method Validation Scouting Kit
(includes 3 Nova-Pak C18 Columns representing 2 different
bonded-silica bulk packing batches) 1/pkg Waters Nova-Pak Cartridge Column WAT052780 Nova-Pak C18 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052834 Nova-Pak C18 60A 4um 3.9 mm ID x 50 mm 3/pkg WAT052810 Nova-Pak C18 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT036975 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT037520 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT052845 Nova-Pak C18 60A 4um 4.6mm ID x 150 mm 1/pkg WAT052840 Nova-Pak C18 60A 4um 4.6mm ID x 250 mm 1/pkg WAT052775 Nova-Pak C8 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052805 Nova-Pak C8 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT036985 Nova-Pak C8 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT054870 Nova-Pak C8 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT052855 Nova-Pak C8 60A 4um 4.6mm ID x 150 mm 1/pkg WAT052850 Nova-Pak C8 60A 4um 4.6mm ID x 250 mm 1/pkg WAT052790 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052800 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT036970 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT054890 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT052785 Nova-Pak CN HP 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052795 Nova-Pak CN HP 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT044243 Nova-Pak CN HP 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT044445 Nova-Pak CN HP 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT044455 Nova-Pak CN HP 60A 4um 4.6mm ID x 150 mm 1/pkg WAT044460 Nova-Pak CN HP 60A 4um 4.6mm ID x 250 mm 1/pkg WAT036980 Nova-Pak Silica 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT054880 Nova-Pak Silica 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT037525 Endfittings (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Nova-Pak Sentry Guard Column WAT044380 Nova-Pak C18 Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046830 Nova-Pak C8 Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046835 Nova-Pak Phenyl Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046845 Nova-Pak Silica Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046840 Nova-Pak CN HP Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Nova-Pak Guard-Pak Inserts WAT015220 Nova-Pak C18 60A Guard-Pak Inserts 10/pkg WAT035880 Nova-Pak C8 60A Guard-Pak Inserts 10/pkg WAT020795 Nova-Pak Phenyl 60A Guard-Pak Inserts 10/pkg WAT020800 Nova-Pak CN HP 60A Guard-Pak Inserts 10/pkg 예일테크 2008.06.10
WatersNova-Pak®
◈ Product Information
Nova-Pak® 컬럼들은 여러 응용의 요구를 충족하기 위해 다양한 크기로 제공됩니다. Waters가 독점 제조하는 Nova-Pak 결합상은 4µm의 작은 입자 크기로 더 짧은 컬럼을 사용하여 용매 소비를 줄이면서 고분리능, 높은 효율성 및 더 빠른 크로마토그래피를 얻거나, 가장 복잡한 혼합물도 잘 분리될 수 있도록 더 긴 컬럼을 사용할 수도 있습니다. 6µm 입자 크기의 세미분취용 (Semi-preparative) 컬럼은 상당히 다양한 범위의 분석 물질들에 적용됩니다. Waters cGMP 제조 시설의 엄격한 QC 절차는 배치별 재현성을 보장합니다.
► Nova-Pak® 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Nova-Pak® C18 4 um Spherical 60A 7% Yes Nova-Pak® C8 4 um Spherical 60A 4% Yes Nova-Pak® Phenyl 4 um Spherical 60A 5% Yes Nova-Pak® CN HP 4 um Spherical 60A 2% Yes Nova-Pak® Silica 4 um Spherical 60A N/A N/A Prep Nova-Pak® HR C18 6 um Spherical 60A 7% YES Prep Nova-Pak® HR Silica 6 um Spherical 60A N/A N/A
◈ Ordering Information Product Number Description Package Waters Nova-Pak® Column WAT023655 Nova-Pak C18 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT011670 Nova-Pak C18 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT086344 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT011695 Nova-Pak C18 60A 4um 3.9 mm ID x 300 mm 1/pkg WAT044375 Nova-Pak C18 60A 4um 4.6mm ID x 150 mm 1/pkg WAT052735 Nova-Pak C8 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT035877 Nova-Pak C8 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT035876 Nova-Pak C8 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT052740 Nova-Pak Phenyl 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT011675 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT011656 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT010270 Nova-Pak CN HP 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT044245 Nova-Pak CN HP 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT056920 Nova-Pak CN HP 60A 4um 3.9 mm ID x 300 mm 1/pkg WAT052745 Nova-Pak Silica 60A 4um 2.1 mm ID x 150 mm 1/pkg WAT011680 Nova-Pak Silica 60A 4um 3.9 mm ID x 75 mm 1/pkg WAT010025 Nova-Pak Silica 60A 4um 3.9 mm ID x 150 mm 1/pkg Waters Nova-Pak Method Validation Kit WAT052770 Method Validation Kit
(Include 3 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm) 1/pkg Waters Nova-Pak Method Validation Kit WAT044360 Waters Reversed-Phase Scouting Kit
(includes 1 each Nova-Pak C18,C8 and Phenyl Cartridge Column) 1/pkg WAT044255 Waters Method Development Scouting Kit
(includes 1 each Nova-Pak C8 ,Phenyl and CN HP Cartridge Column) 1/pkg WAT052770 Waters Method Validation Scouting Kit
(includes 3 Nova-Pak C18 Columns representing 2 different
bonded-silica bulk packing batches) 1/pkg Waters Nova-Pak Cartridge Column WAT052780 Nova-Pak C18 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052834 Nova-Pak C18 60A 4um 3.9 mm ID x 50 mm 3/pkg WAT052810 Nova-Pak C18 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT036975 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT037520 Nova-Pak C18 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT052845 Nova-Pak C18 60A 4um 4.6mm ID x 150 mm 1/pkg WAT052840 Nova-Pak C18 60A 4um 4.6mm ID x 250 mm 1/pkg WAT052775 Nova-Pak C8 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052805 Nova-Pak C8 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT036985 Nova-Pak C8 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT054870 Nova-Pak C8 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT052855 Nova-Pak C8 60A 4um 4.6mm ID x 150 mm 1/pkg WAT052850 Nova-Pak C8 60A 4um 4.6mm ID x 250 mm 1/pkg WAT052790 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052800 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT036970 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT054890 Nova-Pak Phenyl 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT052785 Nova-Pak CN HP 60A 4um 3.9 mm ID x 50 mm 1/pkg WAT052795 Nova-Pak CN HP 60A 4um 3.9 mm ID x 100 mm 1/pkg WAT044243 Nova-Pak CN HP 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT044445 Nova-Pak CN HP 60A 4um 3.9 mm ID x 150 mm 3/pkg WAT044455 Nova-Pak CN HP 60A 4um 4.6mm ID x 150 mm 1/pkg WAT044460 Nova-Pak CN HP 60A 4um 4.6mm ID x 250 mm 1/pkg WAT036980 Nova-Pak Silica 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT054880 Nova-Pak Silica 60A 4um 3.9 mm ID x 150 mm 1/pkg WAT037525 Endfittings (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters Nova-Pak Sentry Guard Column WAT044380 Nova-Pak C18 Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046830 Nova-Pak C8 Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046835 Nova-Pak Phenyl Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046845 Nova-Pak Silica Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg WAT046840 Nova-Pak CN HP Sentry Guard 4um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Nova-Pak Guard-Pak Inserts WAT015220 Nova-Pak C18 60A Guard-Pak Inserts 10/pkg WAT035880 Nova-Pak C8 60A Guard-Pak Inserts 10/pkg WAT020795 Nova-Pak Phenyl 60A Guard-Pak Inserts 10/pkg WAT020800 Nova-Pak CN HP 60A Guard-Pak Inserts 10/pkg 예일테크 2008.06.10
5
Delta-Pak™
WatersDelta-Pak™
◈ Product Information
Delta-Pak™ packings, ideal for the separation of peptides, proteins and natural products, are based on a highly stable, bonded, endcapped 5 micron or 15 micron spherical silica. Delta-Pak™ is available in two different pore size materials(100A and 300A) with a C18 or C4 bonded phase. Delta-Pak™ packings are available in different cartridge and column configurations, providing consistent and predictable scale-up capabilities for milligram-to-gram scale purifications. Also, by having the same chemistry available on a high-efficiency 5 micron particle, you can easily check the purity of your fractions.
► Delta-Pak™ 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Delta-Pak™ C18 5 um Spherical 100A 17% YES Delta-Pak™ C18 5 um Spherical 300A 7% YES Delta-Pak™ C4 5 um Spherical 100A 7% YES Delta-Pak™ C4 5 um Spherical 300A 3% YES Delta-Pak™ C18 15 um Spherical 100A 17% YES Delta-Pak™ C18 15 um Spherical 300A 7% YES Delta-Pak™ C4 15 um Spherical 100A 7% YES Delta-Pak™ C4 15 um Spherical 300A 3% YES
◈ Ordering Information Product Number Description Package Waters Delta-Pak Column WAT023650 Delta-Pak C18 300A 5um 2.1 mm ID x 150 mm 1/pkg WAT011795 Delta-Pak C18 100A 5um 3.9 mm ID x 150 mm 1/pkg WAT011793 Delta-Pak C18 300A 5um 3.9 mm ID x 150 mm 1/pkg WAT011796 Delta-Pak C4 100A 5um 3.9 mm ID x 150 mm 1/pkg WAT011794 Delta-Pak C4 300A 5um 3.9 mm ID x 150 mm 1/pkg Waters Delta-Pak Preparative Column WAT011797 Delta-Pak C18 100A 15um 3.9 mm ID x 300 mm 1/pkg WAT011802 Delta-Pak C18 300A 15um 3.9 mm ID x 300 mm 1/pkg WAT011798 Delta-Pak C18 100A 15um 7.8 mm ID x 300 mm 1/pkg WAT011803 Delta-Pak C18 300A 15um 7.8 mm ID x 300 mm 1/pkg WAT011799 Delta-Pak C18 100A 15um 19 mm ID x 300 mm 1/pkg WAT011804 Delta-Pak C18 300A 15um 19 mm ID x 300 mm 1/pkg WAT011800 Delta-Pak C18 100A 15um 30 mm ID x 300 mm 1/pkg WAT011805 Delta-Pak C18 300A 15um 30 mm ID x 300 mm 1/pkg WAT011801 Delta-Pak C18 100A 15um 50 mm ID x 300 mm 1/pkg WAT011807 Delta-Pak C4 100A 15um 3.9 mm ID x 300 mm 1/pkg WAT011812 Delta-Pak C4 300A 15um 3.9 mm ID x 300 mm 1/pkg WAT011808 Delta-Pak C4 100A 15um 7.8 mm ID x 300 mm 1/pkg WAT011813 Delta-Pak C4 300A 15um 7.8 mm ID x 300 mm 1/pkg WAT011809 Delta-Pak C4 100A 15um 19 mm ID x 300 mm 1/pkg WAT011814 Delta-Pak C4 300A 15um 19 mm ID x 300 mm 1/pkg WAT011810 Delta-Pak C4 100A 15um 30 mm ID x 300 mm 1/pkg WAT011815 Delta-Pak C4 300A 15um 30 mm ID x 300 mm 1/pkg Waters Delta-Pak HPI(High Pressure Inert) PEEK Column WAT052750 Delta-Pak HPI C18 100A 5um 2.1 mm ID x 150 mm 1/pkg WAT052765 Delta-Pak HPI C18 300A 5um 2.1 mm ID x 150 mm 1/pkg WAT052760 Delta-Pak HPI C4 100A 5um 2.1 mm ID x 150 mm 1/pkg WAT052755 Delta-Pak HPI C4 300A 5um 2.1 mm ID x 150 mm 1/pkg WAT035571 Delta-Pak HPI C18 300A 5um 3.9 mm ID x 150 mm 1/pkg Waters Delta-Pak Sentry Guard Column WAT046875 Delta-Pak C4 100A 5um 3.9 mm ID x 20 mm 2/pkg WAT046885 Delta-Pak C4 300A 5um 3.9 mm ID x 20 mm 2/pkg WAT046880 Delta-Pak C18 100A 5um 3.9 mm ID x 20 mm 2/pkg WAT046890 Delta-Pak C18 300A 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Resolve Guard-Pak Inserts WAT036870 Delta-Pak C18 100A 5um 10/pkg WAT036875 Delta-Pak Silica 300A 5um 10/pkg WAT036860 Delta-Pak C4 100A 5um 10/pkg WAT036865 Delta-Pak C4 300A 5um 10/pkg Waters Guard-Pak Holder WAT088141 Guard-Pak Holder 1/pkg 예일테크 2008.06.10
WatersDelta-Pak™
◈ Product Information
Delta-Pak™ packings, ideal for the separation of peptides, proteins and natural products, are based on a highly stable, bonded, endcapped 5 micron or 15 micron spherical silica. Delta-Pak™ is available in two different pore size materials(100A and 300A) with a C18 or C4 bonded phase. Delta-Pak™ packings are available in different cartridge and column configurations, providing consistent and predictable scale-up capabilities for milligram-to-gram scale purifications. Also, by having the same chemistry available on a high-efficiency 5 micron particle, you can easily check the purity of your fractions.
► Delta-Pak™ 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Delta-Pak™ C18 5 um Spherical 100A 17% YES Delta-Pak™ C18 5 um Spherical 300A 7% YES Delta-Pak™ C4 5 um Spherical 100A 7% YES Delta-Pak™ C4 5 um Spherical 300A 3% YES Delta-Pak™ C18 15 um Spherical 100A 17% YES Delta-Pak™ C18 15 um Spherical 300A 7% YES Delta-Pak™ C4 15 um Spherical 100A 7% YES Delta-Pak™ C4 15 um Spherical 300A 3% YES
◈ Ordering Information Product Number Description Package Waters Delta-Pak Column WAT023650 Delta-Pak C18 300A 5um 2.1 mm ID x 150 mm 1/pkg WAT011795 Delta-Pak C18 100A 5um 3.9 mm ID x 150 mm 1/pkg WAT011793 Delta-Pak C18 300A 5um 3.9 mm ID x 150 mm 1/pkg WAT011796 Delta-Pak C4 100A 5um 3.9 mm ID x 150 mm 1/pkg WAT011794 Delta-Pak C4 300A 5um 3.9 mm ID x 150 mm 1/pkg Waters Delta-Pak Preparative Column WAT011797 Delta-Pak C18 100A 15um 3.9 mm ID x 300 mm 1/pkg WAT011802 Delta-Pak C18 300A 15um 3.9 mm ID x 300 mm 1/pkg WAT011798 Delta-Pak C18 100A 15um 7.8 mm ID x 300 mm 1/pkg WAT011803 Delta-Pak C18 300A 15um 7.8 mm ID x 300 mm 1/pkg WAT011799 Delta-Pak C18 100A 15um 19 mm ID x 300 mm 1/pkg WAT011804 Delta-Pak C18 300A 15um 19 mm ID x 300 mm 1/pkg WAT011800 Delta-Pak C18 100A 15um 30 mm ID x 300 mm 1/pkg WAT011805 Delta-Pak C18 300A 15um 30 mm ID x 300 mm 1/pkg WAT011801 Delta-Pak C18 100A 15um 50 mm ID x 300 mm 1/pkg WAT011807 Delta-Pak C4 100A 15um 3.9 mm ID x 300 mm 1/pkg WAT011812 Delta-Pak C4 300A 15um 3.9 mm ID x 300 mm 1/pkg WAT011808 Delta-Pak C4 100A 15um 7.8 mm ID x 300 mm 1/pkg WAT011813 Delta-Pak C4 300A 15um 7.8 mm ID x 300 mm 1/pkg WAT011809 Delta-Pak C4 100A 15um 19 mm ID x 300 mm 1/pkg WAT011814 Delta-Pak C4 300A 15um 19 mm ID x 300 mm 1/pkg WAT011810 Delta-Pak C4 100A 15um 30 mm ID x 300 mm 1/pkg WAT011815 Delta-Pak C4 300A 15um 30 mm ID x 300 mm 1/pkg Waters Delta-Pak HPI(High Pressure Inert) PEEK Column WAT052750 Delta-Pak HPI C18 100A 5um 2.1 mm ID x 150 mm 1/pkg WAT052765 Delta-Pak HPI C18 300A 5um 2.1 mm ID x 150 mm 1/pkg WAT052760 Delta-Pak HPI C4 100A 5um 2.1 mm ID x 150 mm 1/pkg WAT052755 Delta-Pak HPI C4 300A 5um 2.1 mm ID x 150 mm 1/pkg WAT035571 Delta-Pak HPI C18 300A 5um 3.9 mm ID x 150 mm 1/pkg Waters Delta-Pak Sentry Guard Column WAT046875 Delta-Pak C4 100A 5um 3.9 mm ID x 20 mm 2/pkg WAT046885 Delta-Pak C4 300A 5um 3.9 mm ID x 20 mm 2/pkg WAT046880 Delta-Pak C18 100A 5um 3.9 mm ID x 20 mm 2/pkg WAT046890 Delta-Pak C18 300A 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Resolve Guard-Pak Inserts WAT036870 Delta-Pak C18 100A 5um 10/pkg WAT036875 Delta-Pak Silica 300A 5um 10/pkg WAT036860 Delta-Pak C4 100A 5um 10/pkg WAT036865 Delta-Pak C4 300A 5um 10/pkg Waters Guard-Pak Holder WAT088141 Guard-Pak Holder 1/pkg 예일테크 2008.06.10
4
Resolve™
WatersResolve™
◈ Product Information
The non-endcapped Resolve packings are significantly different from Waters’ other packing materials. The change in chromatographic behavior is most commonly noticed with polar compounds which are typically more retained. Basic compounds can be chromatographed using mobile phase modifiers such as ion-pairing reagents which reduce excessive tailing. Resolve C18 and silica columns are available for applications requiring high resolution.
► Resolve™ 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Resolve™ Silica 5 um Spherical 90A N/A N/A Resolve™ C18 5 um Spherical 90A 10% No Resolve™ C18 10 um Spherical 90A 10% No Resolve™ C8 10 um Spherical 90A 5% No Resolve™ CN 10 um Spherical 90A 3% No Resolve™ Silica 10 um Spherical 90A N/A N/A
◈ Ordering Information Product Number Description Package Waters Resolve Column WAT011740 Resolve C18 90A 5um 3.9 mm ID x 300 mm 1/pkg WAT085711 Resolve C18 90A 5um 3.9 mm ID x 300 mm 1/pkg WAT086016 Resolve Silica 90A 5um 3.9 mm ID x 150 mm 1/pkg WAT085711 Resolve Silica 90A 5um 3.9 mm ID x 150 mm 1/pkg Waters Resolve Sentry Guard Column WAT046915 Resolve Sentry Guard C18 5um 3.9 mm ID x 20 mm 2/pkg WAT046920 Resolve Sentry Guard C8 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Resolve Guard-Pak Inserts WAT085824 Resolve C18 90A 10um 10/pkg WAT085825 Resolve Silica 90A 10um 10/pkg WAT026755 Resolve C8 90A 10um 10/pkg WAT085826 Resolve CN 90A 10um 10/pkg Waters Guard-Pak Holder WAT088141 Guard-Pak Holder 1/pkg 예일테크 2008.06.10
WatersResolve™
◈ Product Information
The non-endcapped Resolve packings are significantly different from Waters’ other packing materials. The change in chromatographic behavior is most commonly noticed with polar compounds which are typically more retained. Basic compounds can be chromatographed using mobile phase modifiers such as ion-pairing reagents which reduce excessive tailing. Resolve C18 and silica columns are available for applications requiring high resolution.
► Resolve™ 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped Resolve™ Silica 5 um Spherical 90A N/A N/A Resolve™ C18 5 um Spherical 90A 10% No Resolve™ C18 10 um Spherical 90A 10% No Resolve™ C8 10 um Spherical 90A 5% No Resolve™ CN 10 um Spherical 90A 3% No Resolve™ Silica 10 um Spherical 90A N/A N/A
◈ Ordering Information Product Number Description Package Waters Resolve Column WAT011740 Resolve C18 90A 5um 3.9 mm ID x 300 mm 1/pkg WAT085711 Resolve C18 90A 5um 3.9 mm ID x 300 mm 1/pkg WAT086016 Resolve Silica 90A 5um 3.9 mm ID x 150 mm 1/pkg WAT085711 Resolve Silica 90A 5um 3.9 mm ID x 150 mm 1/pkg Waters Resolve Sentry Guard Column WAT046915 Resolve Sentry Guard C18 5um 3.9 mm ID x 20 mm 2/pkg WAT046920 Resolve Sentry Guard C8 5um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Resolve Guard-Pak Inserts WAT085824 Resolve C18 90A 10um 10/pkg WAT085825 Resolve Silica 90A 10um 10/pkg WAT026755 Resolve C8 90A 10um 10/pkg WAT085826 Resolve CN 90A 10um 10/pkg Waters Guard-Pak Holder WAT088141 Guard-Pak Holder 1/pkg 예일테크 2008.06.10
3
uBondapak™/Bondapak®
WatersuBondapak™/Bondapak®
◈ Product Information
만약 분석 조건이uBondapak™ 또는 Bondapak® 컬럼을 필요로 한다면 단 하나의 해답, Waters입니다.
한 번 제조하는 것은 쉬울 수 있으나, 30년 이상 충진물질을 매년 재현성 있게 제조할 수 있다는 것은 제조기술 및 품질관리 능력의 수준을 보여주는 것입니다. 많은 제조사들이 "uBondapak C18" 같은 선택성이 있는 컬럼을 갖추고 있다고 주장하지만 엄격한 품질 검사를 통과한 제조사는 이제까지 없었습니다. Waters는 재현성 있는 HPLC 컬럼에 대한 표준을 설정했습니다. Waters의 uBondapak 컬럼은 여전히 세계에서 가장 폭넓게 사용되고 많이 찾는 컬럼입니다.
► uBondapak™/Bondapak 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped uBondapak™ C18 10 um lrregular 125A 10% Yes uBondapak™ Phenyl 10 um lrregular 125A 8% Yes uBondapak™ CN 10 um lrregular 125A 6% Yes uBondapak™ NH2 10 um lrregular 125A 3.5% NO Bondapak® C18 15-20 um lrregular 125A 10% Yes
◈ Ordering Information Product Number Description Package Waters uBondapak/Bondapak Column WAT086609 uBondapak C18 125A 10um 2.1 mm ID x 300 mm 1/pkg WAT086684 uBondapak C18 125A 10um 3.9 mm ID x 150 mm 1/pkg WAT027324 uBondapak C18 125A 10um 3.9 mm ID x 300 mm 1/pkg WAT044370 uBondapak C18 125A 10um 4.6mm ID x 150 mm 1/pkg 186000925 uBondapak C18 125A 10um 4.6 mm ID x 300 mm 1/pkg WAT025875 Bondapak C18 125A 15-20um 3.9 mm ID x 300 mm 1/pkg WAT086688 uBondapak CN 125A 10um 3.9 mm ID x 150 mm 1/pkg WAT084040 uBondapak NH2 125A 10um 3.9 mm ID x 300 mm 1/pkg WAT086680 uBondapak Phenyl 125A 10um 3.9 mm ID x 150 mm 1/pkg WAT027198 uBondapak Phenyl 125A 10um 3.9 mm ID x 300 mm 1/pkg Waters uBondapak/Bondapak Cartridge Column WAT052860 uBondapak C18 125A 10um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters uBondapak Sentry Guard Column WAT044480 uBondapak C18 Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg WAT046855 uBondapak CN Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg WAT046865 uBondapak NH2 Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg WAT046850 uBondapak Phenyl Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters uBondapak Guard-Pak Inserts WAT088070 uBondapak C18 125A Guard-Pak Inserts 10/pkg WAT026760 uBondapak CN 125A Guard-Pak Inserts 10/pkg WAT026745 uBondapak NH2 125A Guard-Pak Inserts 10/pkg WAT026750 uBondapak Phenyl 125A Guard-Pak Inserts 10/pkg Waters Guard-Pak Holder WAT088141 Guard-Pak Holder 1/pkg 예일테크 2008.05.08
WatersuBondapak™/Bondapak®
◈ Product Information
만약 분석 조건이uBondapak™ 또는 Bondapak® 컬럼을 필요로 한다면 단 하나의 해답, Waters입니다.
한 번 제조하는 것은 쉬울 수 있으나, 30년 이상 충진물질을 매년 재현성 있게 제조할 수 있다는 것은 제조기술 및 품질관리 능력의 수준을 보여주는 것입니다. 많은 제조사들이 "uBondapak C18" 같은 선택성이 있는 컬럼을 갖추고 있다고 주장하지만 엄격한 품질 검사를 통과한 제조사는 이제까지 없었습니다. Waters는 재현성 있는 HPLC 컬럼에 대한 표준을 설정했습니다. Waters의 uBondapak 컬럼은 여전히 세계에서 가장 폭넓게 사용되고 많이 찾는 컬럼입니다.
► uBondapak™/Bondapak 컬럼특성
Packing Chemistry Particle Size Particle Shape Pore Size Carbon Load End-capped uBondapak™ C18 10 um lrregular 125A 10% Yes uBondapak™ Phenyl 10 um lrregular 125A 8% Yes uBondapak™ CN 10 um lrregular 125A 6% Yes uBondapak™ NH2 10 um lrregular 125A 3.5% NO Bondapak® C18 15-20 um lrregular 125A 10% Yes
◈ Ordering Information Product Number Description Package Waters uBondapak/Bondapak Column WAT086609 uBondapak C18 125A 10um 2.1 mm ID x 300 mm 1/pkg WAT086684 uBondapak C18 125A 10um 3.9 mm ID x 150 mm 1/pkg WAT027324 uBondapak C18 125A 10um 3.9 mm ID x 300 mm 1/pkg WAT044370 uBondapak C18 125A 10um 4.6mm ID x 150 mm 1/pkg 186000925 uBondapak C18 125A 10um 4.6 mm ID x 300 mm 1/pkg WAT025875 Bondapak C18 125A 15-20um 3.9 mm ID x 300 mm 1/pkg WAT086688 uBondapak CN 125A 10um 3.9 mm ID x 150 mm 1/pkg WAT084040 uBondapak NH2 125A 10um 3.9 mm ID x 300 mm 1/pkg WAT086680 uBondapak Phenyl 125A 10um 3.9 mm ID x 150 mm 1/pkg WAT027198 uBondapak Phenyl 125A 10um 3.9 mm ID x 300 mm 1/pkg Waters uBondapak/Bondapak Cartridge Column WAT052860 uBondapak C18 125A 10um 4.6 mm ID x 250 mm 1/pkg WAT037525 Endfittings
(Includes 1 pair of reusable endfitting, 2 c-clips and coupling) 1/pkg Waters uBondapak Sentry Guard Column WAT044480 uBondapak C18 Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg WAT046855 uBondapak CN Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg WAT046865 uBondapak NH2 Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg WAT046850 uBondapak Phenyl Sentry Guard 10um 3.9 mm ID x 20 mm 2/pkg Waters Universal Sentry Guard Holder WAT046910 Universal Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters Integrated Sentry Guard Holder[Cartridge Type] WAT046905 Integrated Sentry Guard Holder 3.9 mm ID x 20 mm 1/pkg Waters uBondapak Guard-Pak Inserts WAT088070 uBondapak C18 125A Guard-Pak Inserts 10/pkg WAT026760 uBondapak CN 125A Guard-Pak Inserts 10/pkg WAT026745 uBondapak NH2 125A Guard-Pak Inserts 10/pkg WAT026750 uBondapak Phenyl 125A Guard-Pak Inserts 10/pkg Waters Guard-Pak Holder WAT088141 Guard-Pak Holder 1/pkg 예일테크 2008.05.08
내용이 없습니다.
