Waters
WatersSymmetry®
◈ Product Information
재현성은 Symmetry® 컬럼에서 제1의 우선 순위입니다. 이 컬럼은 고 순도 원료로 제작되고 엄격한 제어를 받는 제조 과정 및 컬럼 패킹 절차로 최고의 재현성을 자랑하는 HPLC 컬럼입니다. Symmetry 카트리지 및 가드 컬럼 하드웨어도 공급됩니다.
| 컬럼 | 선택 목적 |
| Symmetry C18 및 C8 컬럼 | 재현성 |
| SymmetryShield RP18 및 RP8 컬럼 | 우수한 피크 모양 |
| Symmetry300 C18 및 C4 컬럼 | 펩타이드 및 단백질의 높은 회수율 |
► Symmetry 컬럼특성
| Packing |
Chemistry |
Particle Size | Particle Shape | Pore Size | Carbon Load | End-capped |
| Symmetry® |
C18 |
3.5, 5 um | Spherical | 100A | 19% | Yes |
|
C8 |
3.5, 5 um | Spherical | 100A | 12% | Yes | |
| SymmetryPrep™ |
C18 |
7 um | Spherical | 100A | 19% | Yes |
|
C8 |
7 um | Spherical | 100A | 12% | Yes | |
| SymmetryShield™ |
RP18 |
3.5, 5, 7 um | Spherical | 100A | 17% | Yes |
|
RP8 |
3.5, 5, 7 um | Spherical | 100A | 15% | Yes | |
| Symmetry300™ |
C18 |
3.5, 5 um | Spherical | 300A | 8.50% | Yes |
|
C4 |
3.5, 5 um | Spherical | 300A | 2.80% | Yes |
► 일반 HPLC 컬럼 문제들에 대한 솔루션
| Problem | Impact | Solution and Benefit |
| Column-to-column and batch-to-batch reproducibility is not consistent | • Increased labor costs due to individual column QC testing • Revalidate/redevelop method with each new batch of columns |
• Symmetry® brand of HPLC columns have the tightest specifications in the market to provide the most consistent results • Symmetry columns achieve outstanding year-to-year reproducibility to give long life to established analytical methods |
| Severe or excessive peak tailing | • Increased number of experiments to optimize analytical method | • SymmetryShield™ columns with embedded polar technology provide less peak tailing for faster and easier method development |
| Column selectivity not resolving critical peaks | • Increased number of experiments to optimize analytical method | • SymmetryShield columns are the perfect complement to Symmetry columns, providing different selectivity and enabling column selection to maximize resolution |
| Difficulty resolving individual compounds in complex peptide or protein samples | • Increased cost and time to isolate | • Symmetry300™ columns demonstrate the highest peak capacity of all leading brands • Excellent reproducibility for separating large numbers of peptides or proteins |
| Scaling-up analytical method to preparative scale requires too many adjustments to achieve good isolation and purification | • Higher costs due to method development time and labor • Higher cost of equipment, samples and prep columns |
• SymmetryPrep™ columns save development time with direct scale-up while maintaining resolution |
► Symmetry C18 및 C8-재현성
Symmetry® 컬럼은 재현성 있는 크로마토그래피 결과들을 제공합니다.
좁은 컬럼 사양으로도 재현 가능한 결과를 얻을 수 있습니다. Symmetry 컬럼의 표면 coverage 요건들은 업계에서 가장 엄격한 사양들로 그 결과, 분리능에서 피크 전이가 최소화되고 batch-to-batch 및 컬럼별로 재현성이 증가합니다.

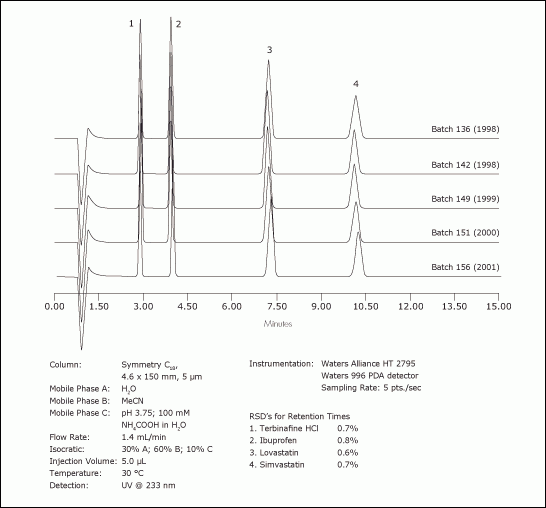

우수한 연도별 재현성
► Symmetry Shield RP18 및 RP8-우수한 피크 형태
SymmetryShield™ 컬럼은 글자 그대로 강염기성 분석 물질로부터 실리카의 잔류 실라놀(silanol)을 '보호(shield)'하는 Waters의 특허 받은 embedded polar 그룹 기술을 바탕으로 한 역상 컬럼입니다.
Shield 기술

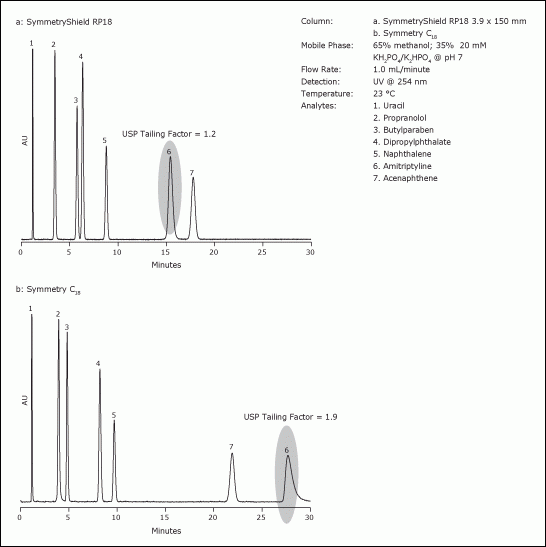

피크 형태 개선 및 고유한 선택성

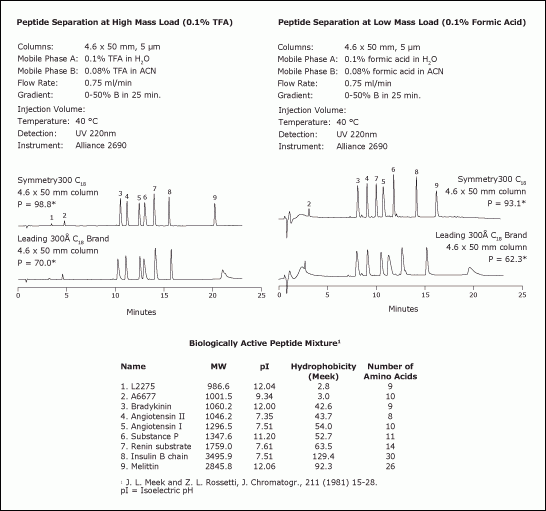

► Symmetry300 C18 및 C4-높은 펩타이드 및 단백질 회수율
Symmetry300™ 컬럼은 pore가 넓은 역상 컬럼으로 Symmetry® 컬럼 플랫폼을 기반으로 하고 그 표준은 민감하고 엄격하며 견고한 HPLC 분석을 위해 제약산업을 바탕으로 삼고 있습니다. 이러한 컬럼의 성격은 다음과 같습니다.
• 중성 및 강염기성 펩타이드만이 아니라 소수성 및 친수성 펩타이드를 동시에 분리할 때 우수한 성능을 보입니다.
• 높고 낮은 mass load 조건에서 성능이 개선됩니다.
• 밸리데이션, 컴플라이언스에 최상의 솔루션입니다.

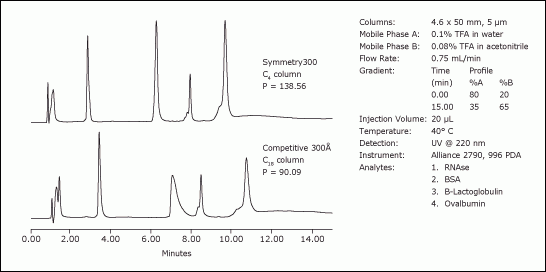

Symmetry300 C4 컬럼은 20여종 이상의 HPLC 컬럼들과 비교할 때 최고 평균 피크 용량을 보입니다. 예시에서 보는 바와 같이, 복잡한 단백질 분리를 Symmetry300 C4 컬럼은 경쟁 제품인 300Å 컬럼과 비교하여 더 나은 피크 형태와 함께 더 나은 분리를 제공합니다.
단백질: Symmetry300 C4 과 경쟁 제품 비교
► Symmetry 카트리지 및 가드 컬럼 하드웨어

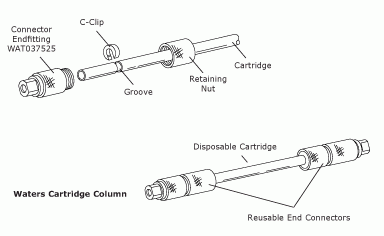

Waters 카트리지 컬럼
Waters 카트리지 시스템은 재사용할 수 있는 endfitting이 필요한데 처음 Waters HPLC 카트리지를 구입할 때 주문합니다. Waters 표준 커넥터를 사용하여 이러한 카트리지 컬럼을 HPLC에 연결합니다.
카트리지 endfitting
2.1 x 50mm, 2.1 x 100mm, 2.1 x 150mm, 2.1 x 250mm, 제품번호 700000117
3.0 x 50mm, 3.0 x 100mm, 3.0 x 150mm, 3.0 x 250mm, 제품번호 WAT037525
3.9 x 50mm, 3.9 x 100mm, 3.9 x 150mm, 3.9 x 250mm, 제품번호 WAT037525
4.6 x 50mm, 4.6 x 100mm, 4.6 x 150mm, 4.6 x 250mm, 제품번호 WAT037525
Waters 센트리 가드(Sentry Guard) 컬럼 및 일반 가드 홀더
Waters는 모든 Waters 분석 컬럼과 동일한 고성능 패킹 물질들을 포함하는 Sentry™ Guard 라인 컬럼을 제공합니다.
Biological fluid cleanup 및 온도 제어를 위해 증가된 capacity가 필요한 고객들을 위해 개발된 Sentry Guard 컬럼은 다음 두 가지 홀더 디자인으로 제공됩니다.
• 재사용이 가능한 endfitting을 포함하며 Waters 스틸 카트리지의 통합된 일부로 사용 시
• HPLC 컬럼과 사용 시
둘 다 도구 없이 설치됩니다.
통합형 Sentry Guard 홀더는 카트리지 endfitting과 함께 제공(위 참조)
3.0 x 20mm, 3.9 x 20mm, 제품번호 WAT046905
일반 가드 홀더(모든 컬럼에서 사용)
2.1 x 10mm, 제품번호 WAT097958
2.1 x 20mm, 제품번호 186000262
3.0 x 20mm, 제품번호 WAT046910
3.9 x 20mm, 제품번호 WAT046910
4.6 x 20mm, 제품번호 WAT046910
◈ Ordering Information
|
Product Number |
Description |
Package |
|
Waters Symmetry Column | ||
|---|---|---|
|
WAT106056 |
Symmetry C18 3.5um 1.0 mm ID x 50 mm |
1/pkg |
|
WAT248059 |
Symmetry C18 3.5um 1.0 mm ID x 100 mm |
1/pkg |
|
WAT058973 |
Symmetry C18 3.5um 2.1 mm ID x 30 mm |
1/pkg |
|
WAT200650 |
Symmetry C18 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
WAT058965 |
Symmetry C18 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
WAT106005 |
Symmetry C18 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186002612 |
Symmetry C18 3.5um 3.0 mm ID x 50 mm |
1/pkg |
|
186000696 |
Symmetry C18 3.5um 3.0 mm ID x 100 mm |
1/pkg |
|
186000695 |
Symmetry C18 3.5um 3.0 mm ID x 150 mm |
1/pkg |
|
186000271 |
Symmetry C18 3.5um 4.6 mm ID x 30 mm |
1/pkg |
|
WAT200625 |
Symmetry C18 3.5um 4.6 mm ID x 50 mm |
1/pkg |
|
WAT066224 |
Symmetry C18 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
WAT066220 |
Symmetry C18 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT200632 |
Symmetry C18 3.5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT106052 |
Symmetry C8 3.5um 1.0 mm ID x 50 mm |
1/pkg |
|
WAT248072 |
Symmetry C8 3.5um 1.0 mm ID x 100 mm |
1/pkg |
|
WAT058977 |
Symmetry C8 3.5um 2.1 mm ID x 30 mm |
1/pkg |
|
WAT200624 |
Symmetry C8 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
WAT058961 |
Symmetry C8 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
WAT106011 |
Symmetry C8 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186002613 |
Symmetry C8 3.5um 3.0 mm ID x 50 mm |
1/pkg |
|
186000698 |
Symmetry C8 3.5um 3.0 mm ID x 100 mm |
1/pkg |
|
186000697 |
Symmetry C8 3.5um 3.0 mm ID x 150 mm |
1/pkg |
|
186000270 |
Symmetry C8 3.5um 4.6 mm ID x 30 mm |
1/pkg |
|
WAT200620 |
Symmetry C8 3.5um 4.6 mm ID x 50 mm |
1/pkg |
|
WAT066200 |
Symmetry C8 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
WAT066204 |
Symmetry C8 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT200630 |
Symmetry C8 3.5um 4.6 mm ID x 150 mm |
1/pkg |
|
186000206 |
Symmetry C18 5um 2.1 mm ID x 50 mm |
1/pkg |
|
186002608 |
Symmetry C18 5um 2.1 mm ID x 100 mm |
1/pkg |
|
WAT056975 |
Symmetry C18 5um 2.1 mm ID x 150 mm |
1/pkg |
|
WAT054200 |
Symmetry C18 5um 3.0 mm ID x 150 mm |
1/pkg |
|
186000690 |
Symmetry C18 5um 3.0 mm ID x 250 mm |
1/pkg |
|
WAT046980 |
Symmetry C18 5um 3.9 mm ID x 150 mm |
1/pkg |
|
186000207 |
Symmetry C18 5um 4.6 mm ID x 50 mm |
1/pkg |
|
186002616 |
Symmetry C18 5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT045905 |
Symmetry C18 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT054275 |
Symmetry C18 5um 4.6 mm ID x 250 mm |
1/pkg |
|
186000212 |
Symmetry C8 5um 2.1 mm ID x 50 mm |
1/pkg |
|
186002609 |
Symmetry C8 5um 2.1 mm ID x 100 mm |
1/pkg |
|
WAT056955 |
Symmetry C8 5um 2.1 mm ID x 150 mm |
1/pkg |
|
WAT054230 |
Symmetry C8 5um 3.0 mm ID x 150 mm |
1/pkg |
|
186000691 |
Symmetry C8 5um 3.0 mm ID x 250 mm |
1/pkg |
|
WAT046970 |
Symmetry C8 5um 3.9 mm ID x 150 mm |
1/pkg |
|
186000213 |
Symmetry C8 5um 4.6 mm ID x 50 mm |
1/pkg |
|
186002617 |
Symmetry C8 5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT045995 |
Symmetry C8 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT054270 |
Symmetry C8 5um 4.6 mm ID x 250 mm |
1/pkg |
|
Waters Symmetry Cartridge Column | ||
|
186000269 |
Symmetry C18 3.5um 2.1 mm ID x 20 mm |
1/pkg |
|
186000152 |
Symmetry C18 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000151 |
Symmetry C18 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000150 |
Symmetry C18 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
WAT066260 |
Symmetry C18 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
WAT066265 |
Symmetry C18 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
186000268 |
Symmetry C8 3.5um 2.1 mm ID x 20 mm |
1/pkg |
|
186000149 |
Symmetry C8 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000153 |
Symmetry C8 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000148 |
Symmetry C8 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
WAT066210 |
Symmetry C8 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
WAT066215 |
Symmetry C8 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT054220 |
Symmetry C18 5um 3.9 mm ID x 50 mm |
1/pkg |
|
WAT054205 |
Symmetry C18 5um 3.9 mm ID x 150 mm |
1/pkg |
|
WAT054210 |
Symmetry C18 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT054215 |
Symmetry C18 5um 4.6mm ID x 250 mm |
1/pkg |
|
WAT054240 |
Symmetry C8 5um 3.9 mm ID x 50 mm |
1/pkg |
|
WAT054235 |
Symmetry C8 5um 3.9 mm ID x 150 mm |
1/pkg |
|
WAT054255 |
Symmetry C8 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT054245 |
Symmetry C8 5um 4.6mm ID x 250 mm |
1/pkg |
|
700000117 |
Endfittings 2.1mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
WAT037525 |
Endfittings 3.0, 3.9, 4.6 mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
Waters Symmetry IS Column | ||
|
186002066 |
Symmetry C18 IS Column 3.5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002067 |
Symmetry C8 IS Column 3.5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002070 |
Symmetry C18 IS Column 5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002071 |
Symmetry C8 IS Column 5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002074 |
Symmetry C18 IS Column 3.5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002075 |
Symmetry C8 IS Column 3.5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002078 |
Symmetry C18 IS Column 5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002079 |
Symmetry C8 IS Column 5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002082 |
Symmetry C18 IS Column 3.5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002083 |
Symmetry C8 IS Column 3.5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002086 |
Symmetry C18 IS Column 5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002087 |
Symmetry C8 IS Column 5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002090 |
Symmetry C18 IS Column 3.5um 4.6 mm ID x 20 mm |
1/pkg |
|
186002091 |
Symmetry C8 IS Column 3.5um 4.6 mm ID x 20 mm |
1/pkg |
|
186002094 |
Symmetry C18 IS Column 5um 4.6 mm ID x 20 mm |
1/pkg |
|
186002095 |
Symmetry C8 IS Column 5um 4.6 mm ID x 20 mm |
1/pkg |
|
Waters Symmetry Sentry Guard Column | ||
|
WAT106127 |
Symmetry C18 Sentry Guard 3.5um 2.1 mm ID x 10 mm |
2/pkg |
|
WAT054225 |
Symmetry C18 Sentry Guard 5um 3.9 mm ID x 20 mm |
2/pkg |
|
WAT106128 |
Symmetry C8 Sentry Guard 3.5um 2.1 mm ID x 10 mm |
2/pkg |
|
WAT054250 |
Symmetry C8 Sentry Guard 5um 3.9 mm ID x 20 mm |
2/pkg |
|
Waters Universal Sentry Guard Holder | ||
|
WAT046910 |
Universal Sentry Guard Holder 3.9 mm ID x 20 mm |
1/pkg |
|
Waters Integrated Sentry Guard Holder[Cartridge Type] | ||
|
WAT046905 |
Integrated Sentry Guard Holder 3.9 mm ID x 20 mm |
1/pkg |
|
Waters Symmetry Method Valdiation Kits | ||
|
WAT094240 |
Symmetry C18 3.5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT094234 |
Symmetry C18 5um 2.1 mm ID x 150 mm |
3/pkg |
|
WAT054446 |
Symmetry C18 5um 3.0 mm ID x 150 mm |
3/pkg |
|
WAT047210 |
Symmetry C18 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT054448 |
Symmetry C18 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT054450 |
Symmetry C18 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT054452 |
Symmetry C18 Cartridge 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT054454 |
Symmetry C18 Cartridge 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT054456 |
Symmetry C18 Cartridge 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT094237 |
Symmetry C8 3.5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT094231 |
Symmetry C8 5um 2.1 mm ID x 150 mm |
3/pkg |
|
WAT054434 |
Symmetry C8 5um 3.0 mm ID x 150 mm |
3/pkg |
|
WAT046955 |
Symmetry C8 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT054435 |
Symmetry C8 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT054438 |
Symmetry C8 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT054440 |
Symmetry C8 Cartridge 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT054442 |
Symmetry C8 Cartridge 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT054444 |
Symmetry C8 Cartridge 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT037525 |
Endfittings 3.0, 3.9, 4.6 mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
Waters Symmetry Shield Column | ||
|
186000175 |
Symmetry Shield RP18 3.5um 1.0 mm ID x 50 mm |
1/pkg |
|
186000176 |
Symmetry Shield RP18 3.5um 1.0 mm ID x 100 mm |
1/pkg |
|
186000171 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 30 mm |
1/pkg |
|
186000172 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000173 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000174 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186002614 |
Symmetry Shield RP18 3.5um 3.0 mm ID x 50 mm |
1/pkg |
|
186000700 |
Symmetry Shield RP18 3.5um 3.0 mm ID x 100 mm |
1/pkg |
|
186000699 |
Symmetry Shield RP18 3.5um 3.0 mm ID x 150 mm |
1/pkg |
|
186000177 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 50 mm |
1/pkg |
|
186000178 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
186000179 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
186000180 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm |
1/pkg |
|
186000175 |
Symmetry Shield RP8 3.5um 1.0 mm ID x 50 mm |
1/pkg |
|
WAT106060 |
Symmetry Shield RP8 3.5um 1.0 mm ID x 100 mm |
1/pkg |
|
WAT106048 |
Symmetry Shield RP8 3.5um 2.1 mm ID x 30 mm |
1/pkg |
|
WAT094257 |
Symmetry Shield RP8 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
WAT058969 |
Symmetry Shield RP8 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
WAT106008 |
Symmetry Shield RP8 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186002615 |
Symmetry Shield RP8 3.5um 3.0 mm ID x 50 mm |
1/pkg |
|
186000703 |
Symmetry Shield RP8 3.5um 3.0 mm ID x 100 mm |
1/pkg |
|
186000702 |
Symmetry Shield RP8 3.5um 3.0 mm ID x 150 mm |
1/pkg |
|
WAT094260 |
Symmetry Shield RP8 3.5um 4.6 mm ID x 50 mm |
1/pkg |
|
WAT094263 |
Symmetry Shield RP8 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
WAT094266 |
Symmetry Shield RP8 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT094269 |
Symmetry Shield RP8 3.5um 4.6 mm ID x 150 mm |
1/pkg |
|
186000217 |
Symmetry Shield RP18 5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000998 |
Symmetry Shield RP18 5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000111 |
Symmetry Shield RP18 5um 2.1 mm ID x 150 mm |
1/pkg |
|
186000692 |
Symmetry Shield RP18 5um 3.0 mm ID x 150 mm |
1/pkg |
|
186000693 |
Symmetry Shield RP18 5um 3.0 mm ID x 250 mm |
1/pkg |
|
186000108 |
Symmetry Shield RP18 5um 3.9 mm ID x 150 mm |
1/pkg |
|
186000218 |
Symmetry Shield RP18 5um 4.6 mm ID x 50 mm |
1/pkg |
|
186002618 |
Symmetry Shield RP18 5um 4.6 mm ID x 100 mm |
1/pkg |
|
186000109 |
Symmetry Shield RP18 5um 4.6 mm ID x 150 mm |
1/pkg |
|
186000112 |
Symmetry Shield RP18 5um 4.6 mm ID x 250 mm |
1/pkg |
|
186000223 |
Symmetry Shield RP8 5um 2.1 mm ID x 50 mm |
1/pkg |
|
186002611 |
Symmetry Shield RP8 5um 2.1 mm ID x 100 mm |
1/pkg |
|
WAT094245 |
Symmetry Shield RP8 5um 2.1 mm ID x 150 mm |
1/pkg |
|
WAT094243 |
Symmetry Shield RP8 5um 3.0 mm ID x 150 mm |
1/pkg |
|
186000694 |
Symmetry Shield RP8 5um 3.0 mm ID x 250 mm |
1/pkg |
|
WAT200655 |
Symmetry Shield RP8 5um 3.9 mm ID x 150 mm |
1/pkg |
|
186000224 |
Symmetry Shield RP8 5um 4.6 mm ID x 50 mm |
1/pkg |
|
186002619 |
Symmetry Shield RP8 5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT200662 |
Symmetry Shield RP8 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT200670 |
Symmetry Shield RP8 5um 4.6 mm ID x 250 mm |
1/pkg |
|
Waters Symmetry Shield Cartridge Column | ||
|
186000168 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000167 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000166 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186000183 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
186000170 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
186000147 |
Symmetry Shield RP8 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000146 |
Symmetry Shield RP8 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000145 |
Symmetry Shield RP8 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
WAT094272 |
Symmetry Shield RP8 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
WAT094275 |
Symmetry Shield RP8 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
186000106 |
Symmetry Shield RP18 5um 3.9 mm ID x 150 mm |
1/pkg |
|
186000110 |
Symmetry Shield RP18 5um 4.6 mm ID x 150 mm |
1/pkg |
|
186000113 |
Symmetry Shield RP18 5um 4.6mm ID x 250 mm |
1/pkg |
|
WAT094248 |
Symmetry Shield RP8 5um 3.9 mm ID x 50 mm |
1/pkg |
|
WAT200658 |
Symmetry Shield RP8 5um 3.9 mm ID x 150 mm |
1/pkg |
|
WAT200665 |
Symmetry Shield RP8 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT200661 |
Symmetry Shield RP8 5um 4.6mm ID x 250 mm |
1/pkg |
|
700000117 |
Endfittings 2.1mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
WAT037525 |
Endfittings 3.0, 3.9, 4.6 mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
Waters Symmetry Shield IS Column | ||
|
186002068 |
Symmetry Shield RP18 IS Column 3.5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002072 |
Symmetry Shield RP8 IS Column 3.5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002076 |
Symmetry Shield RP18 IS Column 5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002080 |
Symmetry Shield RP8 IS Column 5um 2.1 mm ID x 20 mm |
1/pkg |
|
186002084 |
Symmetry Shield RP18 IS Column 3.5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002088 |
Symmetry Shield RP8 IS Column 3.5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002092 |
Symmetry Shield RP18 IS Column 5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002096 |
Symmetry Shield RP8 IS Column 5um 3.0 mm ID x 20 mm |
1/pkg |
|
186002069 |
Symmetry Shield RP18 IS Column 3.5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002073 |
Symmetry Shield RP8 IS Column 3.5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002077 |
Symmetry Shield RP18 IS Column 5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002081 |
Symmetry Shield RP8 IS Column 5um 3.9 mm ID x 20 mm |
1/pkg |
|
186002085 |
Symmetry Shield RP18 IS Column 3.5um 4.6 mm ID x 20 mm |
1/pkg |
|
186002089 |
Symmetry Shield RP8 IS Column 3.5um 4.6 mm ID x 20 mm |
1/pkg |
|
186002093 |
Symmetry Shield RP18 IS Column 5um 4.6 mm ID x 20 mm |
1/pkg |
|
186002097 |
Symmetry Shield RP8 IS Column 5um 4.6 mm ID x 20 mm |
1/pkg |
|
Waters Symmetry Shield Sentry Guard Column | ||
|
186000169 |
Symmetry Shield RP18 Sentry Guard 3.5um 2.1 mm ID x 10 mm |
2/pkg |
|
186000701 |
Symmetry Shield RP18 Sentry Guard 3.5um 3.9 mm ID x 20 mm |
2/pkg |
|
186000107 |
Symmetry Shield RP18 Sentry Guard 5um 3.9 mm ID x 20 mm |
2/pkg |
|
WAT106129 |
Symmetry Shield RP8 Sentry Guard 3.5um 2.1 mm ID x 10 mm |
2/pkg |
|
186000704 |
Symmetry Shield RP8 Sentry Guard 3.5um 3.9 mm ID x 20 mm |
2/pkg |
|
WAT200675 |
Symmetry Shield RP8 Sentry Guard 5um 3.9 mm ID x 20 mm |
2/pkg |
|
Waters Universal Sentry Guard Holder | ||
|
WAT046910 |
Universal Sentry Guard Holder 3.9 mm ID x 20 mm |
1/pkg |
|
Waters Integrated Sentry Guard Holder[Cartridge Type] | ||
|
WAT046905 |
Integrated Sentry Guard Holder 3.9 mm ID x 20 mm |
1/pkg |
|
Waters Symmetry Shield Method Valdiation Kits | ||
|
186000182 |
Symmetry Shield RP18 3.5um 2.1 mm ID x 150 mm |
3/pkg |
|
186000181 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm |
3/pkg |
|
186000100 |
Symmetry Shield RP18 5um 2.1 mm ID x 150 mm |
3/pkg |
|
186000104 |
Symmetry Shield RP18 5um 3.9 mm ID x 150 mm |
3/pkg |
|
186000103 |
Symmetry Shield RP18 5um 4.6 mm ID x 150 mm |
3/pkg |
|
186000102 |
Symmetry Shield RP18 5um 4.6 mm ID x 250 mm |
3/pkg |
|
186000105 |
Symmetry Shield RP18 Cartridge 5um 3.9 mm ID x 150 mm |
3/pkg |
|
186000101 |
Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 150 mm |
3/pkg |
|
186000114 |
Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT094278 |
Symmetry Shield RP18 3.5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT094254 |
Symmetry Shield RP18 5um 2.1 mm ID x 150 mm |
3/pkg |
|
WAT094251 |
Symmetry Shield RP18 5um 3.0 mm ID x 150 mm |
3/pkg |
|
WAT210594 |
Symmetry Shield RP18 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT210588 |
Symmetry Shield RP18 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT210591 |
Symmetry Shield RP18 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT210582 |
Symmetry Shield RP18 Cartridge 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT210585 |
Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT210579 |
Symmetry Shield RP18 Cartridge 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT037525 |
Endfittings 3.0, 3.9, 4.6 mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
Waters Symmetry300 Column | ||
|
186000185 |
Symmetry300 C18 3.5um 1.0 mm ID x 100 mm |
1/pkg |
|
186000187 |
Symmetry300 C18 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000188 |
Symmetry300 C18 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000200 |
Symmetry300 C18 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186000201 |
Symmetry300 C18 3.5um 4.6 mm ID x 50 mm |
1/pkg |
|
186000189 |
Symmetry300 C18 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
186000190 |
Symmetry300 C18 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
186000197 |
Symmetry300 C18 3.5um 4.6 mm ID x 150 mm |
1/pkg |
|
186000276 |
Symmetry300 C4 3.5um 1.0 mm ID x 100 mm |
1/pkg |
|
186000277 |
Symmetry300 C4 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000278 |
Symmetry300 C4 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000279 |
Symmetry300 C4 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186000280 |
Symmetry300 C4 3.5um 4.6 mm ID x 50 mm |
1/pkg |
|
186000281 |
Symmetry300 C4 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
186000282 |
Symmetry300 C4 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
186000283 |
Symmetry300 C4 3.5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT106172 |
Symmetry300 C18 5um 2.1 mm ID x 150 mm |
1/pkg |
|
WAT106154 |
Symmetry300 C18 5um 3.9 mm ID x 150 mm |
1/pkg |
|
WAT106209 |
Symmetry300 C18 5um 4.6 mm ID x 50 mm |
1/pkg |
|
WAT106157 |
Symmetry300 C18 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT106151 |
Symmetry300 C18 5um 4.6 mm ID x 250 mm |
1/pkg |
|
186000285 |
Symmetry300 C4 5um 2.1 mm ID x 150 mm |
1/pkg |
|
186000286 |
Symmetry300 C4 5um 3.9 mm ID x 150 mm |
1/pkg |
|
186000287 |
Symmetry300 C4 5um 4.6 mm ID x 50 mm |
1/pkg |
|
186000288 |
Symmetry300 C4 5um 4.6 mm ID x 150 mm |
1/pkg |
|
186000289 |
Symmetry300 C4 5um 4.6 mm ID x 250 mm |
1/pkg |
|
Waters Symmetry300 Cartridge Column | ||
|
186000199 |
Symmetry300 C18 3.5um 2.1 mm ID x 50 mm |
1/pkg |
|
186000191 |
Symmetry300 C18 3.5um 2.1 mm ID x 100 mm |
1/pkg |
|
186000196 |
Symmetry300 C18 3.5um 2.1 mm ID x 150 mm |
1/pkg |
|
186000192 |
Symmetry300 C18 3.5um 4.6 mm ID x 75 mm |
1/pkg |
|
186000193 |
Symmetry300 C18 3.5um 4.6 mm ID x 100 mm |
1/pkg |
|
WAT106169 |
Symmetry300 C18 5um 3.9 mm ID x 150 mm |
1/pkg |
|
WAT106163 |
Symmetry300 C18 5um 4.6 mm ID x 150 mm |
1/pkg |
|
WAT106160 |
Symmetry300 C18 5um 4.6 mm ID x 250 mm |
1/pkg |
|
700000117 |
Endfittings 2.1mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
WAT037525 |
Endfittings 3.0, 3.9, 4.6 mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
Waters Symmetry300 Sentry Guard Column | ||
|
186000198 |
Symmetry300 C18 Sentry Guard 3.5um 2.1 mm ID x 10 mm |
2/pkg |
|
WAT106166 |
Symmetry300 C18 Sentry Guard 5um 3.9 mm ID x 20 mm |
2/pkg |
|
186000275 |
Symmetry300 C4 Sentry Guard 3.5um 2.1 mm ID x 10 mm |
2/pkg |
|
186000284 |
Symmetry300 C4 Sentry Guard 5um 3.9 mm ID x 20 mm |
2/pkg |
|
Waters Universal Sentry Guard Holder | ||
|
WAT046910 |
Universal Sentry Guard Holder 3.9 mm ID x 20 mm |
1/pkg |
|
Waters Integrated Sentry Guard Holder[Cartridge Type] | ||
|
WAT046905 |
Integrated Sentry Guard Holder 3.9 mm ID x 20 mm |
1/pkg |
|
Waters Symmetry300 Method Valdiation Kits | ||
|
186000194 |
Symmetry300 C18 3.5um 2.1 mm ID x 150 mm |
3/pkg |
|
186000195 |
Symmetry300 C18 3.5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT106163 |
Symmetry300 C18 5um 2.1 mm ID x 150 mm |
3/pkg |
|
WAT106187 |
Symmetry300 C18 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT106190 |
Symmetry300 C18 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT106184 |
Symmetry300 C18 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT106181 |
Symmetry300 C18 Cartridge 5um 3.9 mm ID x 150 mm |
3/pkg |
|
WAT106175 |
Symmetry300 C18 Cartridge 5um 4.6 mm ID x 150 mm |
3/pkg |
|
WAT106178 |
Symmetry300 C18 Cartridge 5um 4.6 mm ID x 250 mm |
3/pkg |
|
186000290 |
Symmetry300 C4 3.5um 2.1 mm ID x 150 mm |
3/pkg |
|
186000291 |
Symmetry300 C4 3.5um 4.6 mm ID x 150 mm |
3/pkg |
|
186000292 |
Symmetry300 C4 5um 2.1 mm ID x 150 mm |
3/pkg |
|
186000293 |
Symmetry300 C4 5um 3.9 mm ID x 150 mm |
3/pkg |
|
186000294 |
Symmetry300 C4 5um 4.6 mm ID x 150 mm |
3/pkg |
|
186000295 |
Symmetry300 C4 5um 4.6 mm ID x 250 mm |
3/pkg |
|
WAT037525 |
Endfittings 3.0, 3.9, 4.6 mm ID (Includes 1 pair of reusable endfitting, 2 c-clips and coupling) |
1/pkg |
|
Symmetry Capillaries | ||
|
186002188 |
Symmetry C18 3.5um 75 um ID x 50 mm |
1/pkg |
|
186002189 |
Symmetry C18 3.5um 75 um ID x 100 mm |
1/pkg |
|
186002190 |
Symmetry C18 3.5um 75 um ID x 150 mm |
1/pkg |
|
186002191 |
Symmetry300 C18 3.5um 75 um ID x 50 mm |
1/pkg |
|
186002192 |
Symmetry300 C18 3.5um 75 um ID x 100 mm |
1/pkg |
|
186002193 |
Symmetry300 C18 3.5um 75 um ID x 150 mm |
1/pkg |
|
186002201 |
Symmetry C18 3.5um 100 um ID x 50 mm |
1/pkg |
|
186002202 |
Symmetry C18 3.5um 100 um ID x 100 mm |
1/pkg |
|
186002203 |
Symmetry C18 3.5um 100 um ID x 150 mm |
1/pkg |
|
186002204 |
Symmetry300 C18 3.5um 100 um ID x 50 mm |
1/pkg |
|
186002205 |
Symmetry300 C18 3.5um 100 um ID x 100 mm |
1/pkg |
|
186002206 |
Symmetry300 C18 3.5um 100 um ID x 150 mm |
1/pkg |
|
186002459 |
Symmetry C18 3.5um 150 um ID x 50 mm |
1/pkg |
|
186002460 |
Symmetry C18 3.5um 150 um ID x 100 mm |
1/pkg |
|
186002461 |
Symmetry C18 3.5um 150 um ID x 150 mm |
1/pkg |
|
186002462 |
Symmetry300 C18 3.5um 150 um ID x 50 mm |
1/pkg |
|
186002463 |
Symmetry300 C18 3.5um 150 um ID x 100 mm |
1/pkg |
|
186002464 |
Symmetry300 C18 3.5um 150 um ID x 150 mm |
1/pkg |
|
186002581 |
Symmetry C18 3.5um 300 um ID x 50 mm |
1/pkg |
|
186002582 |
Symmetry C18 3.5um 300 um ID x 100 mm |
1/pkg |
|
186002583 |
Symmetry C18 3.5um 300 um ID x 150 mm |
1/pkg |
|
186002584 |
Symmetry C18 5um 300 um ID x 50 mm |
1/pkg |
|
186002585 |
Symmetry C18 5um 300 um ID x 100 mm |
1/pkg |
|
186002586 |
Symmetry C18 5um 300 um ID x 150 mm |
1/pkg |
|
186002587 |
Symmetry300 C18 3.5um 300 um ID x 50 mm |
1/pkg |
|
186002588 |
Symmetry300 C18 3.5um 300 um ID x 100 mm |
1/pkg |
|
186002589 |
Symmetry300 C18 3.5um 300 um ID x 150 mm |
1/pkg |
|
186002590 |
Symmetry300 C18 5um 300 um ID x 50 mm |
1/pkg |
|
186002591 |
Symmetry300 C18 5um 300 uµm ID x 100 mm |
1/pkg |
|
186002592 |
Symmetry300 C18 5um 300 um ID x 150 mm |
1/pkg |
게시물수정
게시물 수정을 위해 비밀번호를 입력해주세요.
댓글삭제게시물삭제
게시물 삭제를 위해 비밀번호를 입력해주세요.
