YMC
YMC-Pack SIL
◈ Product Information
High-Purity, High-Sample Recovery

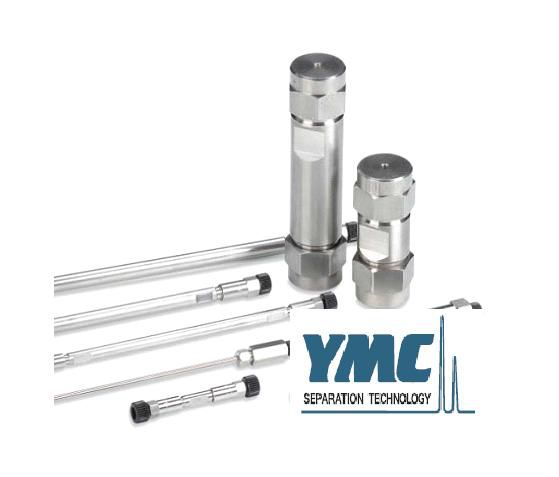

The high purity silica found in YMC-Pack Silica columns provides virtually complete sample recovery. The absence of silica impurities reduces non-specific sample adsorption which lowers sample recovery and may cause unusual peak shapes.
High Sample Loading, High Mechanical Stability
The totally porous nature of the silica found in YMC-Pack columns provides high sample loading. With some competitive silicas, the level of porosity would make the particles prone to fracture, resulting in fines and high backpressure. However, the high chemical purity of YMC*Gel Silica results in a particle structure with high mechanical strength.
► Point
• Choice of 60Å, 120Å, 200Å and 300Å pore size packings
• High Mechanical stability
• Ultra high-purity silica
• Available in analytical, semipreparative, preparative and process scale column sizes
► Specification
- Particle size :3㎛, 5㎛, 10㎛
- Pore size :60Å, 120Å, 200Å, 300Å
- Usable pH range :2.0-7.5
◈ Ordering Information
|
YMC-Pack SIL(Pore size120Å) Analytical Columns | |||
|---|---|---|---|
|
Particle size |
Pore size |
Column size Inner diameter x length |
Product Number |
|
S-3 |
120 |
4.6 X 100 |
SL12S03-1046WT |
|
4.6 X 150 |
SL12S03-1546WT | ||
|
6.0 X 100 |
SL12S03-1006WT | ||
|
6.0 X 150 |
SL12S03-1506WT | ||
|
S-5 |
120 |
4.6 X 100 |
SL12S05-1046WT |
|
4.6 X 150 |
SL12S05-1546WT | ||
|
4.6 X 250 |
SL12S05-2546WT | ||
|
4.6 X 300 |
SL12S05-3046WT | ||
|
6.0 X 100 |
SL12S05-1006WT | ||
|
6.0 X 150 |
SL12S05-1506WT | ||
|
6.0 X 250 |
SL12S05-2506WT | ||
|
6.0 X 300 |
SL12S05-3006WT | ||
|
S-10 |
120 |
4.6 X 100 |
SL12S11-1046WT |
|
4.6 X 150 |
SL12S11-1546WT | ||
|
4.6 X 250 |
SL12S11-2546WT | ||
|
4.6 X 300 |
SL12S11-3046WT | ||
|
6.0 X 100 |
SL12S11-1006WT | ||
|
6.0 X 150 |
SL12S11-1506WT | ||
|
6.0 X 250 |
SL12S11-2506WT | ||
|
6.0 X 300 |
SL12S11-3006WT | ||
|
YMC-Pack SIL(Pore size120Å) Semi-preparative Columns | |||
|
Particle size |
Pore size |
Column size Inner diameter x length |
Product Number |
|
S-5 |
120 |
10 X 150 |
SL12S05-1510WT |
|
10 X 250 |
SL12S05-2510WT | ||
|
10 X 300 |
SL12S05-3010WT | ||
|
20 X 100 |
SL12S05-1020WT | ||
|
20 X 150 |
SL12S05-1520WT | ||
|
20 X 250 |
SL12S05-2520WT | ||
|
S-10 |
120 |
10 X 150 |
SL12S11-1510WT |
|
10 X 250 |
SL12S11-2510WT | ||
|
10 X 300 |
SL12S11-3010WT | ||
|
20 X 150 |
SL12S11-1520WT | ||
|
20 X 250 |
SL12S11-2520WT | ||
|
YMC-Pack SIL(Pore size120Å) Guard Cartridge Columns | |||
|
Particle size |
Pore size |
Column size Inner diameter x length |
Product Number |
|
S-5 |
120 |
4.0 X 23 |
SL12S05-G304CC |
| *When using it for the first time,please purchase the cartridge holder corresponding to inner diameter of column. |
|
YMC-Pack SIL(Pore size120Å) Cartridge Holder | |||
|---|---|---|---|
|
|
Product Number | ||
|
Cartridge Holder (Inner diameter 4.0mm) |
XPCHW | ||
|
YMC-Pack SIL(Pore size120Å) Guard Columns | |||
|
Particle size |
Pore size |
Column size Inner diameter x length |
Product Number |
|
S-3 |
120 |
4.0 X 10 |
SL12S03-0104WFG |
|
5.0 X 10 |
SL12S03-0105WFG | ||
|
S-5 |
120 |
4.0 X 10 |
SL12S05-0104WFG |
|
5.0 X 10 |
SL12S05-0105WFG | ||
|
10 X 30 |
SL12S05-0310WTG | ||
|
20 X 50 |
SL12S05-0520WTG | ||
|
S-10 |
120 |
4.0 X 10 |
SL12S11-0104WFG |
|
5.0 X 10 |
SL12S11-0105WFG | ||
|
10 X 30 |
SL12S11-0310WTG | ||
|
20 X 50 |
SL12S11-0520WTG | ||
|
YMC-Pack SIL(Pore size60Å) Analytical Columns | |||
|---|---|---|---|
|
Particle size |
Pore size |
Column size Inner diameter x length |
Product Number |
|
S-5 |
60 |
4.6 X 100 |
SL06S05-1046WT |
|
4.6 X 150 |
SL06S05-1546WT | ||
|
4.6 X 250 |
SL06S05-2546WT | ||
|
4.6 X 300 |
SL06S05-3046WT | ||
|
6.0 X 100 |
SL06S05-1006WT | ||
|
6.0 X 150 |
SL06S05-1506WT | ||
|
6.0 X 250 |
SL06S05-2506WT | ||
|
6.0 X 300 |
SL06S05-3006WT | ||
|
S-10 |
60 |
4.6 X 100 |
SL06S11-1046WT |
|
4.6 X 150 |
SL06S11-1546WT | ||
|
4.6 X 250 |
SL06S11-2546WT | ||
|
4.6 X 300 |
SL06S11-3046WT | ||
|
6.0 X 100 |
SL06S11-1006WT | ||
|
6.0 X 150 |
SL06S11-1506WT | ||
|
6.0 X 250 |
SL06S11-2506WT | ||
|
6.0 X 300 |
SL06S11-3006WT | ||
|
YMC-Pack SIL(Pore size60Å) Semi-preparative Columns | |||
|
Particle size |
Pore size |
Column size Inner diameter x length |
Product Number |
|
S-5 |
60 |
10 X 150 |
SL06S05-1510WT |
|
10 X 250 |
SL06S05-2510WT | ||
|
10 X 300 |
SL06S05-3010WT | ||
|
20 X 100 |
SL06S05-1020WT | ||
|
20 X 150 |
SL06S05-1520WT | ||
|
20 X 250 |
SL06S05-2520WT | ||
|
S-10 |
60 |
10 X 150 |
SL06S11-1510WT |
|
10 X 250 |
SL06S11-2510WT | ||
|
10 X 300 |
SL06S11-3010WT | ||
|
20 X 150 |
SL06S11-1520WT | ||
|
20 X 250 |
SL06S11-2520WT | ||
|
YMC-Pack SIL(Pore size60Å) Guard Cartridge Columns | |||
|
Particle size |
Pore size |
Column size Inner diameter |
Product Number |
|
S-5 |
60 |
4.0 X 23 |
SL06S05-G304CC |
| *When using it for the first time,please purchase the cartridge holder corresponding to inner diameter of column. |
|
YMC-Pack SIL(Pore size60Å) Cartridge Holder | |||
|---|---|---|---|
|
|
Product Number | ||
|
Cartridge Holder (Inner diameter 4.0mm) |
XPCHW | ||
|
YMC-Pack SIL(Pore size60Å) Guard Columns | |||
|
Particle size |
Pore size |
Column size Inner diameter x length |
Product Number |
|
S-3 |
60 |
4.0 X 10 |
SL06S03-0104WFG |
|
5.0 X 10 |
SL06S03-0105WFG | ||
|
S-5 |
60 |
4.0 X 10 |
SL06S05-0104WFG |
|
5.0 X 10 |
SL06S05-0105WFG | ||
|
10 X 30 |
SL06S05-0310WTG | ||
|
20 X 50 |
SL06S05-0520WTG | ||
|
S-10 |
60 |
4.0 X 10 |
SL06S11-0104WFG |
|
5.0 X 10 |
SL06S11-0105WFG | ||
|
10 X 30 |
SL06S11-0310WTG | ||
|
20 X 50 |
SL06S11-0520WTG | ||
