YMC-Pack Diol-NP

YMC-Pack Diol-NP

◈ Product Information
A Normal Phase Silica Alternative
The YMC Diol-NP stationary phase is a versatile alternative to silica for normal phase separations. The bonded layer's-OH groups provide good selectivity without excessive retention, since hydrogen bonding with the Diol-NP layer is not as strong as one with the silanols on a bare silica surface.
Diol-NP columns also provide better reproducibility when compared with bare silica columns.

High Product Recovery
Like all YMC silica-based bonded phase, the Diol-NP phase starts with an underlying silica support of exceptional purity.
YMC manufacturing and quality assurance possession ensure that the silica has a very low metal content. The silica purity greatly reduces nonspecific sample adsorption. As a result, you can expect excellent sample recovery

High Preparative Throughput
The high surface area of the underlying silica particle, together with the larger number of available sites for interaction of the 1, 2 dihydroxypropane ligands, results in good preparative loading.

► Point
　• Improved peak shape versus bare silica
　• Good selectivity without excessive retention
　• High recovery of product
　• High prep loading
　• Bonded phase reproducibility
　• Long column life

► Specification
　- Particle size :5㎛
　- Pore size :60Å, 120Å
　- Usable pH range :2.0-7.5

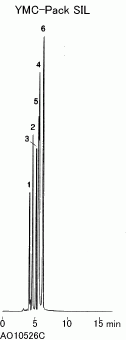

Separation feature of Diol-NP and SIL

1.Phenol
2.Catechol
3.Resorcinol
4.Hydroquinone
5.Pyrogallol
6.Phloroglucinol

• Column size :250 x 4.6mmI.D.
• Eluent :hexane/ethanol (80/20)
• Flow Rate :1.0mL/min
• Temperature :30 ºC
• Detection :UV at 254 nm






This figure shows differences in selectivity of phenols when separated on Diol-NP and SIL under the same conditions. For these compounds, Diol columns provide longer retention time and better separation.



◈ Ordering Information

YMC-Pack Diol-NP Analytical Columns
Packing material	Particle size (µm)	Pore size (Å)	Column size Inner diameter x length (mm)	Product Number
Diol-60	S-5	60	4.6 X 100	DN06S05-1046WT
			4.6 X 150	DN06S05-1546WT
			4.6 X 250	DN06S05-2546WT
Diol-120	S-5	120	4.6 X 100	DN12S05-1046WT
			4.6 X 150	DN12S05-1546WT
			4.6 X 250	DN12S05-2546WT
YMC-Pack Diol-NP Semi-preparative Columns
Packing material	Particle size (µm)	Pore size (Å)	Column size Inner diameter x length (mm)	Product Number
Diol-60	S-5	60	20 X 150	DN06S05-1520WT
			20 X 250	DN06S05-2520WT
Diol-120	S-5	120	20 X 150	DN12S05-1520WT
			20 X 250	DN12S05-2520WT
