YMC

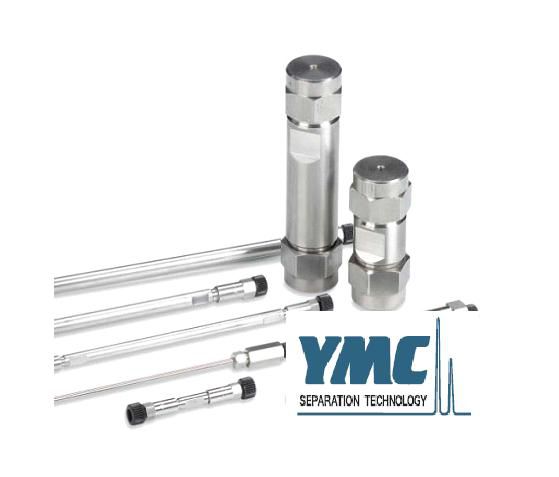

YMC-Pack Pro C18
◈ Product Information
The choice of Columns for analysis of difficult compounds by HPLC YMC-Pack Pro C18 columns start with a tightly
controlled, highly purified silica gel, followed by a high-coverage C18 bonding and finish with a unique endcapping
procedure utilizing Lewis acid-Lewis base chemistry.
Together, these provide unequaled separations with sharp and symmetrical peaks for all types of organic
molecules,especially basic pharmaceuticals and chelating compounds.
► Point
- High performance, reproducible, reliable columns designed for the most demanded HPLC
- Made with highly inert, ultrapure, pH neutral silica
- Extremely rigorous physical and chemical specifications
- Novel Lewis acid/Lewis base endcapping
- Very high efficiency columns, typically 100,000 to 120,000 plates/metre for 5㎛ and 130,000 to 150,000 plates/
metre for 3㎛ packings

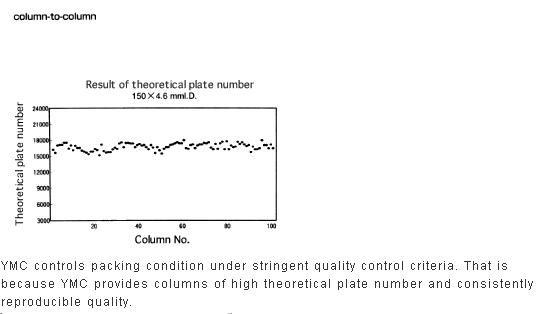

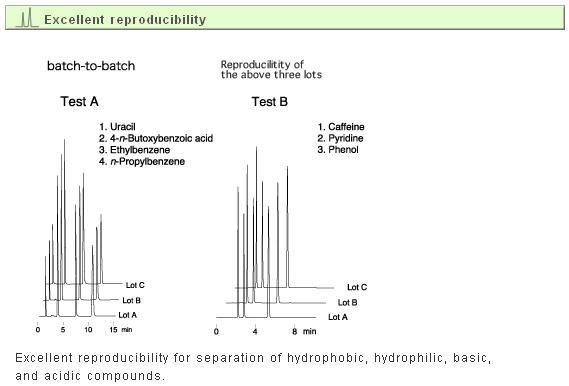

- Continues YMC proven batch-to-batch and column-to-column reproducibility
► Specification
- Particle size :3㎛, 5㎛, 10㎛
- Pore size :120A
- Carbon contents :16%
- Usable pH range :2.0-8.0
◈ Ordering Information
| Analytical Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AS12S03-H501WT |
YMC-Pack Pro C18 120A 3um 1.0 x 35mm |
1/pkg |
|
AS12S03-0501WT |
YMC-Pack Pro C18 120A 3um 1.0 x 50mm |
1/pkg |
|
AS12S03-1001WT |
YMC-Pack Pro C18 120A 3um 1.0 x 100mm |
1/pkg |
|
AS12S03-H5P5WT |
YMC-Pack Pro C18 120A 3um 1.5 x 35mm |
1/pkg |
|
AS12S03-05P5WT |
YMC-Pack Pro C18 120A 3um 1.5 x 50mm |
1/pkg |
|
AS12S03-10P5WT |
YMC-Pack Pro C18 120A 3um 1.5 x 100mm |
1/pkg |
|
AS12S03-H502WT |
YMC-Pack Pro C18 120A 3um 2.0 x 35mm |
1/pkg |
|
AS12S03-0502WT |
YMC-Pack Pro C18 120A 3um 2.0 x 50mm |
1/pkg |
|
AS12S03-L502WT |
YMC-Pack Pro C18 120A 3um 2.0 x 75mm |
1/pkg |
|
AS12S03-1002WT |
YMC-Pack Pro C18 120A 3um 2.0 x 100mm |
1/pkg |
|
AS12S03-1502WT |
YMC-Pack Pro C18 120A 3um 2.0 x 150mm |
1/pkg |
|
AS12S03-0503WT |
YMC-Pack Pro C18 120A 3um 3.0 x 50mm |
1/pkg |
|
AS12S03-1003WT |
YMC-Pack Pro C18 120A 3um 3.0 x 100mm |
1/pkg |
|
AS12S03-1503WT |
YMC-Pack Pro C18 120A 3um 3.0 x 150mm |
1/pkg |
|
AS12S03-H546WT |
YMC-Pack Pro C18 120A 3um 4.6 x 35mm |
1/pkg |
|
AS12S03-0546WT |
YMC-Pack Pro C18 120A 3um 4.6 x 50mm |
1/pkg |
|
AS12S03-L546WT |
YMC-Pack Pro C18 120A 3um 4.6 x 75mm |
1/pkg |
|
AS12S03-1046WT |
YMC-Pack Pro C18 120A 3um 4.6 x 100mm |
1/pkg |
|
AS12S03-1546WT |
YMC-Pack Pro C18 120A 3um 4.6 x 150mm |
1/pkg |
|
AS12S03-0506WT |
YMC-Pack Pro C18 120A 3um 6.0 x 50mm |
1/pkg |
|
AS12S03-L506WT |
YMC-Pack Pro C18 120A 3um 6.0 x 75mm |
1/pkg |
|
AS12S03-1006WT |
YMC-Pack Pro C18 120A 3um 6.0 x 100mm |
1/pkg |
|
AS12S05-1501WT |
YMC-Pack Pro C18 120A 5um 1.0 x 150mm |
1/pkg |
|
AS12S05-2501WT |
YMC-Pack Pro C18 120A 5um 1.0 x 250mm |
1/pkg |
|
AS12S05-15P5WT |
YMC-Pack Pro C18 120A 5um 1.5 x 150mm |
1/pkg |
|
AS12S05-25P5WT |
YMC-Pack Pro C18 120A 5um 1.5 x 250mm |
1/pkg |
|
AS12S05-H502WT |
YMC-Pack Pro C18 120A 5um 2.0 x 35mm |
1/pkg |
|
AS12S05-0502WT |
YMC-Pack Pro C18 120A 5um 2.0 x 50mm |
1/pkg |
|
AS12S05-L502WT |
YMC-Pack Pro C18 120A 5um 2.0 x 75mm |
1/pkg |
|
AS12S05-1002WT |
YMC-Pack Pro C18 120A 5um 2.0 x 100mm |
1/pkg |
|
AS12S05-1502WT |
YMC-Pack Pro C18 120A 5um 2.0 x 150mm |
1/pkg |
|
AS12S05-2502WT |
YMC-Pack Pro C18 120A 5um 2.0 x 250mm |
1/pkg |
|
AS12S05-0503WT |
YMC-Pack Pro C18 120A 5um 3.0 x 50mm |
1/pkg |
|
AS12S05-L503WT |
YMC-Pack Pro C18 120A 5um 3.0 x 75mm |
1/pkg |
|
AS12S05-1003WT |
YMC-Pack Pro C18 120A 5um 3.0 x 100mm |
1/pkg |
|
AS12S05-1503WT |
YMC-Pack Pro C18 120A 5um 3.0 x 150mm |
1/pkg |
|
AS12S05-2503WT |
YMC-Pack Pro C18 120A 5um 3.0 x 250mm |
1/pkg |
|
AS12S05-0546WT |
YMC-Pack Pro C18 120A 5um 4.6 x 50mm |
1/pkg |
|
AS12S05-L546WT |
YMC-Pack Pro C18 120A 5um 4.6 x 75mm |
1/pkg |
|
AS12S05-1046WT |
YMC-Pack Pro C18 120A 5um 4.6 x 100mm |
1/pkg |
|
AS12S05-1546WT |
YMC-Pack Pro C18 120A 5um 4.6 x 150mm |
1/pkg |
|
AS12S05-2546WT |
YMC-Pack Pro C18 120A 5um 4.6 x 250mm |
1/pkg |
|
AS12S05-1506WT |
YMC-Pack Pro C18 120A 5um 6.0 x 150mm |
1/pkg |
|
AS12S05-2506WT |
YMC-Pack Pro C18 120A 5um 6.0 x 250mm |
1/pkg |
|
AS12S11-1546WT |
YMC-Pack Pro C18 120A 10um 4.6 x 150mm |
1/pkg |
|
AS12S11-2546WT |
YMC-Pack Pro C18 120A 10um 4.6 x 250mm |
1/pkg |
| Semi-preparative Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AS12S05-1510WT |
YMC-Pack Pro C18 Semi-Prep 120A 5um 10 x 150mm |
1/pkg |
|
AS12S05-2510WT |
YMC-Pack Pro C18 Semi-Prep 120A 5um 10 x 250mm |
1/pkg |
|
AS12S05-1020WT |
YMC-Pack Pro C18 Semi-Prep 120A 5um 20 x 100mm |
1/pkg |
|
AS12S05-1520WT |
YMC-Pack Pro C18 Semi-Prep 120A 5um 20 x 150mm |
1/pkg |
|
AS12S05-2520WT |
YMC-Pack Pro C18 Semi-Prep 120A 5um 20 x 250mm |
1/pkg |
|
AS12S11-1020WT |
YMC-Pack Pro C18 Semi-Prep 120A 10um 20 x 100mm |
1/pkg |
|
AS12S11-1520WT |
YMC-Pack Pro C18 Semi-Prep 120A 10um 20 x 150mm |
1/pkg |
|
AS12S11-2520WT |
YMC-Pack Pro C18 Semi-Prep 120A 10um 20 x 250mm |
1/pkg |
| Guard Cartridges Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AS12S03-0101CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 3um 1.0 x 10mm |
2/pkg |
|
AS12S03-01P5CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 3um 1.5 x 10mm |
2/pkg |
|
AS12S03-0102CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 3um 2.0 x 10mm |
2/pkg |
|
AS12S03-G304CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 3um 4.0 x 23mm |
3/pkg |
|
AS12S05-0101CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 5um 1.0 x 10mm |
2/pkg |
|
AS12S05-01P5CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 5um 1.5 x 10mm |
2/pkg |
|
AS12S05-0102CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 5um 2.0 x 10mm |
2/pkg |
|
AS12S05-G304CC |
YMC-Pack Pro C18 Guard Cartridge col. 120A 5um 4.0 x 23mm |
3/pkg |
| *When using it for the first time,please purchase the cartridge holder corresponding to inner diameter of column. |
| Carrtridge Holder | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
XPCHSMW |
Semi Micro Guard Cartridge Holder(Inner diameter 1.0,1.5,2.0mm) |
1/pkg |
|
XPCHW |
Cartridge Holder(Inner diameter 4.0mm) |
1/pkg |
| YMC Guard Cartridge Pack | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AS12S03-G304CCPK |
YMC-Pack Pro C18 Guard Cartridge Pack 120A 3um 4.0 x 23 mm |
1/pkg |
|
AS12S05-G304CCPK |
YMC-Pack Pro C18 Guard Cartridge Pack 120A 5um 4.0 x 23 mm |
1/pkg |
| *Cartridge holder(1set), Guard cartridge Columns (1 piece), and Columns coupler(PEEK) are included in the guard cartridge packing. |
| Guard Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AS12S05-0310WTG |
YMC-Pack Pro C18 Guard col. 120A 5um 10 x 30 mm |
1/pkg |
|
AS12S05-0520WTG |
YMC-Pack Pro C18 Guard col. 120A 5um 20 x 50 mm |
1/pkg |
|
AS12S11-0520WTG |
YMC-Pack Pro C18 Guard col. 120A 10um 20 x 50 mm |
1/pkg |
