HPLC
8

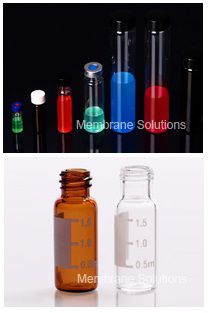

Sample vials
Membrane SolutionsMS® sample vials
◈ Introduction
MS®sample vials provide advantages over the standard straight glass sample vials. The flared end of the vial makes loading a liquid sample much easier since the flare helps guide the syringe needle into the vial. The flared end also makes the vial much stronger so that vials can easily be inserted and removed from the end of the probe using tweezers without breaking the glass.
◈ Features
Raw Material: Glass tubing, Borosilicate, Type 1, Class A from Schott. Computerized camera system for quality control throughout the manufacturing process to test critical dimensions, including Height, Diameter, Bottom Thickness and Neck/Thread. Only vial/cap/septum combination tested by LCMS for cleanliness Cap/Septum — tested by head space GC to ensure proper curing of silicone polymer
► Ordering Information
Screw Top, Standard Opening Vials Part No. Description Unit LBSV022C 2ml Clear vial, 9-425 screw top, graduated with writing area 100/pk LBSV022A 2ml Amber vial, 9-425 screw top, graduated with writing area 100/pk Screw caps + Septa for Wide Opening screw top vial Part No. Description Unit LBSV002CRS White PTFE/red silicone septa +
Blue screw cap with hole, for 2ml 9-425 screw top vial 100/pk LBSV102CSS Red PTFE/white silicone septa +
Blue screw cap with hole, for 2ml 9-425 screw top vial 100/pk LBSV222CSS Blue PTFE/white silicone septa, Pre-slit +
Blue screw cap with hole, for 2ml 9-425 screw top vial 100/pk Crimp Top, Wide Opening Vials Part No. Description Unit LBSV062C 2ml Clear vial, crimp top, graduated with writing area 100/pk LBSV062A 2ml Amber vial, crimp top, graduated with writing area 100/pk 예일테크 2011.11.02
Membrane SolutionsMS® sample vials
◈ Introduction
MS®sample vials provide advantages over the standard straight glass sample vials. The flared end of the vial makes loading a liquid sample much easier since the flare helps guide the syringe needle into the vial. The flared end also makes the vial much stronger so that vials can easily be inserted and removed from the end of the probe using tweezers without breaking the glass.
◈ Features
Raw Material: Glass tubing, Borosilicate, Type 1, Class A from Schott. Computerized camera system for quality control throughout the manufacturing process to test critical dimensions, including Height, Diameter, Bottom Thickness and Neck/Thread. Only vial/cap/septum combination tested by LCMS for cleanliness Cap/Septum — tested by head space GC to ensure proper curing of silicone polymer
► Ordering Information
Screw Top, Standard Opening Vials Part No. Description Unit LBSV022C 2ml Clear vial, 9-425 screw top, graduated with writing area 100/pk LBSV022A 2ml Amber vial, 9-425 screw top, graduated with writing area 100/pk Screw caps + Septa for Wide Opening screw top vial Part No. Description Unit LBSV002CRS White PTFE/red silicone septa +
Blue screw cap with hole, for 2ml 9-425 screw top vial 100/pk LBSV102CSS Red PTFE/white silicone septa +
Blue screw cap with hole, for 2ml 9-425 screw top vial 100/pk LBSV222CSS Blue PTFE/white silicone septa, Pre-slit +
Blue screw cap with hole, for 2ml 9-425 screw top vial 100/pk Crimp Top, Wide Opening Vials Part No. Description Unit LBSV062C 2ml Clear vial, crimp top, graduated with writing area 100/pk LBSV062A 2ml Amber vial, crimp top, graduated with writing area 100/pk 예일테크 2011.11.02
7
Vial inserts
AgilentVial inserts
◈ Product Information
• 오토샘플러용 2mL 바이알 9-425에 장착할 수 있는 가장 일반적인 insert 입니다.
• 분석 시료의 양이 마이크로리터 단위일때, 유용하게 사용할 수 있습니다.
• Screw, Crimp, Snap 바이알에 모두 사용이 가능합니다.
► Conical inserts with polymer feet
Insert 바닥부분에 폴리머 재질의 충격와화 다리가 부착이 되어있어, 바이알에 닿을때 충격을 줄일 수 있습니다.
◈ Ordering Information Description Unit Part No. 250ul glass inserts with polymer feet and mandrel interior 100/pk 5181-1270 250ul Polypropylene inserts with polymer feet 100/pk 5182-0549
► Conical Glass inserts
마이크로 볼륨의 시료를 분석할때, 저렴하게 선택할 수 있는 insert 입니다.
◈ Ordering Information Description Unit Part No. 250ul pulled-point glass inserts 100/pk 5183-2085
► Flat Bottom inserts
바닥이 수평인 모양으로 바이알 바닥에 부착이 되는 insert 입니다.
◈ Ordering Information Description Unit Part No. 400ul glass flat bottom inserts 500/pk 5181-3377 400ul Polypropylene flat bottom inserts 500/pk 5183-2087
*Agilent社 모든 vial류 제품 공급 가능. 예일테크 2008.09.16
AgilentVial inserts
◈ Product Information
• 오토샘플러용 2mL 바이알 9-425에 장착할 수 있는 가장 일반적인 insert 입니다.
• 분석 시료의 양이 마이크로리터 단위일때, 유용하게 사용할 수 있습니다.
• Screw, Crimp, Snap 바이알에 모두 사용이 가능합니다.
► Conical inserts with polymer feet
Insert 바닥부분에 폴리머 재질의 충격와화 다리가 부착이 되어있어, 바이알에 닿을때 충격을 줄일 수 있습니다.
◈ Ordering Information Description Unit Part No. 250ul glass inserts with polymer feet and mandrel interior 100/pk 5181-1270 250ul Polypropylene inserts with polymer feet 100/pk 5182-0549
► Conical Glass inserts
마이크로 볼륨의 시료를 분석할때, 저렴하게 선택할 수 있는 insert 입니다.
◈ Ordering Information Description Unit Part No. 250ul pulled-point glass inserts 100/pk 5183-2085
► Flat Bottom inserts
바닥이 수평인 모양으로 바이알 바닥에 부착이 되는 insert 입니다.
◈ Ordering Information Description Unit Part No. 400ul glass flat bottom inserts 500/pk 5181-3377 400ul Polypropylene flat bottom inserts 500/pk 5183-2087
*Agilent社 모든 vial류 제품 공급 가능. 예일테크 2008.09.16
6
Vial ＆ Caps
Agilent Vial & Caps
◈ Product Information
► Screw Top Vial, Caps, Septa and Kit
• 2ml 12x32 mm의 부피 및 크기
• 기존 Narrow opening 바이알 보다 40% 큰 사이즈의 wide opening 바이알
• 캡을 닫을때 별도의 도구 필요없이 돌려 닫을 수 있음.
◈ Ordering Information Description Unit Part No. Screw Top Vial Clear wide opening screw top 100/pk 5182-0714 Clear wide opening screw top, write-on spot 100/pk 5182-0715 Amber wide opening screw top, write-on spot 100/pk 5182-0716 Screw Top Caps & Septa Blue, PTFE/red silicone rubber septa 100/pk 5182-0717 Green, PTFE/red silicone rubber septa 100/pk 5182-0718 Red, PTFE/red silicone rubber septa 100/pk 5182-0719 Screw Top Caps-no Septa Blue open top screw caps 100/pk 5182-0728 Green open top screw caps 100/pk 5182-0727 Red open top screw caps 100/pk 5182-0726 Screw Top Septa Ivory PTFE/red silicone rubber septa 100/pk 5182-0731 Red PTFE/white silicone/red PTFE septa 100/pk 5182-0729 Blue pre-slit PTFE/white silicone septa 100/pk 5183-2074 Red PTFE/white silicone septa 100/pk 5182-0730 Screw Top Vial Kit Clear vials, blue screw caps,
PTFE/red silicone rubber septa 500/pk 5182-0732 Clear vials with write-on spot, blue screw caps,
PTFE/red silicone rubber septa 500/pk 5182-0867 Amber vials with write-on spot, green screw caps,
PTFE/red silicone rubber septa 500/pk 5182-0733 Pre-assembled Screw Top Vial Kit Clear vials, blue screw caps,
PTFE/red silicone rubber septa 100/pk 5182-0553 Clear vials with write-on spot, blue screw caps,
PTFE/red silicone rubber septa 100/pk 5182-0864 Amber vials with write-on spot, green screw caps,
PTFE/red silicone rubber septa 100/pk 5182-0554
► Crimp Top Vial, Caps, Septa and Kit
• 2ml 12x32 mm의 부피 및 크기
• 기존 Narrow opening 바이알 보다 40% 큰 사이즈의 wide opening 바이알
• Crimping이 잘 될 수 있는 목구조이며, 캡을 닫을 때 별도 기구 필요함.
◈ Ordering Information Description Unit Part No. Crimp Top Vial Clear wide opening crimp top 100/pk 5181-3375 Clear wide opening crimp top, write-on spot 100/pk 5182-0543 Amber wide opening crimp top, write-on spot 100/pk 5181-3376 Crimp Top Caps & Septa Silver aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1210 Blue aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1215 Green aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1216 Red aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1217
► Snap Top Vial, Caps, Septa and Kit
• 2ml 12x32 mm의 부피 및 크기
• 기존 Narrow opening 바이알 보다 40% 큰 사이즈의 wide opening 바이알
• 캡을 닫을 때 별도 기구 필요 없으며, 클림프캡도 사용이 가능함
◈ Ordering Information Description Unit Part No. Snap Top Vial Clear wide opening snap top 100/pk 5182-0544 Clear wide opening snap top, write-on spot 100/pk 5182-0546 Amber wide opening snap top, write-on spot 100/pk 5182-0545 Snap Top Caps & Septa Clear polyethylene cap,
solid polyethylene membrane septa 100/pk 5182-0542 Clear polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-0550 Blue polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-3458 Green polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-3457 Red polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-3459 Snap Top Vial Kit Clear snap top vials,
clear polyethylene snap caps,
PTFE/red silicone septa 500/pk 5182-0547 Amber snap top vials with write-on spot,
clear polyethylene snap caps,
PTFE/red rubber septa 500/pk 5182-0548
*Agilent社 모든 vial류 제품 공급 가능. 예일테크 2008.09.16
Agilent Vial & Caps
◈ Product Information
► Screw Top Vial, Caps, Septa and Kit
• 2ml 12x32 mm의 부피 및 크기
• 기존 Narrow opening 바이알 보다 40% 큰 사이즈의 wide opening 바이알
• 캡을 닫을때 별도의 도구 필요없이 돌려 닫을 수 있음.
◈ Ordering Information Description Unit Part No. Screw Top Vial Clear wide opening screw top 100/pk 5182-0714 Clear wide opening screw top, write-on spot 100/pk 5182-0715 Amber wide opening screw top, write-on spot 100/pk 5182-0716 Screw Top Caps & Septa Blue, PTFE/red silicone rubber septa 100/pk 5182-0717 Green, PTFE/red silicone rubber septa 100/pk 5182-0718 Red, PTFE/red silicone rubber septa 100/pk 5182-0719 Screw Top Caps-no Septa Blue open top screw caps 100/pk 5182-0728 Green open top screw caps 100/pk 5182-0727 Red open top screw caps 100/pk 5182-0726 Screw Top Septa Ivory PTFE/red silicone rubber septa 100/pk 5182-0731 Red PTFE/white silicone/red PTFE septa 100/pk 5182-0729 Blue pre-slit PTFE/white silicone septa 100/pk 5183-2074 Red PTFE/white silicone septa 100/pk 5182-0730 Screw Top Vial Kit Clear vials, blue screw caps,
PTFE/red silicone rubber septa 500/pk 5182-0732 Clear vials with write-on spot, blue screw caps,
PTFE/red silicone rubber septa 500/pk 5182-0867 Amber vials with write-on spot, green screw caps,
PTFE/red silicone rubber septa 500/pk 5182-0733 Pre-assembled Screw Top Vial Kit Clear vials, blue screw caps,
PTFE/red silicone rubber septa 100/pk 5182-0553 Clear vials with write-on spot, blue screw caps,
PTFE/red silicone rubber septa 100/pk 5182-0864 Amber vials with write-on spot, green screw caps,
PTFE/red silicone rubber septa 100/pk 5182-0554
► Crimp Top Vial, Caps, Septa and Kit
• 2ml 12x32 mm의 부피 및 크기
• 기존 Narrow opening 바이알 보다 40% 큰 사이즈의 wide opening 바이알
• Crimping이 잘 될 수 있는 목구조이며, 캡을 닫을 때 별도 기구 필요함.
◈ Ordering Information Description Unit Part No. Crimp Top Vial Clear wide opening crimp top 100/pk 5181-3375 Clear wide opening crimp top, write-on spot 100/pk 5182-0543 Amber wide opening crimp top, write-on spot 100/pk 5181-3376 Crimp Top Caps & Septa Silver aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1210 Blue aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1215 Green aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1216 Red aluminum, clear PTFE/red natural rubber septa 100/pk 5181-1217
► Snap Top Vial, Caps, Septa and Kit
• 2ml 12x32 mm의 부피 및 크기
• 기존 Narrow opening 바이알 보다 40% 큰 사이즈의 wide opening 바이알
• 캡을 닫을 때 별도 기구 필요 없으며, 클림프캡도 사용이 가능함
◈ Ordering Information Description Unit Part No. Snap Top Vial Clear wide opening snap top 100/pk 5182-0544 Clear wide opening snap top, write-on spot 100/pk 5182-0546 Amber wide opening snap top, write-on spot 100/pk 5182-0545 Snap Top Caps & Septa Clear polyethylene cap,
solid polyethylene membrane septa 100/pk 5182-0542 Clear polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-0550 Blue polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-3458 Green polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-3457 Red polyethylene cap,
clear PTFE/red silicone rubber septa 100/pk 5182-3459 Snap Top Vial Kit Clear snap top vials,
clear polyethylene snap caps,
PTFE/red silicone septa 500/pk 5182-0547 Amber snap top vials with write-on spot,
clear polyethylene snap caps,
PTFE/red rubber septa 500/pk 5182-0548
*Agilent社 모든 vial류 제품 공급 가능. 예일테크 2008.09.16
5
Rotor Seal
Agilent Rotor Seal
◈ Product Information
• Rotor seals wear with use and need routine replacement
◈ Ordering Information Rheodyne Series Description Rotor Seal Part No. Series 7125, 7725 Vespel(pH1-10) 0101-0623 Series 7750-020 Vespel(pH1-10) 0100-1853 Series 7125, 7725, 7125-081 Tefzel(pH1-14) 0101-0620 Series 7750-020 Tefzel(pH1-14) 0101-1849 Series 7125, 7725, 9725 PEEK(pH14) 0101-1255 Series 7010, 7000, 7040 PEEK(pH14) 0101-1256 예일테크 2008.09.04
Agilent Rotor Seal
◈ Product Information
• Rotor seals wear with use and need routine replacement
◈ Ordering Information Rheodyne Series Description Rotor Seal Part No. Series 7125, 7725 Vespel(pH1-10) 0101-0623 Series 7750-020 Vespel(pH1-10) 0100-1853 Series 7125, 7725, 7125-081 Tefzel(pH1-14) 0101-0620 Series 7750-020 Tefzel(pH1-14) 0101-1849 Series 7125, 7725, 9725 PEEK(pH14) 0101-1255 Series 7010, 7000, 7040 PEEK(pH14) 0101-1256 예일테크 2008.09.04
4

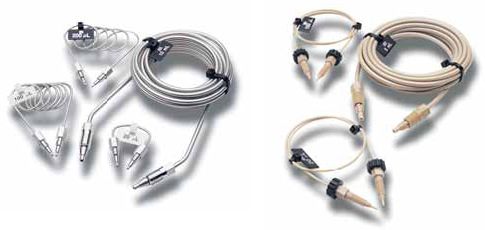

Sample Loop
Agilent Sample Loop
◈ Product Information
The right mix of injection valve sample loops are available for your application needs. Stainless steel and PEEK sample loops are factory-cut and finished to the highest quality. The stainless steel loop ends have a square cut and are burr-free for a flush connection to the valve and are supplied with unswaged fittings. The flexible PEEK loop ends are provided with a clean and straight cut for low dead volume connections
► Stainless Steel Sample Loops
• Sample loops for Rheodyne 7725 Series and 7125 Series valves are not interchangeable due to the change in port angle
• Actual volumes can differ due to tolerance of metal tubing bore
• Accuracy of large metal loops is ±5%, intermediate loops ±10%, small loops ±30%
► PEEK Sample Loops
• Inert to most organic solvents
• Wall thickness, temperature, exposure time and concentration of organic solvents affect the durability of PEEK tubing
• Concentrated nitric acid and sulfuric acid weaken PEEK tubing
• THF, methylene chloride and DMSO cause PEEK to swell
• Actual volumes can differ because of tolerance of tubing bore
• Accuracy of large PEEK loops is ±14%, intermediate loops ±21%. small loops ±65%
◈ Ordering Information Description ID(mm) Part No. Stainless Steel Loops for 7125 and 7010 Injectors 5㎕ 0.18 1535-4860 10㎕ 0.30 0101-0376 20㎕ 0.51 0101-0377 50㎕ 0.51 0101-0378 100㎕ 0.51 0101-0379 200㎕ 0.76 0101-1252 500㎕ 0.76 0101-1251 1ml 0.76 0101-1219 2ml 1.00 0101-1250 5ml 1.00 0101-1249 Stainless Steel Loops for 7725 Injectors 5㎕ 0.18 0101-1248 10㎕ 0.30 0100-1923 20㎕ 0.30 0100-1922 50㎕ 0.51 0100-1924 100㎕ 0.51 0100-1921 200㎕ 0.76 0101-1247 500㎕ 0.76 0101-1246 1ml 0.76 0101-1245 2ml 1.00 0101-1244 5ml 1.00 0101-1243 PEEK Loops for 9725 Injectors 5㎕ 0.18 0101-1241 10㎕ 0.25 0101-1240 20㎕ 0.25 0101-1239 50㎕ 0.51 0101-1238 100㎕ 0.51 0101-1242 200㎕ 0.51 0101-1237 500㎕ 0.76 0101-1236 1ml 0.76 0101-1235 2ml 0.76 0101-1234 5ml 0.76 0101-1230 PEEK Loops for 3725 Injectors 2ml 1.6 0101-1229 5ml 1.6 0101-1228 10ml 2.0 0101-1227 20ml 2.0 0101-1226 예일테크 2008.09.12
Agilent Sample Loop
◈ Product Information
The right mix of injection valve sample loops are available for your application needs. Stainless steel and PEEK sample loops are factory-cut and finished to the highest quality. The stainless steel loop ends have a square cut and are burr-free for a flush connection to the valve and are supplied with unswaged fittings. The flexible PEEK loop ends are provided with a clean and straight cut for low dead volume connections
► Stainless Steel Sample Loops
• Sample loops for Rheodyne 7725 Series and 7125 Series valves are not interchangeable due to the change in port angle
• Actual volumes can differ due to tolerance of metal tubing bore
• Accuracy of large metal loops is ±5%, intermediate loops ±10%, small loops ±30%
► PEEK Sample Loops
• Inert to most organic solvents
• Wall thickness, temperature, exposure time and concentration of organic solvents affect the durability of PEEK tubing
• Concentrated nitric acid and sulfuric acid weaken PEEK tubing
• THF, methylene chloride and DMSO cause PEEK to swell
• Actual volumes can differ because of tolerance of tubing bore
• Accuracy of large PEEK loops is ±14%, intermediate loops ±21%. small loops ±65%
◈ Ordering Information Description ID(mm) Part No. Stainless Steel Loops for 7125 and 7010 Injectors 5㎕ 0.18 1535-4860 10㎕ 0.30 0101-0376 20㎕ 0.51 0101-0377 50㎕ 0.51 0101-0378 100㎕ 0.51 0101-0379 200㎕ 0.76 0101-1252 500㎕ 0.76 0101-1251 1ml 0.76 0101-1219 2ml 1.00 0101-1250 5ml 1.00 0101-1249 Stainless Steel Loops for 7725 Injectors 5㎕ 0.18 0101-1248 10㎕ 0.30 0100-1923 20㎕ 0.30 0100-1922 50㎕ 0.51 0100-1924 100㎕ 0.51 0100-1921 200㎕ 0.76 0101-1247 500㎕ 0.76 0101-1246 1ml 0.76 0101-1245 2ml 1.00 0101-1244 5ml 1.00 0101-1243 PEEK Loops for 9725 Injectors 5㎕ 0.18 0101-1241 10㎕ 0.25 0101-1240 20㎕ 0.25 0101-1239 50㎕ 0.51 0101-1238 100㎕ 0.51 0101-1242 200㎕ 0.51 0101-1237 500㎕ 0.76 0101-1236 1ml 0.76 0101-1235 2ml 0.76 0101-1234 5ml 0.76 0101-1230 PEEK Loops for 3725 Injectors 2ml 1.6 0101-1229 5ml 1.6 0101-1228 10ml 2.0 0101-1227 20ml 2.0 0101-1226 예일테크 2008.09.12
3

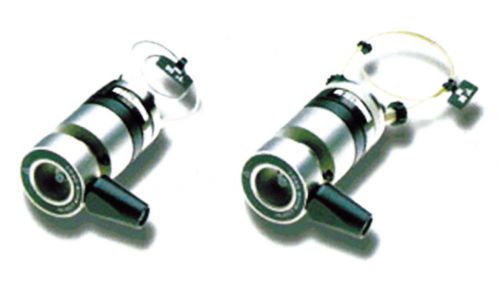

Manual Injection Valves
Manual Injection Valves
◈ Product Information
• Continuous flow path with "make-before-break" design
• Sample capacity
• Choice of stainless or PEEK flow path
• Easy access to fittings due to wide 30°port angles
► Rheodyne Series 7725i
• Stainless steel
• Most popular injection valve for analytical HPLC
• Loops range from 1㎕ to 5ml(20㎕ loop installed)
• Built in position sensing switch provides the LC with reproducible start signal
► Rheodyne Series 9725i
• PEEK flow path is perfect for biomolecules-sample does not contact metal
• Similar features as 7725i, including the "make-before-break" design
► Rheodyne Series 3725i
• Large sample volumes, high flow rates and preparative columns 100㎕ to 20ml (10ml loop installed) For biomolecules, the 3725i has PEEK materials 예일테크 2008.09.04
Manual Injection Valves
◈ Product Information
• Continuous flow path with "make-before-break" design
• Sample capacity
• Choice of stainless or PEEK flow path
• Easy access to fittings due to wide 30°port angles
► Rheodyne Series 7725i
• Stainless steel
• Most popular injection valve for analytical HPLC
• Loops range from 1㎕ to 5ml(20㎕ loop installed)
• Built in position sensing switch provides the LC with reproducible start signal
► Rheodyne Series 9725i
• PEEK flow path is perfect for biomolecules-sample does not contact metal
• Similar features as 7725i, including the "make-before-break" design
► Rheodyne Series 3725i
• Large sample volumes, high flow rates and preparative columns 100㎕ to 20ml (10ml loop installed) For biomolecules, the 3725i has PEEK materials 예일테크 2008.09.04
2
Fittings
Fittings
◈ Ordering Information 구분 제품명 제품번호 제품이미지 OD ID Agilent Supelco RESTEK VICI Jour PEEK Fittings One-Piece Fittings (1/16") Hex-Head /Fingertight JR-55080-5 ~JR-55091-5 Fingertight 5063-6591, 5062-8541, 5065-4426 Z227250, 55067-U 25324 JR-55020-5 ~JR-55025-5 Machined Versions JR-5502-5, JR-5504-5, JR-5507-5, JR-5508-5 Hex-Head Fittings JR-55100-5, JR-55110-5 Nuts &Ferrules Nut (1/16") 0100-1631, 0100-2175, 5042-6500 Z227269, Z227285, Z226874, Z226866, 57654, 57656 JR-5511-5, JR-5510-5, JR-5580-5, JR-5503-5, JR-5570-5 Ferrule (1/16") Z227277, Z226858, 57633-U, 57657, 58479 JR-5004-5, JR-5003-5 Nut (1/8") JR-ZN2PK-5 Ferrule (1/8") JR-ZF2PK-5 Adapters Fingertight 0350-1402 JR-55010-5 ~JR-55015-5, JR-062, JR-5595, JR-5505 Unions 1/16" 57658, 57659, 57660-U, 57662-U 25323 JR-1061, JR-1066, JR-1067 Reducing (1/16"-1/8") JR-ZRU21FPK Tees Tees 57661 JR-1030, JR-1032, JR-1033 Crosses JR-1040, JR-1042, JR-1043 Manifold JR-Z6M1PK Plugs JR-408 ~JR-410 Caps JR-ZC1PK, JR-CCPK-1 Kits 5065-9939, 5065-9937, 5065-9938, 5065-9947 58632 25322 JR-35P Column Fittings Column Coupler 55213 JR-26501~4 Column End Plugs 54865, 59031 25016 JR-4071-10 ~JR-4075-10 Stainless Steel Fittings Nuts &Ferrules Nut (1/32") JR-ZN.5-5 Ferrule (1/32") JR-ZF.5S6-5 Nut (1/16") 5062-2418, 5065-4454, 5061-3303 58478-U, 58257, 58687, 58256, 22990-U JR-ZN1-5, JR-MZN1-5, JR-LZN1-5 Ferrule (1/16") 5180-4108, 5180-4114 58258, 22988 JR-ZF1S6-5 Nut (1/8") 57479, 22991 JR-ZN2-5 Ferrule (1/8") 57480-U, 22989 JR-ZF2S6-5 Rheodyne Type Nut 25095 JR-56-5 ~JR-58-5 Rheodyne Type Ferrule 25096 JR-59-5, JR-60-5 Unions 1/16" 5022-2145, 5022-2184, 0100-0900, 5022-2133 58768, 58769, 58770, 22997-U, 58627 20147, 20148, 20149, 20150 JR-ZU1XCS6, JR-ZU1CS Reducing (1/16"-1/8") 22999, 58249, 22949 JR-ZRU21 Tees 58780-U, 58781, 58283, 58626 JR-ZT1C, JR-ZT1M, JR-ZT1 Crosses 58625-U JR-ZX1C, JR-ZX1M, JR-ZX1 Plugs JR-ZP1, JR-ZP2 Caps JR-ZC1, JR-ZC2 Kits 59280-U 25097 JR-35S, JR-34N Tools Valve Tool 55087-U 25321 JR-800 File JR-802 Wrench JR-804, JR-805 Ferrule Removal Kit 25325 JR-FRK1 예일테크 2008.08.29
Fittings
◈ Ordering Information 구분 제품명 제품번호 제품이미지 OD ID Agilent Supelco RESTEK VICI Jour PEEK Fittings One-Piece Fittings (1/16") Hex-Head /Fingertight JR-55080-5 ~JR-55091-5 Fingertight 5063-6591, 5062-8541, 5065-4426 Z227250, 55067-U 25324 JR-55020-5 ~JR-55025-5 Machined Versions JR-5502-5, JR-5504-5, JR-5507-5, JR-5508-5 Hex-Head Fittings JR-55100-5, JR-55110-5 Nuts &Ferrules Nut (1/16") 0100-1631, 0100-2175, 5042-6500 Z227269, Z227285, Z226874, Z226866, 57654, 57656 JR-5511-5, JR-5510-5, JR-5580-5, JR-5503-5, JR-5570-5 Ferrule (1/16") Z227277, Z226858, 57633-U, 57657, 58479 JR-5004-5, JR-5003-5 Nut (1/8") JR-ZN2PK-5 Ferrule (1/8") JR-ZF2PK-5 Adapters Fingertight 0350-1402 JR-55010-5 ~JR-55015-5, JR-062, JR-5595, JR-5505 Unions 1/16" 57658, 57659, 57660-U, 57662-U 25323 JR-1061, JR-1066, JR-1067 Reducing (1/16"-1/8") JR-ZRU21FPK Tees Tees 57661 JR-1030, JR-1032, JR-1033 Crosses JR-1040, JR-1042, JR-1043 Manifold JR-Z6M1PK Plugs JR-408 ~JR-410 Caps JR-ZC1PK, JR-CCPK-1 Kits 5065-9939, 5065-9937, 5065-9938, 5065-9947 58632 25322 JR-35P Column Fittings Column Coupler 55213 JR-26501~4 Column End Plugs 54865, 59031 25016 JR-4071-10 ~JR-4075-10 Stainless Steel Fittings Nuts &Ferrules Nut (1/32") JR-ZN.5-5 Ferrule (1/32") JR-ZF.5S6-5 Nut (1/16") 5062-2418, 5065-4454, 5061-3303 58478-U, 58257, 58687, 58256, 22990-U JR-ZN1-5, JR-MZN1-5, JR-LZN1-5 Ferrule (1/16") 5180-4108, 5180-4114 58258, 22988 JR-ZF1S6-5 Nut (1/8") 57479, 22991 JR-ZN2-5 Ferrule (1/8") 57480-U, 22989 JR-ZF2S6-5 Rheodyne Type Nut 25095 JR-56-5 ~JR-58-5 Rheodyne Type Ferrule 25096 JR-59-5, JR-60-5 Unions 1/16" 5022-2145, 5022-2184, 0100-0900, 5022-2133 58768, 58769, 58770, 22997-U, 58627 20147, 20148, 20149, 20150 JR-ZU1XCS6, JR-ZU1CS Reducing (1/16"-1/8") 22999, 58249, 22949 JR-ZRU21 Tees 58780-U, 58781, 58283, 58626 JR-ZT1C, JR-ZT1M, JR-ZT1 Crosses 58625-U JR-ZX1C, JR-ZX1M, JR-ZX1 Plugs JR-ZP1, JR-ZP2 Caps JR-ZC1, JR-ZC2 Kits 59280-U 25097 JR-35S, JR-34N Tools Valve Tool 55087-U 25321 JR-800 File JR-802 Wrench JR-804, JR-805 Ferrule Removal Kit 25325 JR-FRK1 예일테크 2008.08.29
1
Tubings
Tubings
◈ Product Information
크게 고압에서 사용하는 Stainless Steel과 일반적으로 사용하는 고분자(Polymer)재질로 나뉘며, 고분자에는 PEEK, PTFE, PFA, FEP, ETFE등이 있습니다.
◈ Ordering Information 구분 제품명 제품번호 OD ID Agilent Supelco RESTEK VICI Jour PEEK Tubing 0.064mm JR-TP-5998-M3 0.13mm JR-TP-5999-M3 0.18mm JR-TP-6000-M3 General Grade, 1/16" 0.13mm 0890-1915, 5042-6461 Z22730-7 25065 JR-T-5999-M3, JR-T-6007-M3 0.18mm 0890-1763, 5042-6462 Z22668-8 25066 JR-T-6000-M3, JR-T-6008-M3 0.25mm 0890-1762, 5042-6463 Z22666-1 25067 JR-T-6001-M3, JR-T-6009-M3 0.50mm 0890-1761 Z22729-3 25068 JR-T-6002-M3, JR-T-6010-M3 0.75mm Z22695-5 JR-T-6003-M3, JR-T-6011-M3 1.00mm JR-T-60031-M3 1.40mm 54994 JR-T-60032-M3 0.36mm 0.075mm JR-T-6060-M3 1/32" 0.13mm JR-T-5993-M3 0.18mm JR-T-5994-M3 0.25mm JR-T-5995-M3 1/8" 0.75mm JR-T-60041-M3 1.59mm 54995 JR-T-6004-M3 2.00mm JR-T-60042-M3 1/4" 3.17mm JR-T-6006 PEEKclad-FST™ 1/32" 25um JR-TS-3215~32150 50um JR-TS-3225~32250 75um JR-TS-3235~32350 100um JR-TS-3245~32450 150um JR-TS-3265~32650 1/16" 25um JR-TS-1615~16110 50um JR-TS-1625~16250 75um JR-TS-1635~16350 100um JR-TS-1645~16450 150um JR-TS-1665~16650 Stainless Steel Tubing 1/32" 0.13mm JR-TSS.505-M3 0.18mm JR-TSS.507-M3 0.25mm JR-TSS.510-M3 0.50mm JR-TSS.520-M3 1/16" 0.13mm 56712-U 25240~ 25243 JR-TSS105-M3 JR-T-625-04-M3 0.18mm 56718-U 25244~ 25247 JR-T-625-05-M3 0.25mm 56724 25248~ 25251 JR-TSS110-M3 JR-T-625-10-M3 0.38mm JR-TSS115-M3 0.50mm 56730-U JR-TSS120-M3 JR-T-625-20-M3 0.75mm 56736 25252~ 25255 JR-TSS130-M3 JR-T-625-30-M3 1.00mm 56742-U JR-TSS140-M3 JR-T-625-40-M3 1/8" 0.75mm JR-TSS230-M3 1.00mm JR-TSS240-M3 1.52mm JR-TSS260-M3 1.78mm JR-TSS267-M3 2.10mm JR-T-626-00-M3 2.16mm JR-TSS285-M3 1/4" 4.65mm JR-T-628-00 PTFE Tubing 1/16" 0.18mm JR-T-6805-M3 0.25mm JR-T-4011-M3 0.50mm 58701 JR-T-4183-M3 0.75mm JR-T-4036-M3 1.00mm JR-T-6807-M3 1/8" 1.59mm 58703, 58694-U 25306 JR-T-6800-M3 2.40mm 25307 JR-T-4037-M3 2.00mm 1.70mm JR-T-6801-M3 4.00mm 3.00mm JR-T-4039 4.76mm 3.76mm JR-T-4041 1/4" 4.75mm JR-T-6810 Tubing Accessories PEEK Tubing Elbows 90° 25308 JR-357090 180° 25309 JR-357180 Clip Organizer 25310 JR-9001 Cutter Polymeric Tubing 8710-1930 Z29088-2, 57665-U 25069 JR-797, JR-794 SS Tubing 58692-U 20192 JR-792 Plier SS Tubing 58646 20193 JR-796 Easy-Flange Kits JR-201540 Easy-Flange Combi-Kit JR-201539 예일테크 2008.05.28
Tubings
◈ Product Information
크게 고압에서 사용하는 Stainless Steel과 일반적으로 사용하는 고분자(Polymer)재질로 나뉘며, 고분자에는 PEEK, PTFE, PFA, FEP, ETFE등이 있습니다.
◈ Ordering Information 구분 제품명 제품번호 OD ID Agilent Supelco RESTEK VICI Jour PEEK Tubing 0.064mm JR-TP-5998-M3 0.13mm JR-TP-5999-M3 0.18mm JR-TP-6000-M3 General Grade, 1/16" 0.13mm 0890-1915, 5042-6461 Z22730-7 25065 JR-T-5999-M3, JR-T-6007-M3 0.18mm 0890-1763, 5042-6462 Z22668-8 25066 JR-T-6000-M3, JR-T-6008-M3 0.25mm 0890-1762, 5042-6463 Z22666-1 25067 JR-T-6001-M3, JR-T-6009-M3 0.50mm 0890-1761 Z22729-3 25068 JR-T-6002-M3, JR-T-6010-M3 0.75mm Z22695-5 JR-T-6003-M3, JR-T-6011-M3 1.00mm JR-T-60031-M3 1.40mm 54994 JR-T-60032-M3 0.36mm 0.075mm JR-T-6060-M3 1/32" 0.13mm JR-T-5993-M3 0.18mm JR-T-5994-M3 0.25mm JR-T-5995-M3 1/8" 0.75mm JR-T-60041-M3 1.59mm 54995 JR-T-6004-M3 2.00mm JR-T-60042-M3 1/4" 3.17mm JR-T-6006 PEEKclad-FST™ 1/32" 25um JR-TS-3215~32150 50um JR-TS-3225~32250 75um JR-TS-3235~32350 100um JR-TS-3245~32450 150um JR-TS-3265~32650 1/16" 25um JR-TS-1615~16110 50um JR-TS-1625~16250 75um JR-TS-1635~16350 100um JR-TS-1645~16450 150um JR-TS-1665~16650 Stainless Steel Tubing 1/32" 0.13mm JR-TSS.505-M3 0.18mm JR-TSS.507-M3 0.25mm JR-TSS.510-M3 0.50mm JR-TSS.520-M3 1/16" 0.13mm 56712-U 25240~ 25243 JR-TSS105-M3 JR-T-625-04-M3 0.18mm 56718-U 25244~ 25247 JR-T-625-05-M3 0.25mm 56724 25248~ 25251 JR-TSS110-M3 JR-T-625-10-M3 0.38mm JR-TSS115-M3 0.50mm 56730-U JR-TSS120-M3 JR-T-625-20-M3 0.75mm 56736 25252~ 25255 JR-TSS130-M3 JR-T-625-30-M3 1.00mm 56742-U JR-TSS140-M3 JR-T-625-40-M3 1/8" 0.75mm JR-TSS230-M3 1.00mm JR-TSS240-M3 1.52mm JR-TSS260-M3 1.78mm JR-TSS267-M3 2.10mm JR-T-626-00-M3 2.16mm JR-TSS285-M3 1/4" 4.65mm JR-T-628-00 PTFE Tubing 1/16" 0.18mm JR-T-6805-M3 0.25mm JR-T-4011-M3 0.50mm 58701 JR-T-4183-M3 0.75mm JR-T-4036-M3 1.00mm JR-T-6807-M3 1/8" 1.59mm 58703, 58694-U 25306 JR-T-6800-M3 2.40mm 25307 JR-T-4037-M3 2.00mm 1.70mm JR-T-6801-M3 4.00mm 3.00mm JR-T-4039 4.76mm 3.76mm JR-T-4041 1/4" 4.75mm JR-T-6810 Tubing Accessories PEEK Tubing Elbows 90° 25308 JR-357090 180° 25309 JR-357180 Clip Organizer 25310 JR-9001 Cutter Polymeric Tubing 8710-1930 Z29088-2, 57665-U 25069 JR-797, JR-794 SS Tubing 58692-U 20192 JR-792 Plier SS Tubing 58646 20193 JR-796 Easy-Flange Kits JR-201540 Easy-Flange Combi-Kit JR-201539 예일테크 2008.05.28
