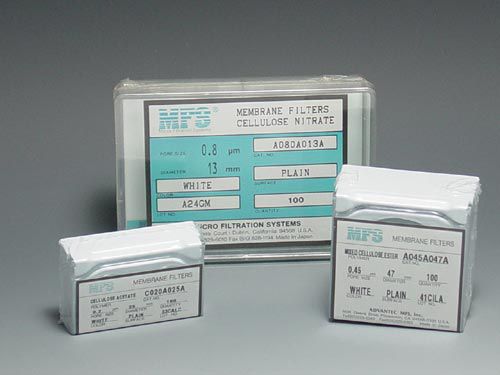

3 ADVANTEC Membrane filter-Cellulose Acetate
ADVANTEC Membrane filter-Cellulose Acetate

◈ Product Information
　• Composition : Mixture of cellulose triacetate and diacetate
　• Characteristics : Low static charge and high strength
　• Autoclavable : Withstands autoclaving temperatures up to 130°C without adversely affecting bubble point,
　　flow rate or microbiological recovery
　• Clean : Lowest aqueous extractables (0.1 wt%) of all Advantec membranes
　• Relative to MCE (Mixed Cellulose Esters, Nitrocellulose):
　　　– improved solvent resistance to low molecular weight alcohols
　　　– better heat resistance
　　　– lower protein binding

► Applications
　• Enhanced recovery of fastidious gram positive organisms
　• Filtration of enzyme solutions
　• Diagnostic cytology
　• Receptor binding studies
　　Note: Should not be prewet prior to loading into a holder and autoclaving.

► Specifications Pore Size
(µm) Bubble Point *1 Flow Rate *2 Porosity *3 (%) Thickness
(µm) MPa psi Water
(mL/min/cm2) Air
(L/min/cm2) 0.20 ≥0.25 ≥37.1 16 2 66 125 0.45 ≥0.17 ≥25.9 35 4 68 125 0.80 ≥0.068 ≥10.0 160 14 72 125 3.00 ≥0.034 ≥5.0 500 54 78 135 • Wetting time: 예일테크 2009.02.18

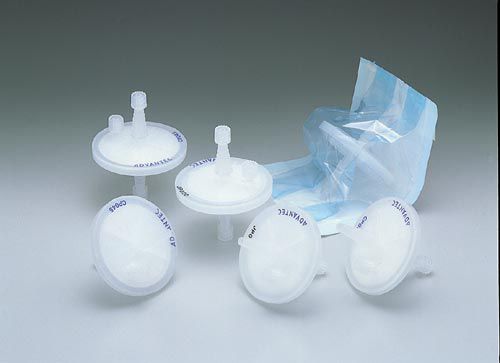

2 ADVANTEC LABODISC® Disposable Membrane
ADVANTECLABODISC® Disposable Membrane filter

◈ Product Information
　• LABODISC®는 Cellulose Acetate Membrane Filter, 또는 PTFE타입 Membrane Filter를 내장한, 직경 50mm의 Disposable Membrane filter Unit 입니다.
　• Filter와 Housing이 일체화되어 있고, Luer Slip Fitting에 의한 주사통의 접속과 호스 입구에 따른 튜브 접속 양쪽이 다 가능하므로 간편하게 여과조작을 실시할 수 있습니다.
　• 공기를 빼는 곳이 있으므로 Air Lock 현상의 방지가 가능합니다.
　• 100% 완전성 시험을 실시한 제품입니다.
　• 가압, 감압의 어느쪽 여과에도 다 사용할 수 있습니다.

◈ Specification Diameter 50 mm Housing material PP Filtration Area(cm2) 19.6 Hold-up Volume(mL) ≤3.0 Suggested capacity per filter unit(mL) >100 mL Pressure limit(MPa/psi) 0.34/49 Maximum Operating Temperature(℃/℉) 60/140 Connections 7–13.5 mm hose barb with male luer slip

► LABODISC®의 사용예

◈ Ordering Information   Diam. Membrane
material Pore size
(µm) Housing
material Quantity
per
package Non-Sterile Sterile 50 Cellulose
Acetate 0.20 Polypropylene 10 50CP020AN 50CP020AS 0.45 Polypropylene 10 50CP045AN 50CP045AS PTFE,
Hydrophobic 0.20 Polypropylene 10 50JP020AN - 0.50 Polypropylene 10 50JP050AN - 예일테크 2009.02.17

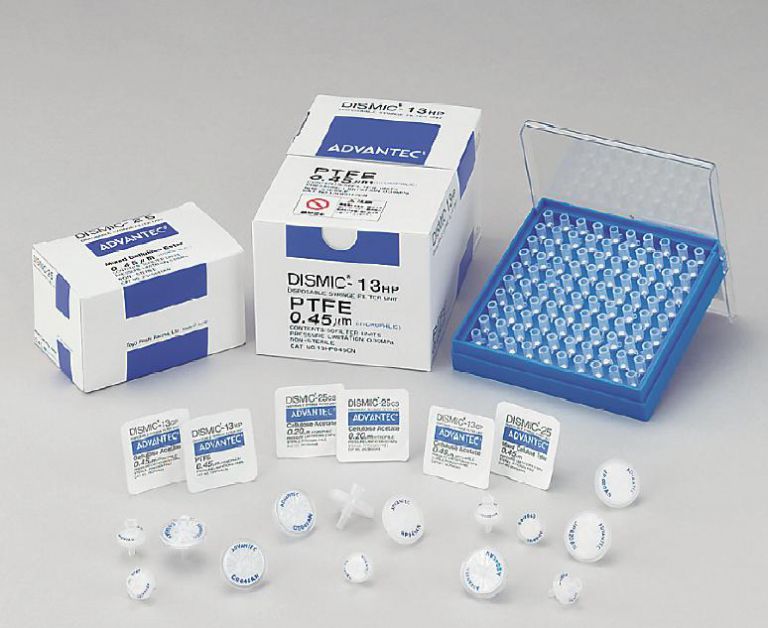

1 ADVANTEC DISMIC® Disposable Membrane
ADVANTECDISMIC® Disposable Membrane filter

◈ Product Information
　• Minimum sample hold-up : Unit housings are specifically designed to maximize sample recovery
　• High purity : Non-pigmented housing and integral filter sealing assure that filtrates will not be adulterated due to pigment, dye, or adhesives leaching into the filtrate
　• Convenient : Each unit is clearly marked with an identifying code to denote pore size, membrane material and housing polymer
　• Sterile : Units can be purchased pre-sterilized and individually packaged, or non-sterile in bulk pack
　• All polypropylene can be autoclaved Acrylic can not be autoclaved

► Mixed Cellulose Esters (MCE)
　• Properties: A hydrophilic membrane
　• Higher protein binding than cellulose acetate for most proteins
　• High porosity provides a high flow rate

► Cellulose Acetate (Acetate)
　• Standard: A commonly used hydrophilic membrane
　• Low protein binding, suitable for aqueous protein solutions
　• Nitrate-free, suitable for groundwater filtration
　• Housing material: polypropylene (3, 13, 50 mm) or styreneacrylonitrile (25 mm)

► PTFE, hydrophilic
　• Versatile: Good chemical resistance
　• Compatible with many solvent mixtures used in HPLC, e.g. Acetonitrile/Water

► PTFE, hydrophobic
　• Application: use as vent

◈ Specification Diameter 3 mm 13 mm 25 mm Housing material PP PP PP Acrylic Filtration Area(cm2) 0.06 0.9 4.0 4.0 Hold-up Volume(mL) ≤0.01 ≤0.03 ≤0.1 ≤0.1 Suggested capacity per filter unit(mL) <2 mL <10 mL <100 mL <100 mL Pressure limit(MPa/psi) 0.51/74 0.51/74* 0.51/74* 0.51/74 Maximum Operating Temperature(℃/℉) 60/140 60/140 60/140 45/113 Connections Inlet: female luer-lock
outlet: male luer slip*13HP, 25HP; Pressure Limit = 0.39 MPa (57 psi)

◈ Ordering Information Diam. Membrane
material Pore size
(µm) Housing
material Quantity
per
package Non-Sterile Sterile 3 Cellulose
Acetate 0.20 Polypropylene 100 03CP020AN 03CP020AS 0.45 Polypropylene 100 03CP045AN 03CP045AS PTFE,
Hydrophobic 0.50 Polypropylene 100 03JP050AN - 13 Cellulose
Acetate 0.20 Polypropylene 100 13CP020AN 13CP020AS 0.45 Polypropylene 100 13CP045AN 13CP045AS PTFE,
Hydrophilic 0.20 Polypropylene 100 13HP020AN - 0.45 Polypropylene 100 13HP045AN - PTFE,
Hydrophobic 0.20 Polypropylene 100 13JP020AN - 0.50 Polypropylene 100 13JP050AN - 25 MCE 0.20 Acrylic 50 25AS020AN 25AS020AS 0.45 Acrylic 50 25AS045AN 25AS045AS Cellulose
Acetate 0.20 Acrylic 50 25CS020AN 25CS020AS 0.45 Acrylic 50 25CS045AN 25CS045AS 0.80 Acrylic 50 25CS080AN 25CS080AS PTFE,
Hydrophilic 0.20 Polypropylene 100 25HP020AN - 0.45 Polypropylene 100 25HP045AN - PTFE,
Hydrophobic 0.20 Polypropylene 50 25JP020AN - 0.50 Polypropylene 50 25JP050AN - 예일테크 2009.02.17
