SK Chemicals

Introduction

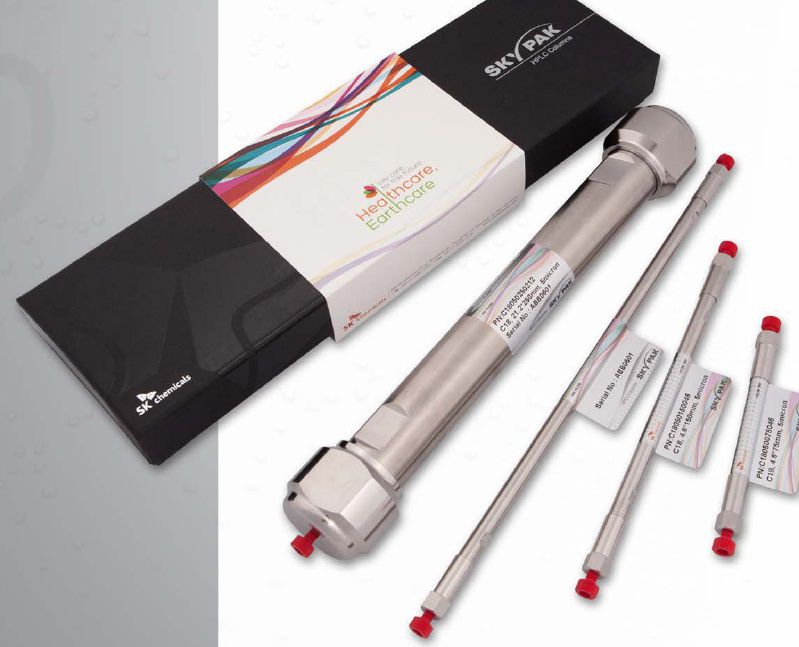

SKYPAK is the excellent choice for high-performance liquid chromatography analysis. It offers a wide range of reversed phase and normal phase HPLC columns. SKYPAK can be delivered in packages varying in size from narrow bore columns to semi-preparative columns. All packing materials are based on a 3, 5, 10um porous spherical silica support. Every step of the manufacturing process is stringently controlled and HPLC column is pretested to guarantee the high quality performance and reproducible column-to-column performance.



Features



• Excellent reproducibility

• Narrow peaks for outstanding efficiency

• Narrow particle size distribution

• Lower column back pressure

• High pure and rigid silica

• Variety of chemistries



Custom-made HPLC Column



We provide a variety of column size. If the specific column size is not on the product list, custom-made service is available.



Delivery Service



SKYPAK can be delivered to customer within 5 days. In case of custom-made service, it takes a week to provide columns to customers. The delivery lead-time for customized columns depends on size of customer’s request.



Pre-tested Column



The high-quality performance of SKYPAK is guaranteed by the strict and well-systemized quality control procedure.



Specification



» Particle size : 3,5,10 um

» Particle shape : Spherical

» Specific surface area : 330 ㎡/g

» Pore size : 120 Å

» Pore volume : 1.00mL/g

» Purity : 99.99 %

» Bonded phase : N/A

» Endcapped : N/A

» Carbon load : N/A

» Recommended pH range : 2 to 7.5



• High performance column for general purpose normal-phase applications

• High purity silica

• High mechanical stability

• Reproducibility batch to batch



Product List



Analytical Chromatography

Particle size(um)

Length(mm)

2.1 mm ID

3 mm ID

3.9 mm ID

4.6 mm ID

3

50

Sil03050021

Sil03050030

Sil03050039

Sil03050046

70

Sil03070021

Sil03070030

Sil03070039

Sil03070046

100

Sil03100021

Sil03100030

Sil03100039

Sil03100046

150

Sil03150021

Sil03150030

Sil03150039

Sil03150046

250

Sil03250021

Sil03250030

Sil03250039

Sil03250046

5

50

Sil05050021

Sil05050030

Sil05050039

Sil05050046

70

Sil05070021

Sil05070030

Sil05070039

Sil05070046

100

Sil05100021

Sil05100030

Sil05100039

Sil05100046

150

Sil05150021

Sil05150030

Sil05150039

Sil05150046

250

Sil05250021

Sil05250030

Sil05250039

Sil05250046













Semi-preparation

Particle size(um)

Length(mm)

10.0 mm ID

21.2 mm ID

5

50

Sil05050100

Sil05050212

70

Sil05070100

Sil05070212

100

Sil05100100

Sil05100212

150

Sil05150100

Sil05150212

250

Sil05250100

Sil05250212

10

100

Sil10100100

Sil10100212

150

Sil10150100

Sil10150212

250

Sil10250100

Sil10250212
