SK Chemicals

Introduction

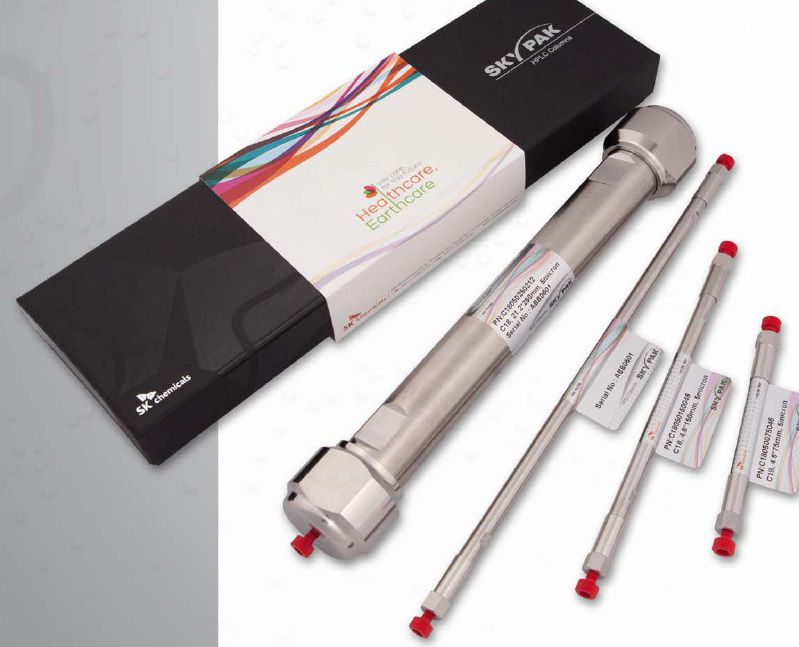

SKYPAK is the excellent choice for high-performance liquid chromatography analysis. It offers a wide range of reversed phase and normal phase HPLC columns. SKYPAK can be delivered in packages varying in size from narrow bore columns to semi-preparative columns. All packing materials are based on a 3, 5, 10um porous spherical silica support. Every step of the manufacturing process is stringently controlled and HPLC column is pretested to guarantee the high quality performance and reproducible column-to-column performance.



Features



• Excellent reproducibility

• Narrow peaks for outstanding efficiency

• Narrow particle size distribution

• Lower column back pressure

• High pure and rigid silica

• Variety of chemistries



Custom-made HPLC Column



We provide a variety of column size. If the specific column size is not on the product list, custom-made service is available.



Delivery Service



SKYPAK can be delivered to customer within 5 days. In case of custom-made service, it takes a week to provide columns to customers. The delivery lead-time for customized columns depends on size of customer’s request.



Pre-tested Column



The high-quality performance of SKYPAK is guaranteed by the strict and well-systemized quality control procedure.



Specification



» Particle size : 3,5,10 um

» Particle shape : Spherical

» Specific surface area : 330 ㎡/g

» Pore size : 120 Å

» Pore volume : 1.00mL/g

» Purity : 99.99 %

» Bonded phase : Phenyl

» Endcapped : Yes

» Carbon load : 9.5 %

» Recommended pH range : 2 to 7.5



• Alternative selectivity to C18 and C8

• Relatively lower hydrophobicity than C18 and C8

• Suitable for separating compounds with a wide range of hydrophobicity

• High performance

• High efficiency

• Excellent peak shape



Product List



Analytical Chromatography

Particle size(um)

Length(mm)

2.1 mm ID

3 mm ID

3.9 mm ID

4.6 mm ID

3

50

PH03050021

PH03050030

PH03050039

PH03050046

70

PH03070021

PH03070030

PH03070039

PH03070046

100

PH03100021

PH03100030

PH03100039

PH03100046

150

PH03150021

PH03150030

PH03150039

PH03150046

250

PH03250021

PH03250030

PH03250039

PH03250046

5

50

PH05050021

PH05050030

PH05050039

PH05050046

70

PH05070021

PH05070030

PH05070039

PH05070046

100

PH05100021

PH05100030

PH05100039

PH05100046

150

PH05150021

PH05150030

PH05150039

PH05150046

250

PH05250021

PH05250030

PH05250039

PH05250046













Semi-preparation

Particle size(um)

Length(mm)

10.0 mm ID

21.2 mm ID

5

50

PH05050100

PH05050212

70

PH05070100

PH05070212

100

PH05100100

PH05100212

150

PH05150100

PH05150212

250

PH05250100

PH05250212

10

100

PH10100100

PH10100212

150

PH10150100

PH10150212

250

PH10250100

PH10250212
