SK Chemicals

Introduction

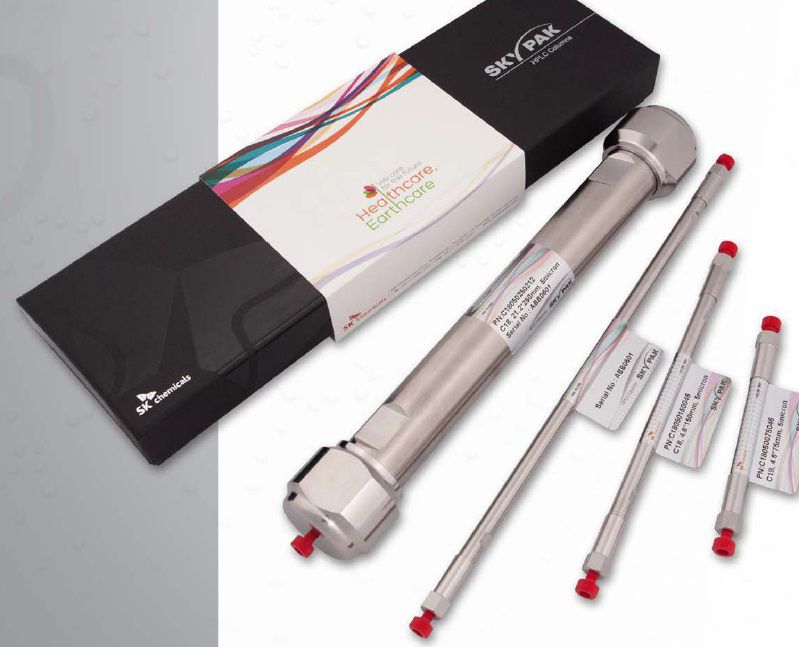

SKYPAK is the excellent choice for high-performance liquid chromatography analysis. It offers a wide range of reversed phase and normal phase HPLC columns. SKYPAK can be delivered in packages varying in size from narrow bore columns to semi-preparative columns. All packing materials are based on a 3, 5, 10um porous spherical silica support. Every step of the manufacturing process is stringently controlled and HPLC column is pretested to guarantee the high quality performance and reproducible column-to-column performance.



Features



• Excellent reproducibility

• Narrow peaks for outstanding efficiency

• Narrow particle size distribution

• Lower column back pressure

• High pure and rigid silica

• Variety of chemistries



Custom-made HPLC Column



We provide a variety of column size. If the specific column size is not on the product list, custom-made service is available.



Delivery Service



SKYPAK can be delivered to customer within 5 days. In case of custom-made service, it takes a week to provide columns to customers. The delivery lead-time for customized columns depends on size of customer’s request.



Pre-tested Column



The high-quality performance of SKYPAK is guaranteed by the strict and well-systemized quality control procedure.



Specification



» Particle size : 3,5,10 um

» Particle shape : Spherical

» Specific surface area : 330 ㎡/g

» Pore size : 120 Å

» Pore volume : 1.00mL/g

» Purity : 99.99 %

» Bonded phase : C8

» Endcapped : Yes

» Carbon load : 11.5 %

» Recommended pH range : 2 to 7.5



• Applications similar to C18, but with less hydrophobic retention

• High efficiency

• Lower hydrophobicity

• Fast separation



Product List



Analytical Chromatography

Particle size(um)

Length(mm)

2.1 mm ID

3 mm ID

3.9 mm ID

4.6 mm ID

3

50

C803050021

C803050030

C803050039

C803050046

70

C803070021

C803070030

C803070039

C803070046

100

C803100021

C803100030

C803100039

C803100046

150

C803150021

C803150030

C803150039

C803150046

250

C803250021

C803250030

C803250039

C803250046

5

50

C805050021

C805050030

C805050039

C805050046

70

C805070021

C805070030

C805070039

C805070046

100

C805100021

C805100030

C805100039

C805100046

150

C805150021

C805150030

C805150039

C805150046

250

C805250021

C805250030

C805250039

C805250046













Semi-preparation

Particle size(um)

Length(mm)

10.0 mm ID

21.2 mm ID

5

50

C805050100

C805050212

70

C805070100

C805070212

100

C805100100

C805100212

150

C805150100

C805150212

250

C805250100

C805250212

10

100

C810100100

C810100212

150

C810150100

C810150212

250

C810250100

C810250212
