YMC
YMC-Pack ODS-AL
◈ Product Information
ODS-AL is a non-endcapped high carbon load monomeric C18 phase. It is used only in those situations where residual sianol activity is beneficial to the separation. It is not recommended for the analysis of amines or other compounds with basic functional groups present as peak tailing may occur.
► Point
-Possess residual silanols for mixed-mode separations
-Same high ligand density as other YMC ODS phases
-Unique selectivity for polar compounds
► Specification
- Particle size :5㎛
- Pore size :120A
- Carbon contents :17%
- Usable pH range :2.0-7.5

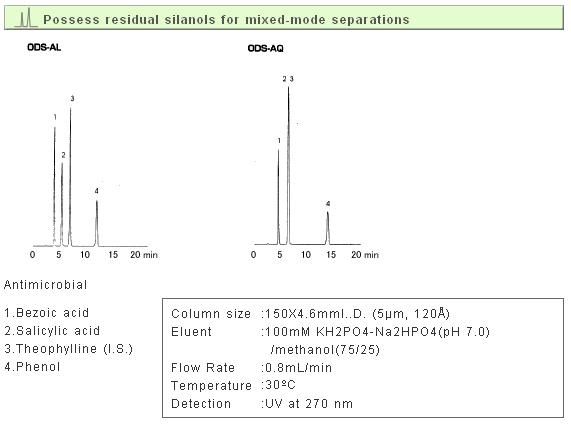

ODS-AL shows better separation for sakicylic acid and theopyhlline while ODS-AQ couldn't work for them. Therefore ODS-AL is sometimes effective in separations of compounds that other ODS phases fail to resolve.
◈ Ordering Information
|
Analytical Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AL12S05-1501WT |
YMC-Pack ODS-AL 120A 5um 1.0 x 150mm |
1/pkg |
|
AL12S05-2501WT |
YMC-Pack ODS-AL 120A 5um 1.0 x 250mm |
1/pkg |
|
AL12S05-15P5WT |
YMC-Pack ODS-AL 120A 5um 1.5 x 150mm |
1/pkg |
|
AL12S05-25P5WT |
YMC-Pack ODS-AL 120A 5um 1.5 x 250mm |
1/pkg |
|
AL12S05-1502WT |
YMC-Pack ODS-AL 120A 5um 2.0 x 150mm |
1/pkg |
|
AL12S05-2502WT |
YMC-Pack ODS-AL 120A 5um 2.0 x 250mm |
1/pkg |
|
AL12S05-L546WT |
YMC-Pack ODS-AL 120A 5um 4.6 x 75mm |
1/pkg |
|
AL12S05-1046WT |
YMC-Pack ODS-AL 120A 5um 4.6 x 100mm |
1/pkg |
|
AL12S05-1546WT |
YMC-Pack ODS-AL 120A 5um 4.6 x 150mm |
1/pkg |
|
AL12S05-2546WT |
YMC-Pack ODS-AL 120A 5um 4.6 x 250mm |
1/pkg |
|
AL12S05-3046WT |
YMC-Pack ODS-AL 120A 5um 4.6 x 300mm |
1/pkg |
|
AL12S05-1006WT |
YMC-Pack ODS-AL 120A 5um 6.0 x 100mm |
1/pkg |
|
AL12S05-1506WT |
YMC-Pack ODS-AL 120A 5um 6.0 x 150mm |
1/pkg |
|
AL12S05-2506WT |
YMC-Pack ODS-AL 120A 5um 6.0 x 250mm |
1/pkg |
|
AL12S05-3006WT |
YMC-Pack ODS-AL 120A 5um 6.0 x 300mm |
1/pkg |
|
Semi-preparative Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AL12S05-1510WT |
YMC-Pack ODS-AL Semi-Prep 120A 5um 10 x 150mm |
1/pkg |
|
AL12S05-2510WT |
YMC-Pack ODS-AL Semi-Prep 120A 5um 10 x 250mm |
1/pkg |
|
AL12S05-3010WT |
YMC-Pack ODS-AL Semi-Prep 120A 5um 10 x 300mm |
1/pkg |
|
AL12S05-1020WT |
YMC-Pack ODS-AL Semi-Prep 120A 5um 20 x 100mm |
1/pkg |
|
AL12S05-1520WT |
YMC-Pack ODS-AL Semi-Prep 120A 5um 20 x 150mm |
1/pkg |
|
AL12S05-2520WT |
YMC-Pack ODS-AL Semi-Prep 120A 5um 20 x 250mm |
1/pkg |
|
Guard Cartridges Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AL12S05-0101CC |
YMC-Pack ODS-AL Guard Cartridge col. 120A 5um 1.0 x 10mm |
2/pkg |
|
AL12S05-01P5CC |
YMC-Pack ODS-AL Guard Cartridge col. 120A 5um 1.5 x 10mm |
2/pkg |
|
AL12S05-0102CC |
YMC-Pack ODS-AL Guard Cartridge col. 120A 5um 2.0 x 10mm |
2/pkg |
|
AL12S05-G304CC |
YMC-Pack ODS-AL Guard Cartridge col. 120A 5um 4.0 x 23mm |
3/pkg |
| *When using it for the first time,please purchase the cartridge holder corresponding to inner diameter of column. |
|
Carrtridge Holder | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
XPCHSMW |
Semi Micro Guard Cartridge Holder (Inner diameter 1.0,1.5,2.0mm) |
1/pkg |
|
XPCHW |
Cartridge Holder(Inner diameter 4.0mm) |
1/pkg |
|
Guard Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AL12S05-0104WFG |
YMC-Pack ODS-AL Guard col. 120A 5um 4.0 x 10 mm |
1/pkg |
|
AL12S05-0105WFG |
YMC-Pack ODS-AL Guard col. 120A 5um 5.0 x 10 mm |
1/pkg |
|
AL12S05-0310WTG |
YMC-Pack ODS-AL Guard col. 120A 5um 10 x 30 mm |
1/pkg |
|
AL12S05-0520WTG |
YMC-Pack ODS-AL Guard col. 120A 5um 20 x 50 mm |
1/pkg |
