YMC-Pack ODS-AM
◈ Product Information
ODS-AM is a high carbon load C18 packing that is similar in selectivity to ODS-A. The major difference between these bonded phases is that ODS-AM has extremely tight specification criteria which provides excellent peak shape and more reproducible separation.
► Point
-Excellent peak symmetry: Virtually no residual silanol activity
-Selectivity similar to ODS-A
► Specification
- Particle size :3㎛, 5㎛
- Pore size :120A
- Carbon contents :17%
- Usable pH range :2.0-7.5

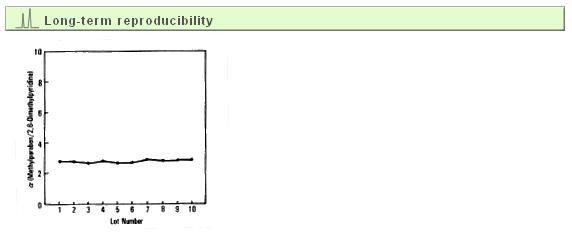

This figure shows the plot of separation factor(α) of methyl paraben/2,6-dimethylpyridine for past ten lots of ODS-AM. The rigorous quality control system applied by YMC minimizes the difference between each lot and provides high reproducibility for the separation of basic compounds.

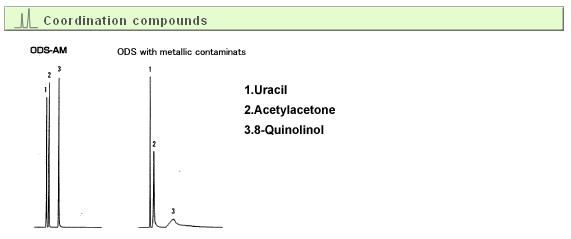

Metallic contaminants with the base silica cause significant tailing of coordination compounds such as 8-quinolinols or acetylacetones. ODS-AM provides chromatographers excellent peak shape because YMC controls the distribution level of metallic contaminants in the silica gel to keep it to a minimum.
◈ Ordering Information
|
Analytical Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AM12S03-H502WT |
YMC-Pack ODS-AM 120A 3um 2.0 x 35mm |
1/pkg |
|
AM12S03-0502WT |
YMC-Pack ODS-AM 120A 3um 2.0 x 50mm |
1/pkg |
|
AM12S03-L502WT |
YMC-Pack ODS-AM 120A 3um 2.0 x 75mm |
1/pkg |
|
AM12S03-1002WT |
YMC-Pack ODS-AM 120A 3um 2.0 x 100mm |
1/pkg |
|
AM12S03-1502WT |
YMC-Pack ODS-AM 120A 3um 2.0 x 150mm |
1/pkg |
|
AM12S03-0503WT |
YMC-Pack ODS-AM 120A 3um 3.0 x 50mm |
1/pkg |
|
AM12S03-1003WT |
YMC-Pack ODS-AM 120A 3um 3.0 x 100mm |
1/pkg |
|
AM12S03-1503WT |
YMC-Pack ODS-AM 120A 3um 3.0 x 150mm |
1/pkg |
|
AM12S03-L546WT |
YMC-Pack ODS-AM 120A 3um 4.6 x 75mm |
1/pkg |
|
AM12S03-1046WT |
YMC-Pack ODS-AM 120A 3um 4.6 x 100mm |
1/pkg |
|
AM12S03-1546WT |
YMC-Pack ODS-AM 120A 3um 4.6 x 150mm |
1/pkg |
|
AM12S03-1006WT |
YMC-Pack ODS-AM 120A 3um 6.0 x 100mm |
1/pkg |
|
AM12S03-1506WT |
YMC-Pack ODS-AM 120A 3um 6.0 x 150mm |
1/pkg |
|
AM12S03-2506WT |
YMC-Pack ODS-AM 120A 3um 6.0 x 250mm |
1/pkg |
|
AM12S05-1501WT |
YMC-Pack ODS-AM 120A 5um 1.0 x 150mm |
1/pkg |
|
AM12S05-2501WT |
YMC-Pack ODS-AM 120A 5um 1.0 x 250mm |
1/pkg |
|
AM12S05-15P5WT |
YMC-Pack ODS-AM 120A 5um 1.5 x 150mm |
1/pkg |
|
AM12S05-25P5WT |
YMC-Pack ODS-AM 120A 5um 1.5 x 250mm |
1/pkg |
|
AM12S05-L502WT |
YMC-Pack ODS-AM 120A 5um 2.0 x 75mm |
1/pkg |
|
AM12S05-1002WT |
YMC-Pack ODS-AM 120A 5um 2.0 x 100mm |
1/pkg |
|
AM12S05-1502WT |
YMC-Pack ODS-AM 120A 5um 2.0 x 150mm |
1/pkg |
|
AM12S05-2502WT |
YMC-Pack ODS-AM 120A 5um 2.0 x 250mm |
1/pkg |
|
AM12S05-1503WT |
YMC-Pack ODS-AM 120A 5um 3.0 x 150mm |
1/pkg |
|
AM12S05-2503WT |
YMC-Pack ODS-AM 120A 5um 3.0 x 250mm |
1/pkg |
|
AM12S05-L546WT |
YMC-Pack ODS-AM 120A 5um 4.6 x 75mm |
1/pkg |
|
AM12S05-1046WT |
YMC-Pack ODS-AM 120A 5um 4.6 x 100mm |
1/pkg |
|
AM12S05-1546WT |
YMC-Pack ODS-AM 120A 5um 4.6 x 150mm |
1/pkg |
|
AM12S05-2546WT |
YMC-Pack ODS-AM 120A 5um 4.6 x 250mm |
1/pkg |
|
AM12S05-3046WT |
YMC-Pack ODS-AM 120A 5um 4.6 x 300mm |
1/pkg |
|
AM12S05-1006WT |
YMC-Pack ODS-AM 120A 5um 6.0 x 100mm |
1/pkg |
|
AM12S05-1506WT |
YMC-Pack ODS-AM 120A 5um 6.0 x 150mm |
1/pkg |
|
AM12S05-2506WT |
YMC-Pack ODS-AM 120A 5um 6.0 x 250mm |
1/pkg |
|
AM12S05-3006WT |
YMC-Pack ODS-AM 120A 5um 6.0 x 300mm |
1/pkg |
|
Semi-preparative Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AM12S05-1510WT |
YMC-Pack ODS-AM Semi-Prep 120A 5um 10 x 150mm |
1/pkg |
|
AM12S05-2510WT |
YMC-Pack ODS-AM Semi-Prep 120A 5um 10 x 250mm |
1/pkg |
|
AM12S05-3010WT |
YMC-Pack ODS-AM Semi-Prep 120A 5um 10 x 300mm |
1/pkg |
|
AM12S05-1020WT |
YMC-Pack ODS-AM Semi-Prep 120A 5um 20 x 100mm |
1/pkg |
|
AM12S05-1520WT |
YMC-Pack ODS-AM Semi-Prep 120A 5um 20 x 150mm |
1/pkg |
|
AM12S05-2520WT |
YMC-Pack ODS-AM Semi-Prep 120A 5um 20 x 250mm |
1/pkg |
|
Guard Cartridges Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AM12S03-0102CC |
YMC-Pack ODS-AM Guard Cartridge col. 120A 3um 2.0 x 10mm |
2/pkg |
|
AM12S03-G304CC |
YMC-Pack ODS-AM Guard Cartridge col. 120A 3um 4.0 x 23mm |
3/pkg |
|
AM12S05-0101CC |
YMC-Pack ODS-AM Guard Cartridge col. 120A 5um 1.0 x 10mm |
2/pkg |
|
AM12S05-01P5CC |
YMC-Pack ODS-AM Guard Cartridge col. 120A 5um 1.5 x 10mm |
2/pkg |
|
AM12S05-0102CC |
YMC-Pack ODS-AM Guard Cartridge col. 120A 5um 2.0 x 10mm |
2/pkg |
|
AM12S05-G304CC |
YMC-Pack ODS-AM Guard Cartridge col. 120A 5um 4.0 x 23mm |
3/pkg |
| *When using it for the first time,please purchase the cartridge holder corresponding to inner diameter of column. |
|
Carrtridge Holder | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
XPCHSMW |
Semi Micro Guard Cartridge Holder (Inner diameter 1.0,1.5,2.0mm) |
1/pkg |
|
XPCHW |
Cartridge Holder(Inner diameter 4.0mm) |
1/pkg |
|
YMC Guard Cartridge Pack | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AM12S03-G304CCPK |
YMC-Pack ODS-AM Guard Cartridge Pack 120A 3um 4.0 x 23 mm |
1/pkg |
|
AM12S05-G304CCPK |
YMC-Pack ODS-AM Guard Cartridge Pack 120A 5um 4.0 x 23 mm |
1/pkg |
| *Cartridge holder(1set), Guard cartridge Columns (1 piece), and Columns coupler(PEEK) are included in the guard cartridge packing. |
|
Guard Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AM12S03-0104WFG |
YMC-Pack ODS-AM Guard col. 120A 3um 4.0 x 10 mm |
1/pkg |
|
AM12S03-0105WFG |
YMC-Pack ODS-AM Guard col. 120A 3um 5.0 x 10 mm |
1/pkg |
|
AM12S05-0104WFG |
YMC-Pack ODS-AM Guard col. 120A 5um 4.0 x 10 mm |
1/pkg |
|
AM12S05-0105WFG |
YMC-Pack ODS-AM Guard col. 120A 5um 5.0 x 10 mm |
1/pkg |
|
AM12S05-0310WTG |
YMC-Pack ODS-AM Guard col. 120A 5um 10 x 30 mm |
1/pkg |
|
AM12S05-0520WTG |
YMC-Pack ODS-AM Guard col. 120A 5um 20 x 50 mm |
1/pkg |
