YMC

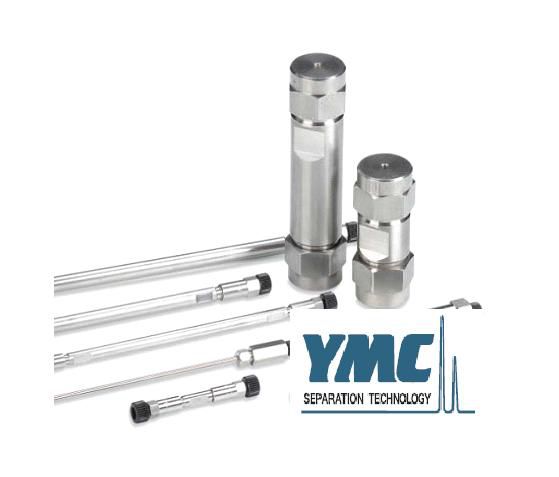

YMC-Pack ODS-A
◈ Product Information
ODS-A in 120A pore size is the first choice of many chromatographers for high performance reversed phase separations. It has selectivity for the separation of a wide range of organic compounds found in pharmaceutical, chemical and biotechnology industries.
ODS-A is a high coverage, fully endcapped C18 phase which exhibits exceptional batch-to-batch reproducibility. ODS-A columns are noted for their high efficiency, selectivity and long lifetimes.
200A ODS-A offers a unique mix of moderately large pores and high surface area for the analysis of a wide rage of compounds, from small organics and pharmaceuticals to moderately sized proteins.
► Point
-Highly versatile ODS phase
-Selectivity for polar to moderately nonpolar pharmaceuticals, organic chemicals, biologicals and natural products
► Specification
- Particle size :3㎛, 5㎛, 10㎛
- Pore size :120A, 200A, 300A
- Carbon contents :17%, 12%, 7%
- Usable pH range :2.0-7.5

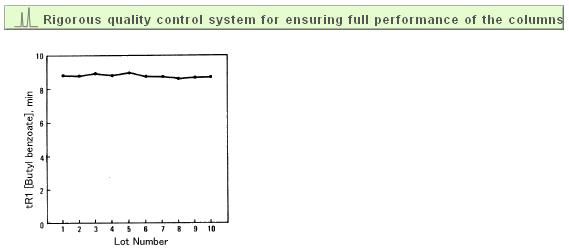

This figure shows the reproducibility for hydrophobicity of the past ten lots of packing material. Consistent batch-to-batch and column-to-column retention are a key feature of YMC columns.
◈ Ordering Information
|
Analytical Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AA12S03-H502WT |
YMC-Pack ODS-A 120A 3um 2.0 x 35mm |
1/pkg |
|
AA12S03-0502WT |
YMC-Pack ODS-A 120A 3um 2.0 x 50mm |
1/pkg |
|
AA12S03-L502WT |
YMC-Pack ODS-A 120A 3um 2.0 x 75mm |
1/pkg |
|
AA12S03-1002WT |
YMC-Pack ODS-A 120A 3um 2.0 x 100mm |
1/pkg |
|
AA12S03-1502WT |
YMC-Pack ODS-A 120A 3um 2.0 x 150mm |
1/pkg |
|
AA12S03-0503WT |
YMC-Pack ODS-A 120A 3um 3.0 x 50mm |
1/pkg |
|
AA12S03-1003WT |
YMC-Pack ODS-A 120A 3um 3.0 x 100mm |
1/pkg |
|
AA12S03-1503WT |
YMC-Pack ODS-A 120A 3um 3.0 x 150mm |
1/pkg |
|
AA12S03-L546WT |
YMC-Pack ODS-A 120A 3um 4.6 x 75mm |
1/pkg |
|
AA12S03-1046WT |
YMC-Pack ODS-A 120A 3um 4.6 x 100mm |
1/pkg |
|
AA12S03-1546WT |
YMC-Pack ODS-A 120A 3um 4.6 x 150mm |
1/pkg |
|
AA12S03-1006WT |
YMC-Pack ODS-A 120A 3um 6.0 x 100mm |
1/pkg |
|
AA12S03-1506WT |
YMC-Pack ODS-A 120A 3um 6.0 x 150mm |
1/pkg |
|
AA12S05-1501WT |
YMC-Pack ODS-A 120A 5um 1.0 x 150mm |
1/pkg |
|
AA12S05-2501WT |
YMC-Pack ODS-A 120A 5um 1.0 x 250mm |
1/pkg |
|
AA12S05-15P5WT |
YMC-Pack ODS-A 120A 5um 1.5 x 150mm |
1/pkg |
|
AA12S05-25P5WT |
YMC-Pack ODS-A 120A 5um 1.5 x 250mm |
1/pkg |
|
AA12S05-L502WT |
YMC-Pack ODS-A 120A 5um 2.0 x 75mm |
1/pkg |
|
AA12S05-1502WT |
YMC-Pack ODS-A 120A 5um 2.0 x 150mm |
1/pkg |
|
AA12S05-2502WT |
YMC-Pack ODS-A 120A 5um 2.0 x 250mm |
1/pkg |
|
AA12S05-1503WT |
YMC-Pack ODS-A 120A 5um 3.0 x 150mm |
1/pkg |
|
AA12S05-2503WT |
YMC-Pack ODS-A 120A 5um 3.0 x 250mm |
1/pkg |
|
AA12S05-L546WT |
YMC-Pack ODS-A 120A 5um 4.6 x 75mm |
1/pkg |
|
AA12S05-1046WT |
YMC-Pack ODS-A 120A 5um 4.6 x 100mm |
1/pkg |
|
AA12S05-1546WT |
YMC-Pack ODS-A 120A 5um 4.6 x 150mm |
1/pkg |
|
AA12S05-2546WT |
YMC-Pack ODS-A 120A 5um 4.6 x 250mm |
1/pkg |
|
AA12S05-3046WT |
YMC-Pack ODS-A 120A 5um 4.6 x 300mm |
1/pkg |
|
AA12S05-1006WT |
YMC-Pack ODS-A 120A 5um 6.0 x 100mm |
1/pkg |
|
AA12S05-1506WT |
YMC-Pack ODS-A 120A 5um 6.0 x 150mm |
1/pkg |
|
AA12S05-2506WT |
YMC-Pack ODS-A 120A 5um 6.0 x 250mm |
1/pkg |
|
AA12S05-3006WT |
YMC-Pack ODS-A 120A 5um 6.0 x 300mm |
1/pkg |
|
AA20S05-1546WT |
YMC-Pack ODS-A 200A 5um 4.6 x 150mm |
1/pkg |
|
AA20S05-2546WT |
YMC-Pack ODS-A 200A 5um 4.6 x 250mm |
1/pkg |
|
AA30S05-1501WT |
YMC-Pack ODS-A 300A 5um 1.0 x 150mm |
1/pkg |
|
AA30S05-2501WT |
YMC-Pack ODS-A 300A 5um 1.0 x 250mm |
1/pkg |
|
AA30S05-15P5WT |
YMC-Pack ODS-A 300A 5um 1.5 x 150mm |
1/pkg |
|
AA30S05-25P5WT |
YMC-Pack ODS-A 300A 5um 1.5 x 250mm |
1/pkg |
|
AA30S05-L502WT |
YMC-Pack ODS-A 300A 5um 2.0 x 75mm |
1/pkg |
|
AA30S05-1502WT |
YMC-Pack ODS-A 300A 5um 2.0 x 150mm |
1/pkg |
|
AA30S05-2502WT |
YMC-Pack ODS-A 300A 5um 2.0 x 250mm |
1/pkg |
|
AA30S05-L546WT |
YMC-Pack ODS-A 300A 5um 4.6 x 75mm |
1/pkg |
|
AA30S05-1046WT |
YMC-Pack ODS-A 300A 5um 4.6 x 100mm |
1/pkg |
|
AA30S05-1546WT |
YMC-Pack ODS-A 300A 5um 4.6 x 150mm |
1/pkg |
|
AA30S05-2546WT |
YMC-Pack ODS-A 300A 5um 4.6 x 250mm |
1/pkg |
|
AA30S05-3046WT |
YMC-Pack ODS-A 300A 5um 4.6 x 300mm |
1/pkg |
|
AA30S05-1006WT |
YMC-Pack ODS-A 300A 5um 6.0 x 100mm |
1/pkg |
|
AA30S05-1506WT |
YMC-Pack ODS-A 300A 5um 6.0 x 150mm |
1/pkg |
|
AA30S05-2506WT |
YMC-Pack ODS-A 300A 5um 6.0 x 250mm |
1/pkg |
|
AA30S05-3006WT |
YMC-Pack ODS-A 300A 5um 6.0 x 300mm |
1/pkg |
|
AA12S11-1046WT |
YMC-Pack ODS-A 120A 10um 4.6 x 100mm |
1/pkg |
|
AA12S11-1546WT |
YMC-Pack ODS-A 120A 10um 4.6 x 150mm |
1/pkg |
|
AA12S11-2546WT |
YMC-Pack ODS-A 120A 10um 4.6 x 250mm |
1/pkg |
|
AA12S11-3046WT |
YMC-Pack ODS-A 120A 10um 4.6 x 300mm |
1/pkg |
|
AA12S11-1006WT |
YMC-Pack ODS-A 120A 10um 6.0 x 100mm |
1/pkg |
|
AA12S11-1506WT |
YMC-Pack ODS-A 120A 10um 6.0 x 150mm |
1/pkg |
|
AA12S11-2506WT |
YMC-Pack ODS-A 120A 10um 6.0 x 250mm |
1/pkg |
|
AA12S11-3006WT |
YMC-Pack ODS-A 120A 10um 6.0 x 300mm |
1/pkg |
|
AA30S11-1046WT |
YMC-Pack ODS-A 300A 10um 4.6 x 100mm |
1/pkg |
|
AA30S11-1546WT |
YMC-Pack ODS-A 300A 10um 4.6 x 150mm |
1/pkg |
|
AA30S11-2546WT |
YMC-Pack ODS-A 300A 10um 4.6 x 250mm |
1/pkg |
|
AA30S11-3046WT |
YMC-Pack ODS-A 300A 10um 4.6 x 300mm |
1/pkg |
|
AA30S11-1006WT |
YMC-Pack ODS-A 300A 10um 6.0 x 100mm |
1/pkg |
|
AA30S11-1506WT |
YMC-Pack ODS-A 300A 10um 6.0 x 150mm |
1/pkg |
|
AA30S11-2506WT |
YMC-Pack ODS-A 300A 10um 6.0 x 250mm |
1/pkg |
|
AA30S11-3006WT |
YMC-Pack ODS-A 300A 10um 6.0 x 300mm |
1/pkg |
|
Semi-preparative Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AA12S05-1510WT |
YMC-Pack ODS-A Semi-Prep 120A 5um 10 x 150mm |
1/pkg |
|
AA12S05-2510WT |
YMC-Pack ODS-A Semi-Prep 120A 5um 10 x 250mm |
1/pkg |
|
AA12S05-3010WT |
YMC-Pack ODS-A Semi-Prep 120A 5um 10 x 300mm |
1/pkg |
|
AA12S05-1020WT |
YMC-Pack ODS-A Semi-Prep 120A 5um 20 x 100mm |
1/pkg |
|
AA12S05-1520WT |
YMC-Pack ODS-A Semi-Prep 120A 5um 20 x 150mm |
1/pkg |
|
AA12S05-2520WT |
YMC-Pack ODS-A Semi-Prep 120A 5um 20 x 250mm |
1/pkg |
|
AA20S05-1520WT |
YMC-Pack ODS-A Semi-Prep 200A 5um 20 x 150mm |
1/pkg |
|
AA20S05-2520WT |
YMC-Pack ODS-A Semi-Prep 200A 5um 20 x 250mm |
1/pkg |
|
AA30S05-1510WT |
YMC-Pack ODS-A Semi-Prep 300A 5um 10 x 150mm |
1/pkg |
|
AA30S05-2510WT |
YMC-Pack ODS-A Semi-Prep 300A 5um 10 x 250mm |
1/pkg |
|
AA30S05-3010WT |
YMC-Pack ODS-A Semi-Prep 300A 5um 10 x 300mm |
1/pkg |
|
AA30S05-1520WT |
YMC-Pack ODS-A Semi-Prep 300A 5um 20 x 150mm |
1/pkg |
|
AA30S05-2520WT |
YMC-Pack ODS-A Semi-Prep 300A 5um 20 x 250mm |
1/pkg |
|
AA12S11-1510WT |
YMC-Pack ODS-A Semi-Prep 120A 10um 10 x 150mm |
1/pkg |
|
AA12S11-2510WT |
YMC-Pack ODS-A Semi-Prep 120A 10um 10 x 250mm |
1/pkg |
|
AA12S11-3010WT |
YMC-Pack ODS-A Semi-Prep 120A 10um 10 x 300mm |
1/pkg |
|
AA12S11-1520WT |
YMC-Pack ODS-A Semi-Prep 120A 10um 20 x 150mm |
1/pkg |
|
AA12S11-2520WT |
YMC-Pack ODS-A Semi-Prep 120A 10um 20 x 250mm |
1/pkg |
|
AA20S11-1520WT |
YMC-Pack ODS-A Semi-Prep 200A 10um 20 x 150mm |
1/pkg |
|
AA20S11-2520WT |
YMC-Pack ODS-A Semi-Prep 200A 10um 20 x 250mm |
1/pkg |
|
AA30S11-1510WT |
YMC-Pack ODS-A Semi-Prep 300A 10um 10 x 150mm |
1/pkg |
|
AA30S11-2510WT |
YMC-Pack ODS-A Semi-Prep 300A 10um 10 x 250mm |
1/pkg |
|
AA30S11-3010WT |
YMC-Pack ODS-A Semi-Prep 300A 10um 10 x 300mm |
1/pkg |
|
AA30S11-1520WT |
YMC-Pack ODS-A Semi-Prep 300A 10um 20 x 150mm |
1/pkg |
|
AA30S11-2520WT |
YMC-Pack ODS-A Semi-Prep 300A 10um 20 x 250mm |
1/pkg |
|
Guard Cartridges Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AA12S03-0102CC |
YMC-Pack ODS-A Guard Cartridge col. 120A 3um 2.0 x 10mm |
2/pkg |
|
AA12S03-G304CC |
YMC-Pack ODS-A Guard Cartridge col. 120A 3um 4.0 x 23mm |
3/pkg |
|
AA12S05-0101CC |
YMC-Pack ODS-A Guard Cartridge col. 120A 5um 1.0 x 10mm |
2/pkg |
|
AA12S05-01P5CC |
YMC-Pack ODS-A Guard Cartridge col. 120A 5um 1.5 x 10mm |
2/pkg |
|
AA12S05-0102CC |
YMC-Pack ODS-A Guard Cartridge col. 120A 5um 2.0 x 10mm |
2/pkg |
|
AA12S05-G304CC |
YMC-Pack ODS-A Guard Cartridge col. 120A 5um 4.0 x 23mm |
3/pkg |
|
AA20S05-G304CC |
YMC-Pack ODS-A Guard Cartridge col. 200A 5um 4.0 x 23mm |
3/pkg |
|
AA30S05-0101CC |
YMC-Pack ODS-A Guard Cartridge col. 300A 5um 1.0 x 10mm |
2/pkg |
|
AA30S05-01P5CC |
YMC-Pack ODS-A Guard Cartridge col. 300A 5um 1.5 x 10mm |
2/pkg |
|
AA30S05-0102CC |
YMC-Pack ODS-A Guard Cartridge col. 300A 5um 2.0 x 10mm |
2/pkg |
|
AA30S05-G304CC |
YMC-Pack ODS-A Guard Cartridge col. 300A 5um 4.0 x 23mm |
3/pkg |
| *When using it for the first time,please purchase the cartridge holder corresponding to inner diameter of column. |
|
Carrtridge Holder | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
XPCHSMW |
Semi Micro Guard Cartridge Holder(Inner diameter 1.0,1.5,2.0mm) |
1/pkg |
|
XPCHW |
Cartridge Holder(Inner diameter 4.0mm) |
1/pkg |
|
YMC Guard Cartridge Pack | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AA12S03-G304CCPK |
YMC-Pack ODS-A Guard Cartridge Pack 120A 3um 4.0 x 23 mm |
1/pkg |
|
AA12S05-G304CCPK |
YMC-Pack ODS-A Guard Cartridge Pack 120A 5um 4.0 x 23 mm |
1/pkg |
| *Cartridge holder(1set), Guard cartridge Columns (1 piece), and Columns coupler(PEEK) are included in the guard cartridge packing. |
|
Guard Columns | ||
|---|---|---|
|
Product Number |
Description |
Package |
|
AA12S03-0104WFG |
YMC-Pack ODS-A Guard col. 120A 3um 4.0 x 10 mm |
1/pkg |
|
AA12S03-0105WFG |
YMC-Pack ODS-A Guard col. 120A 3um 5.0 x 10 mm |
1/pkg |
|
AA12S05-0104WFG |
YMC-Pack ODS-A Guard col. 120A 5um 4.0 x 10 mm |
1/pkg |
|
AA12S05-0105WFG |
YMC-Pack ODS-A Guard col. 120A 5um 5.0 x 10 mm |
1/pkg |
|
AA12S05-0310WTG |
YMC-Pack ODS-A Guard col. 120A 5um 10 x 30 mm |
1/pkg |
|
AA12S05-0520WTG |
YMC-Pack ODS-A Guard col. 120A 5um 20 x 50 mm |
1/pkg |
|
AA20S05-0104WFG |
YMC-Pack ODS-A Guard col. 200A 5um 4.0 x 10 mm |
1/pkg |
|
AA20S05-0520WTG |
YMC-Pack ODS-A Guard col. 200A 5um 20 x 50 mm |
1/pkg |
|
AA30S05-0104WFG |
YMC-Pack ODS-A Guard col. 300A 5um 4.0 x 10 mm |
1/pkg |
|
AA30S05-0105WFG |
YMC-Pack ODS-A Guard col. 300A 5um 5.0 x 10 mm |
1/pkg |
|
AA30S05-0310WTG |
YMC-Pack ODS-A Guard col. 300A 5um 10 x 30 mm |
1/pkg |
|
AA30S05-0520WTG |
YMC-Pack ODS-A Guard col. 300A 5um 20 x 50 mm |
1/pkg |
|
AA12S11-0104WFG |
YMC-Pack ODS-A Guard col. 120A 10um 4.0 x 10 mm |
1/pkg |
|
AA12S11-0105WFG |
YMC-Pack ODS-A Guard col. 120A 10um 5.0 x 10 mm |
1/pkg |
|
AA12S11-0310WTG |
YMC-Pack ODS-A Guard col. 120A 10um 10 x 30 mm |
1/pkg |
|
AA12S11-0520WTG |
YMC-Pack ODS-A Guard col. 120A 10um 20 x 50 mm |
1/pkg |
|
AA20S11-0104WFG |
YMC-Pack ODS-A Guard col. 200A 10um 4.0 x 10 mm |
1/pkg |
|
AA20S11-0105WFG |
YMC-Pack ODS-A Guard col. 200A 10um 5.0 x 10 mm |
1/pkg |
|
AA20S11-0520WTG |
YMC-Pack ODS-A Guard col. 200A 10um 20 x 50 mm |
1/pkg |
|
AA30S11-0104WFG |
YMC-Pack ODS-A Guard col. 300A 10um 4.0 x 10 mm |
1/pkg |
|
AA30S11-0105WFG |
YMC-Pack ODS-A Guard col. 300A 10um 5.0 x 10 mm |
1/pkg |
|
AA30S11-0310WTG |
YMC-Pack ODS-A Guard col. 300A 10um 10 x 30 mm |
1/pkg |
|
AA30S11-0520WTG |
YMC-Pack ODS-A Guard col. 300A 10um 20 x 50 mm |
1/pkg |
